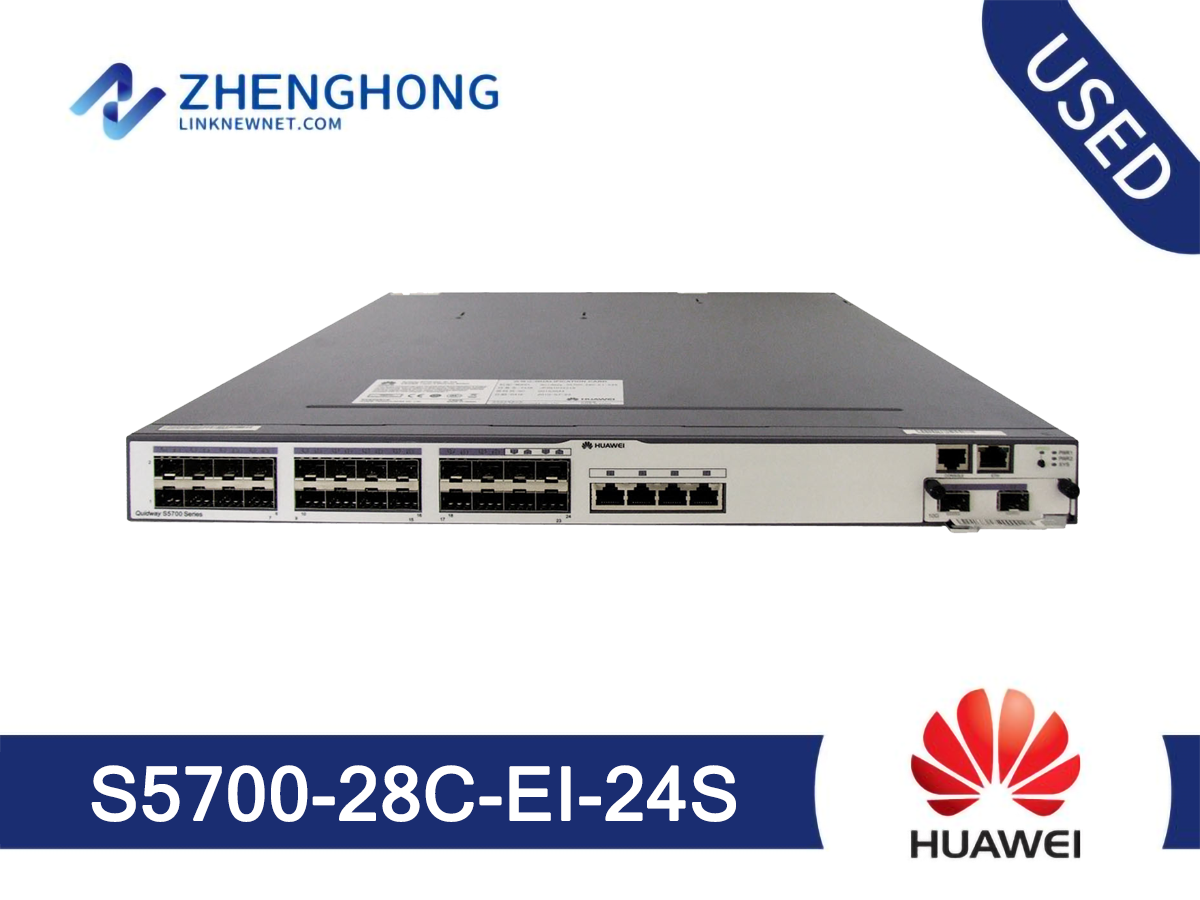

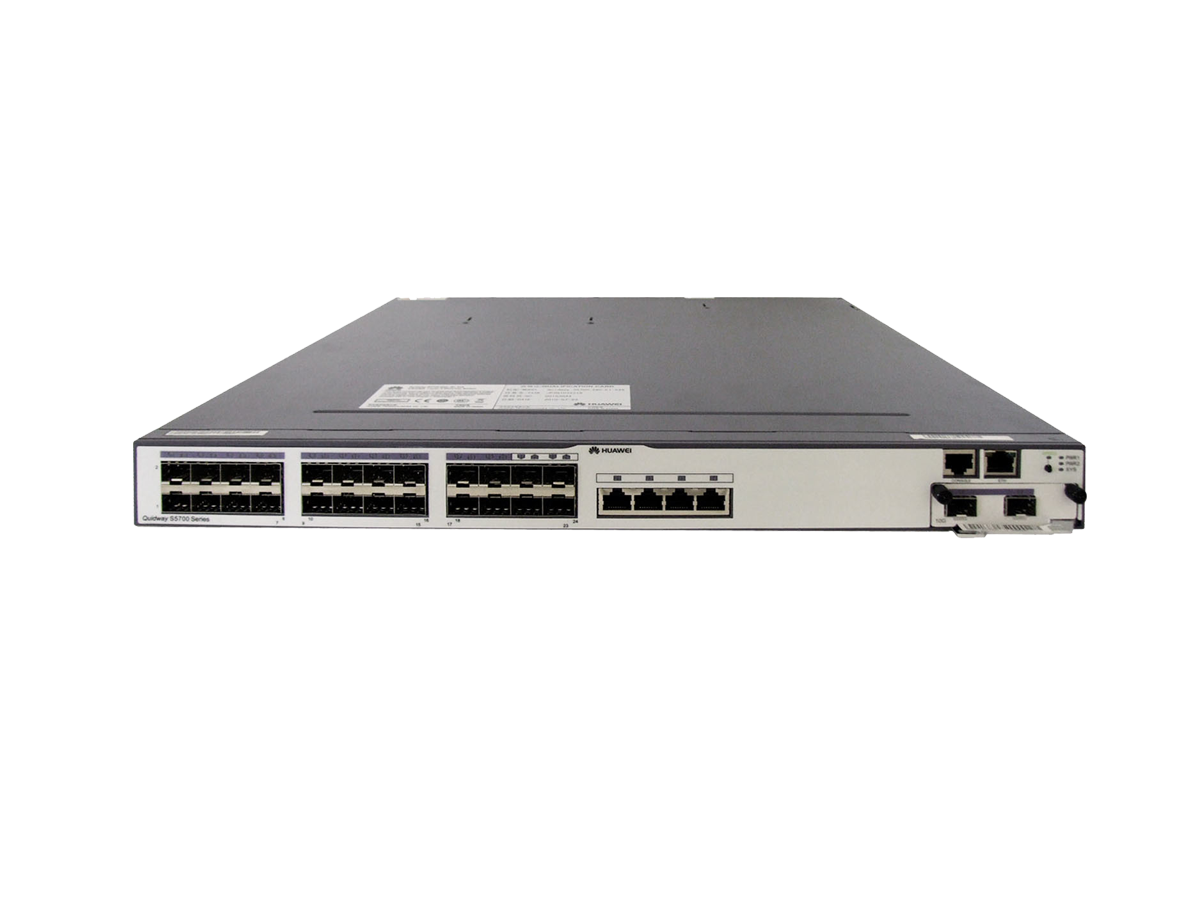

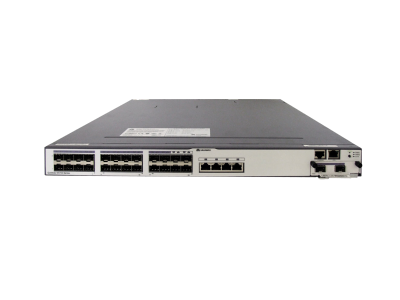

S5700-28C-EI-24S Specifications | |
Manufacturer | Huawei |
Manufacturer Part Number | S5700-28C-EI-24S |
Form Factor | Fixed, Stackable |
Switch Port | 20 GE SFP ports, 4 GE Combo ports |
Power Over Ethernet (PoE) | Non-POE |
Extended slot | Provides two extended slots, one for an uplink subcard and the other for a stack card |
Max Stack bandwidth | 48Gbps |
DRAM Memory | 256 MB |
Flash Memory | 32 MB |
Performance | |
Forwarding performance | 96 Mpps |
MAC address table | IEEE 802.1d compliance |
16 K MAC address entries | |
MAC address learning and aging | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
VLAN | 4 K VLANs |
Reliability | RRPP ring topology and RRPP multi-instance |
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
SEP | |
STP, RSTP, and MSTP | |
BPDU protection, root protection, and loop protection | |
E-Trunk | |
IP routing | Static routing, ECMP |
RIPv1, RIPv2 and RIPng | |
IPv6 features | Neighbor Discovery (ND) |
Path MTU (PMTU) | |
IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
MLD v1/v2 snooping | |
6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
Security | User privilege management and password protection |
DoS attack defense, ARP attack defense, and ICMP attack defense | |
Binding of the IP address, MAC address, interface, and VLAN | |
Port isolation, port security, and sticky MAC | |
Blackhole MAC address entries | |
Limit on the number of learned MAC addresses | |
802.1x authentication and limit on the number of users on an interface | |
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
SSH v2.0 | |
Hypertext Transfer Protocol Secure (HTTPS) | |
CPU defense | |
Blacklist and whitelist | |
Management | |
Management and maintenance | Stacking MAC Forced Forwarding (MFF) Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance by using Telnet SNMP v1/v2/v3 RMON Web NMS HGMP System logs and alarms of different levels GVRP MUX VLAN |

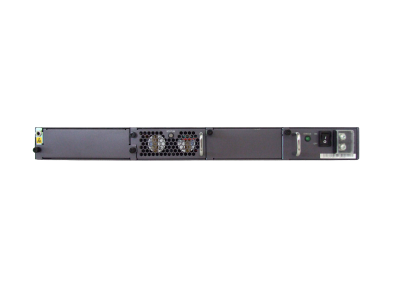

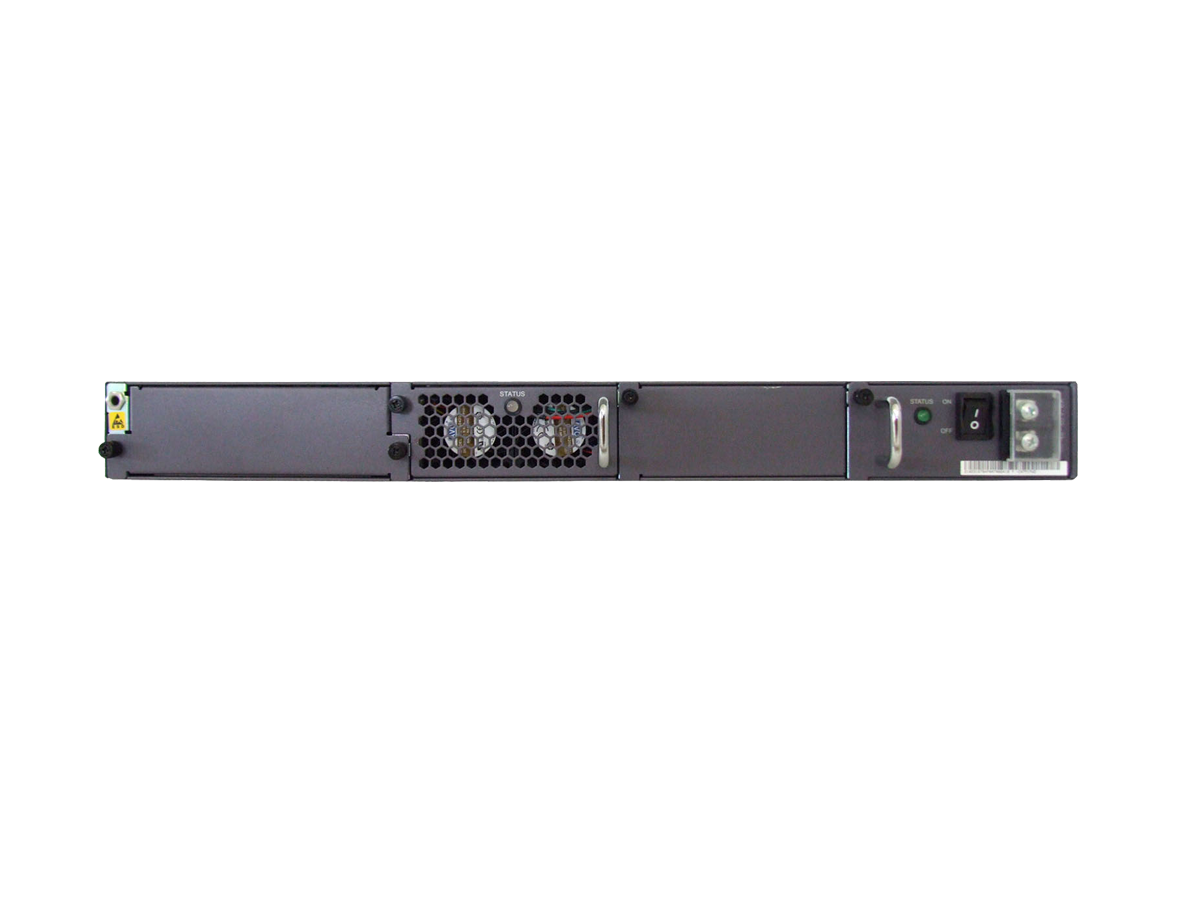

Power Supply Specifications | |
Power Device | Power supply - Non-PoE |
Power Redundancy | No |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Dimensions / Weight / Miscellaneous | |
Width | 44.2cm |
Depth | 43.6cm |
Height | 22.0cm |
Weight | 5.0kg |
