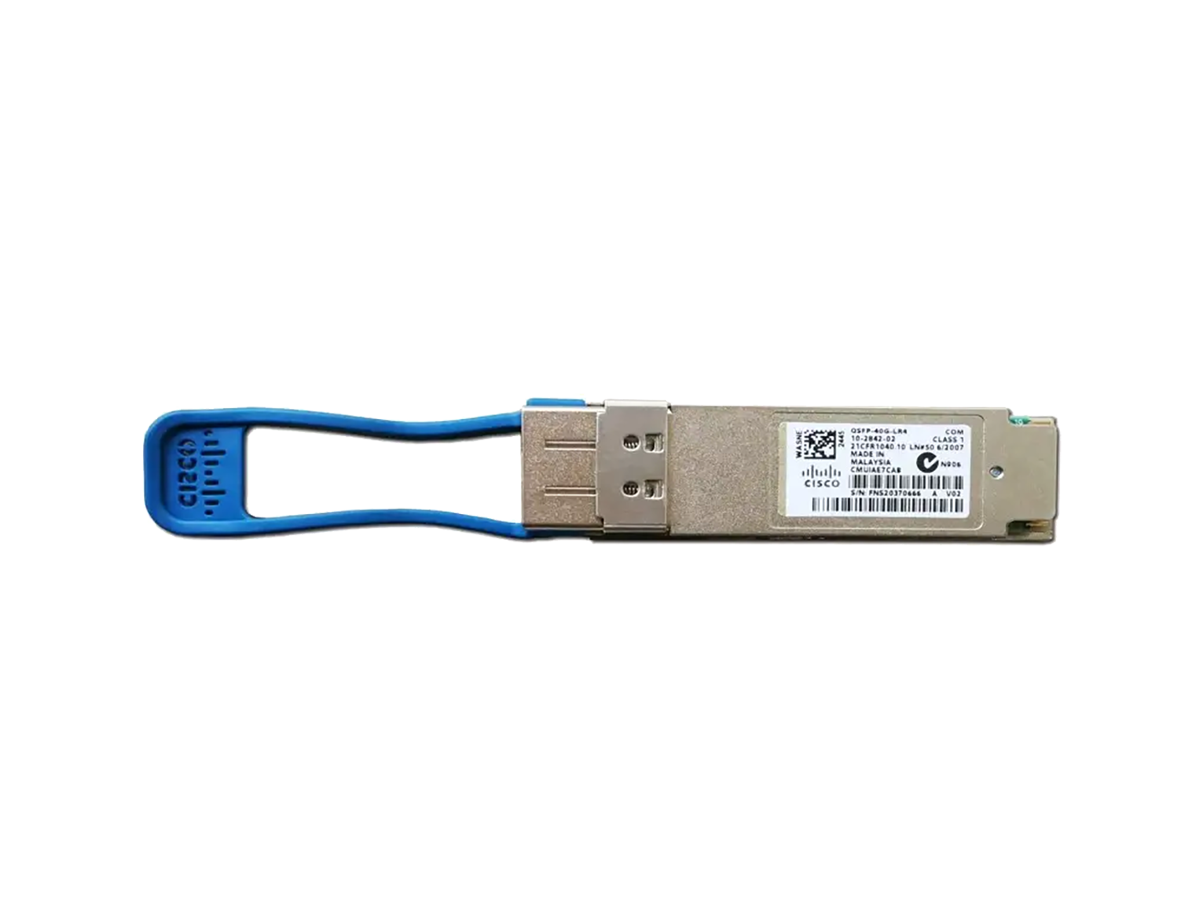

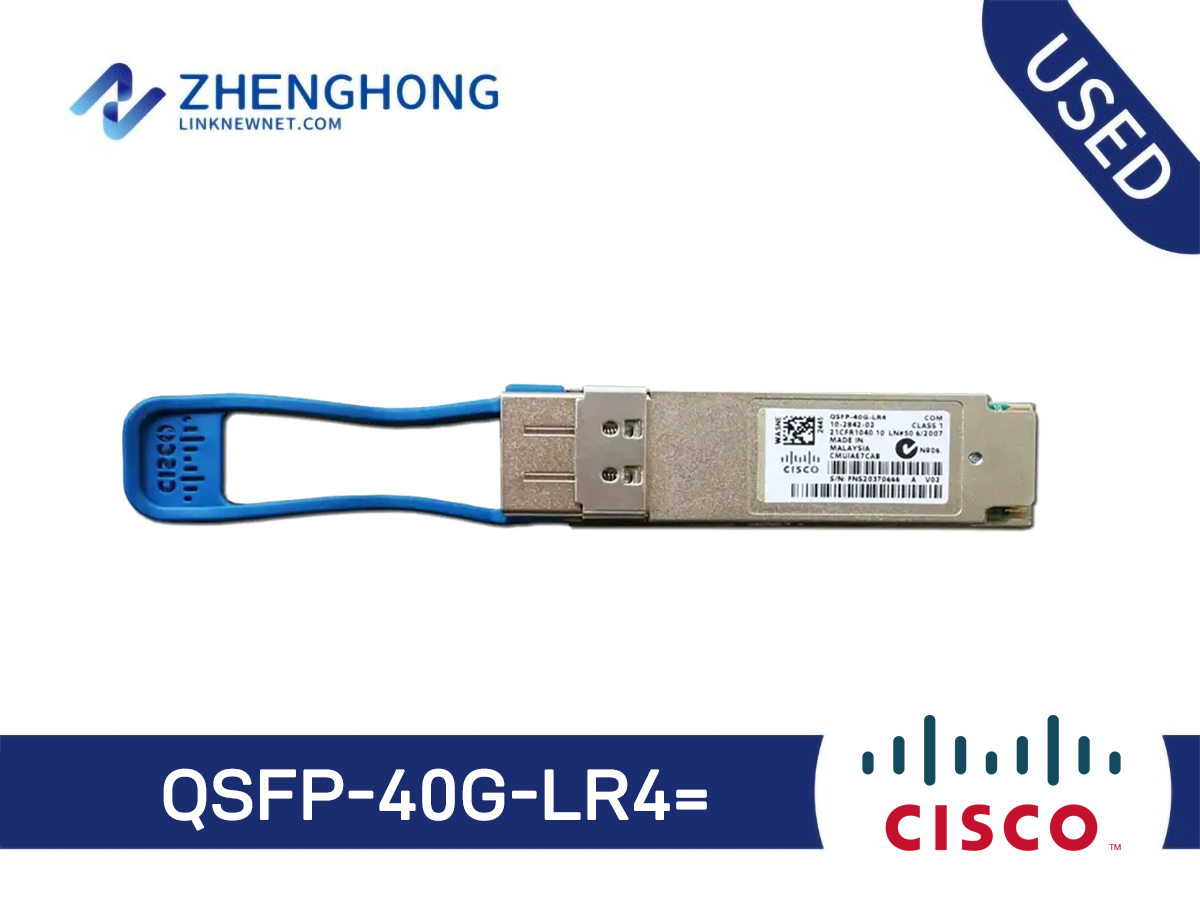

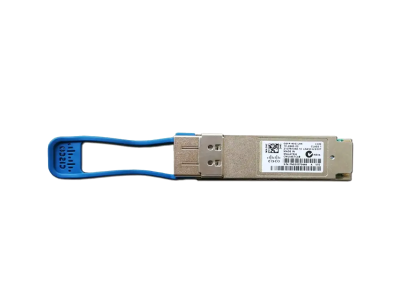

QSFP-40G-LR4= - Cisco QSFP+ Module

QSFP-40G-LR4= - Cisco QSFP+ Module

Model: QSFP-40G-LR4=
Detail: QSFP 40GBASE-LR4 OTN Transceiver, LC, 10KM

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details


QSFP-40G-LR4= Specification

Description

Cisco 40GBASE-LR4 QSFP Module for SMF with OTU-3 data-rate support

Dimensions

13.5 x 18.4 x 72.4 mm

   QSFP Port cabling specifications

Wavelength (nm)

1310

Cable Type

SMF

Core Size (microns)

G.652

Modal Bandwidth (MHz-km)

\

Cable Distance

10km

Power Consumption (W)

3.5

Pull Tab Color

Blue

 Optical characteristics

Type

40GBASE-LR4 with OTU3 data rate support, 1310 nm, SMF

Transmit Power (dBm)

Max:+2.3 per lane

Min:-7.0 per lane

Receive Power (dBm)

Max:+2.3 per lane

Min:-13.7 per lane

Transmit and Receive Wavelength (nm)

Four lanes: 1271, 1291, 1311, 1331

Environmental conditions

Commercial temperature

0 to 70°C (32 to 158°F)

Storage temperature

-40 to 85°C (-40 to 185°F)

Regulatory and standards compliance

Standards



•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

•IEEE 802.3ba (-SR4, -LR4)

•IEEE 802.3ae (-CSR4)

•QSFP+ MSA SFF-8436

•SFP+ MSA SFF-8431 and -8461

•RoHS 6

Safety





•Cable jacket of QSFP copper modules is UL E116441 Compliant

•QSFP copper cables are ELV Compliant
