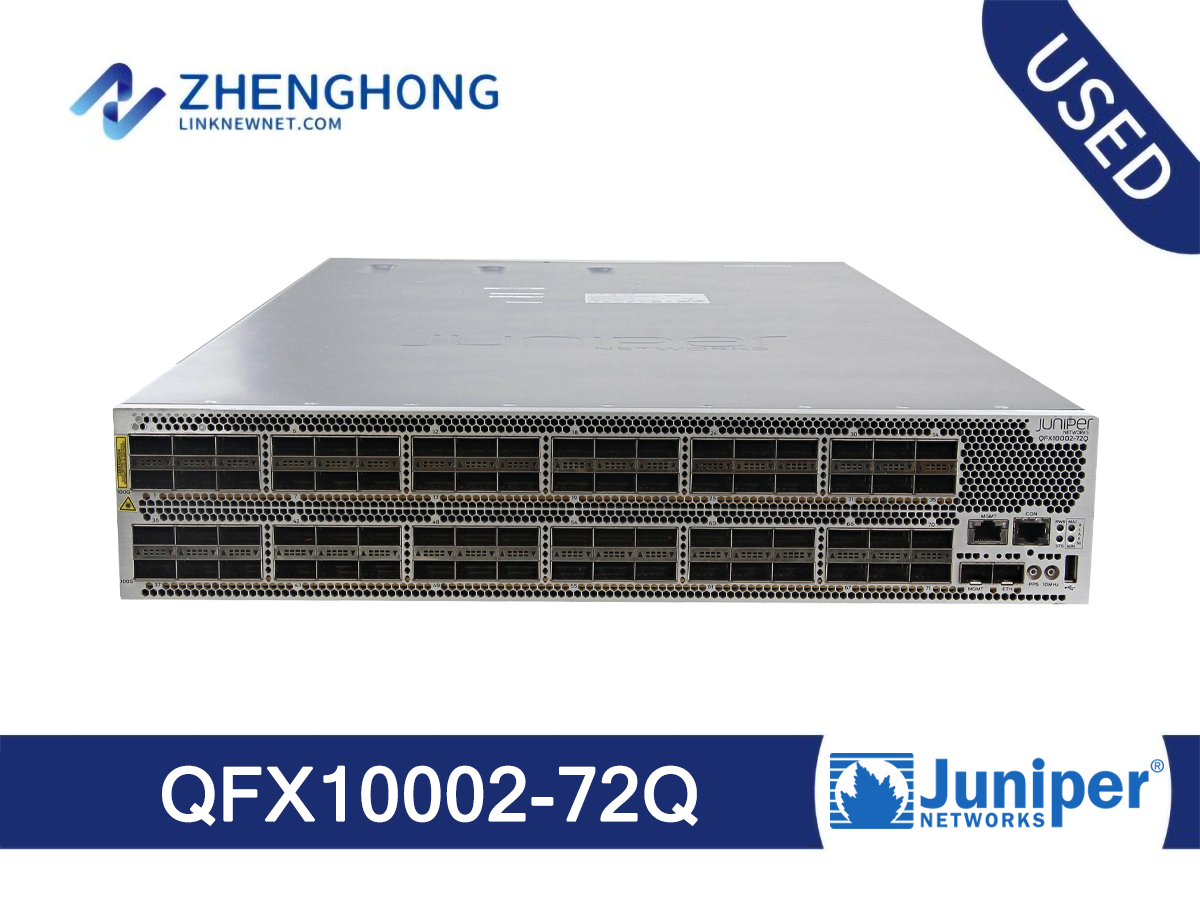

QFX10002-72Q Specification | |
Model | QFX10002-72Q |

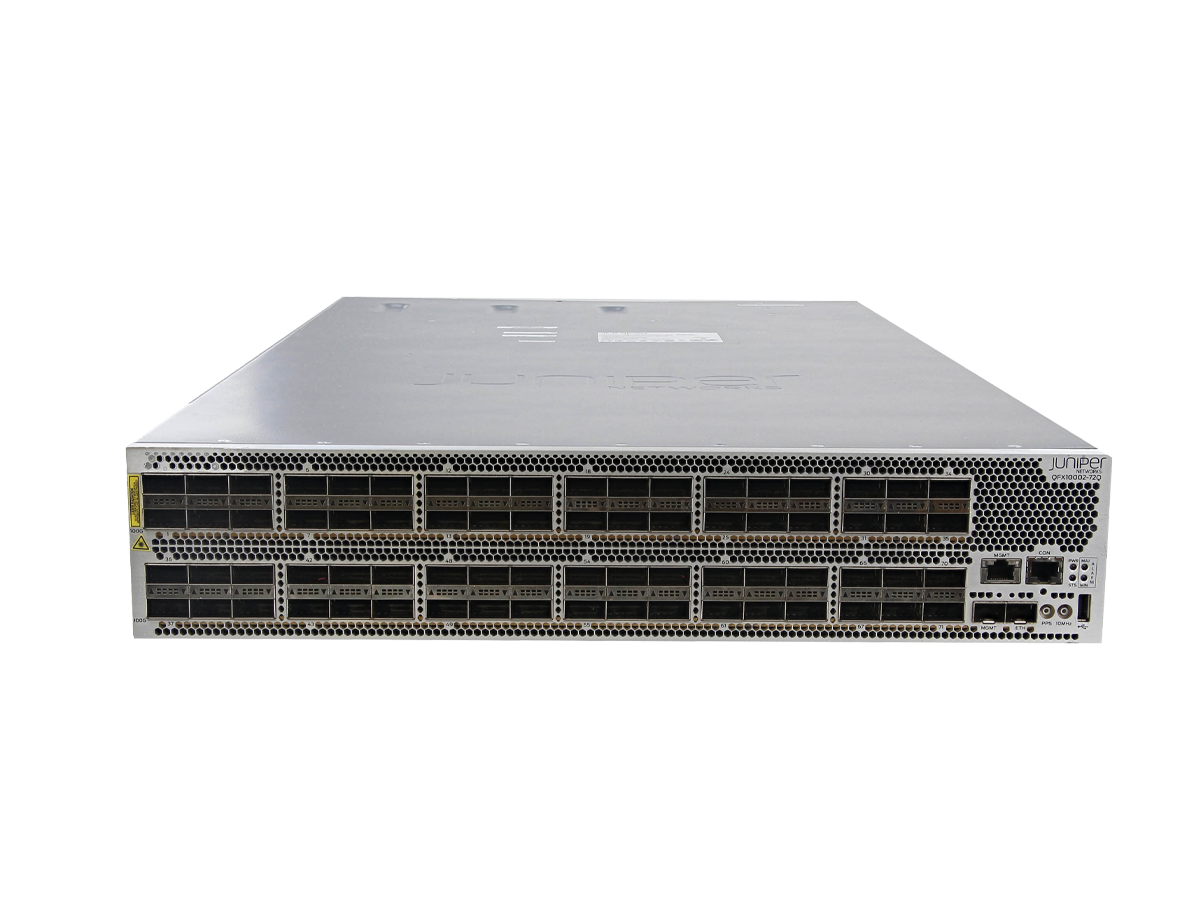

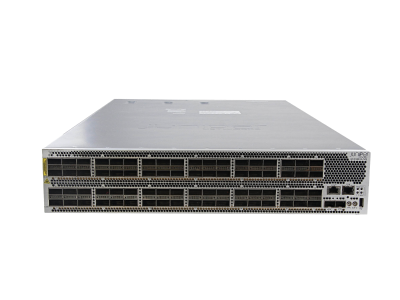

Ports | 72 x 40Gb QSFP+ Ports (or 24 x 100Gb QSFP28) |
Switching Capacity | 6 Tbps |
Power Over Ethernet (PoE) | No |

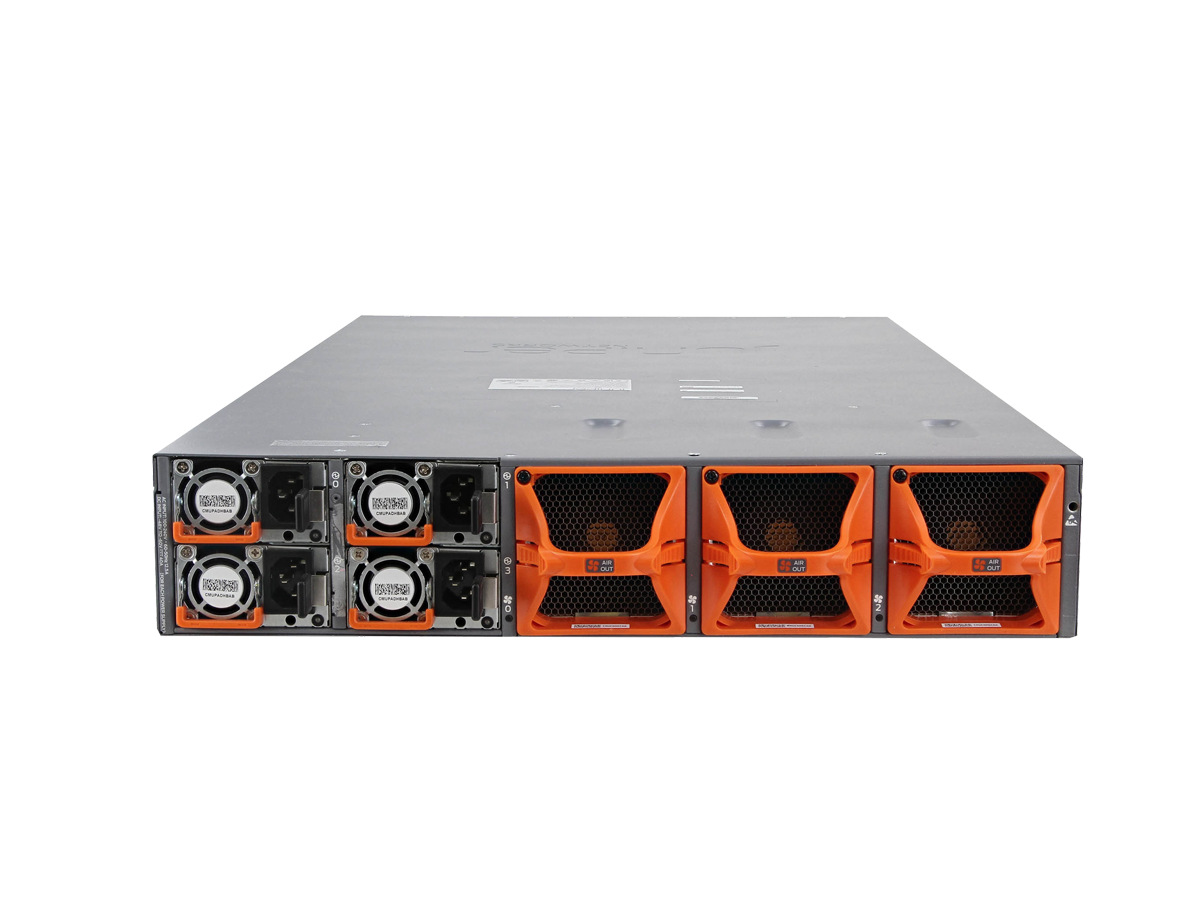

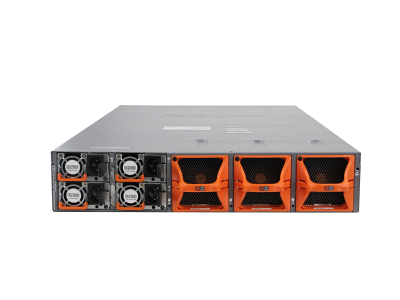

Power Supplies Installed | 4 x 1600W Redundant PSU's (4 x JPSU-1600W-AC-AFO) |
Power Supply Options | JPSU-1600W-AC-AFO for the reverse airflow option |
MAC Address Table Size | Up to 512,000; up to 96,000 learned per PFE |
DRAM and Flash | 16GB DRAM |
Module Expansion Slots | N/A |
Switch Version | Junos OS |
