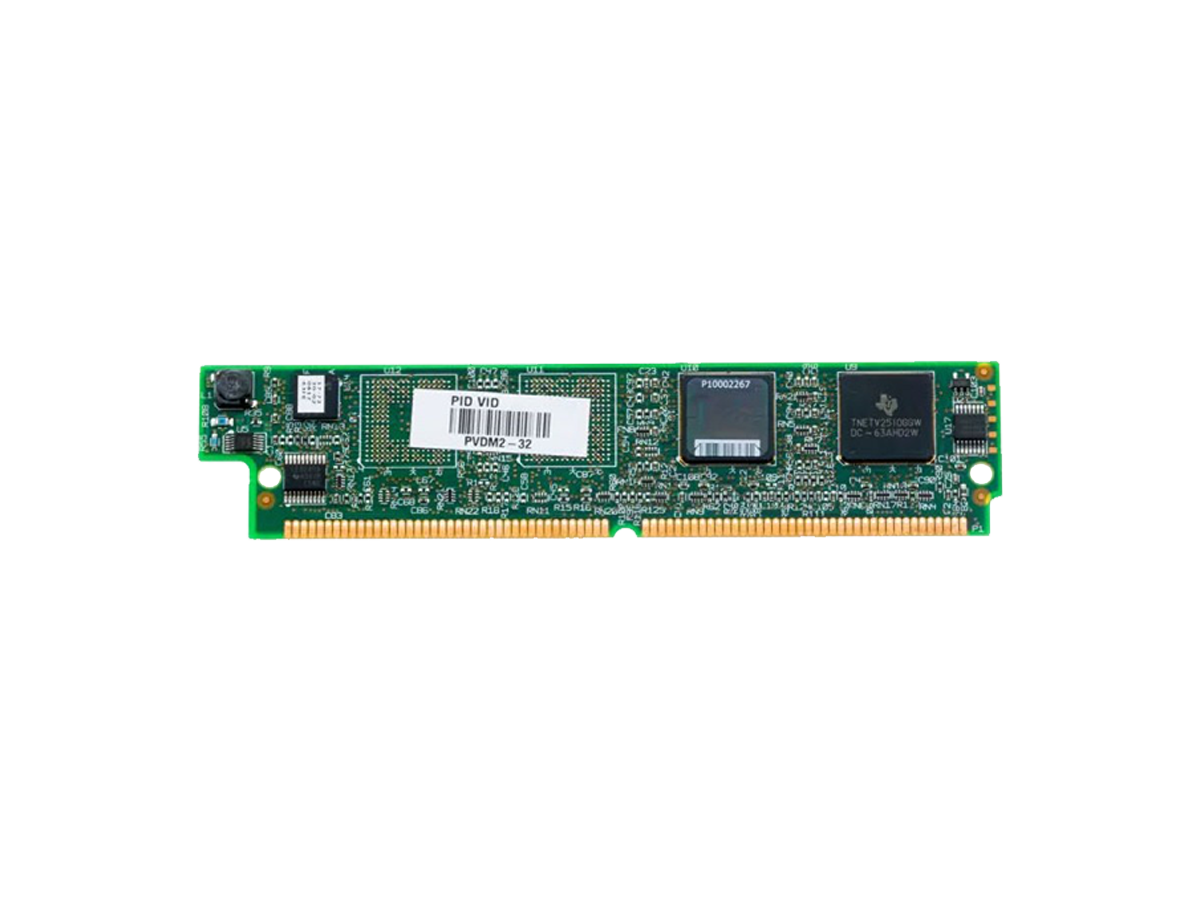

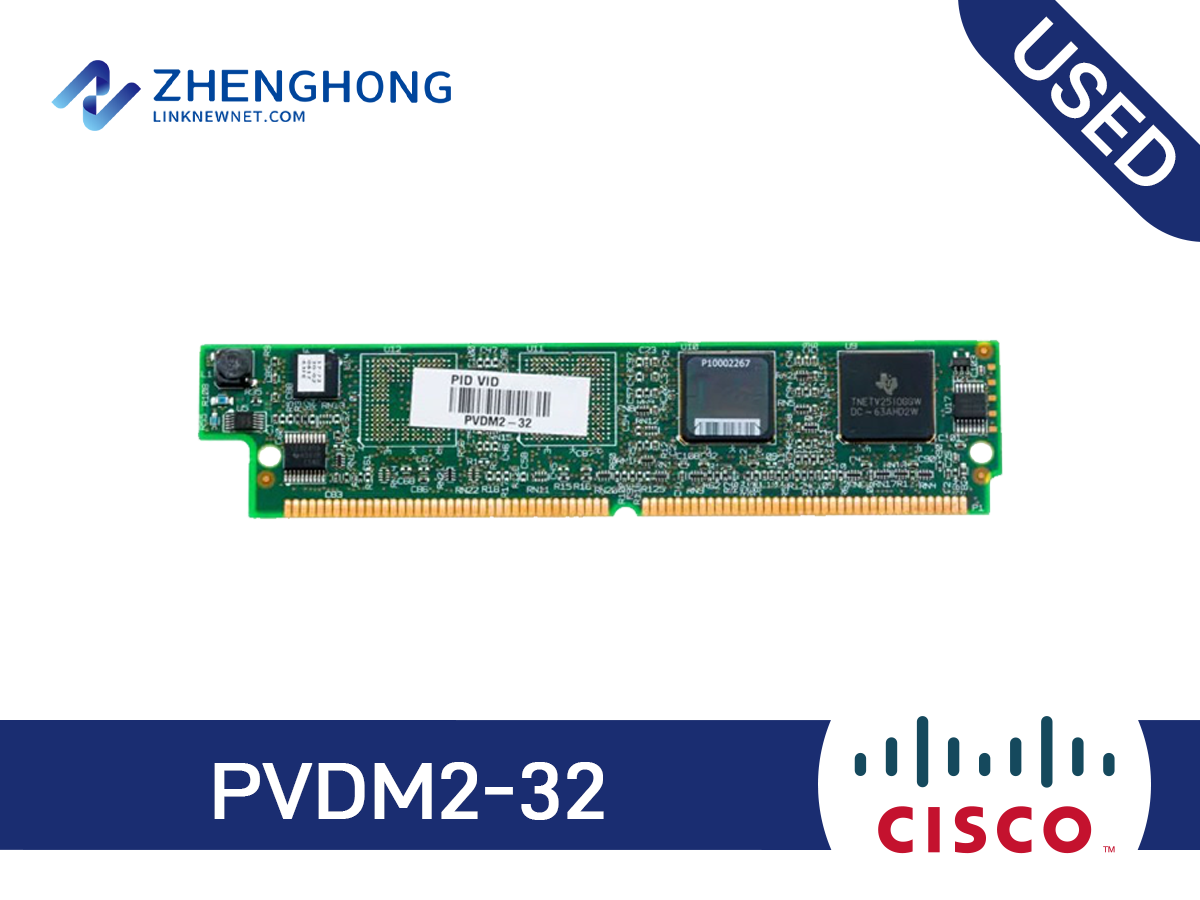

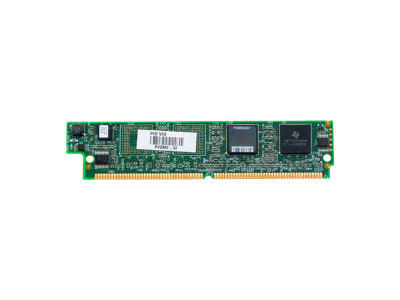

PVDM2-32 - Cisco Packet Voice Digital Signal Processor Modules

Model: PVDM2-32

Detail: 32-Channel Packet Voice/Fax DSP Module

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

PVDM2 Modules Specifications
Components
DSP	• Texas Instruments TNETV2510GGW for PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64 • Texas Instruments TNETV2505GGW for PVDM2-8
DSP CPU Clock	• 200 MHz for TNETV2510GGW • 175MHz for TNETV2505GGW
DSP External Memory	128-megabit synchronous dynamic RAM for each DSP (for both TI 2510 and TI 2505)
Interface	80-pin SIMM interface
Features
Echo Cancellation	Software echo cancellation compliant with ITU-I G.168, with 64-ms tail coverage
Approvals and Compliance
Safety	• IEC 60950 (worldwide) and AS/NZS 3260 (Australia and New Zealand) • CAN/CSA-C22.2 No. 60950 (Canada) and GB4943-95 (People's Republic of China) • EN60950 (CENELEC; includes EU and EFTA) • SS337 (Singapore; PSB approval), NOM-019-SCFI-1998 (Mexico), and UL 60950 3rd edition (United States)
Homologation	Platform dependent
Mean Time between Failure (MTBF)	System dependent
EMC
CISPR22, Class B	Emissions
EN55022, Class B	Emissions
CFR47, Part 15, Subpart B, Class B	Emissions
EN61000-3-2	Harmonics
EN61000-3-3	Flicker
CISPR24	Immunity
EN 55024	Immunity
EN50082-1	Immunity
EN61000-3-2	Harmonics
EN 61000-3-3	Flicker
EN 61000-4-2	Electrostatic discharge (ESD)
EN 61000-4-3	Radio frequency (RF) fields
EN 61000-4-4	EFT
EN 61000-4-5	Surge
EN 61000-4-6	Conducted RF
EN 6100-4-8	Power-frequency magnetic fields
EN 61000-4-11	Voltage dips, sags, and interruptions

Q&A

What common troubleshooting steps are there for the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

Ensure proper seating in the module slot, verify firmware updates, and consult Cisco IOS command references for diagnostics.

What accessories are available for the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

Essential accessories include compatible Cisco router chassis and supplementary voice interface cards (VICs).

How does the PVDM2-32 32-Channel Packet Voice/Fax DSP Module compare to similar products?

The PVDM2-32 offers mid-range channel capacity, excellent for medium-scale deployments, balancing cost and performance effectively.

Can the PVDM2-32 32-Channel Packet Voice/Fax DSP Module be used with other Cisco products?

Yes, it integrates seamlessly with Cisco Unified Communications Manager and Cisco ISR routers for a robust VoIP solution.

What is the main function of the PVDM2-32?

The PVDM2-32 is designed for voice and fax processing, supporting up to 32 simultaneous voice or fax sessions.

Can PVDM2-32 modules be used in any Cisco router?

They're compatible with specific Cisco routers. Check your router's model for compatibility before installation.

How does the PVDM2-32 improve call quality?

It uses advanced DSP (Digital Signal Processing) technology to enhance voice quality and reduce noise.

Is installation of the PVDM2-32 user-friendly?

Yes, it's plug-and-play for supported Cisco routers, requiring minimal setup for immediate use.

Are there any prerequisites for using PVDM2-32?

A compatible Cisco router and sufficient chassis space are required; some configurations may need IOS upgrades.

How can the PVDM2-32 impact system performance?

By offloading voice and fax processing, it frees up CPU resources, enhancing overall system performance.

Is the PVDM2-32 cost-effective for small businesses?

Yes, it provides scalable voice processing capacity, making it a cost-effective solution for growing businesses.

What alternatives exist for the PVDM2-32?

Alternative DSP modules like PVDM3 offer different capacities and features; selection depends on specific needs.

How to troubleshoot common issues with PVDM2-32?

Common steps include ensuring correct installation, checking compatibility, and updating router IOS if necessary.

Are there any additional accessories needed for PVDM2-32?

Typically, no additional accessories are required for basic operation; however, specific setups may vary.

How cost-effective is the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

The PVDM2-32 offers a cost-effective solution for 32-channel voice/fax processing, significantly enhancing ROI for system integrators.

What are the key characteristics of the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

The PVDM2-32 features high-density voice support, 32-channel capacity, and robust DSP architecture, suitable for various voice/fax applications.

In which scenarios is the PVDM2-32 32-Channel Packet Voice/Fax DSP Module typically used?

The PVDM2-32 is ideal for enterprise VoIP solutions, unified communication networks, and environments requiring high-capacity voice/fax processing.

How do I install the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

The PVDM2-32 can be installed into a compatible Cisco router or gateway module slot. Follow the installation manual for detailed steps.

Does the PVDM2-32 32-Channel Packet Voice/Fax DSP Module need regular firmware upgrades?

Yes, keeping the firmware updated ensures optimal performance and compatibility with newer Cisco IOS versions.

Are there alternative products to the PVDM2-32 32-Channel Packet Voice/Fax DSP Module?

Alternatives include higher-channel DSP modules like the PVDM2-48 and PVDM3 series, depending on your channel requirements.
