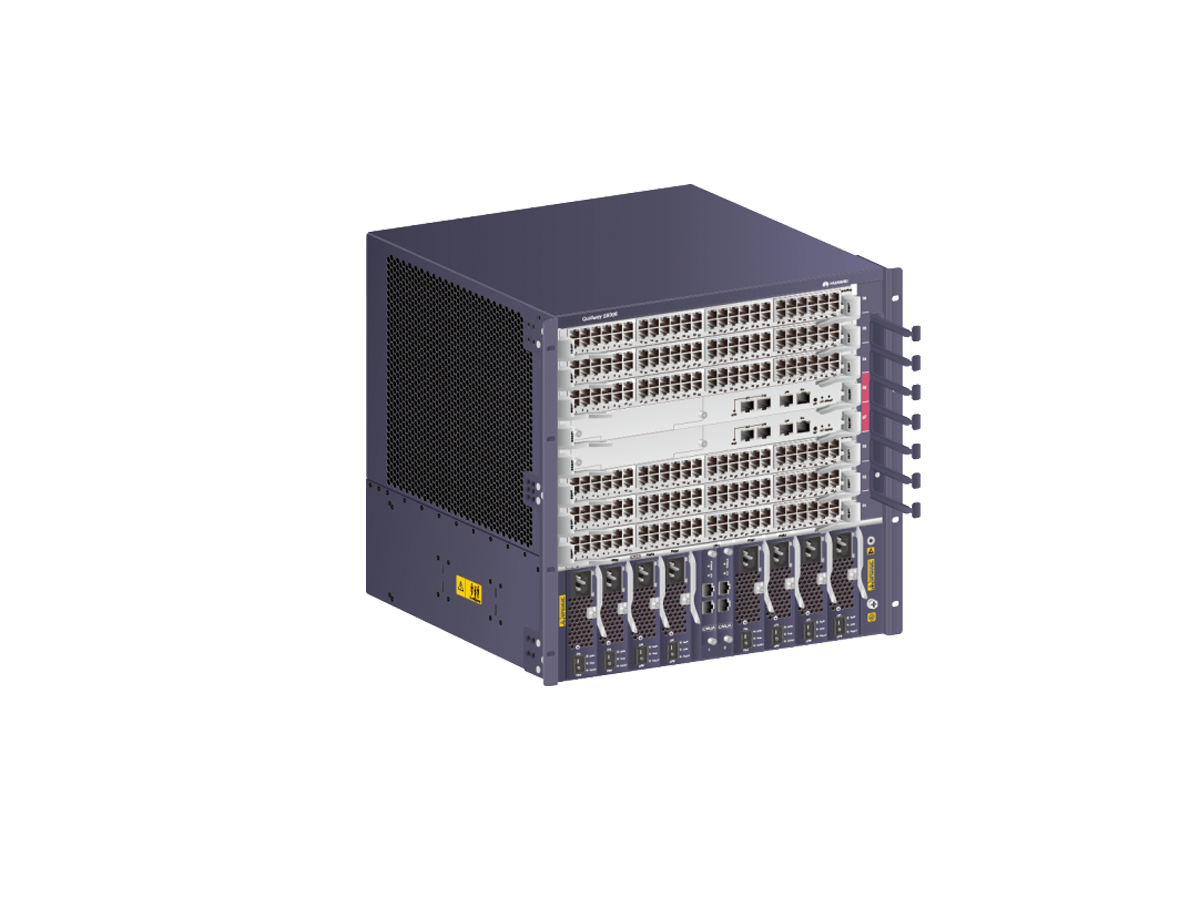

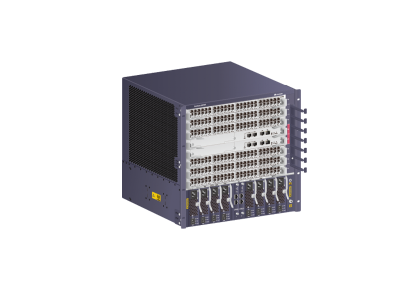

Huawei S9300 Series Switch LE0KS9306|LinkNewNet

LE0KS9306 Specifications
Packet forwarding rate	2880Mpps
Switching capacity	3.84Tbps
Service slot quantity	6
User management	Unified user management 802.1x, MAC, and Portal authentications Charging based on traffic volume and online duration User authorization based on user groups, domains, and time ranges
VLAN	Access, trunk, and hybrid Default VLAN VLAN switching QinQ and selective QinQ MAC-based VLAN assignment
MAC address	MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address limiting based on ports and VLANs
STP/ERPS	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel G.8032 Ethernet Ring Protection Switching (ERPS)
IP routing	IPv4 dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMPv1/v2/v3 and IGMP v1/v2/v3 snooping PIM-DM, PIM-SM, and PIM-SSM MSDP and MBGP Prompt leave Multicast traffic control Multicast querier Multicast protocol packet suppression Multicast CAC Multicast ACL
MPLS	Basic MPLS functions MPLS OAM MPLS TE MPLS VPN/VLL/VPLS
Reliability	LACP and inter-chassis E-Trunk VRRP and BFD for VRRP BFD for BGP/IS-IS/OSPF/static route NSF and GR for BGP/IS-IS/OSPF/LDP TE FRR and IP FRR Ethernet OAM in compliance with IEEE 802.3ah and 802.1ag (hardware-level) ITU-Y.1731 DLDP
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p fields ACL, CAR, and actions including Remark and Schedule Queuing algorithms, such as SP, WRR, DRR, SP+WRR, and SP+DRR Congestion avoidance mechanisms, including WRED and tail drop H-QOS Traffic shaping
Configuration and maintenance	iPCA, monitor network quality for any service flow at any network node, at any time, and without extra costs Terminal access services such as console port login, Telnet, and SSH Network management protocols, such as SNMPv1/v2/v3 File uploading and downloading through FTP and TFTP BootROM upgrade and remote in-service upgrade Hot patches User operation logs
Security and user management	802.1x authentication and Portal authentication NAC RADIUS and HWTACACS authentication for login users Command line authority control based on user levels (unauthorized users cannot use commands) Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and traffic flooding attacks 1K CPU queues Ping and traceroute RMON
Security protection	Firewall Network Address Translation (NAT) IPSec, SSL VPN Intrusion Protection System (IPS) Load balancing Analog Digital Conversion (ADC)
Energy saving	Energy Efficient Ethernet (802.3az)
LPU slots	6
MPU slots	2
Fan slots	2
System power supply slots	4
PoE power supply slots	4
Maximum port density	·V100R006C00 and V200R001C00: 288xFE, 288xGE, 240x10GE ·V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE ·V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE ·V200R010C00 and later versions: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE
Installation	In an N66E or N68E cabinet, one or two chassis in a cabinet
CSS	CSS card or service port clustering
PoE	·Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). ·PoE power module backup: no backup, 3+1 backup, or 2+2 backup ·Maximum output power: 8800 W
Maximum power consumption (fully loaded, no PoE power supply)	2200 W
Power specifications	·DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: 1600 W/2400 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC ·AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)
Dimensions (W x D x H, excluding rack-mounting brackets)	·With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U)) ·Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U))
Weight (empty/fully loaded)	15 kg/42 kg (33.1 lb/92.6 lb)
Reliability and availability	MTBF: 24.2 years MTTR: 52 minutes Availability: 0.9999959
Environment parameters	·Operating temperature and altitude: -60 m to +1800 m (197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) ·Operating relative humidity: 5% RH to 95% RH (noncondensing) ·Storage temperature: -40°C to +70°C (-40°F to +158°F) ·Storage altitude: < 5000 m (16404 ft.) ·Storage relative humidity: 5% RH to 95% RH (noncondensing)
Noise at normal temperature (acoustic power)	≤ 72 dBA
EMC compliance	CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A ICES 003 Class A AS/NZS CISPR22 Class A VCCI Class A IEC61000-6-2 IEC61000-6-4 IEC61000-4-2 ITU-T K 20 ITU-T K 21 ITU-T K 44 CNS13438 CLASS A KN 22 CLASS A
Environmental standards compliance	RoHS REACH WEEE
Safety standards compliance	IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1 BS EN 60950-1
