Cisco Router ISR 4000 Series ISR4461-V/K9|LinkNewNet

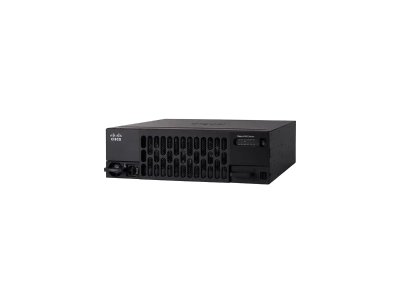

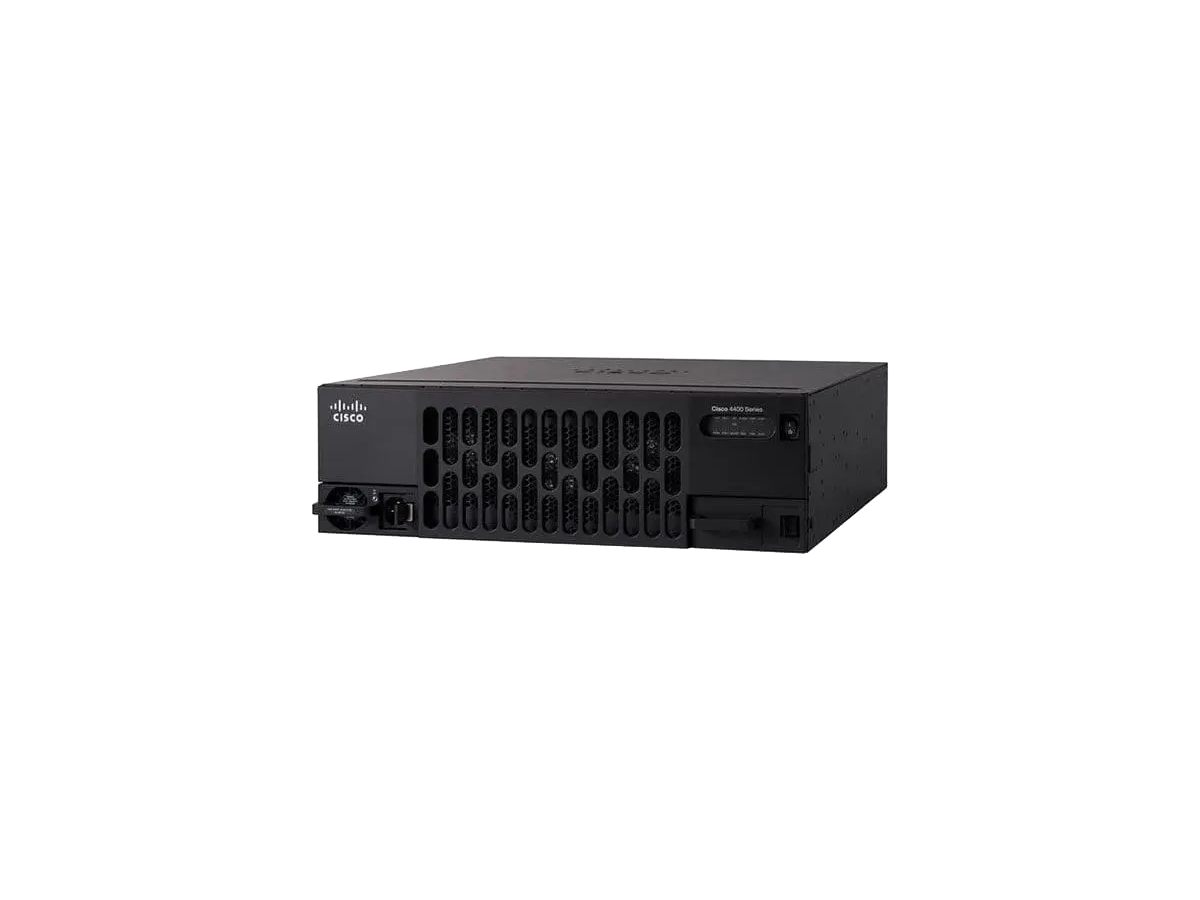

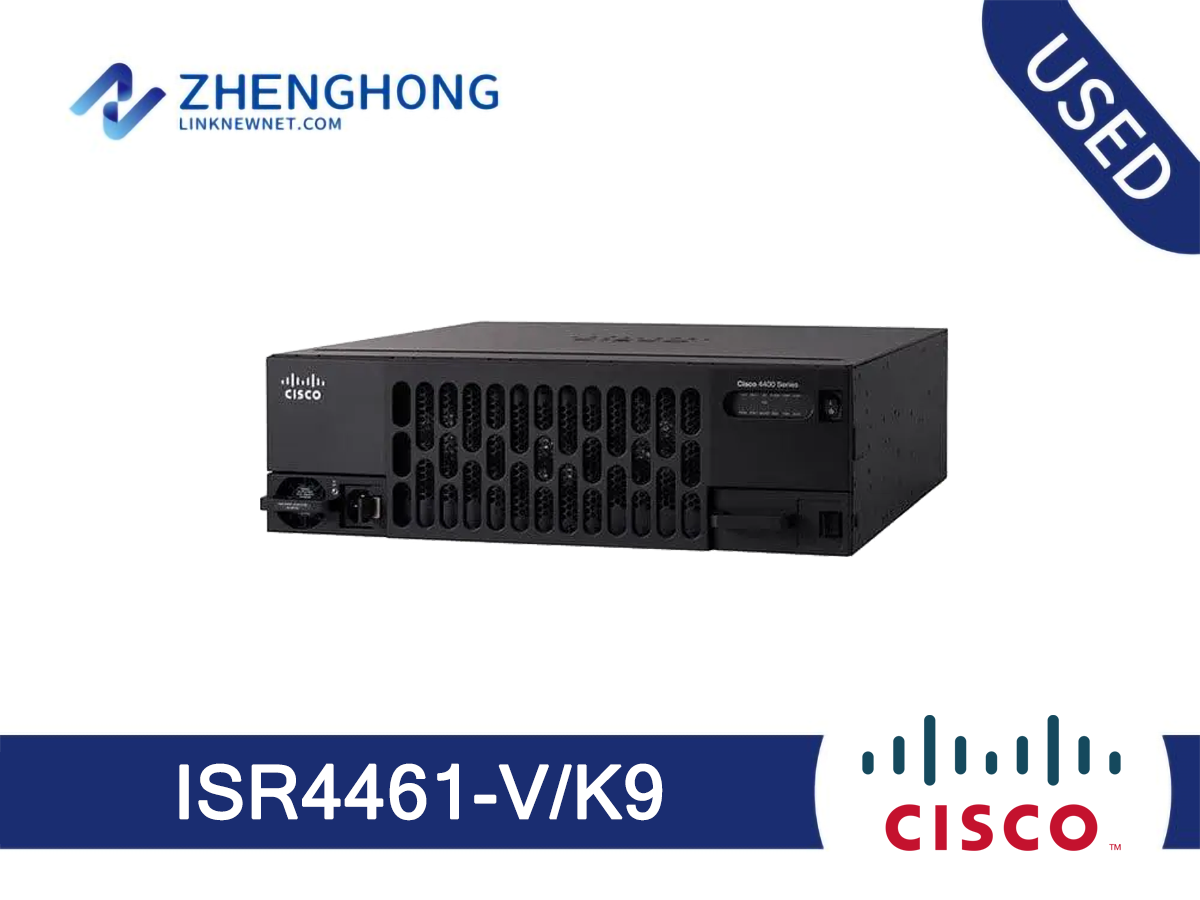

Cisco Router ISR 4000 Series ISR4461-V/K9

Model: ISR4461-V/K9

Detail: Cisco ISR 4461 Voice Bundle

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ISR4461-V/K9 Specification
Bundle	Voice Bundle
Aggregate Throughput	1.5Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slots	3
Doublewide service-module slots	2
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	4 GB
Maximum memory DDR3 ECC DRAM (data plane)	4 GB
Default memory DDR3 ECC DRAM (control/services plane)	8 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	32 GB
Default flash memory	8 GB
Maximum flash memory	32 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC and PoE
Redundant power supply	Internal: AC, DC and PoE
Power Specifications
AC input voltage	100 to 240 VAC auto ranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts)	-
Maximum power with AC power supply (watts)	1000W (no PoE)
Maximum power with PoE power supply (platform only) (watts)	1000 with PoE redundant 1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts)	500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts)	950 W no redundancy
Sizes and Weights
Dimensions (H x W x D)	3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm)
External Power Supply Dimensions (H x W x D)	N/A
Rack height	2 Rack Units (2RU)
Rack-mount 19in. (48.3 cm) EIA	Included
Rack-mount 23in. (58.4 cm) EIA	Optional
Regulatory and Compliance
Safety	UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1
EMC	47 CFR, Part 15 ICES-003 Class A EN55032 Class A CISPR32 Class A AS/NZS CISPR 32 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 KN22, KN24
Telecom	T1 IC CS-03:2004 TIA-968-B:2009 HKTA 2028:2010 HKTA 2017:2010 HKTA 2015: 2006 G.703:2001 ID0002:2007 IS6100:2004 DSPR Gray Book:2000 DSPR Technical Condition: 2004 E1 AS/ACIF S016: 2001 AS/ACIF S038: 2001 G.703:2001 TBR 4:1995 TBR 12:1993 TBR 13:1996 RRA 2009-38 (RRL 2005-96) IDA TS DLCN:2011 IDA TS ISDN PRA:2005 IS6100: 2004 PTC 220:2008 Ethernet IEEE 802.3 ANSA X3.263

Q&A

Q What power cables work with the Cisco 4000 Series?

A All power-supply options for the 4000 Series use a standard IEC C13 connector. No special IEC C15 cord is necessary for the Power over Ethernet (PoE) power supply because higher-efficiency power supplies (85 percent) are used in the 4000 Series. This cord thus helps lower the maximum current the power supplies can draw.

Q What type of backplane is used between components in the Cisco 4000 Series?

A The 4000 Series uses multigigabit fabric (MGF) for Layer 2 connectivity between the modules. On the 4451-X, the MGF can provide either 2 Gbps to all NIM slots or up to 10 Gbps to all SM-X slots. The MGF is completely nonblocking and can forward in excess of 50 Gbps.

Q Can I use the NIMs on the Cisco 1900, 2900, and 3900 Series ISRs?

A No. The NIMs are designed for a newer architecture and will not work on the Cisco 1900, 2900, and 3900 Series ISRs.
