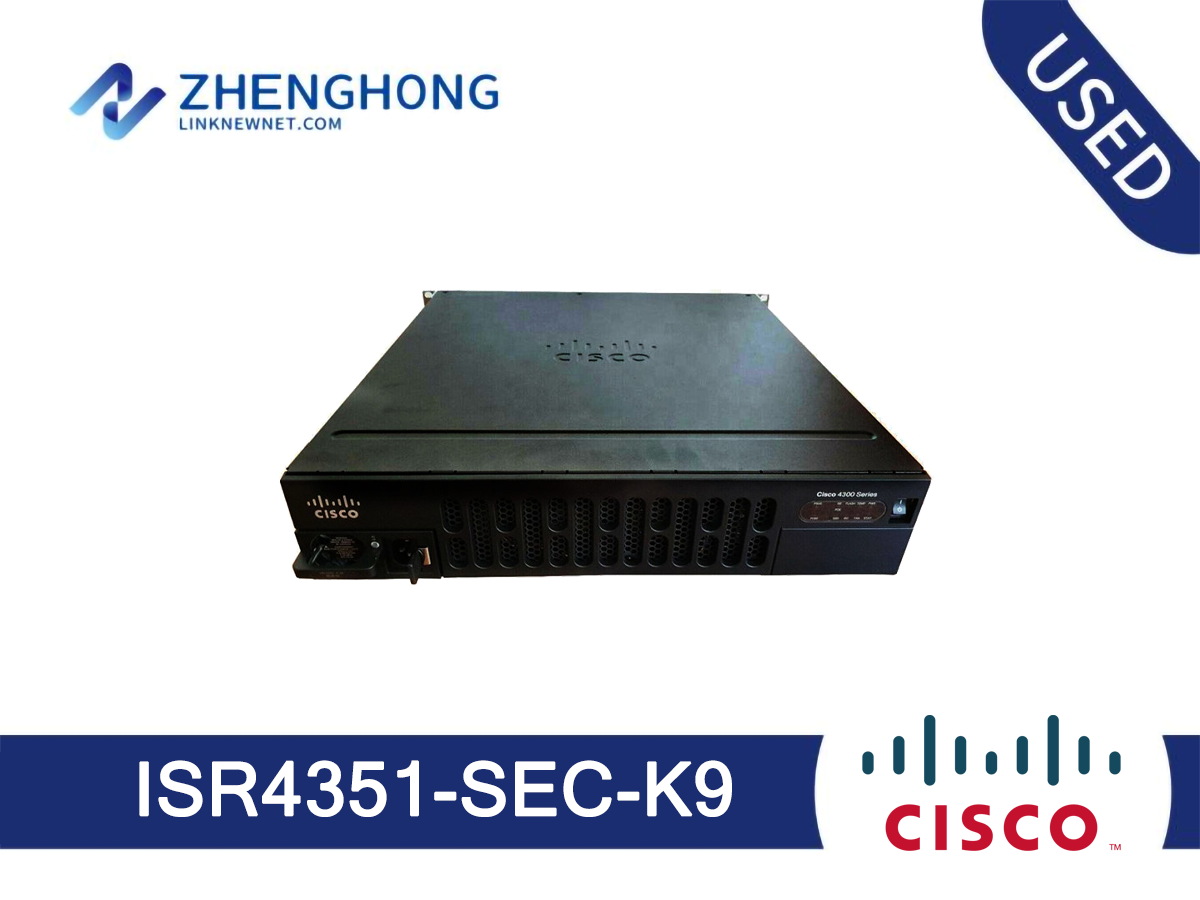

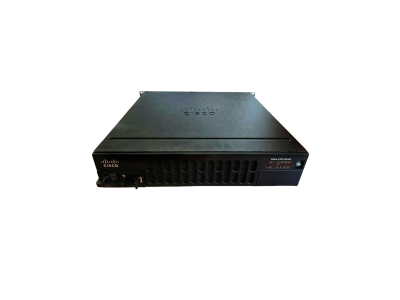

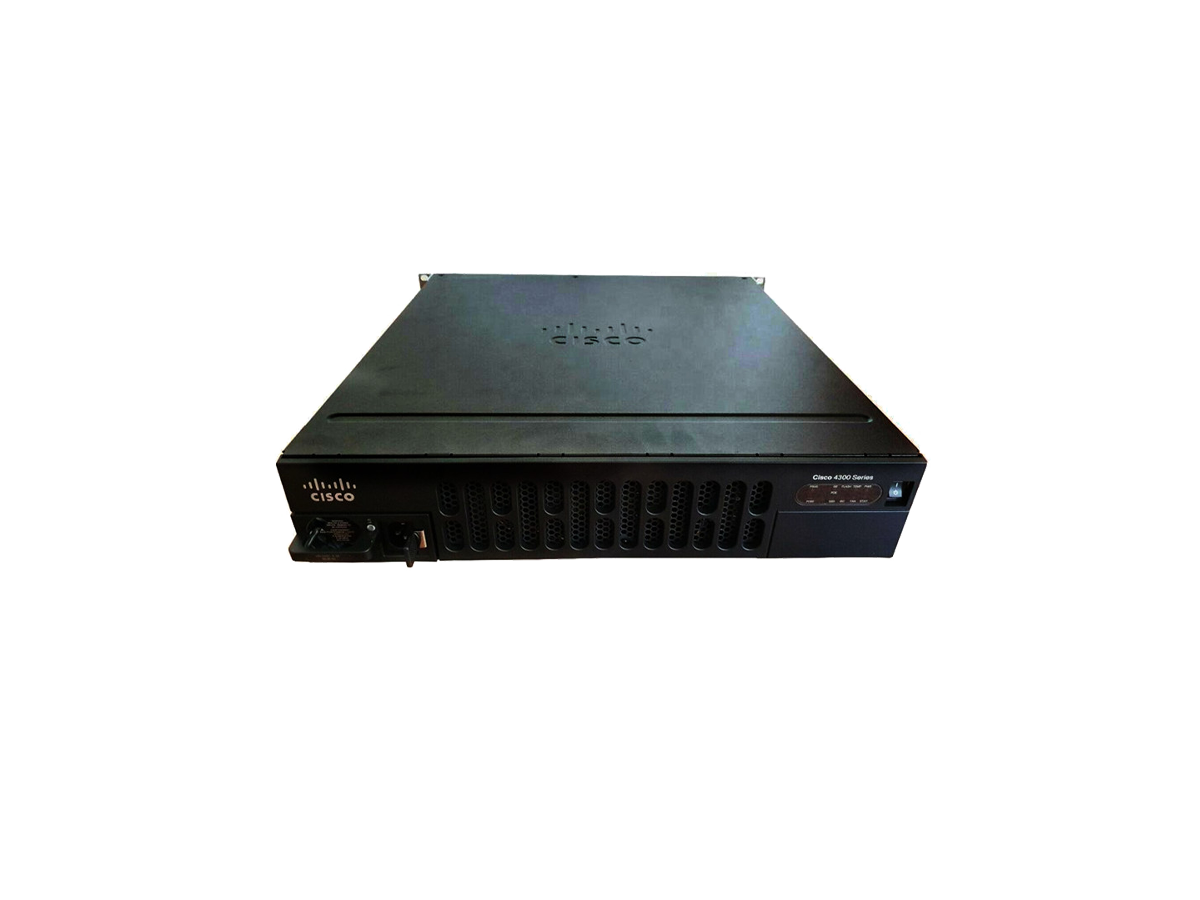

Cisco ISR4351-SEC/K9 Specification | |
Type | Cisco ISR4351/K9 with Security Bundle |
Aggregate Throughput | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 3 |
SFP-based ports | 3 |
Enhanced service-module slots | 2 |
NIM slots | 3 |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
Typical power (no modules) (watts) | 48 |
Maximum power with AC power supply (watts) | 430 |
Maximum power with PoE power supply (platform only) (watts) | 990 |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
Power-supply options | Internal: AC, DC, and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
AC input surge current | 60 A peak and less than 12 Arms per half cycle |
