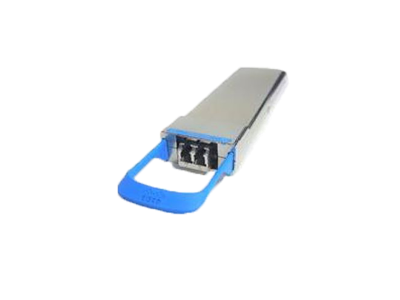

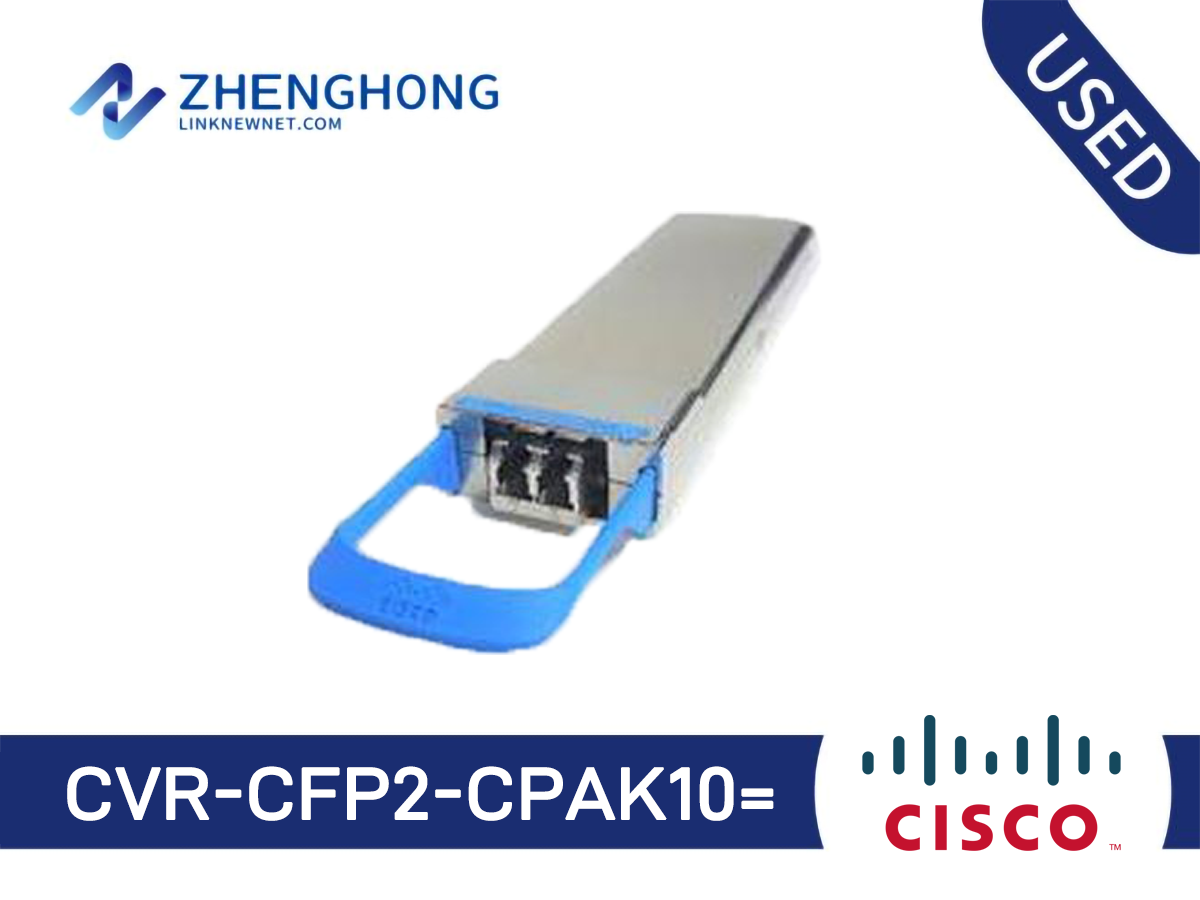

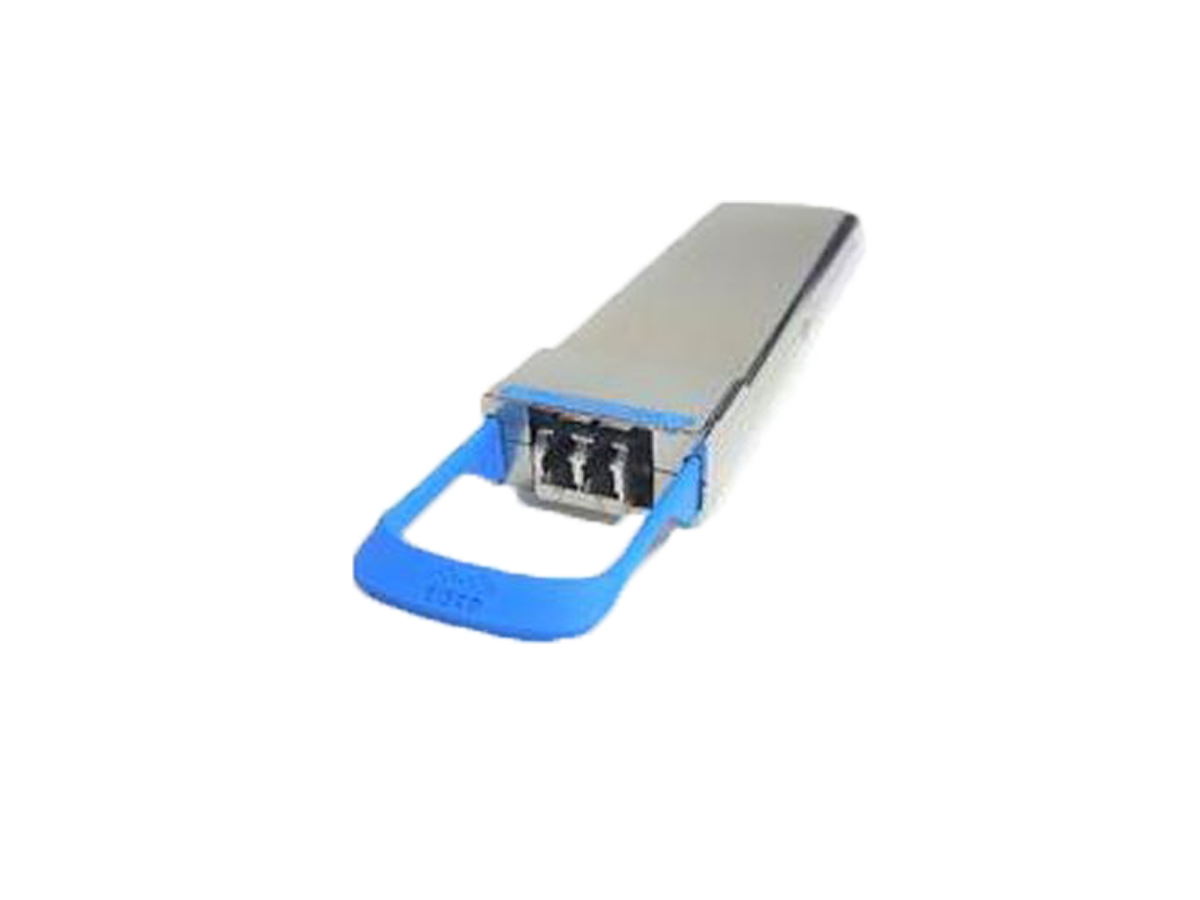

CVR-CFP2-CPAK10= - Cisco QSFP28 Module

Model: CVR-CFP2-CPAK10=

Detail: CFP2 to CPAK adapter for 10x10G interface

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CVR-CFP2-CPAK10= Specification
Description			Cisco QSA Module
Dimensions			17.3mm x 41.6mm x 153mm
Optical Transmit and Receive Specifications
Adapter - CPAK Combination		CVR-CFP2-CPAK10 w/ CPAK-10x10LR			CVR-CFP2-CPAK10 w/ CPAK-SR10
Λ(nm)		1310			850
Architecture		10x10			10x10
Protocol		IEEE 802.3ae			IEEE 802.3ae
Lane		10.3125			10.3125
Optical		10GBASE-LR			100GBASE-SR10
Max BER		10-12			10-12
Cable Type		SMF G.652			MMF OM3 OM4
Link		10km			100m 150m
Optics Connector		MMF MPO (24 fibers)			MMF MPO (24 fibers)
Adapter with CPAK Module Power Supply Requirements
Voltage Supply (V)			3.3
Symbol			Vcc
DC Tolerance (%)			+/-5
Peak Inrush Current (mA)			4306
Max. Current (mA)			2871
Max. Current Ramp rate mA/µs			100
Maximum Power (W)		Low-power mode is negated			LR4: 9 SR10, 10x10G-LR: 5.5
		Low-power mode is asserted			LR4: 5 SR10, 10x10G-LR:
Adapter Operating Conditions
	PID	Min	Typ.	Max	Unit
Case Temperature	CVR-CFP2-CPAK4/ CVR-CFP2-CPAK10	0	\	70	°C
Power supply voltage	CVR-CFP2-CPAK4/ CVR-CFP2-CPAK10	3.135	3.3	3.465	V
Power consumption (EOL)	CVR-CFP2-CPAK4/ CVR-CFP2-CPAK10 without CPAK	\	\	1	W
	CVR-CFP2-CPAK10w/ CPAK-SR10	\	\	5.5
	CVR-CFP2-CPAK10w/ CPAK-10x10LR	\	\	5.5
Environmental conditions and power requirements
Storage temperature range			-40° to 85°C (-40°to 185°F)
Operating temperature range			0° to 70°C (32° to 158°F)

Q&A

What troubleshooting steps are there for CVR-CFP2-CPAK10=?

Ensure secure connections at both ends and verify module compatibility.

Are there alternative products to CVR-CFP2-CPAK10=?

Alternatives may exist, but compatibility with Cisco modules should be verified.

How cost-effective is the CVR-CFP2-CPAK10=?

The CVR-CFP2-CPAK10= is a cost-effective solution for expanding 10x10G network.

Does the CVR-CFP2-CPAK10= come with accessories?

No additional accessories are needed; it is ready to use upon delivery.

What is the CVR-CFP2-CPAK10= used for?

The CVR-CFP2-CPAK10= is a CFP2 to CPAK adapter designed for a 10x10G interface.

Is the CVR-CFP2-CPAK10= compatible with all 100G modules?

No, the CVR-CFP2-CPAK10= is specifically for use with Cisco 100G optical modules.

How do I install the CVR-CFP2-CPAK10=?

Simply insert the CFP2 end of the adapter into your CFP2 slot and CPAK module.

Does the CVR-CFP2-CPAK10= require any software upgrade?

No, it is a hardware adapter and does not require any software updates.

What are the main features of the CVR-CFP2-CPAK10=?

It provides 10x10G interface support, ensuring high-speed data transfer.

Can the CVR-CFP2-CPAK10= be used in data centers?

Yes, it is ideal for high-speed networking needs in data centers.

What troubleshooting steps are there for CVR-CFP2-CPAK10=?

Ensure secure connections at both ends and verify module compatibility.

Are there alternative products to CVR-CFP2-CPAK10=?

Alternatives may exist, but compatibility with Cisco modules should be verified.

How cost-effective is the CVR-CFP2-CPAK10=?

The CVR-CFP2-CPAK10= is a cost-effective solution for expanding 10x10G network.

Does the CVR-CFP2-CPAK10= come with accessories?

No additional accessories are needed; it is ready to use upon delivery.
