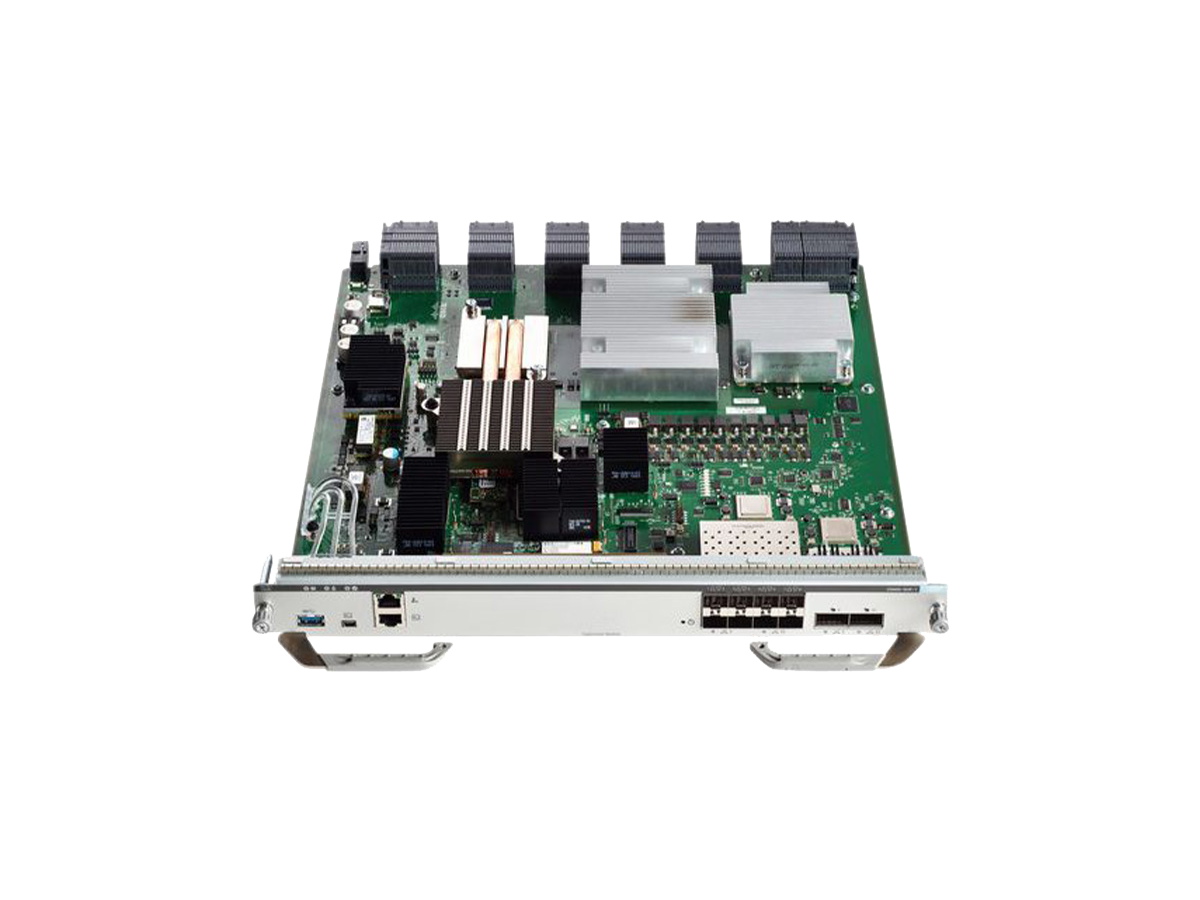

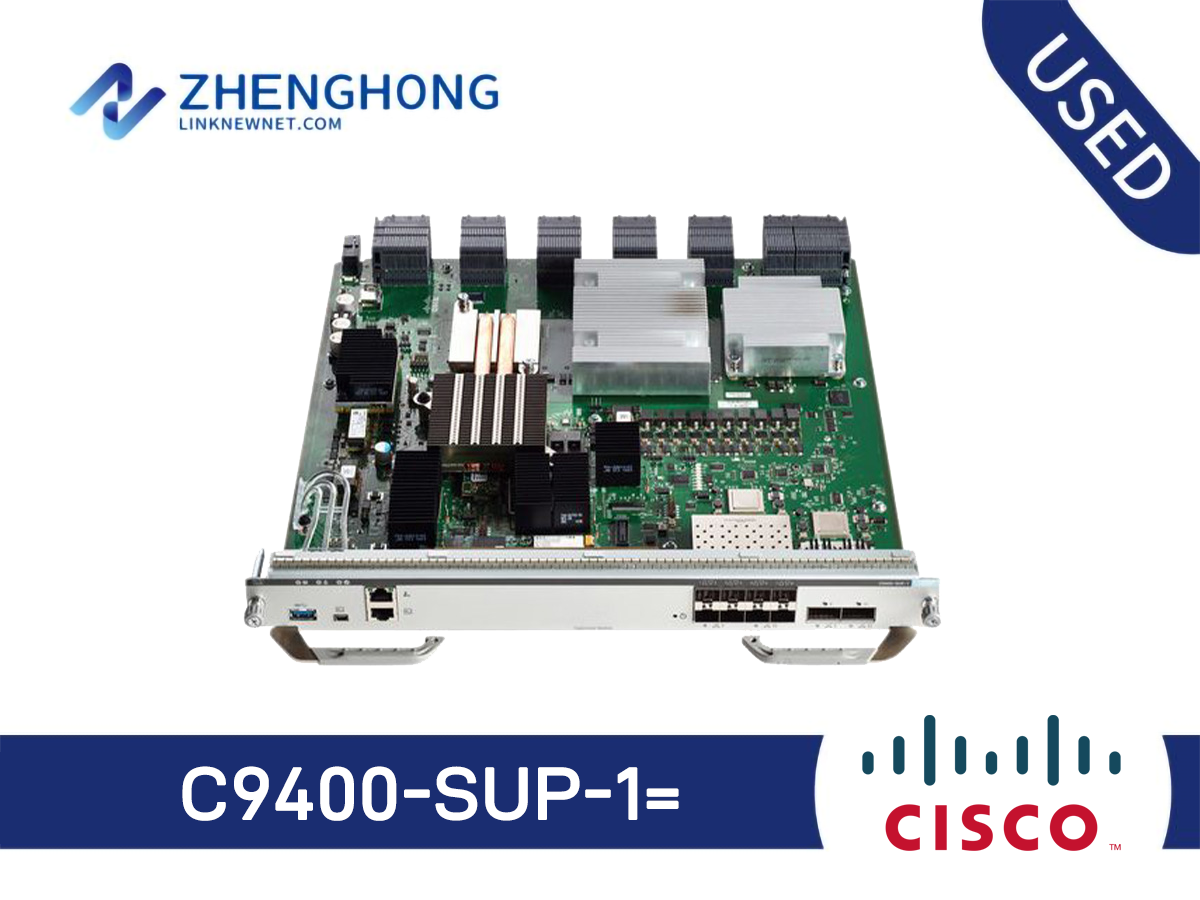

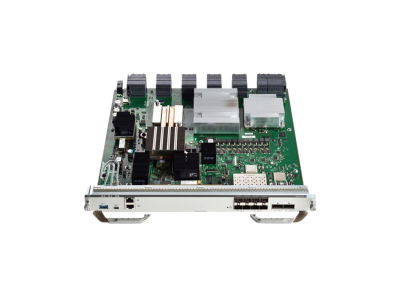

C9400-SUP-1= Specification | ||
Centralized wired capacity | Up to 1.44 Tbps | |
Per-slot switching Capacity | 80 Gbps | |
Total number of MAC addresses | Up to 64K | |
Total number of IPv4 routes (ARP plus learned routes) | Up to 112K | |
FNF entries (v4/v6) | Up to 384K/192K | |
DRAM | 16 GB | |
Flash | 10 GB | |
VLAN IDs | 4096 | |
SSD Capacity | 960 GB | |
Total Switched Virtual Interfaces (SVIs) | 4,000 | |
Jumbo frame | 9216 bytes | |
Forwarding Rate | ● 900 Mpps for IPv4 ● 450 Mpps for IPv6 | |
IPv4 Routing Entries | Up to 112K | |
IPv6 Routing Entries | Up to 56K | |
Multicast Routes | Up to 16K | |
QoS Hardware Entries | Up to 18K | |
Security ACL Hardware Entries | Up to 18K | |
Packet Buffer | 96 MB | |
Physical specifications | (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg) | |
Operating temperature | Normal Operating Temperature and Altitudes: ● 27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● 27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● *Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● 27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● 27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences | |
Storage temperature | 40° to 158°F (-40° to 70°C) | |
Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing | |
Altitude | -60 to 3000m | |
MTBF | 302,000 hours |
