Huawei CloudEngine 6800 Series Switches CE6856-HI-F-B0A

Model: CE6856-HI-F-B0A

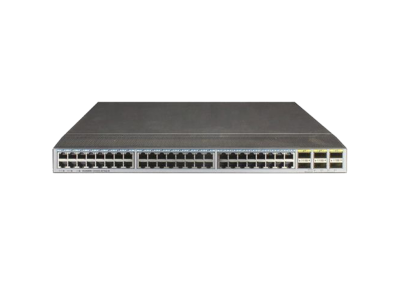

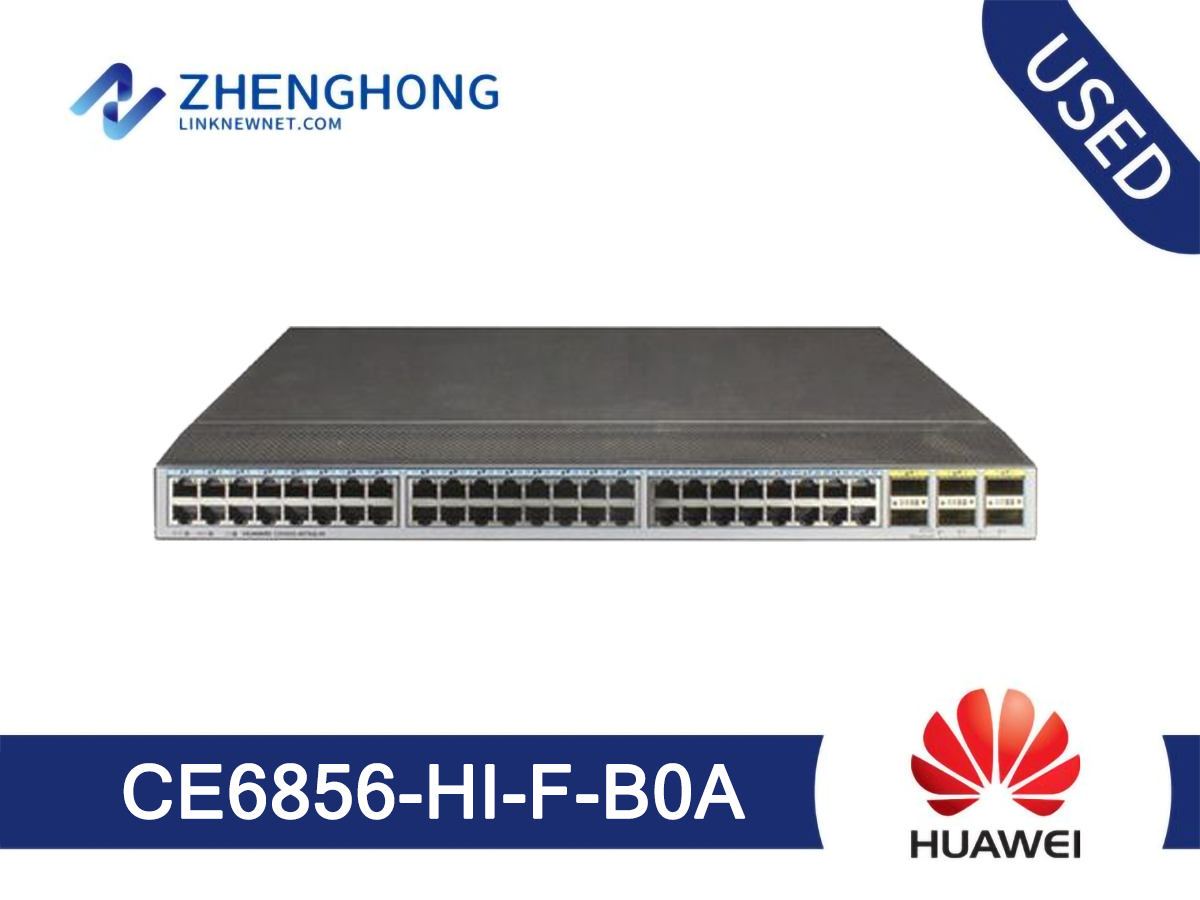

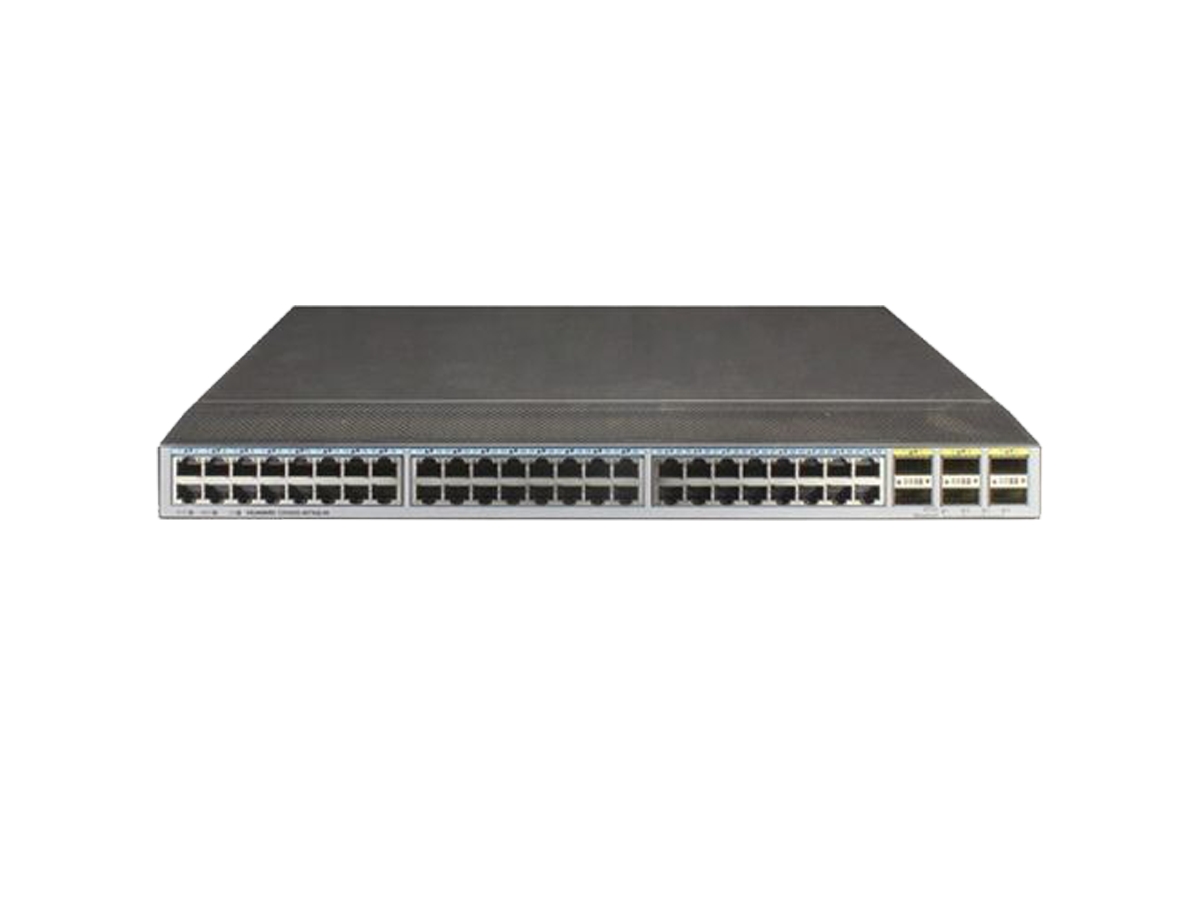

Detail: Assembly components-CE6800-CE6856-HI-F-B0A-CE6856-48S6Q-HI switch (48*10 Gigabit SFP+, 6*40G QSFP+, 2*AC power supply, port side air outlet)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE6856-HI-F-B0A Specification
Item		Description
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 56 dBA Front-to-back airflow: < 58 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC) 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption	Maximum power consumption	216 W
Chassis power consumption	Typical power consumption	116 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	737 BTU/hr
Chassis heat dissipation	Typical heat dissipation	396 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection		Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	48.83 years
	Mean time to repair (MTTR)	1.73 hours
	Availability	0.99999595166

Q&A

Q Which are Huawei data center switches?

A High-performance cloud switches from the Huawei CloudEngine (CE) series are created for cutting-edge campus networks and next-generation data centers.

Q What is Huawei CloudEngine?

A Huawei CloudEngine (CE) series switches are high-performance cloud switches designed for next-generation data centers and high-end campus networks.

Q Why are Switch Ports down and faulty due to power over current?

A No faults with the switch, so we need to check the IP Phones. Power overcurrent: indicates that the current of the PD connected to the interface exceeds the maximum current of the interface.

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.
