Huawei CloudEngine 6800 Series Switches CE6850U-24S2Q-HI-B|LinkNewNet

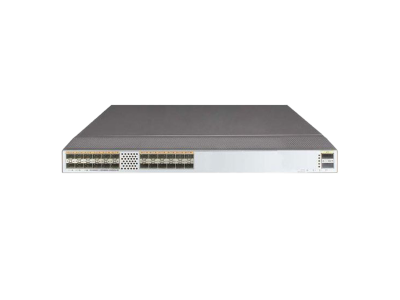

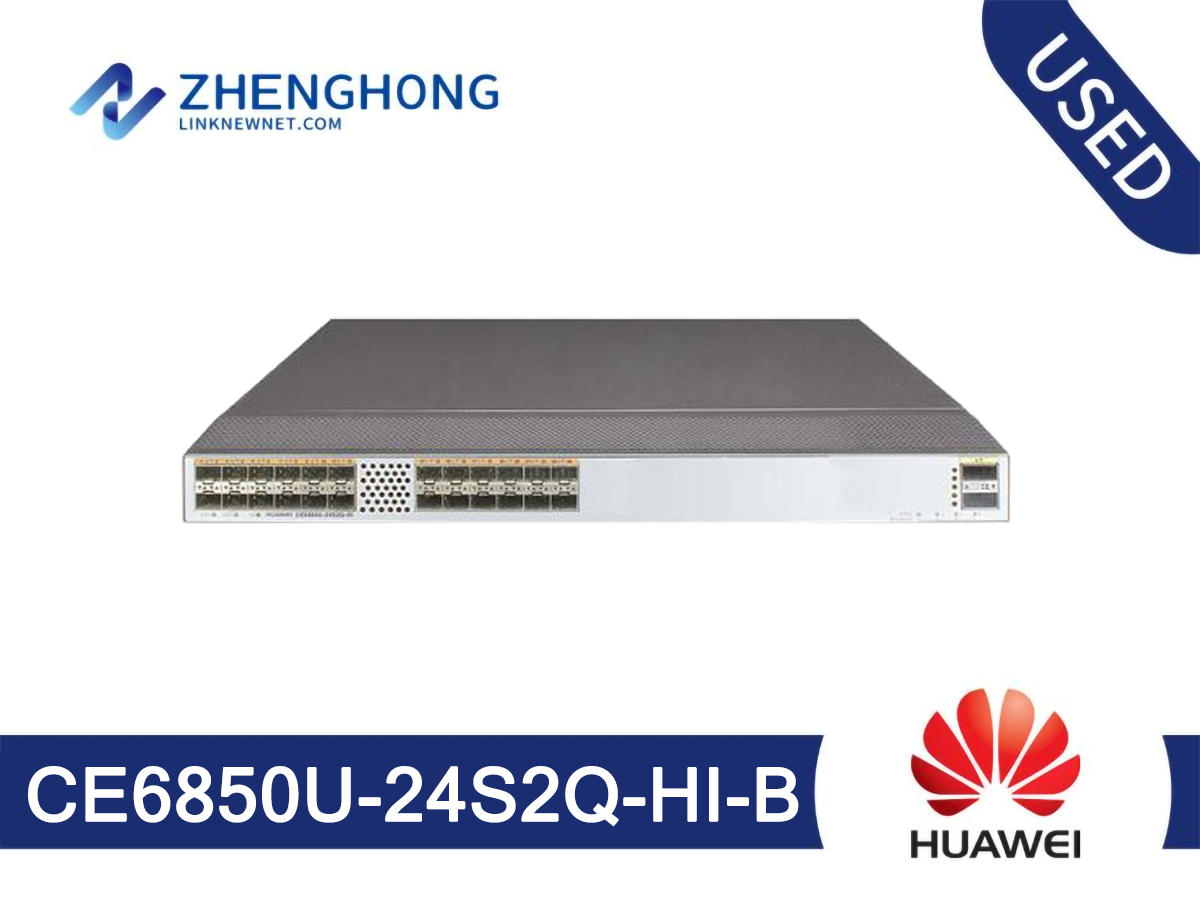

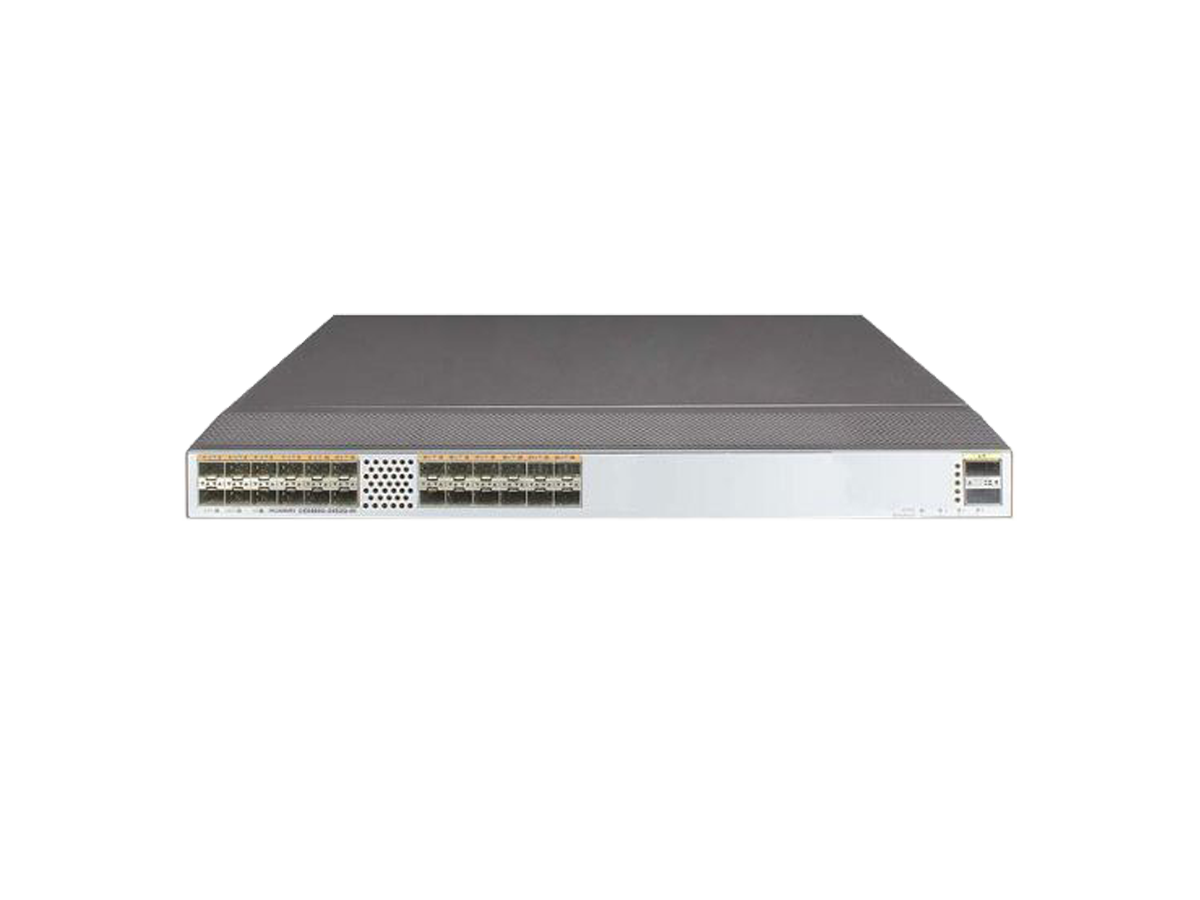

Huawei CloudEngine 6800 Series Switches CE6850U-24S2Q-HI-B

Model: CE6850U-24S2Q-HI-B

Detail: Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*FAN Box,Port-side Intake,Without Power Module)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE6850U-24S2Q-HI-B Specifications
10G Base-T Ports	0
SFP+ Ports	24
FC Ports	24
QSFP+ Ports	2
Switching Capacity	640 Gbit/s
Forwarding Rate	480 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack
Device Virtualization	Super Virtual Fabric (SVF)
Network Virtualization	M-LAG
Network Virtualization	TRILL
VM Awareness	Agile Controller
Network Convergence	FCoE
Network Convergence	DCBX, PFC, and ETS
Programmability	OpenFlow
	OPS
	Puppet, and OVSDB plugins released on open source websites
	Linux container for open source and customization programming
Traffic Analysis	NetStream
Traffic Analysis	sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GVRP
ACL	Ingress: 3,750 Egress: 1,000
MAC Address Table	Maximum: 288k
	Dynamic learning and aging of MAC addresses
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address limiting based on ports and VLANs
ARP (maximum)	128k
IPv4 FIB (maximum)	256k
IP Routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP Routing	IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6 FIB (maximum)	128k
IPv6	IPv6 Neighbor Discovery (ND)
	Path MTU Discovery (PMTU)
	TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast FIB (maximum)	8k
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
	IGMP snooping
	IGMP proxy
	Fast leave of multicast member interfaces
	Multicast traffic suppression
	Multicast VLAN
MPLS	MPLS (CE6800HI)
Reliability	LACP
	STP, RSTP, VBST, and MSTP
	BPDU protection, root protection, and loop protection
	Smart Link and multi-instance
	DLDP
	ERPS (G.8032)
	VRRP, VRRP load balancing, and BFD for VRRP
	BFD for BGP/IS-IS/OSPF/Static route
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
	Actions of ACL, CAR, re-marking, and scheduling
	Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
	Congestion avoidance mechanisms, including WRED and tail drop
	Traffic shaping
Dimensions (W x D x H)	442 mm x 600 mm x 43.6 mm
Weight (fully loaded)	12.3 kg (27.1 lb)
Environmental Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: 240V & 380V
Max. Power Consumption	282W

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
