Huawei CloudEngine 6800 Series Switches CE6820-48S6CQ-B|LinkNewNet

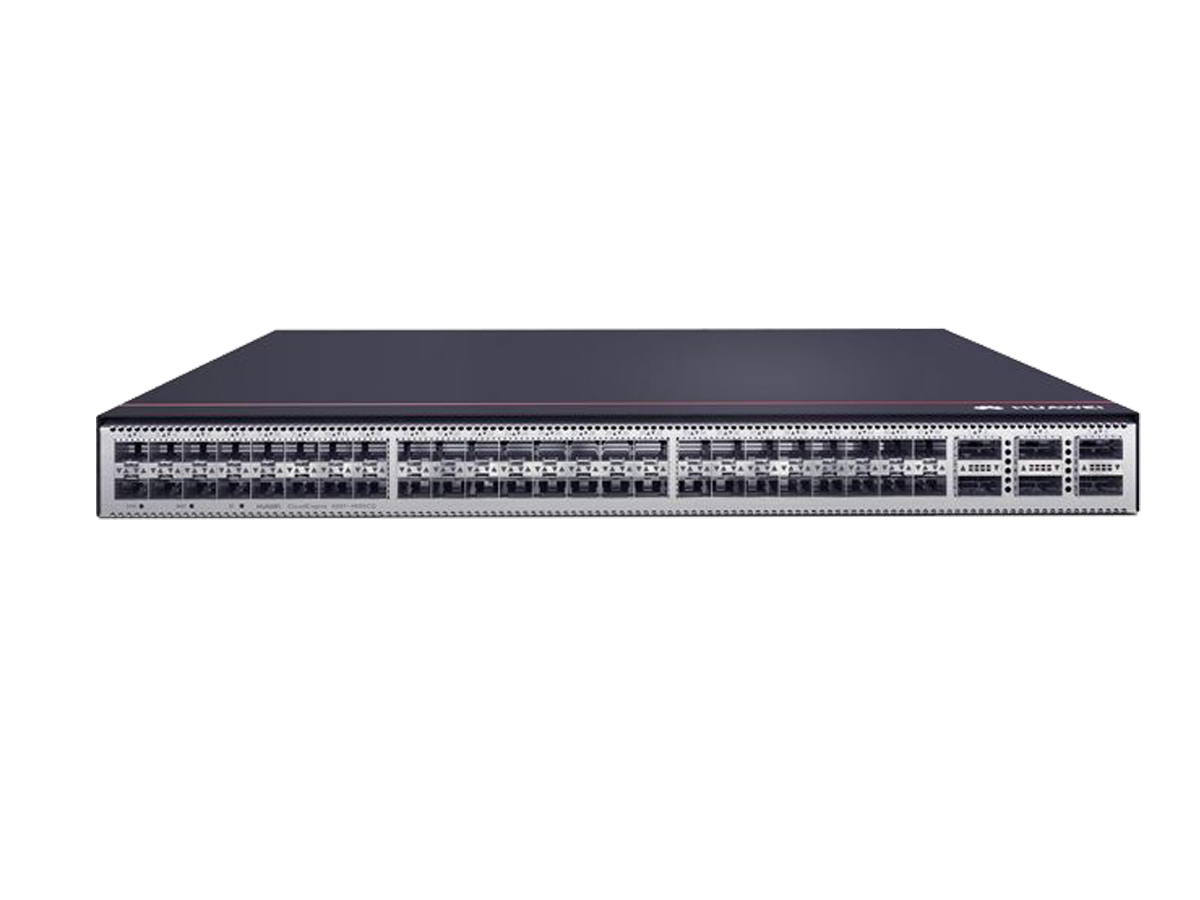

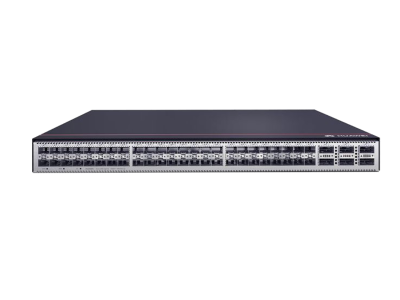

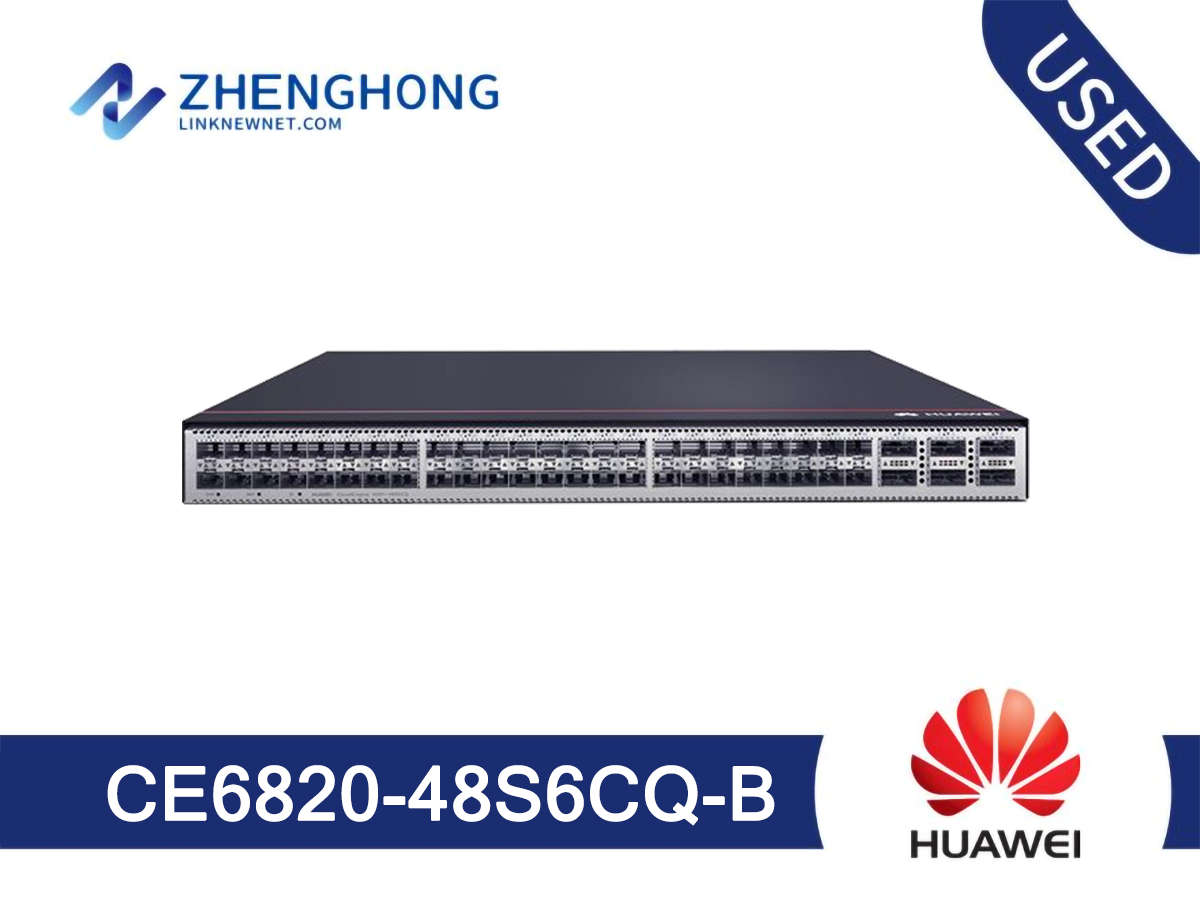

Huawei CloudEngine 6800 Series Switches CE6820-48S6CQ-B

Model: CE6820-48S6CQ-B

Detail: Huawei CE6820-48S6CQ-B switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake), Part Number: 02352TLG

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE6820-48S6CQ-B Specification
Item	Description
Processor	1.4 GHz, four-core
DRAM Memory	4 GB
NOR Flash	64 MB
NAND Flash	4 GB
Mean time between failures (MTBF)	45.48 years
Mean time to repair (MTTR)	1.52 hours
Fixed ports	Forty-eight 10GE SFP+ Ethernet optical ports Six 40GE/100GE QSFP28 Ethernet optical ports
Physical specifications	Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 55 dBA; Front-to-back airflow: < 55 dBA
Power source type	AC/DC/HVDC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V D
High-voltage DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: 190 V DC to -290 V D
Rated input current	600 W AC&240 V DC power (PAC600S12 series): 8 A (100 V AC to 240 V AC); 4 A (240V DC) 1000 W DC power (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
Maximum power consumption	282 W

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
