Huawei CloudEngine 5800 Series Switches CE5810-EI-B10|LinkNewNet

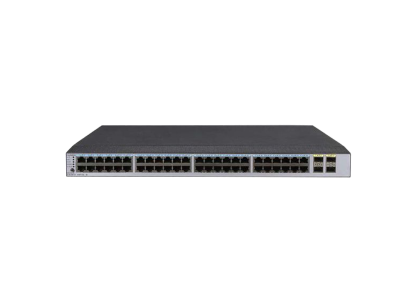

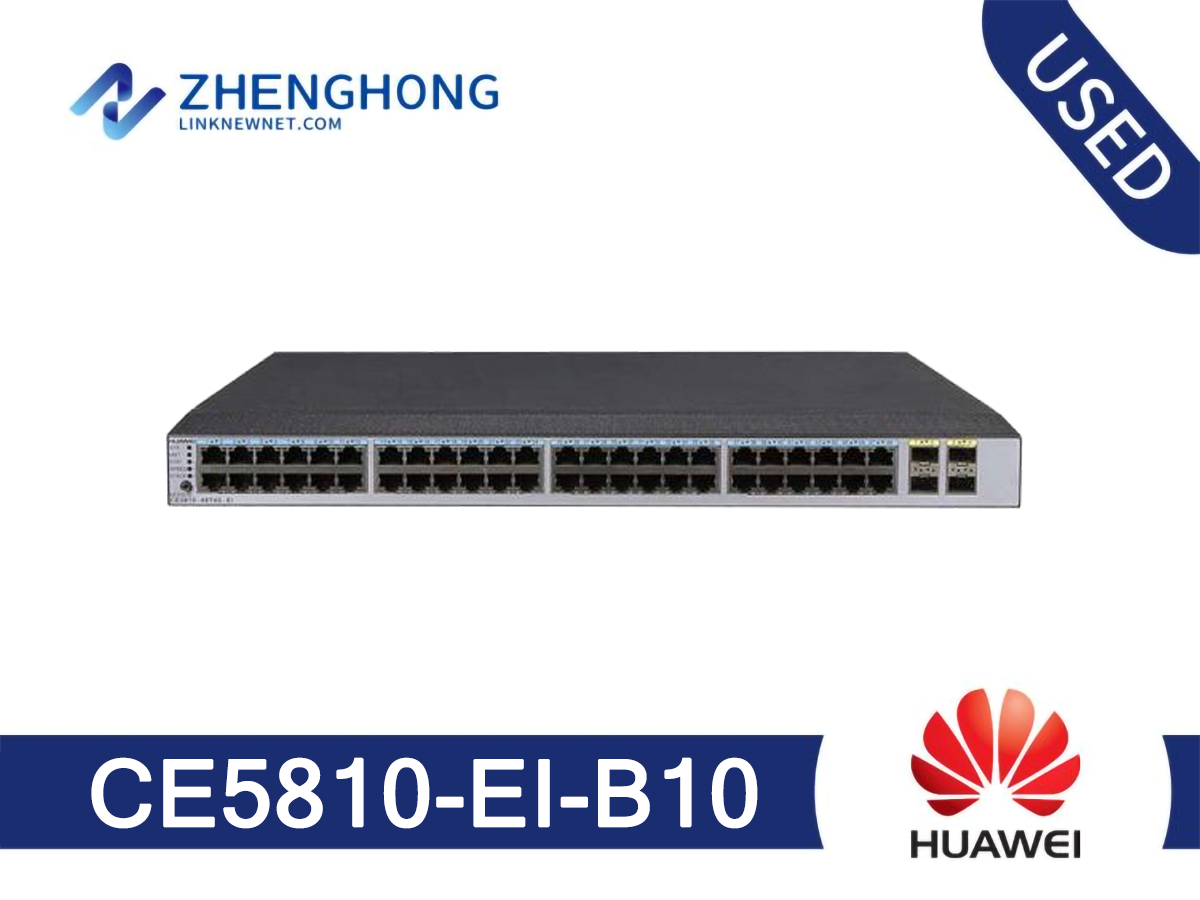

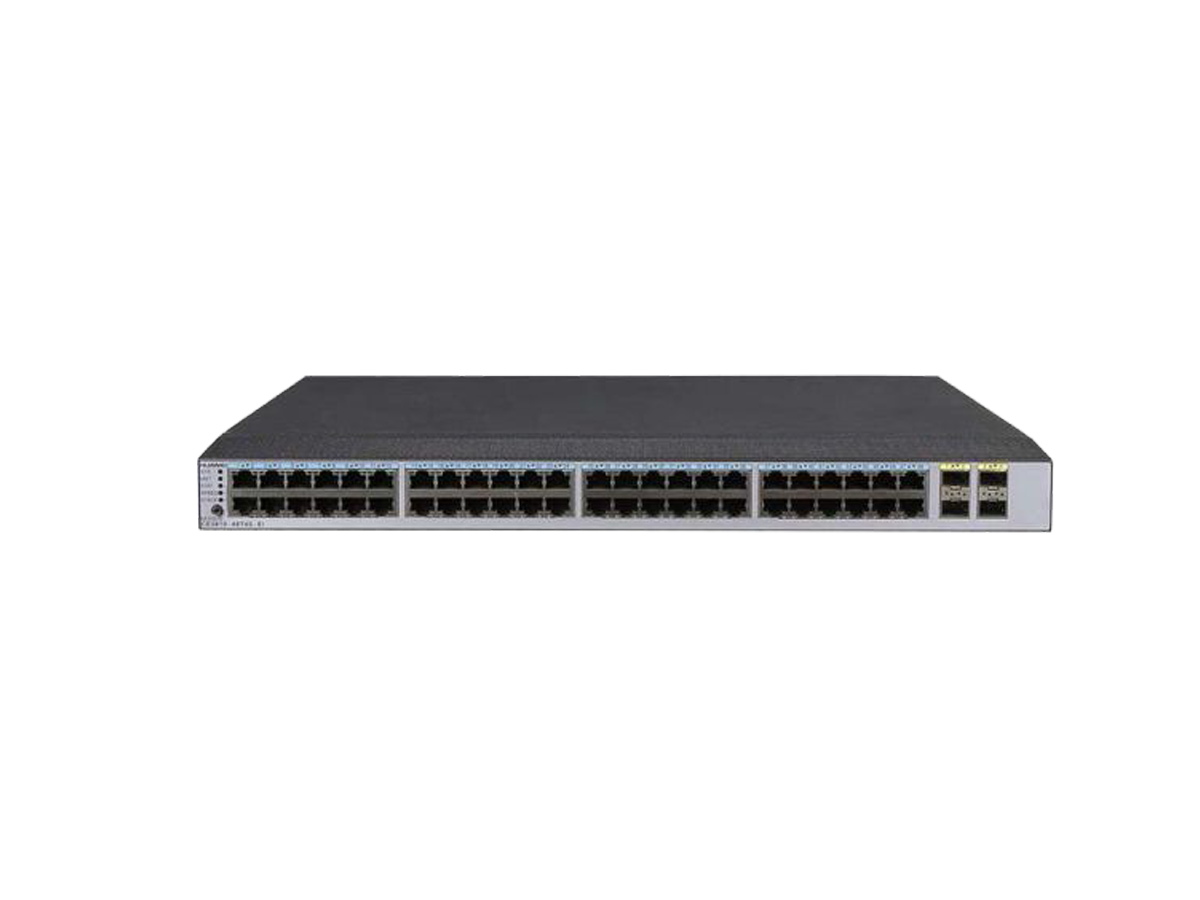

Huawei CloudEngine 5800 Series Switches CE5810-EI-B10

Model: CE5810-EI-B10

Detail: CE5810-EI Bundle 10(CE5810-48T4S-EI mainframe, 8*SFP-10G-USR ,Without Fan and Power Module)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE5810-EI-B10 Specification
Base-T Ports	48
SFP+ Ports	4
QSFP+ Ports	-
Switching Capacity	176 Gbit/s
Forwarding Rates	132 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack
Device Virtualization	Super Virtual Fabric (SVF)
Network Virtualization	M-LAG
Network Virtualization	TRILL (CE5855 & CE5850)
VM Awareness	Agile Controller
SDN	Open Programmability System (OPS)
Traffic Analysis	NetStream
Traffic Analysis	sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GVRP
ACL	ingress: 4.5k egress: 1k
MAC Address Table	maximum: 32k
	Dynamic learning and aging of MAC addresses
	Static, dynamic, and black hole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address limiting based on ports and VLANs
ARP (maximum)	8k
IPv4 FIB (maximum)	12k
IP Routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP Routing	IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855)
IPv6 FIB (maximum)	6k
IPv6	IPv6 Neighbor Discovery (ND) (not supported by CE5855)
	Path MTU Discovery (PMTU) (not supported by CE5855)
	TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Security and Management	802.1x authentication
	Command line authority control based on user levels, preventing unauthorized users from using commands
	DoS, ARP, and ICMP attack defenses
	Port isolation, port security, and sticky MAC
	Binding of the IP address, MAC address, interface number, and VLAN ID
	Authentication methods, including AAA, RADIUS, and HWTACACS
	Remote Network Monitoring (RMON)
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight (fully loaded)	8.2 kg (18.1 lb)
Environmental Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
	Storage temperature: -40°C to 70°C (-40°F to 158°F)
	Relative humidity: 5% to 95%, non-condensing
Operating Voltage	AC: 90V to 290V
Operating Voltage	DC: -38.4V to -72V
Maximum Power Consumption	92W

Q&A

Q Which are Huawei data center switches?

A High-performance cloud switches from the Huawei CloudEngine (CE) series are created for cutting-edge campus networks and next-generation data centers.

Q What is Huawei CloudEngine?

A Huawei CloudEngine (CE) series switches are high-performance cloud switches designed for next-generation data centers and high-end campus networks.

Q Why are Switch Ports down and faulty due to power over current?

A No faults with the switch, so we need to check the IP Phones. Power overcurrent: indicates that the current of the PD connected to the interface exceeds the maximum current of the interface.

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.
