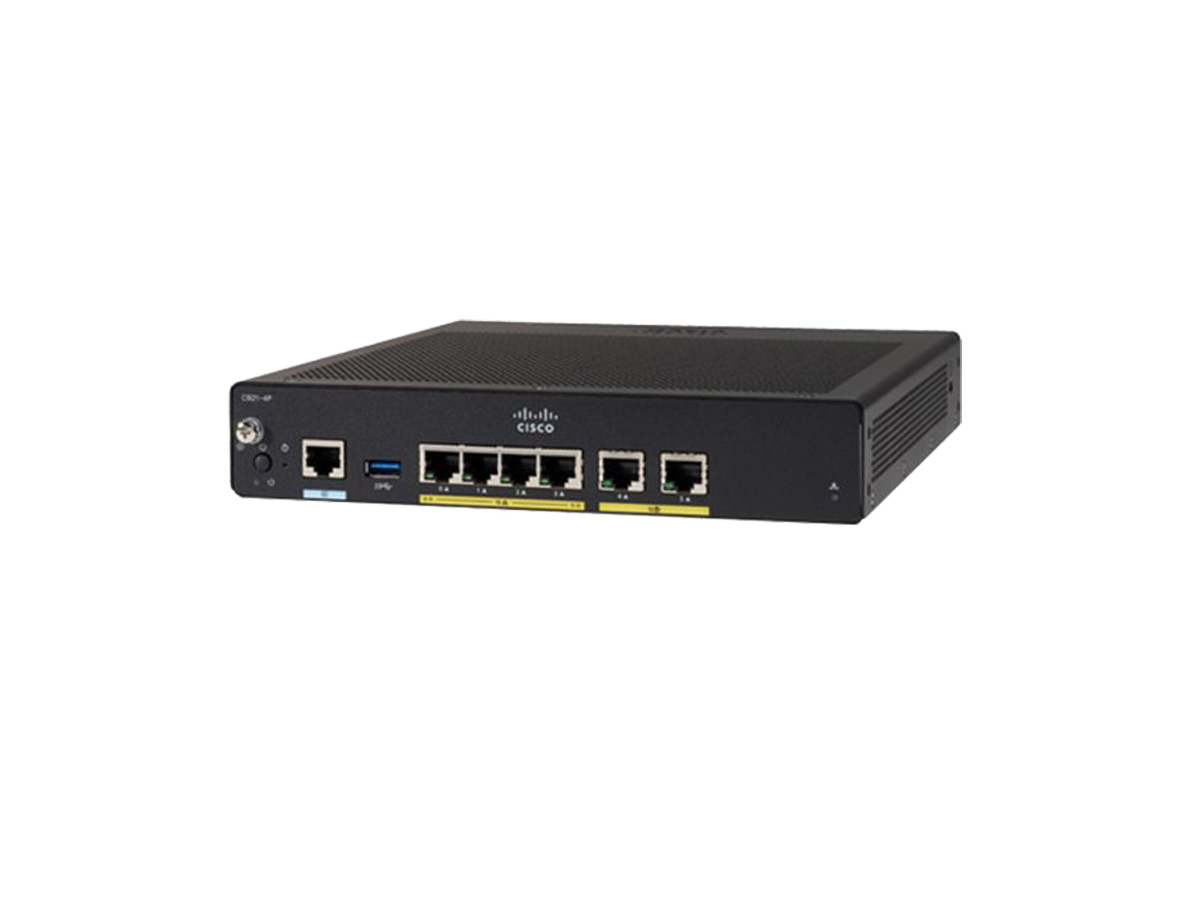

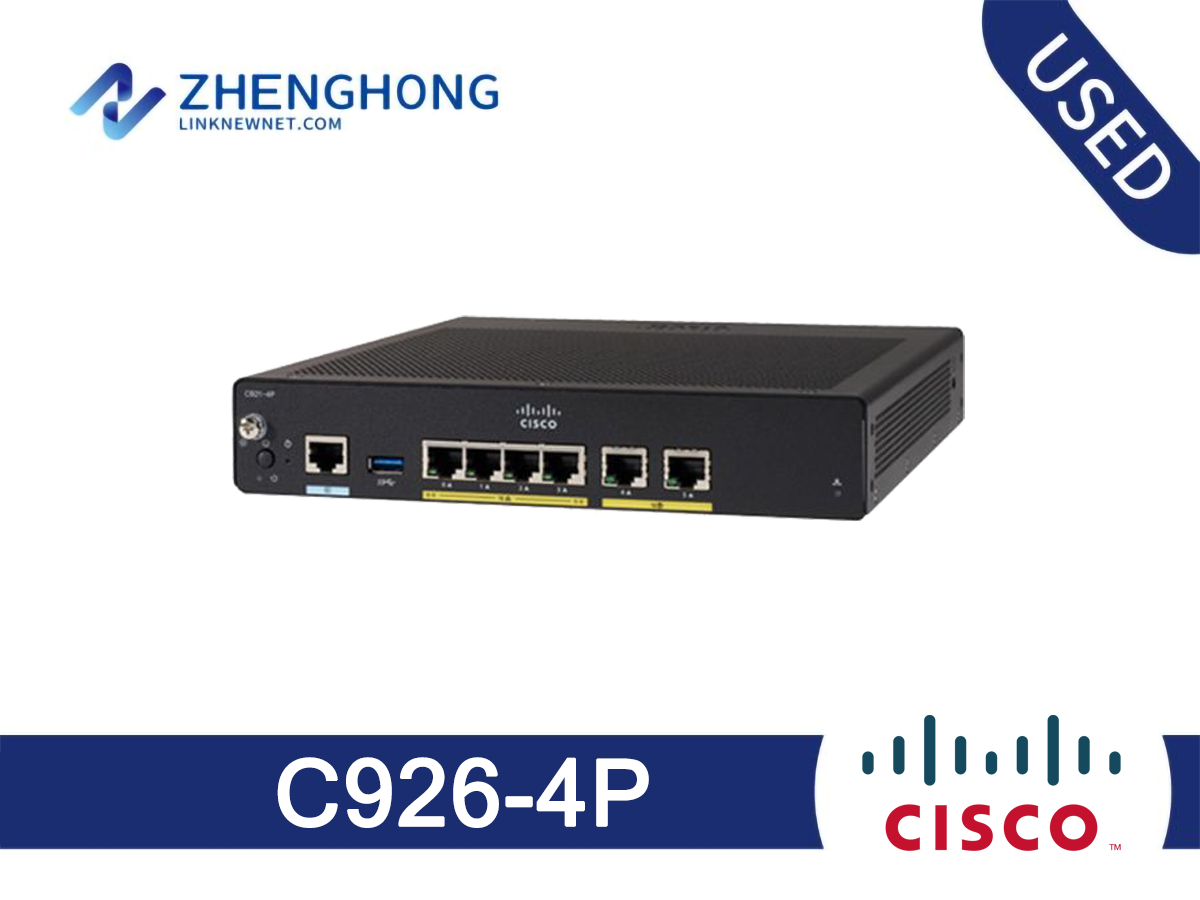

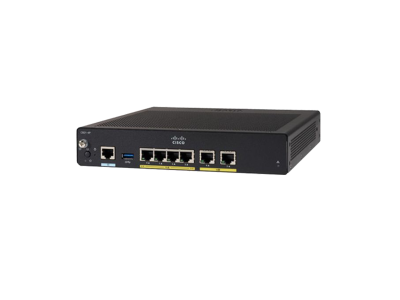

Cisco Router ISR 900 Series C926-4P

Model: C926-4P

Detail: This model supports VDSL/ADSL2+ Annex B/J, making it a versatile choice for businesses with varied broadband needs.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C926-4P Specification
WAN interfaces	1 port GE and 1 VADSL (Annex B/J)
LAN interfaces	4-port GE managed switch
Integrated USB 2.0	Yes
Maximum crypto throughput (bit-rate policed)	150 Mbps
Cisco IOS Software
Switch features	● Auto Media Device In/Media Device Cross Over (MDI-MDX) ● 25 802.1Q VLANs ● MAC filtering ● Switched Port Analyzer (SPAN) ● Storm control ● Smart ports ● Secure MAC address ● Internet Group Management Protocol Version 3 (IGMPv3) snooping ● 802.1X
Security features	Secure connectivity: ● Secure Sockets Layer (SSL) VPN for secure remote access ● Hardware-accelerated DES, 3DES, AES 128, AES 192, and AES 256 ● Public-Key-Infrastructure (PKI) support ● 50 IPsec tunnels ● Cisco Easy VPN client and server ● NAT transparency ● Dynamic Multipoint VPN (DMVPN) ● Tunnel-less Group Encrypted Transport VPN (GET VPN) ● VRF-aware IPsec ● IPsec over IPv6 ● Adaptive control technology ● Session Initiation Protocol (SIP) application-layer gateway ● Cisco IOS Firewall: ◦ Zone-based policy firewall ◦ VRF-aware stateful inspection routing firewall ◦ Stateful inspection transparent firewall ● Advanced application inspection and control ● HTTPS, FTP, and Telnet Authentication Proxy ● Dynamic and static port security ● Firewall stateful failover ● VRF-aware firewall ● Cisco IOS Software black and white lists ● Integrated threat control: ◦ Intrusion Prevention System (IPS) ● Control plane policing ● Flexible packet matching ● Network foundation protection
Quality of Service (QoS)	● Low-Latency Queuing (LLQ) ● Weighted Fair Queuing (WFQ) ● Class-Based WFQ (CBWFQ) ● Class-Based Traffic Shaping (CBTS) ● Class-Based Traffic Policing (CBTP) ● Policy-Based Routing (PBR) ● Class-Based QoS MIB ● Class of Service (CoS)-to-Differentiated Services Code Point (DSCP) mapping ● Class-Based Weighted Random Early Detection (CBWRED) ● Network-Based Application Recognition (NBAR) ● Link Fragmentation and Interleaving (LFI) ● Resource Reservation Protocol (RSVP) ● Real-Time Transport Protocol (RTP) header compression (cRTP) ● Differentiated Services (DiffServ) ● QoS preclassify and prefragmentation ● Hierarchical QoS (HQoS)
Management	● Cisco Configuration Professional ● Cisco Configuration Express ● Cisco Configuration Engine support ● Cisco AutoInstall ● Cisco IP Service-Level Agreement (IP SLA) ● Cisco IOS Embedded Event Manager (EEM) ● CiscoWorks ● Cisco Security Manager ● Telnet, Simple Network Management Protocol Version 3 (SNMPv3), Secure Shell (SSH) Protocol, Command-Line Interface (CLI), and HTTP management ● RADIUS and TACACS+ ● Cisco Next Generation Plug-and-Play (NG PnP) Protocol
High availability	● Virtual Router Redundancy Protocol (VRRP) (RFC 2338) ● HSRP ● MHSRP
Metro Ethernet	● Ethernet OA&M ● Ethernet Local Management Interface (E-LMI) ● IP SLA for Ethernet
IPv6	● IPv6 addressing architecture ● IPv6 name resolution ● IPv6 statistics ● IPv6 translation: Transport packets between IPv6-only and IPv4-only endpoints (NAT-Protocol Translation) ● Internet Control Message Protocol Version 6 (ICMPv6) ● IPv6 DHCP ● OSPFv3 ● BGP4+ ● IPv6 Path Maximum Transmission Unit (PMTU) ● IPv6 neighbor discovery ● IPv6 stateless address autoconfiguration (SLAAC) ● IPv6 multicast routing
Application visibility and control	● NBAR2 ● Flexible NetFlow (FNF) ● Performance Agent
Number of recommended users	● 50
Default and maximum DRAM	● Default 1 GB
Default and maximum flash memory	● 2 GB on all Cisco 900 Series ISR models; not upgradable
WAN	● Refer to Table 2 for details
LAN switch	● Refer to Table 2 for details
Separate console ports	● RJ-45
USB 2.0	● One USB 2.0 Type A port
Physical dimensions	H x W x D = 1.10 x 10.20 x 7.00 in. (2.80 x 25.91 x 17.78 cm) (includes rubber feet)
Power supply	Power specifications: ● AC input voltage: Universal 100 to 240 VAC ● Frequency: 50 to 60 Hz ● External power adapter (C927-4P, C927-4PM, and C926-4P only): 12 VDC; 30 W

Q&A

Q What is the difference between ISR800 and ISR900?

A In the integrated services routers family, both of the Cisco ISR 800 and Cisco ISR 900 are designed for the enterprise small branch offices.

Q As two series in the same application, which is better?

A Cisco 800 integrated services routers were released earlier than the Cisco 900 ISR. It means that 800 ISR is going to be the EOS or EOL series, but we will still like it, because of its good performance after the checking of the market.
