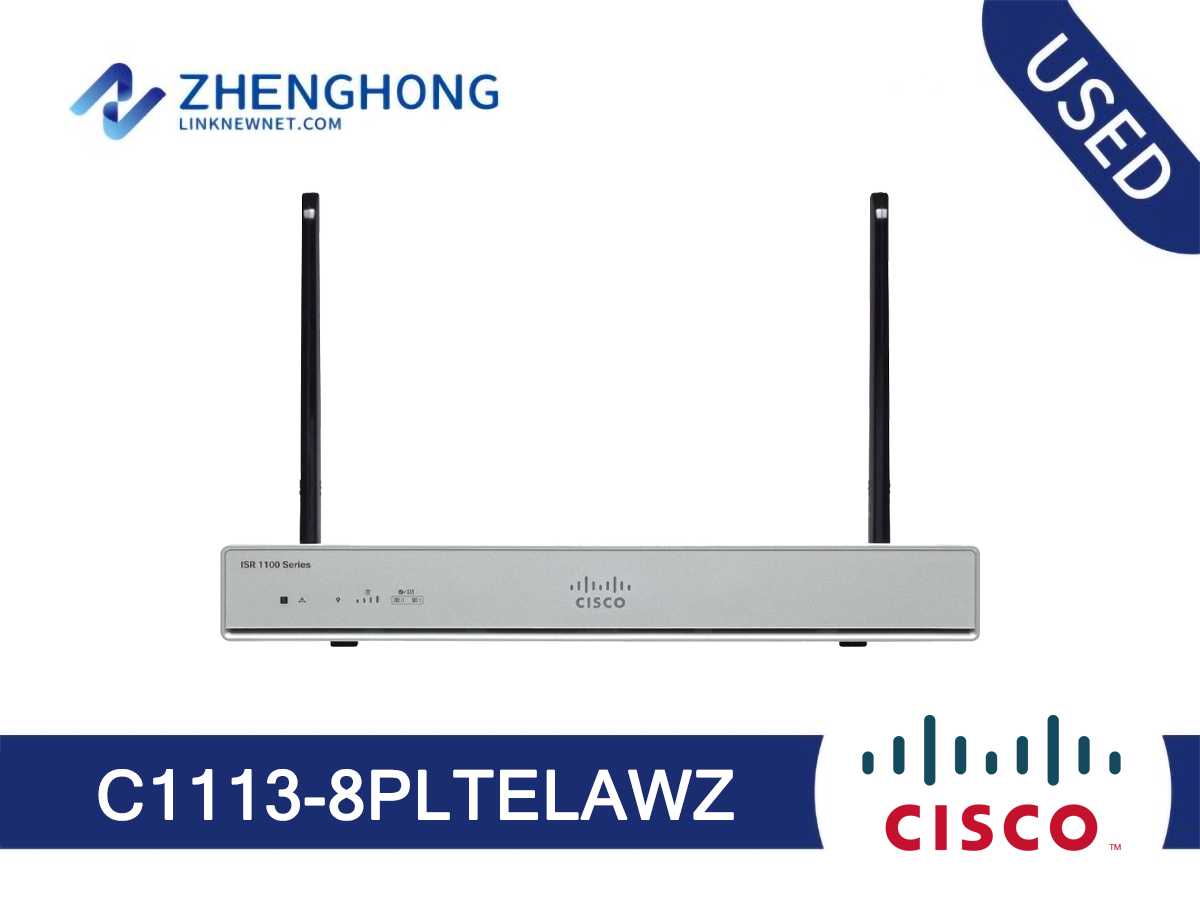

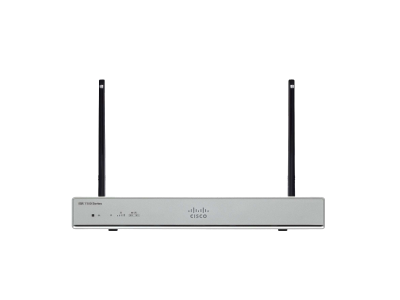

C1113-8PLTELAWZ - Cisco Router ISR 1100 Series

GE

N/A

GE/SFP combo

1

ADSL2/VDSL2+

1 G.FAST
(Annex A)

LTE Advanced (CAT6)

1 LATAM & APAC

802.11ac

2X2 MIMO

GE

8

PoE

4

PoE+

2

Integrated USB 3.0 AUX/console

Yes

Memory (default and maximum)

DRAM: 4 GB

Flash: 4 GB

Console

· Micro USB console (USB 3.0).

Mini-USB port (reserved)

· Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).

802.11ac

· 2x2 SU-MIMO/MU-MIMO with two spatial streams.

· Maximal Ratio Combining (MRC).

· 20-, 40-, and 80-MHz channels.

· PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).

· Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).

· 802.11 Dynamic Frequency Selection (DFS).

· Cyclic Shift Diversity (CSD) support.

Software

· Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5
(8.7 for 1101 series) MR1 or later.

External power supply

· AC input voltage: Universal 100 to 240 VAC.

· Frequency: 50 to 60 Hz.

· Maximum output power: 66W (default).

· Output voltages: 12 VDC.

· Optional PoE and PoE+:

◦   Single 150W power supply required for Cisco 1100-8P series router

◦   Single 115W power supply required for Cisco 1100-4P series router

· External output voltage: 48 VDC.

USB 3.0

· USB devices supported:

◦   USB eTokens and USB flash memory

· Note: Devices USB 3.0 supports to be connected externally.

LEDs

· WWAN (green/amber).

· SIM status (green/amber).

· Received signal strength indication (RSSI) bar (green).

· 3G/LTE service (green/amber).

· GPS (green/amber).

· Speed and link for Gigabit Ethernet WAN port (green).

· Speed and link for all Fast Ethernet LAN ports (green).

Physical dimensions

(H x W x D)

C111X Models

·  1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).

·  1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).

C1101-4PLTEP and C1101-4PLTEPWX Models

·  1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).

Weight

C111X Models

· 1.94 lb to 4.59 lb (1.94kg to 2.08 kg).

· 4.50 lb (2.04 kg) with LTE Advanced.

· 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.

· 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.

Environmental operating range

· Nonoperating temperature: -4° to 149°F (-0° to 65°C).

· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).

· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).

· Operating temperature: 32° to 104°F (0° to 40°C).

· Operating humidity: 10% to 85% relative humidity (noncondensing).

· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
