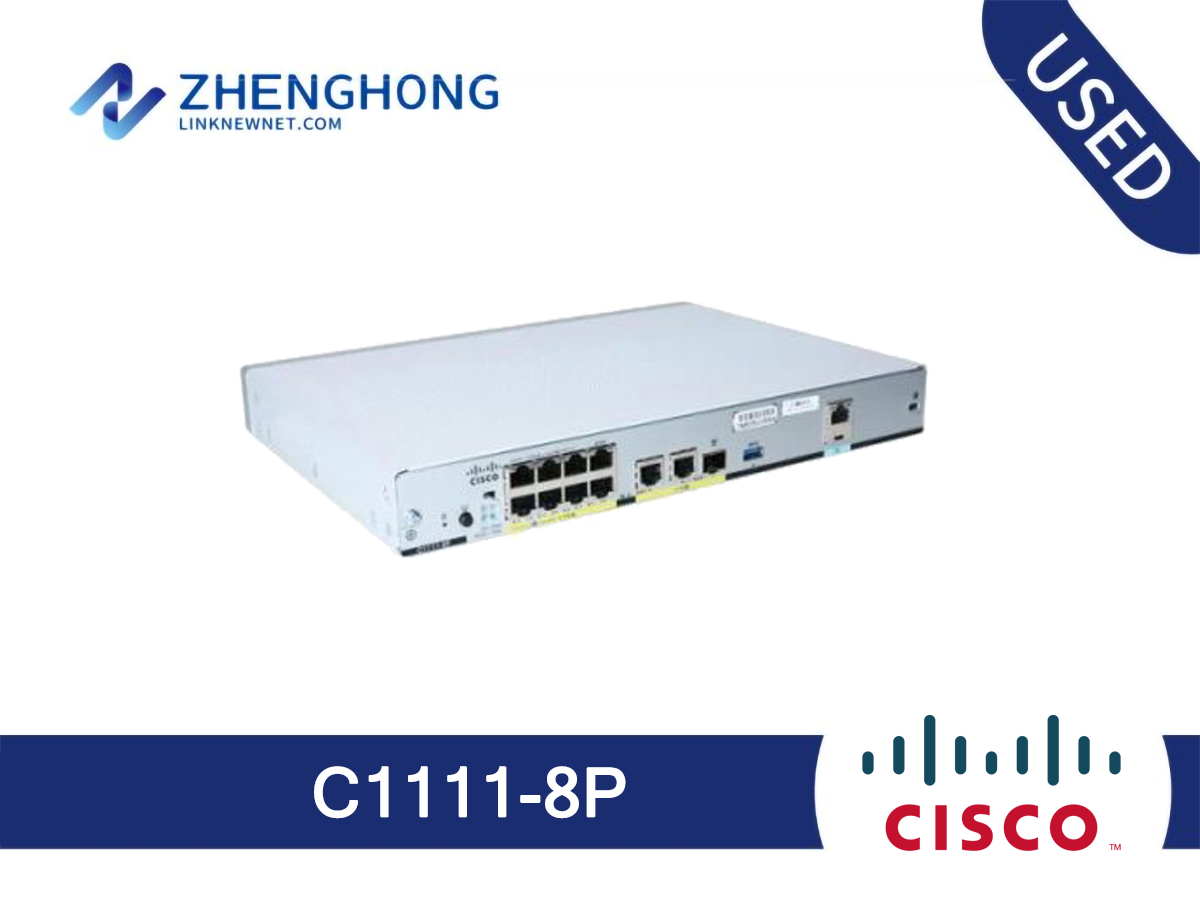

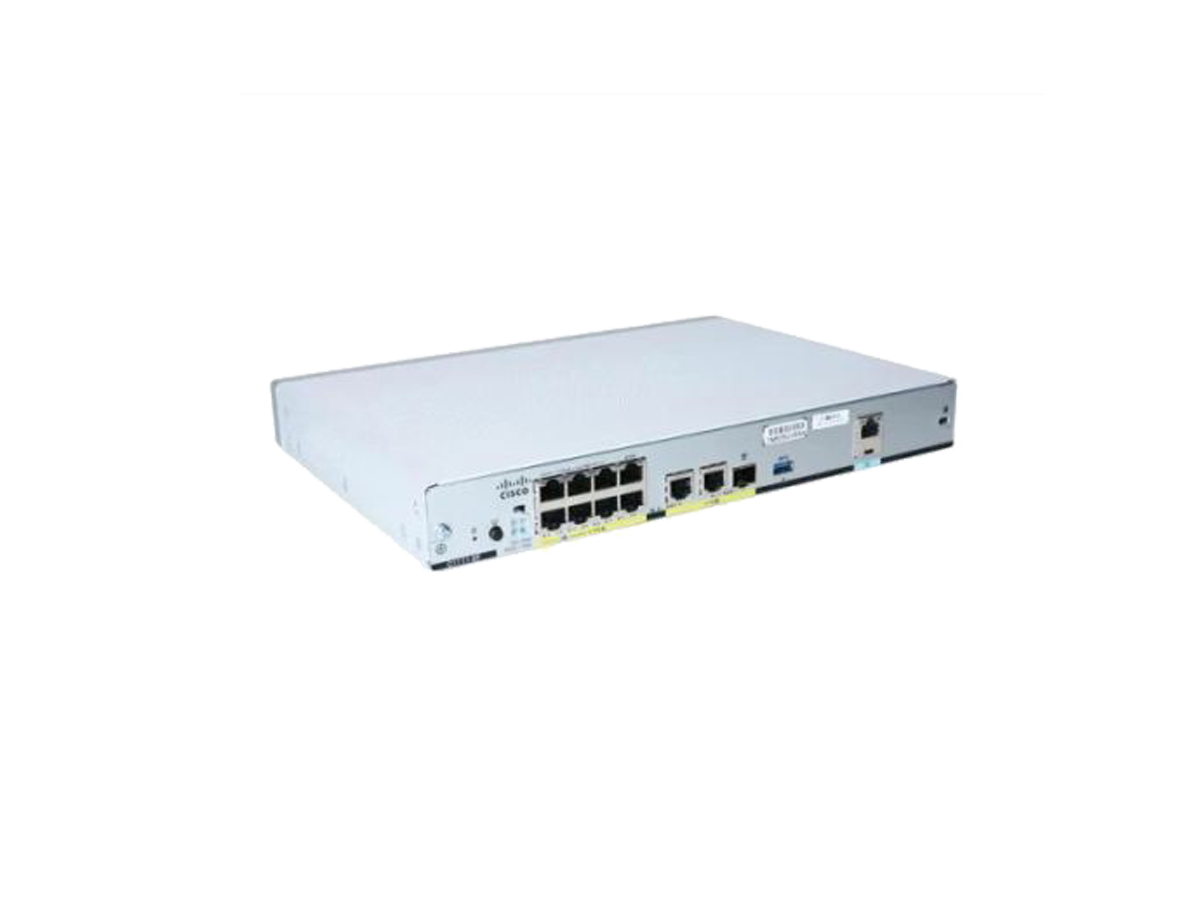

C1111-8P - Cisco Router ISR 1100 Series

Model: C1111-8P
Detail: Cisco 1100 Series Router ISR 1100 8 Ports Dual GE WAN Ethernet Router
Condition: Used
*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.
*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C1111-8P Specification
Description	ISR 1100 8 Ports Dual GE WAN Ethernet Router
Physical Properties
Dimensions (H x W x D)	Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules)	5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage	Universal 100 to 240 VAC
Frequency	50-60 Hz
Input current	PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum
Surge current	90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port	One RJ-45: Separate console port
USB port	USB 3.0 Type A host port USB devices supported: USB flash memory
Console port	One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet	Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs	32 (encrypted and non-encrypted VLANs)
Wireless specifications	2x2 .11ac Wave 2
Default and maximum DRAM	4GB
Default and maximum flash	4GB
Inline PoE	4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+
Acoustic for Cisco 1100 Series ISRs	Not Applicable - Fanless design
Approvals and compliance	Emission 47 CFR Part 15 CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003
Environmental
Operating humidity	5 to 85% relative humidity
Operating temperature	32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft
Altitude in China	0-6560 ft (0-2000 m)
Altitude in all other countries	0-10,000 ft (0-3050 m)
Transportation and Storage
Nonoperating temperature	-40 to 158°F (-40 to 70°C)
Nonoperating humidity	5 to 95% relative humidity (noncondensing)
Nonoperating altitude	0 to 15,000 ft (0 to 4570m)

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales.

Whatsapp(+86 18038172140) or Skype/Email:cs@linknewnet.com

Q&A

Questions & Answers

What are the common troubleshooting methods for the Cisco 1100 Series Router?

Some common troubleshooting methods for the Cisco 1100 Series Router (C1111-8P) include power cycling the device, checking the network connections, and verifying the configuration settings.

Are there any available accessories for the Cisco 1100 Series Router?

Yes, Cisco provides various accessories for the Cisco 1100 Series Router (C1111-8P), such as power adapters, rack mounts, antennas, and network modules. Please refer to the official documentation for a complete list of compatible accessories.

How does the Cisco 1100 Series Router compare to other similar products?

Compared to other similar routers, the Cisco 1100 Series Router (C1111-8P) stands out with its dual GE WAN Ethernet ports, which offer enhanced network connectivity and flexibility for various deployment scenarios.

What are the product series and category of the Cisco 1100 Series Router?

The Cisco 1100 Series Router (C1111-8P) belongs to the C1111-8P product series and is part of the Cisco 1100 Series Integrated Services Routers category.

What are the key features of the Cisco 1100 Series Router?

The Cisco 1100 Series Router (C1111-8P) features dual GE WAN Ethernet ports, providing high performance and reliability for small to medium-sized businesses.

What is the application scenario of the Cisco 1100 Series Router?

The Cisco 1100 Series Router (C1111-8P) is ideal for deployments in small branch offices, retail stores, and teleworker environments, offering secure and reliable connectivity.

How is the cost-effectiveness of the Cisco 1100 Series Router?

The Cisco 1100 Series Router (C1111-8P) offers excellent cost-effectiveness with its advanced capabilities, such as integrated security, high-speed connectivity, and application optimization.

How do I install the Cisco 1100 Series Router?

The Cisco 1100 Series Router (C1111-8P) can be easily installed using the provided instructions. Simply connect the router to your network and follow the configuration steps to set it up.

Does the Cisco 1100 Series Router require any upgrades?

Yes, the Cisco 1100 Series Router (C1111-8P) supports software upgrades to ensure the latest features and security enhancements are available. Check Cisco's official website for the latest firmware releases.
