Cisco Catalyst 1000 Series Switches C1000-8T-2G-L|LinkNewNet

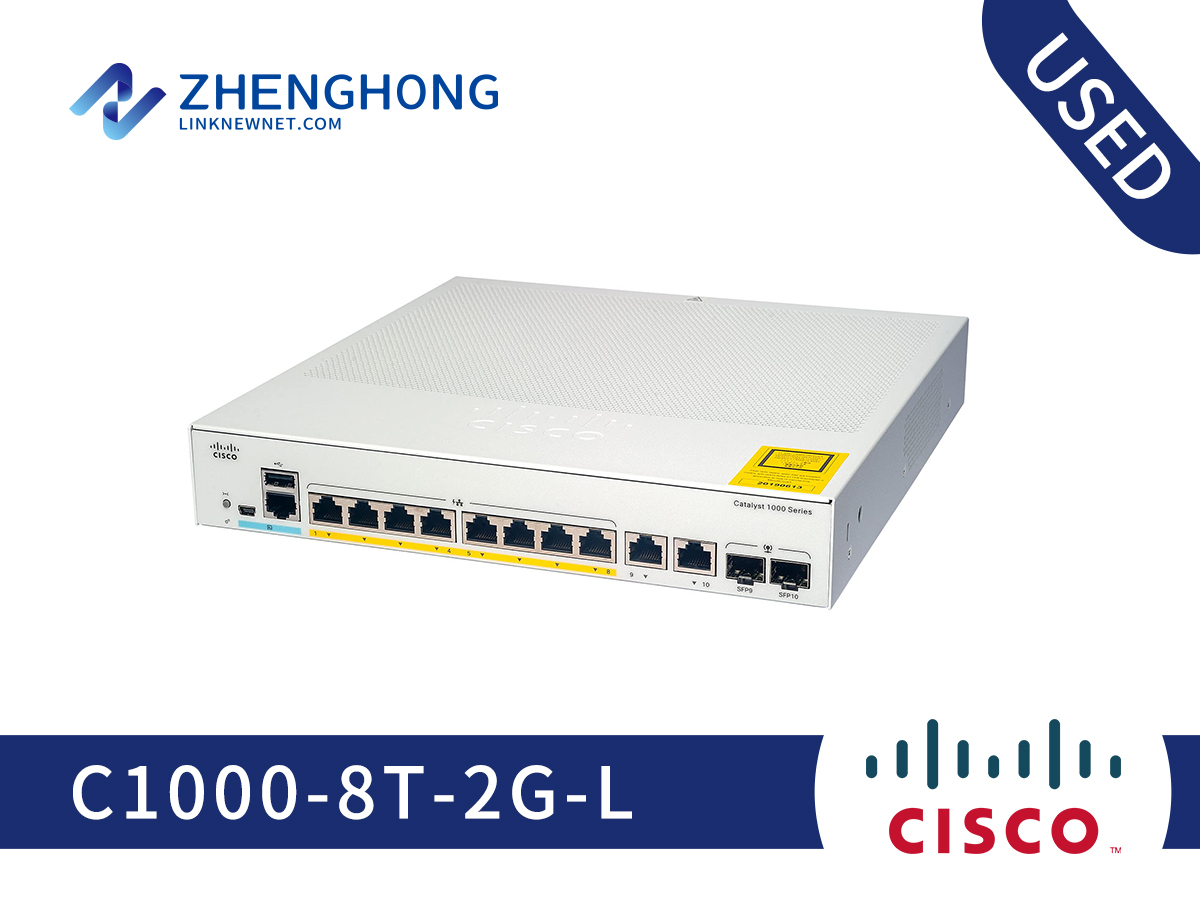

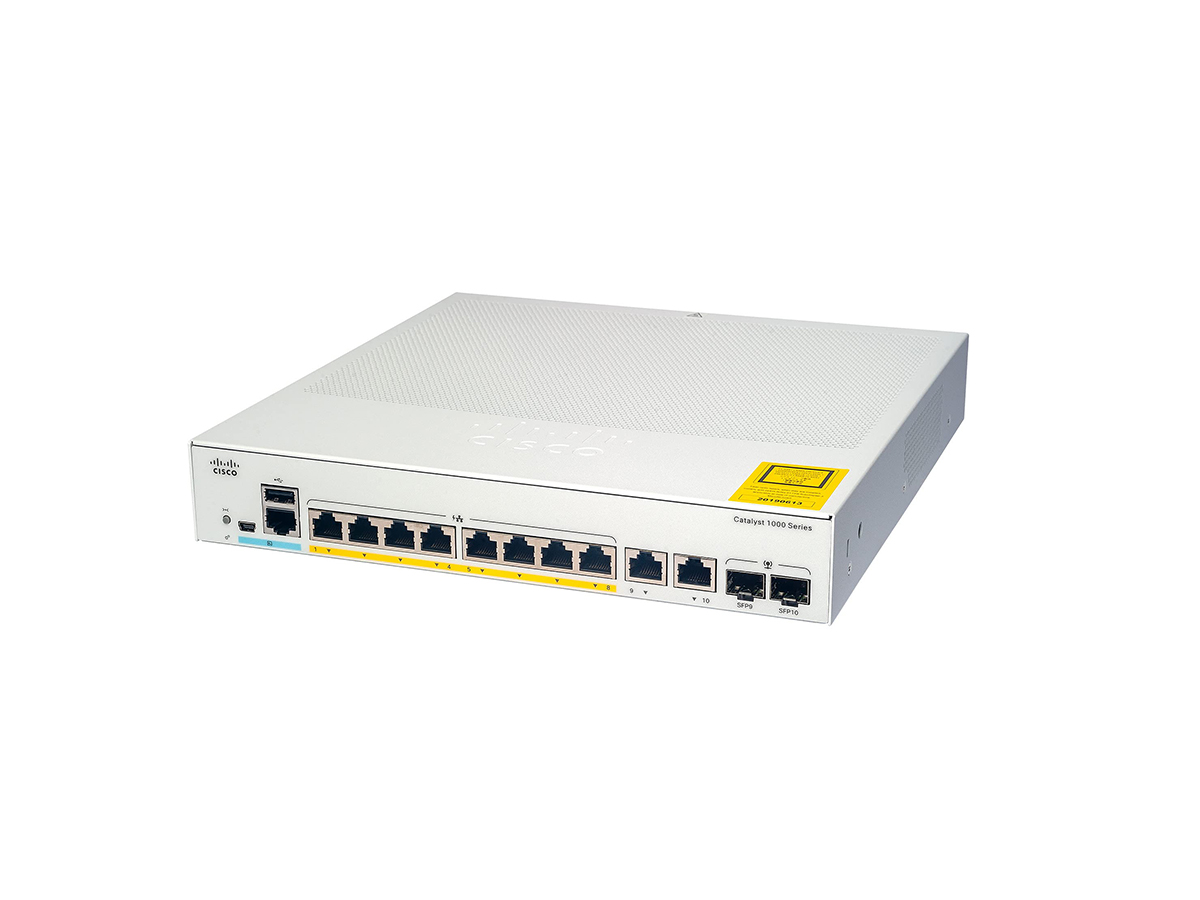

Cisco Catalyst 1000 Series Switches C1000-8T-2G-L

Model: C1000-8T-2G-L

Detail: 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C1000-8T-2G-L Specification
Description	8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks
Gigabit Ethernet ports	8
Uplink interfaces	2 SFP/ RJ-45 combo
Dimensions (WxDxH )	10.56 x 7.28 x 1.73 in
Console ports
RJ-45 Ethernet	1
USB mini-B	1
Memory and processor
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	10 Gbps
Switching bandwidth	20 Gbps
MTBF in hours (data)	2,171,669
Maximum active VLANs	256
VLAN IDs available	4094
MTU-L3 packet	9198 bytes
Forwarding rate(64—byte L3 packets)	14.88 Mpps
Dying Gasp	Yes
MTBF in hours (PoE)	1,786,412, 1,706,649 (External PS)
MTBF in hours (Full PoE)	1,706,649
Environmental
Operating temperature Seal level	-5 to 50 deg C*
Up to 5,000ft (1500 m)	-5 to 45 deg C
Storage altitude	15,000 ft (4500m)
Storage temperature	-13 to 158F (-25 to 70C)
Upto 10,000 (3000 m)	-5 to 40 deg C
Operating altitude	10,000 ft (3,000m)
Safety and compliance
U.S. government certifications	TBD
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
Connectors and interfaces
Power	* Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply
Ethernet interfaces	* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	* Per-port status: link integrity, disabled, activity * System status: system
Console cables	* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Q&A

Q Can the C1000-8T-2G-L be used in a Power over Ethernet (PoE) environment?

A Yes, the C1000-8T-2G-L supports 1G SFP (Small Form-Factor Pluggable) transceivers, which allow for fiber optic connections. This enables the switch to be deployed in both copper and fiber network environments.

Q Is the C1000-8T-2G-L compatible with fiber optic connections?

A If you are experiencing connectivity issues with the C1000-8T-2G-L, first ensure that all cables are securely connected. Check the network configuration settings and verify that the switch has the latest firmware version. If the issue persists, consult the Cisco documentation or contact technical support for further assistance.

Q How does the C1000-8T-2G-L compare to other switches in the Cisco Catalyst 1000 Series?

A The C1000-8P-2G-L switch has a PoE budget of 67W, allowing it to power PoE+ devices without the need for additional power sources.

Q What troubleshooting steps should be taken if I encounter connectivity issues with the C1000-8T-2G-L?

A The C1000-8T-2G-L offers 8x 10/100/1000 Ethernet ports and 2x 1G SFP and RJ-45 combo uplinks, providing a balance between port density and uplink flexibility. It is a cost-effective option for smaller network deployments, while other models in the Catalyst 1000 Series offer higher port densities and additional features for larger-scale networks.
