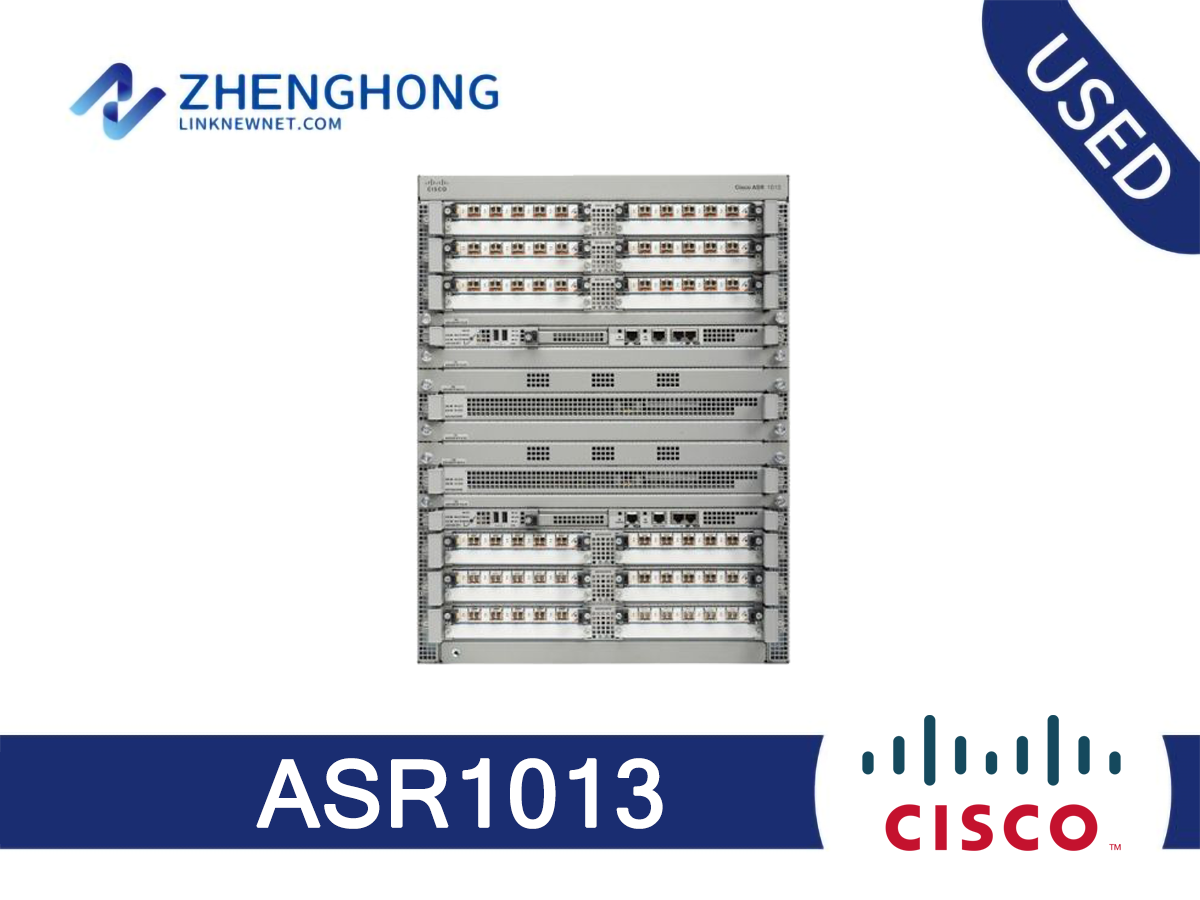

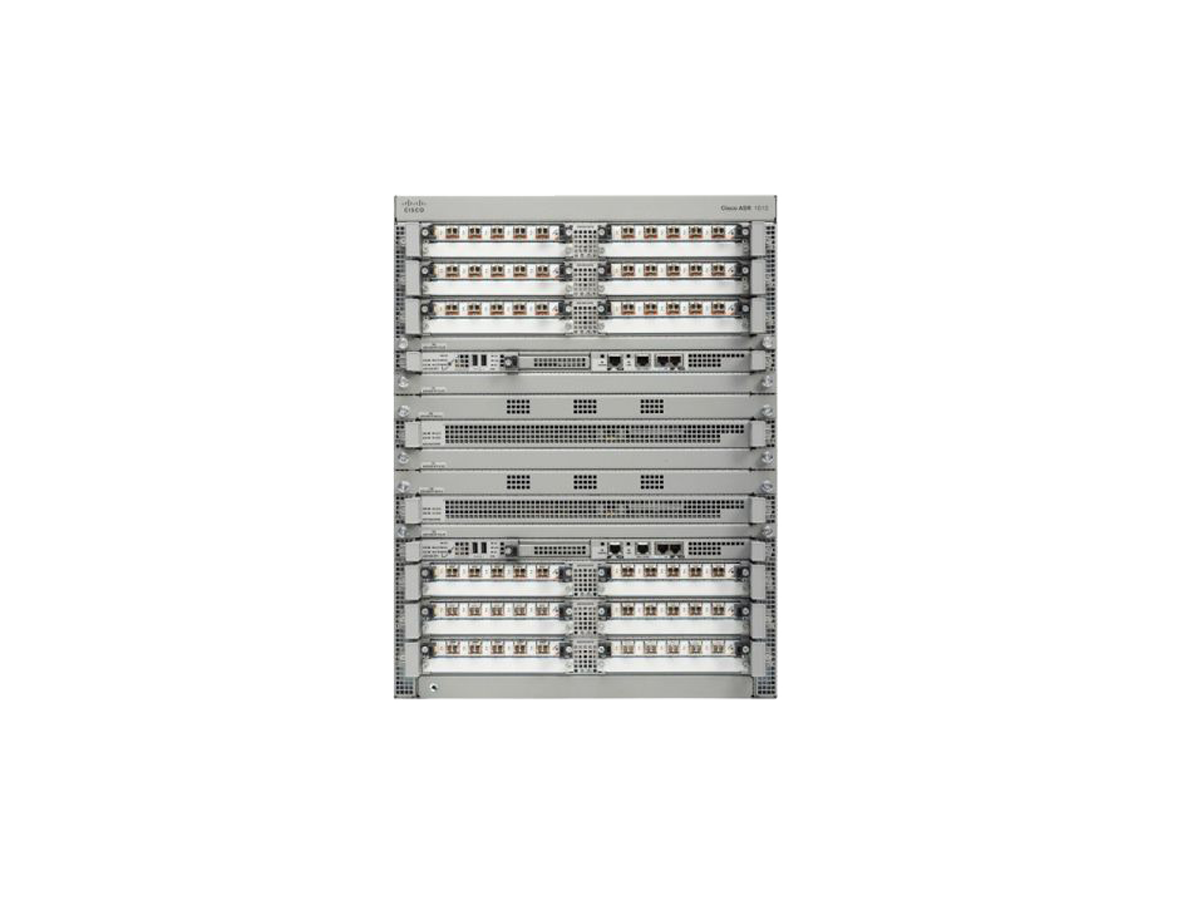

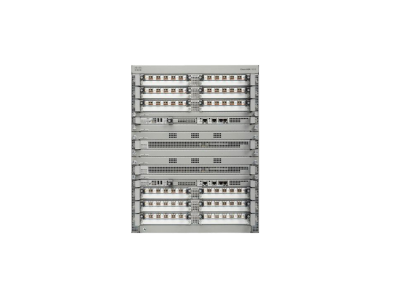

Cisco ASR 1000 Chassis ASR1013

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 22.8 in. (579.1 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs)

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

6

Shared port adapters

24 SPA slots

Ethernet port adapters

12 EPA slots

Cisco ASR 1000 Series ESP

2 ESP slots

Route processor

2 route-processor slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet ports

0

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

Cisco ASR 1000 Series

Cisco ASR 1013

ESP support

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200)

ESP bandwidth

40 to 200 Gbps

ESP memory

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption

Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies

Note: A mix of AC and DC power supplies is not supported.

Power input

Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal)

Worldwide ranging DC

(-40.5 to
 -72; -48V nominal)

Power consumption

●  Maximum (DC): 4200W

●  Maximum (AC-high line): 4000W

●  Maximum (out): 3390W

Airflow

Front-to-back

Network Equipment Building Standards (NEBS)
