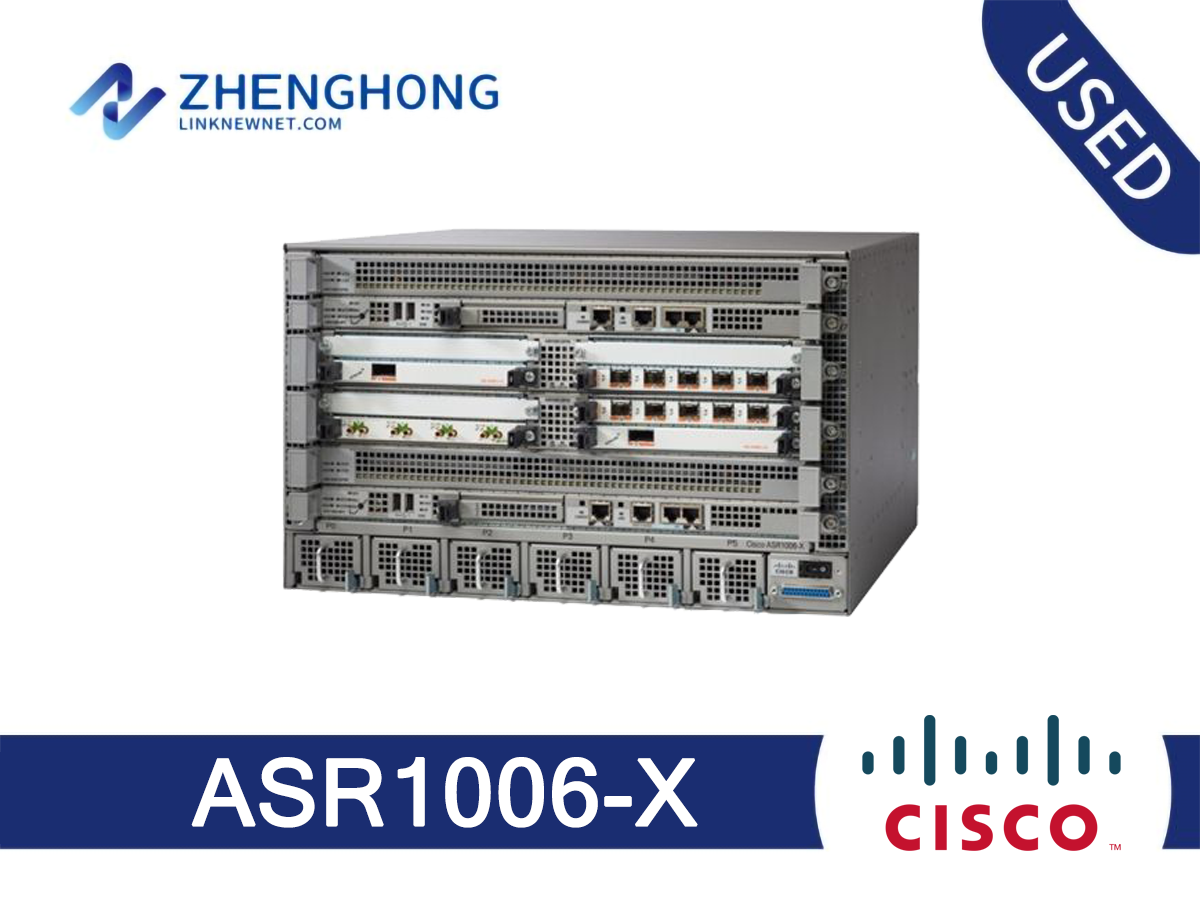

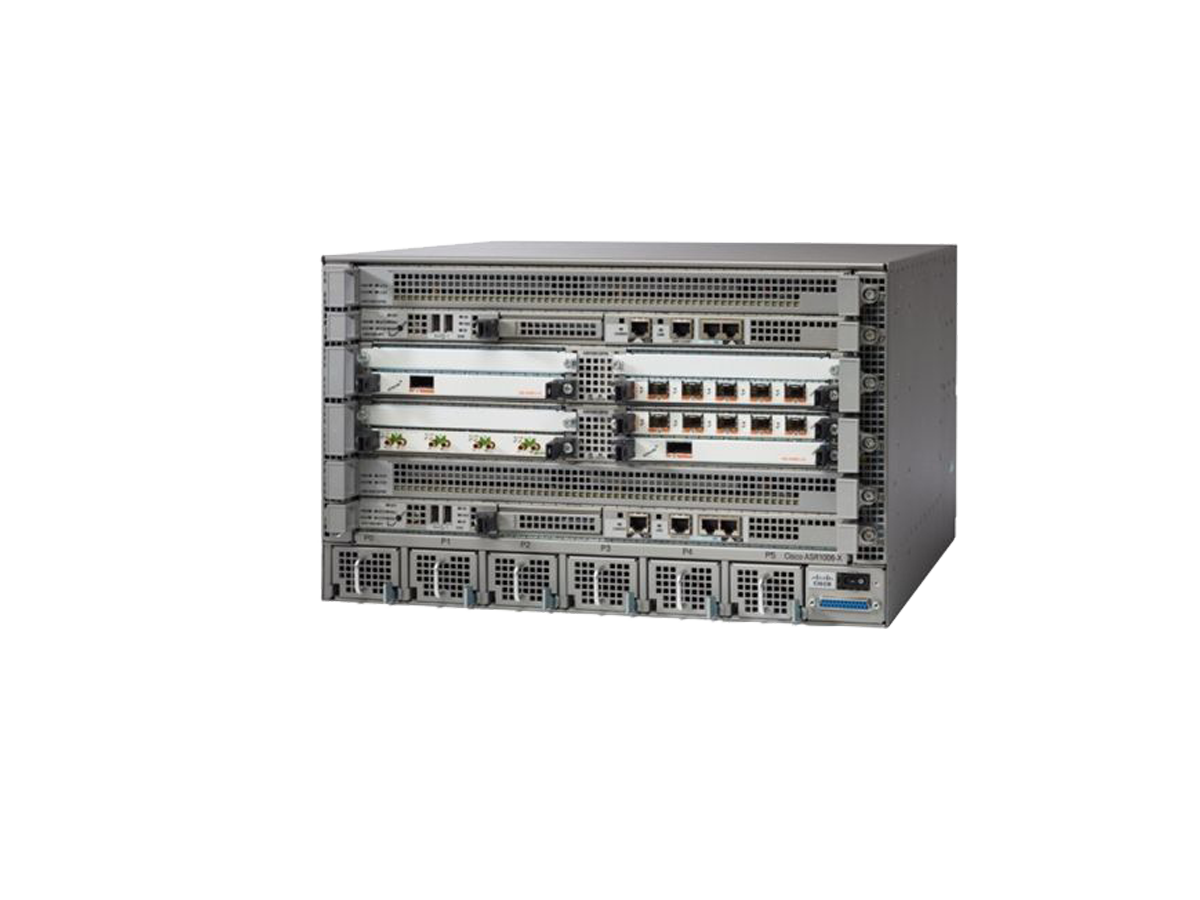

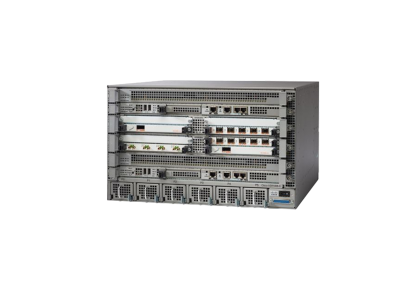

Cisco Router ASR 1000 Series ASR1006-X

Model: ASR1006-X

Detail: The Cisco ASR1006-X represents the chassis for the Cisco ASR1006 router.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR 1006-X Specification
Dimension	Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm)
Default memory	8-GB DRAM RP2 8-GB DRAM RP3
Number of SIPs or Ethernet line cards supported	2
Shared port adapters	8 SPA slots
Ethernet port adapters	4 EPA slots
Cisco ASR 1000 Series ESP	2 ESP slots
Route processor	2 route-processor slots
Redundancy	Hardware: Yes
Built-in Gigabit Ethernet ports	0
ESP bandwidth	40 to 100 Gbps
ESP memory	Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAM Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM
SIPs and Ethernet line cards	Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)
Embedded hardware-based encryption	Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput
Minimum Cisco IOS XE Software release	Cisco IOS XE Software Release 3.16.0
Rack-mounting	Yes: 19-inch
Wall-mounting	No
External USB flash memory	1-GB USB flash-memory support
Redundant power supply	Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC Note: A mix of AC and DC power supplies is not supported.
Power input	Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal)
Power consumption	● Maximum (DC): 4600W ● Maximum (AC): 4500W
Airflow	Front-to-back

Q&A

Q What accessories are available for the ASR1006-X?

A Accessories include additional power supply units, rack mounts, and various network interface modules to enhance functionality.

Q How does the ASR1006-X compare to similar products?

A Compared to similar routers, the ASR1006-X offers superior scalability and performance, making it ideal for enterprise-level deployments.

Q What common issues might arise with the ASR1006-X?

A Common issues can include configuration errors and hardware faults, which can typically be resolved through Cisco's troubleshooting resources and support.

Q What makes the ASR1006-X a preferred choice for WAN aggregation?

A The ASR1006-X's robust performance, high availability, and scalability make it an excellent choice for WAN aggregation, meeting high traffic demands efficiently.
