Cisco Router ASR 1000 Series ASR1004-20G-HA/K9|LinkNewNet

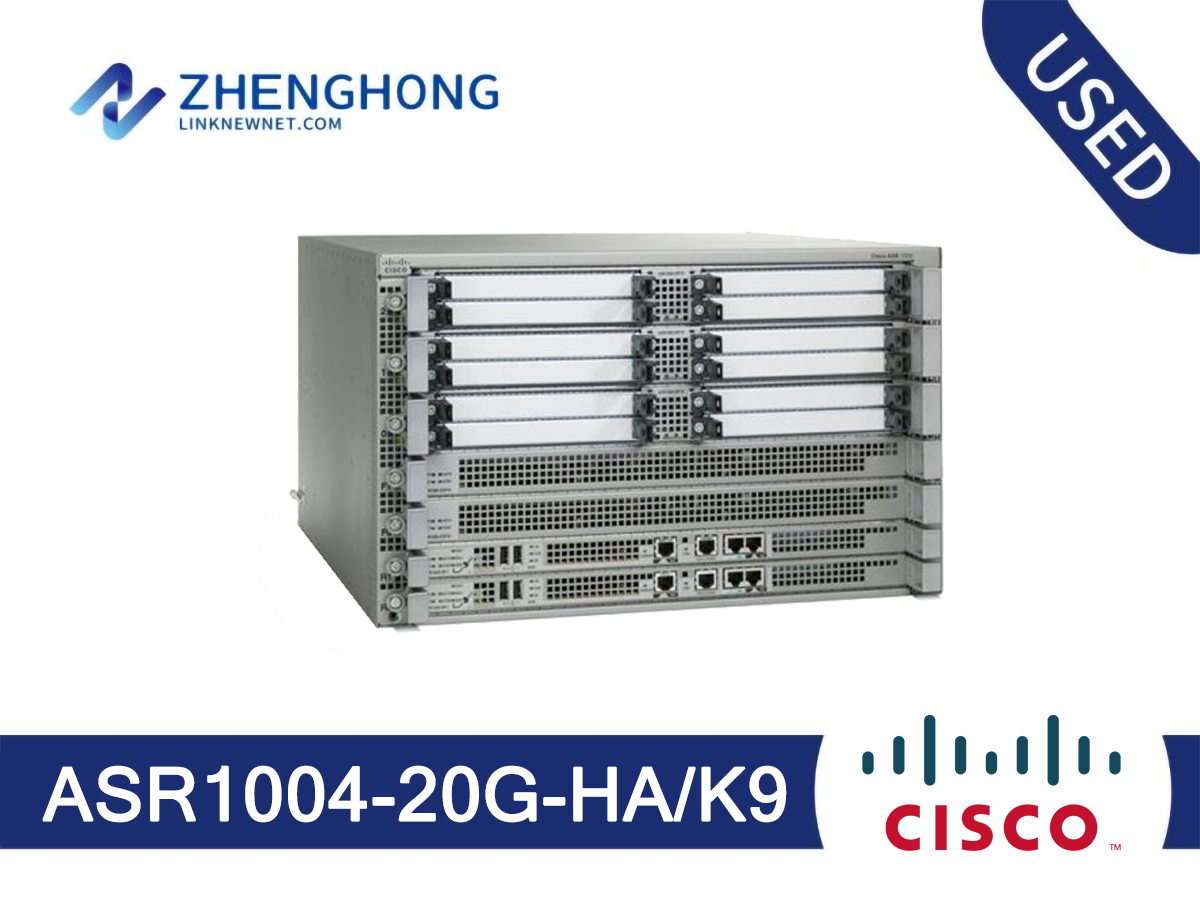

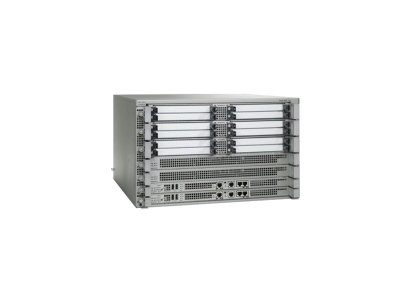

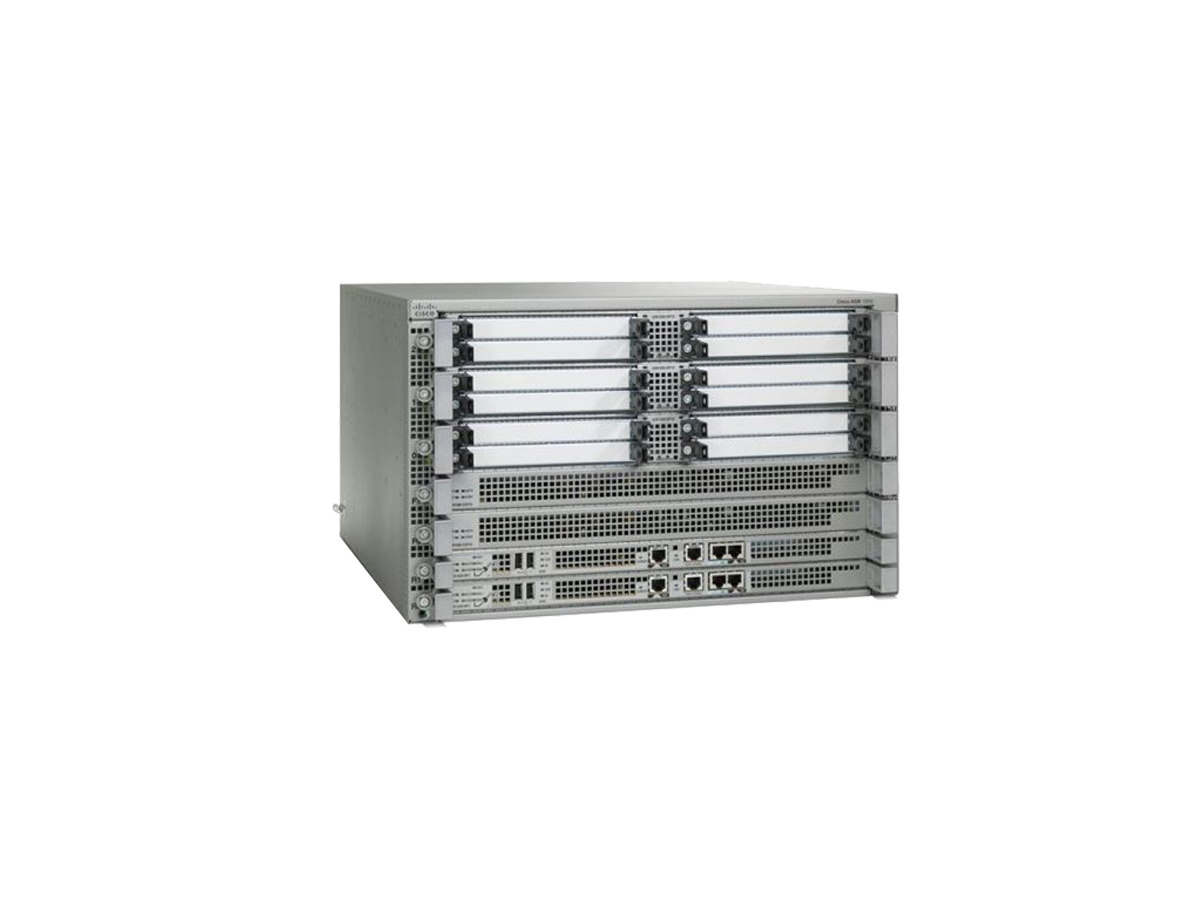

Cisco Router ASR 1000 Series ASR1004-20G-HA/K9

Model: ASR1004-20G-HA/K9

Detail: Cisco ASR 1000 router high availability bundle ASR1004-20G-HA/K9, including ESP-20G, RP1, SIP10, and a license.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR1004-20G-HA/K9 Specification
Device Type	Router - with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 1 / SPA Interface Processor 10G
Enclosure Type	Desktop - modular - 4U
Connectivity Technology	Wired
Performance	Bandwidth: 20 Gbps
Capacity	Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 250000 ¦ IPSec VPN tunnels: 10000 ¦ NAT entries: 1000000 ¦ ACL rules: 16000
Network / Transport Protocol	L2TP, IPSec
Remote Management Protocol	Telnet, SNMP 3, SSH
Encryption Algorithm	Triple DES, AES
Authentication Method	Secure Shell (SSH)
Features	Firewall protection, NAT support, VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, software redundancy
Compliant Standards	CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1
Interfaces	Management: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ USB: 1 x
Expansion Slots	1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot
Installed Modules Qty (Max)	3 (installed) / 12 (max)
Power Device	Internal power supply
Power Redundancy	Yes
Installed Qty	2 (installed) / 2 (max)
Voltage Required	AC 120/230 V (50/60 Hz)
Width	17.2 in
Depth	21.9 in
Height	7 in
Min Operating Temperature	41 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 90%
