Cisco Router ASR 1000 Series ASR1002X-10G-K9|LinkNewNet

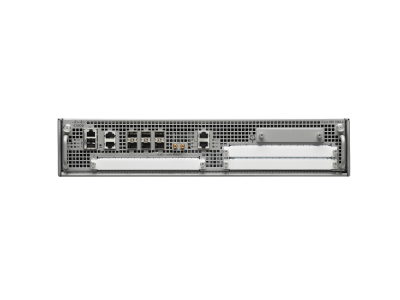

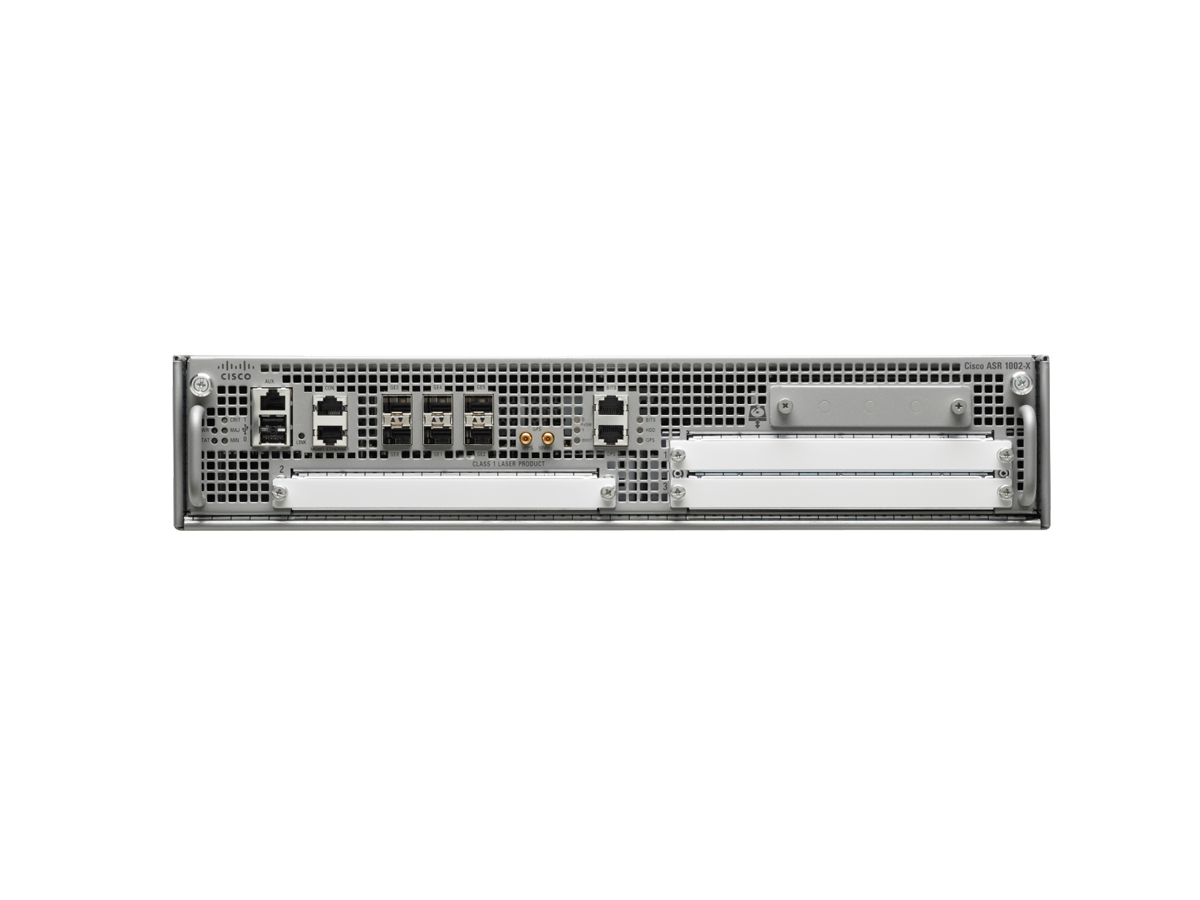

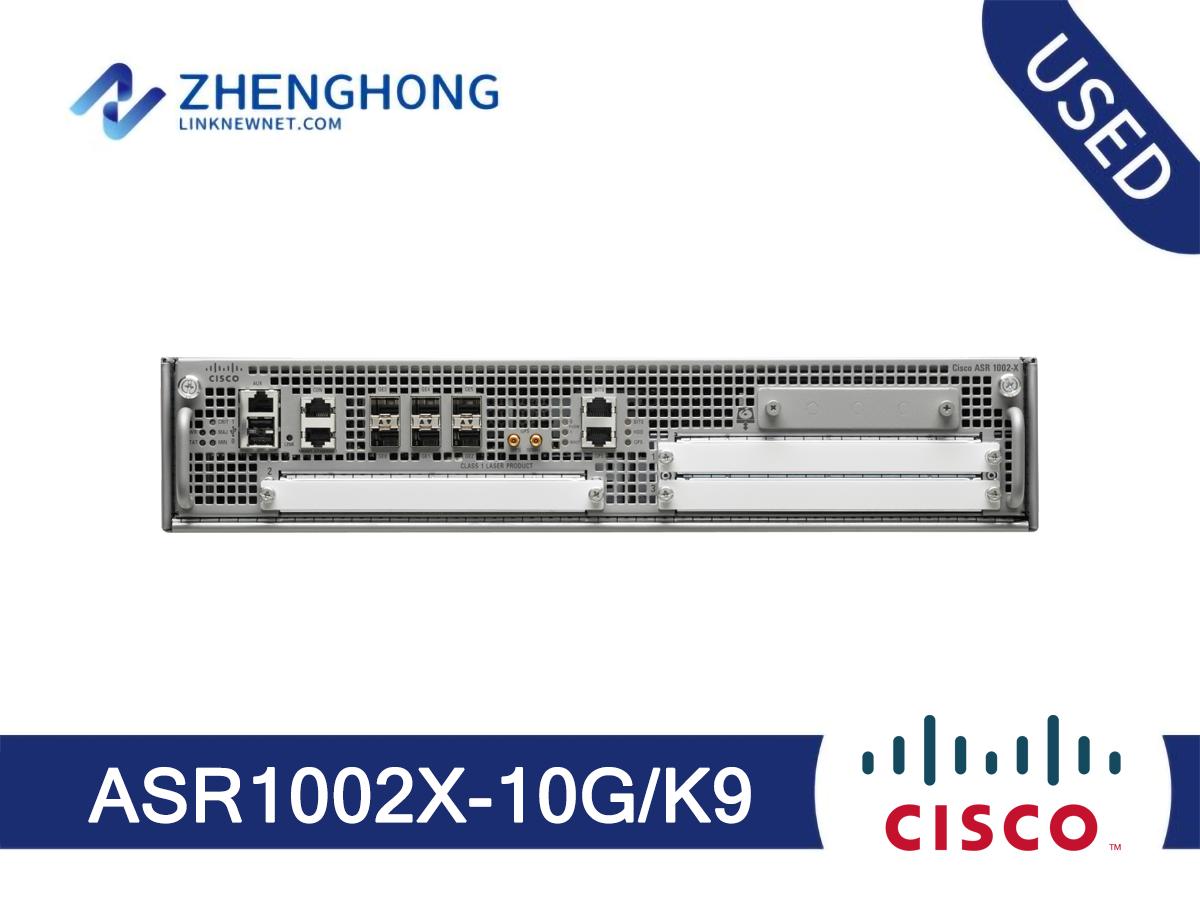

Cisco Router ASR 1000 Series ASR1002X-10G-K9

Model: ASR1002X-10G-K9

Detail: The ASR1002-X router boasts a 10G capacity, K9.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR1002X-10G-K9 ASR 1002-X
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details.	Height: 3.5 in. (88.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers) ● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers) ● No SPAs included Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.
Default memory	4-GB DRAM shared across route processor, ESP, and SIP
Number of SIPs or Ethernet line cards supported	Integrated in chassis
Shared port adapters	3 SPA slots
Ethernet port adapters	N/A
Cisco ASR 1000 Series ESP	Integrated in chassis
Route processor	Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor
Redundancy	Software: Yes
Built-in Gigabit Ethernet ports	Yes: 6 Gigabit Ethernet SFP ports
Built-in 10 Gigabit Ethernet port	No
Network interface module	No
Cisco ASR 1000 Series	Cisco ASR 1002-X
ESP support	Cisco ASR 1002-X ESP with 5-Gbps (default) Upgradable through software-activated feature license to 10, 20, or 36 Gbps
ESP bandwidth	5 to 36 Gbps
ESP memory	Share the same control memory on route processor
SIPs and Ethernet line cards	Integrated in chassis: not upgradable
Embedded hardware-based encryption	Yes: Up to 4-Gbps crypto support throughput
Rack-mounting	Yes: 19-inch
Wall-mounting	No
External USB flash memory	1-GB USB flash-memory support
Power consumption	● Maximum (DC): 590W ● Maximum (AC): 560W ● Maximum (out): 470W
Airflow	Front-to-back
Operating temperature (nominal)	32 to 104°F (0 to 40°C)
Operating temperature (short-term)	32 to 122°F (0 to 50°C)
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90%
Storage temperature	-40 to 150°F (-40 to 70°C)
Storage humidity (relative humidity)	5 to 95%
Operating altitude	-500 to 10,000 feet (152 to 3048 meters)
