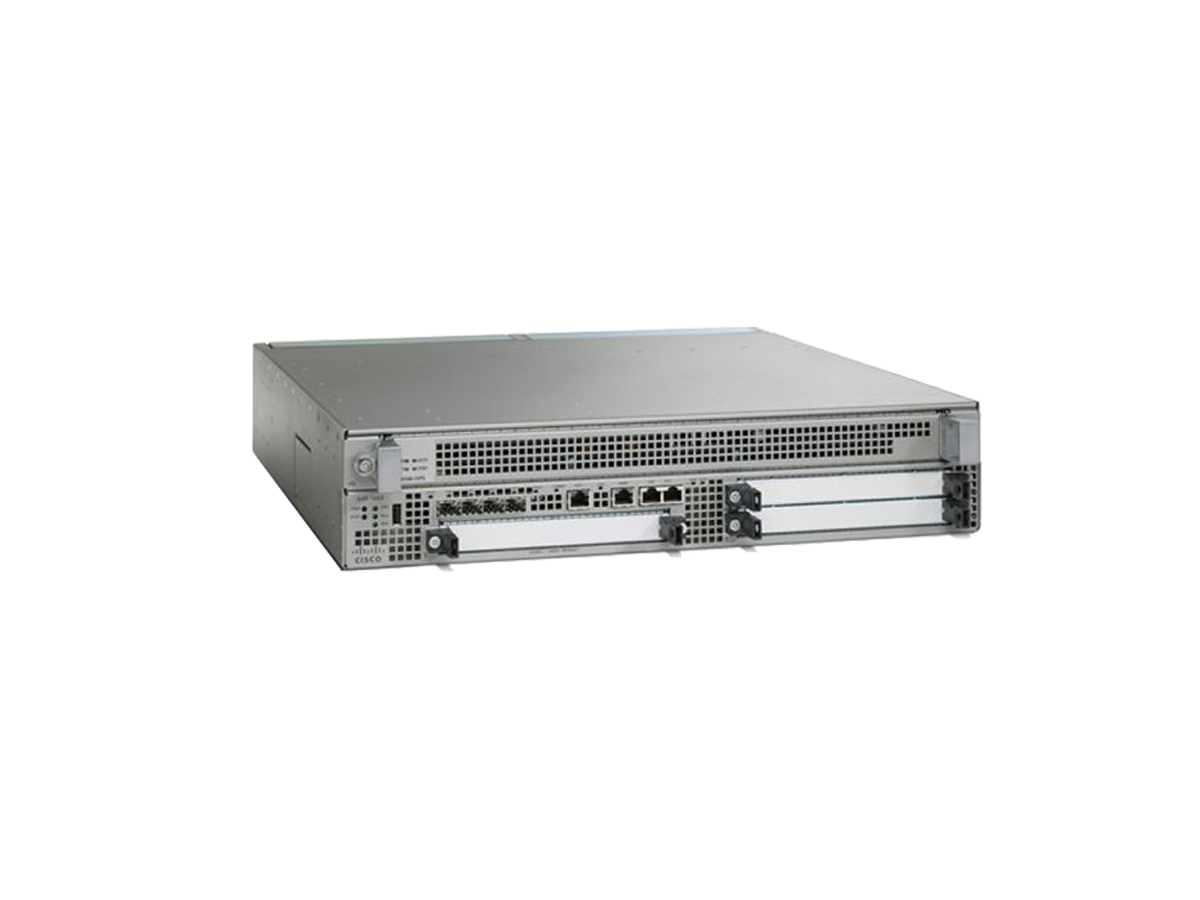

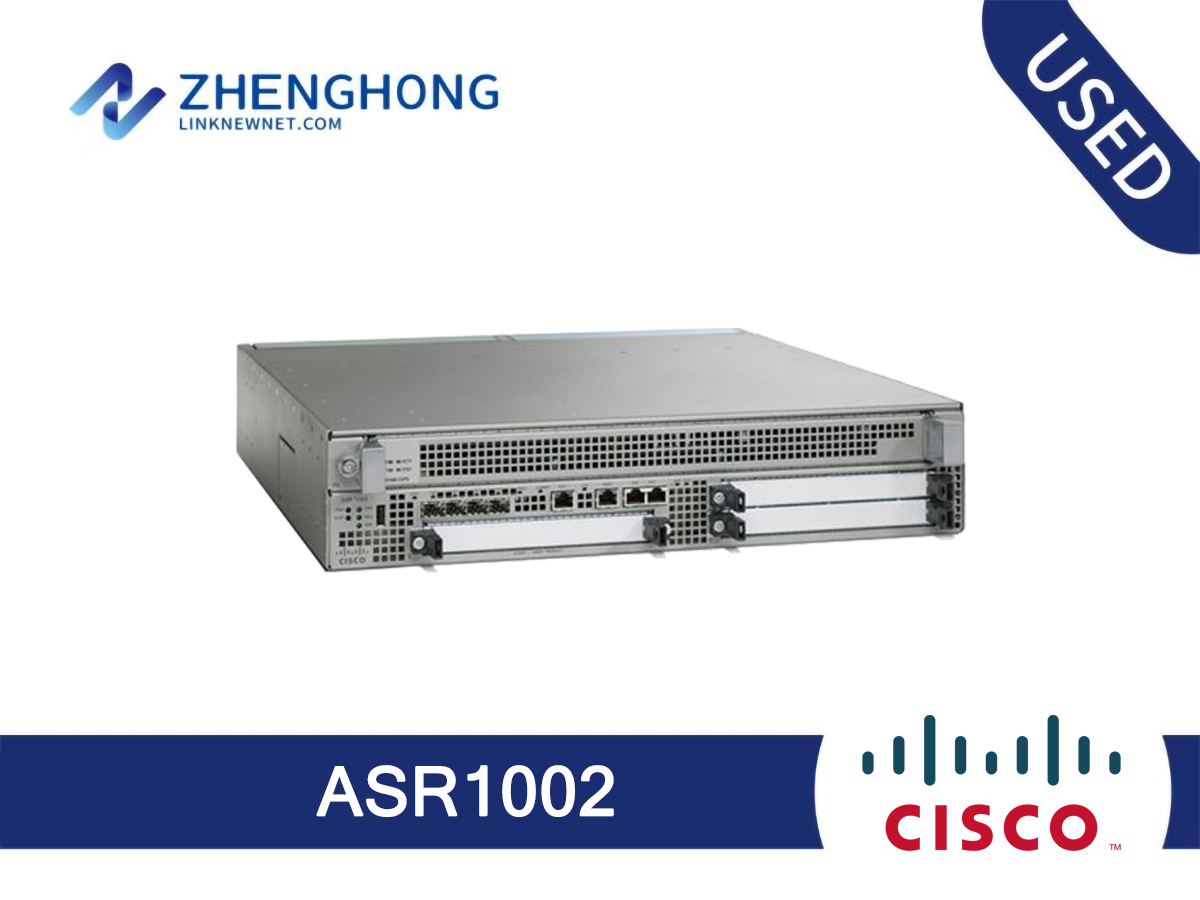

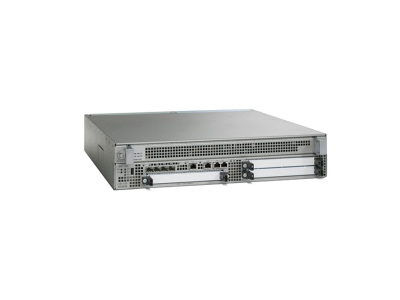

ASR1002 Specifications | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | Cisco ASR 1002 |
Product Type | Aggregation Service Router |
Form Factor | Desktop - modular - 3U |
Connectivity Technology | Wired |
System Bandwidth | 2.5G (default) |
Router Processor | Quad-core 2.13Ghz processor |
Build-in Gigabit Ethernet port | 4 * SFP ports |
Redundancy | Software (license purchase separately) |
Cisco ASR 1000 Series ESP | 1 ESP slot |
SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable |
Embedded hardware-based encryption | On Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5) with up to 1.8-Gbps crypto support throughput and on Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput |
Rack-mounting | 19-inch |
DRAM Memory | 4GB-shared across RP and SIP |
Flash Memory | 8 GB |
Shared port adapters | 3 SPA slots |
External USB flash memory | 1-GB USB flash-memory support |
Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. |
Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. |
expansion Card | ● 1-port OC48/STM16 POS/RPR Shared Port Adapters ● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 |
Feature License | ● Unified Border Element - Enterprise Edition 100 Sessions ● Flex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series |
AESK9 | ● Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES ● Cisco ASR 1000 Series RP1 ADVANCED ENTERPRISE SERVICES |
IPBK9 | ● Cisco ASR 1000 Series RP1 IP BASE ● Cisco ASR 1000 Series RP1 IP BASE |
MSS | ● ASR 1000 RP1 ADV ENTERPRISE SERVICES for Managed Service ● Cisco ASR 1000 Series RP1 IP BASE for Managed Services |
IOS XE Operating System | Cisco IOS XE Software Release 2.1 |
