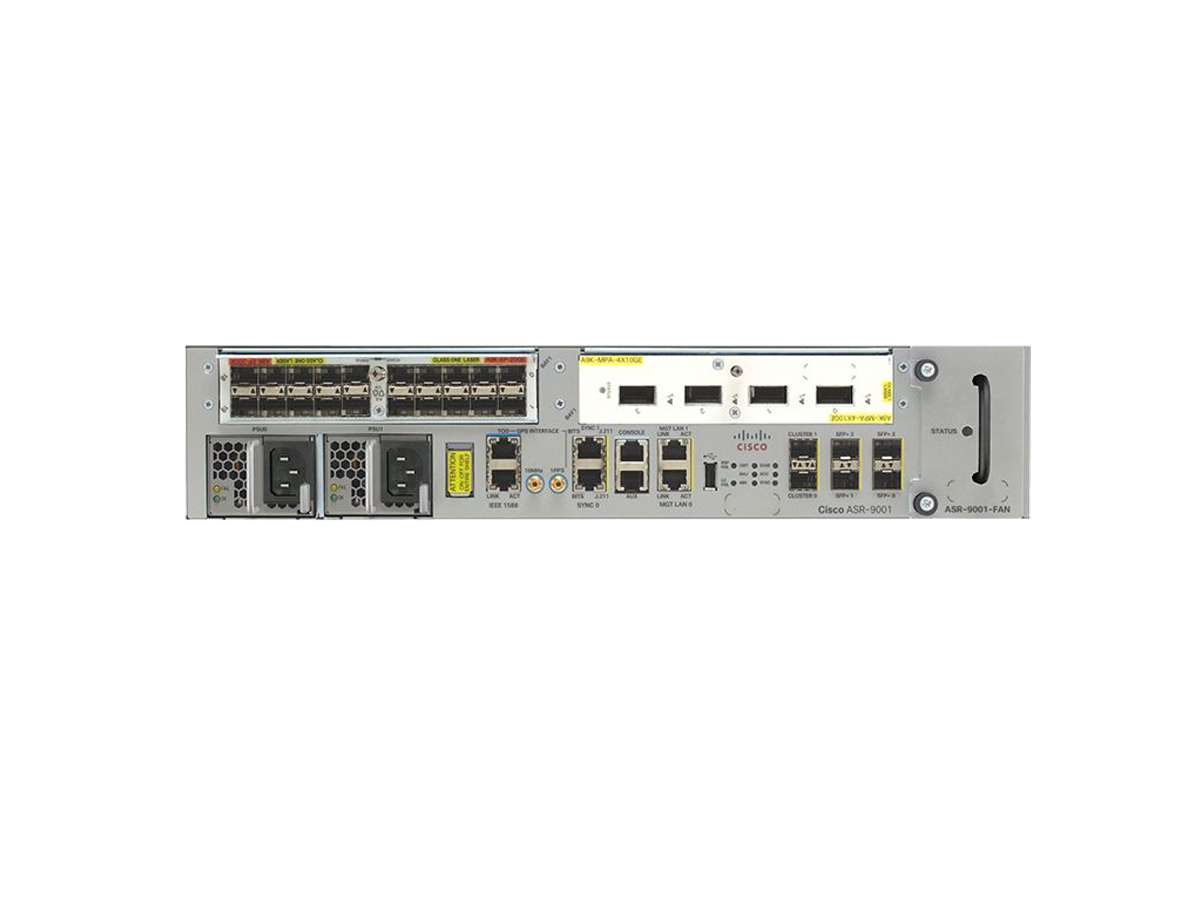

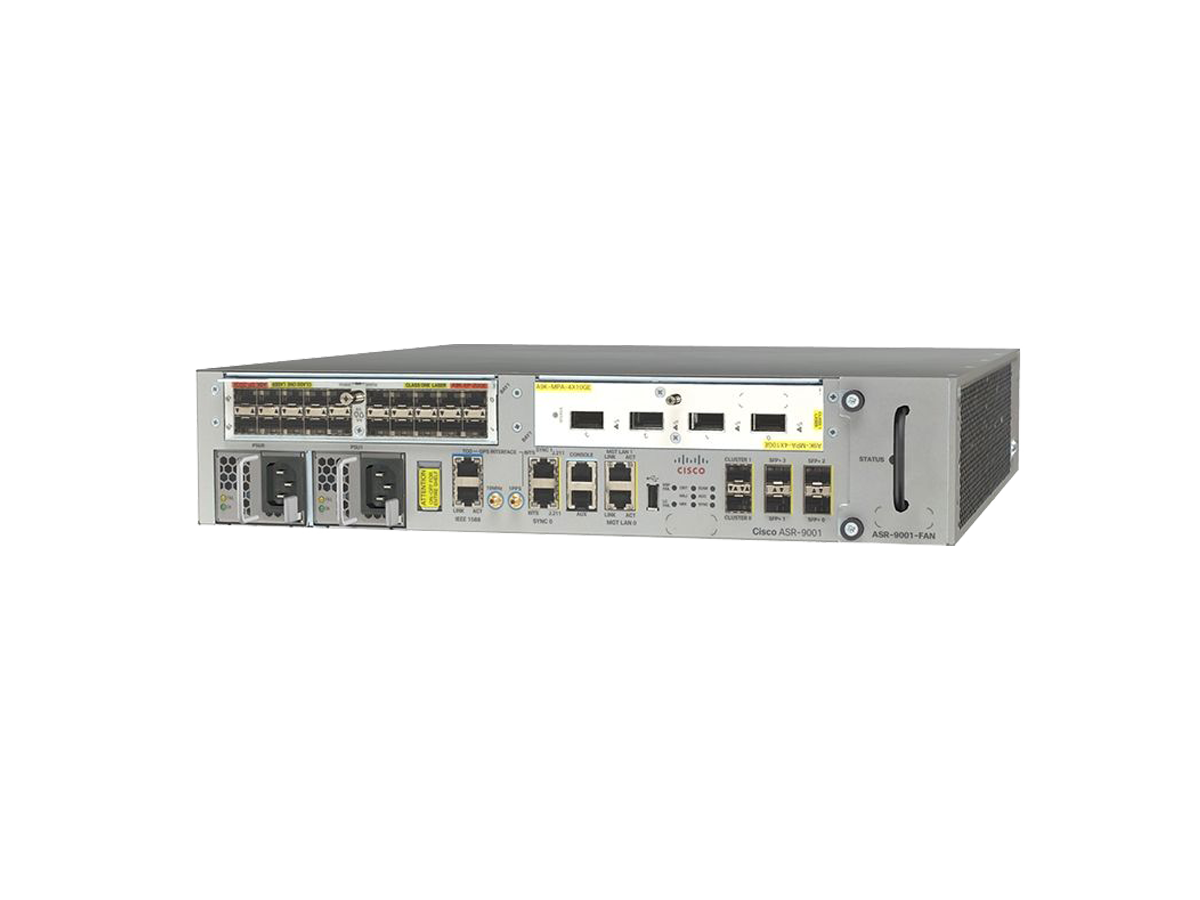

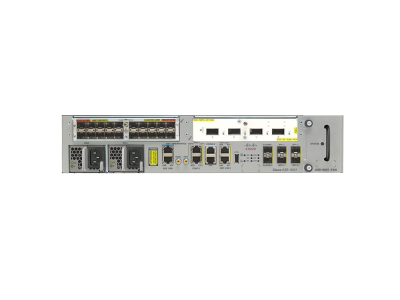

ASR-9001 - Cisco Router ASR 9001 Chassis

Model: ASR-9001

Detail: ASR 9001 Router with 4 x 10 GE

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR-9001 Specifications
Type	Cisco ASR 9001 Chassis
Integrated interfaces	4 x 10 GE SFP+
Modular port adapters	20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE
Redundancy	Power supply redundancy
Power supply part number	● A9K-750W-AC ● A9K-750W-DC
Physical specifications	● Height: 3.472 inches (88.2 mm) ● Width: 17.42 inches (442 mm) ● Depth: 18.5 inches (470 mm) ● Weight of chassis: 30.2032 lbs (13.7 kg) ● Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)
Power inputs	● Worldwide ranging AC (90-265V; 50-60 Hz) ● Worldwide ranging DC (-40V to -72V)
Power consumption	425 watts typical, 525 watts maximum
Environmental conditions	● Operating temperature: 32 to 104°F (0 to 40°C) ● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Regulatory compliance
Environmental Specifications
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (-5 to 55ºC)
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90% Note: Not to exceed 0.024 kg water or dry air
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg water or dry air
Operating altitude	-1800m
Air flow	Side to side
Compliance
Network Equipment Building Standards (NEBS)	Cisco ASR 9001 is designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection ● VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9001 is designed to meet (qualification in progress): ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9001 is designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker ● EN 50121-4: Railway EMC
Immunity	Cisco ASR 9001 is designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN 50121-4: Railway EMC
Safety	Cisco ASR 9001 is designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety

Q&A

What are common troubleshooting steps for the Cisco ASR-9001 Chassis?

Common steps include verifying power connections, checking interface configurations, and reviewing system logs for errors.

What accessories are available for the Cisco ASR-9001 Chassis?

Accessories include rack mounting kits, power supply modules, and high-speed interfaces. Refer to the accessory catalog for specific options.

How does the Cisco ASR-9001 Chassis compare to similar products?

The Cisco ASR-9001 Chassis provides a balance of performance, scalability, and cost-effectiveness, making it a competitive choice against similar products like the Juniper MX Series.

Can the Cisco ASR-9001 Chassis support my growing network needs?

Yes, the Cisco ASR-9001 Chassis is designed for scalability, allowing you to add additional modules and increase capacity as your network grows.

Learn More

How cost-effective is the Cisco ASR 9001 Chassis?

The Cisco ASR 9001 Chassis offers a great balance between cost and performance, providing high throughput and reliability at a competitive price.

What are the key features of the ASR-9001 Chassis?

The ASR-9001 Chassis features high-density port provision, scalability, and integrated service capabilities, making it an ideal choice for service providers.

What are the application scenarios for the Cisco ASR-9001 Chassis?

The ASR-9001 is suitable for service provider edge routing, carrier-grade NAT, and high-speed metro Ethernet applications.

How do you install the Cisco ASR 9001 Chassis?

Installation involves mounting the chassis in a standard 19-inch rack, connecting power supplies, and configuring via the CLI or a network management tool.

Does the ASR-9001 Chassis require regular upgrades?

Periodic firmware and software upgrades ensure optimal performance and security; Cisco regularly releases updates for the ASR-9001 Chassis.

Are there alternative products to the Cisco ASR-9001 Chassis?

Alternatives include Cisco ASR 9006 and ASR 1002-X models, offering varying capacities and features to suit different needs.

What are the common troubleshooting steps for the ASR-9001 Chassis?

Common steps include checking power connections, verifying software configurations, and monitoring system logs for error messages.

What accessories are available for the Cisco ASR-9001 Chassis?

Accessories include power supply units, fan trays, modular interface cards, and optical transceivers.

How does the Cisco ASR 9001 compare to similar products?

Compared to similar products, the ASR-9001 offers superior port density, versatility, and advanced service capabilities at a competitive price point.

What makes the Cisco ASR 9001 Chassis suitable for system integrators?

The ASR-9001 Chassis combines scalability, ease of integration, and cost-effectiveness, making it a preferred choice for system integrators.

How cost-effective is the Cisco ASR-9001 Chassis for service providers?

The Cisco ASR-9001 offers high performance and reliability with a low total cost of ownership, making it a cost-effective choice for service providers.

What are the unique features of the Cisco ASR-9001 Chassis?

The Cisco ASR-9001 Chassis features integrated route processing, 240 Gbps, and a compact form factor, designed for enhanced scalability and flexibility.

In what scenarios can the Cisco ASR-9001 Chassis be used?

The Cisco ASR-9001 is ideal for network edge and aggregation deployments in service provider environments, ensuring high-speed data transfer and connectivity.

How can I install the Cisco ASR-9001 Chassis?

The Cisco ASR-9001 can be installed following the guidelines in the installation guide, ensuring proper rack mounting and connection of power and network cables.

Does the Cisco ASR-9001 Chassis need regular upgrades?

Yes, to ensure optimal performance and security, regular firmware and software upgrades are recommended for the Cisco ASR-9001 Chassis.

Are there alternative products to the Cisco ASR-9001 Chassis?

Alternatives include the Cisco ASR 9006 and Cisco ASR 9010, which offer varying scalability and performance options.
