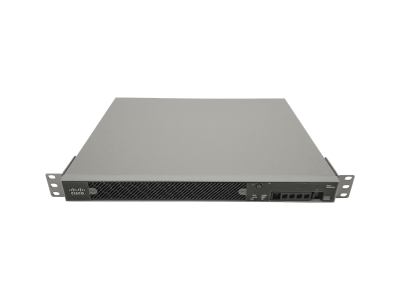

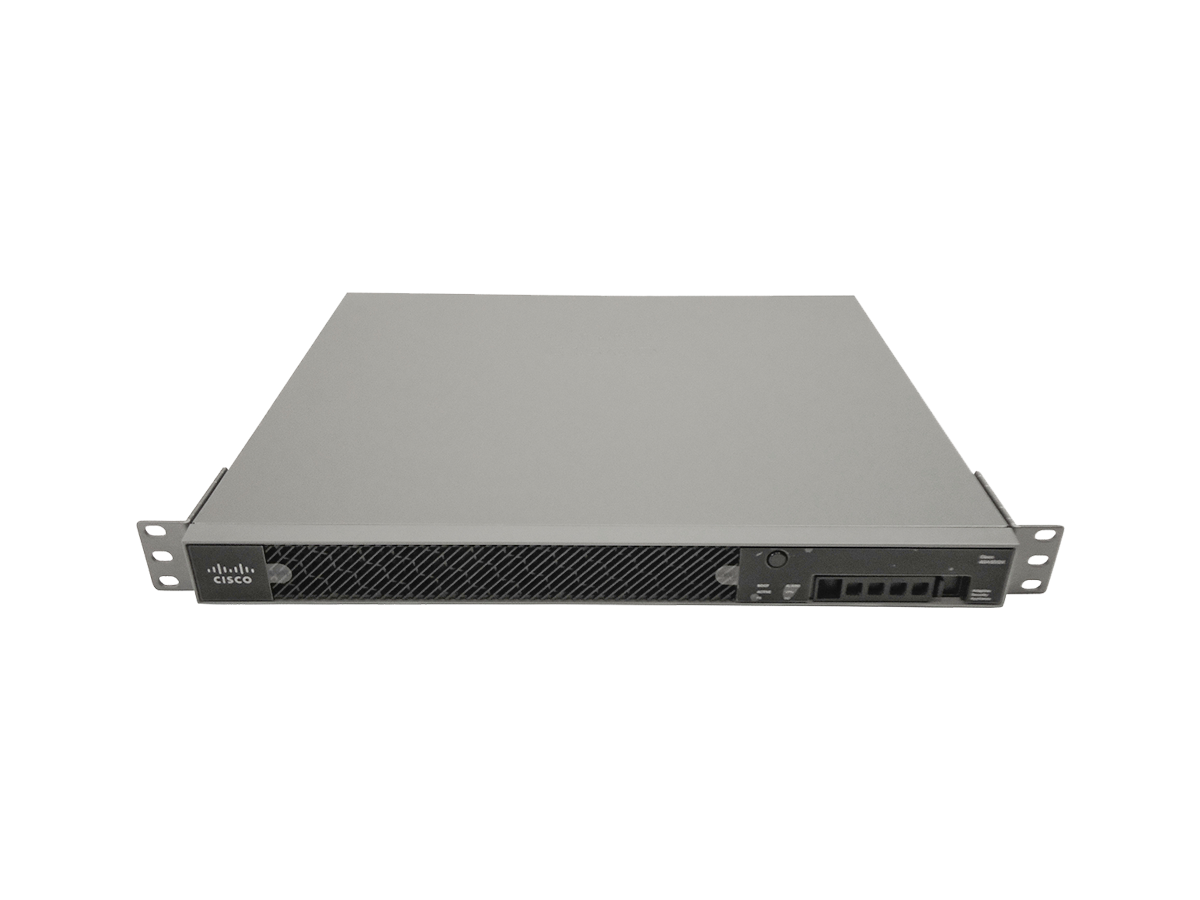

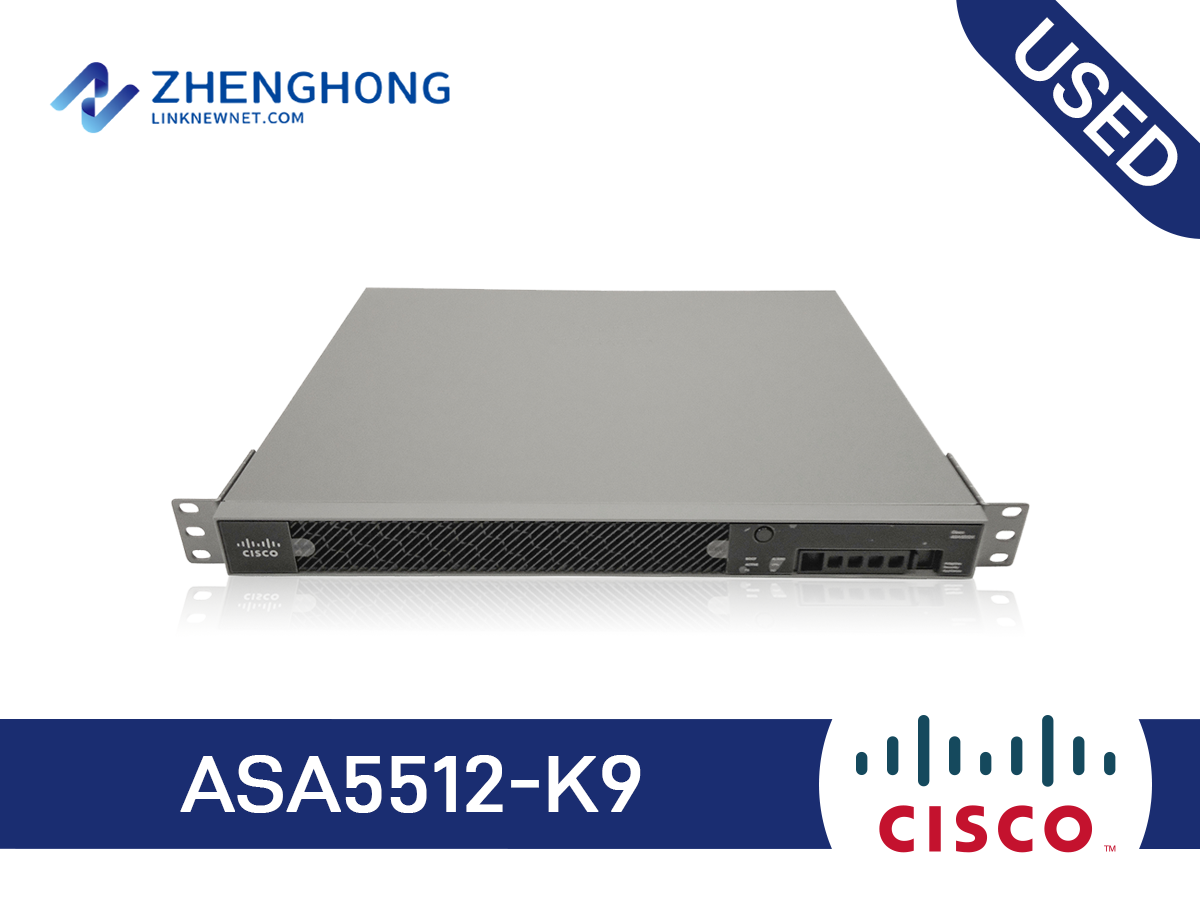

ASA5512-K9 - Cisco ASA 5500 Series Firewall Edition Bundle

Model: ASA5512-K9

Detail: Cisco ASA 5500 Edition Bundle ASA5512-K9 ASA 5512-X with SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASA5512-K9 Specifications
Feature	Cisco ASA 5512-X; Security Plus
Stateful Inspection Throughput (Maximum)	1 Gbps
Stateful Inspection Throughput (Multiprotocol)	500 Mbps
IPS Throughput	250 Mbps(Extra hardware not required)
Next-Generation Throughput(Multiprotocol)	200 Mbps
3DES/AES VPN Throughput	200 Mbps
Users/Nodes	Unlimited
IPsec VPN Peers	250
Cisco Cloud Web Security Users	100
Premium AnyConnect VPN Peers(Included/Maximum)	2/250
Concurrent Connections	100,000
New Connections/Second	10,000
Virtual Interfaces (VLANs)	50; 100
Security Contexts (Included/Maximum)	0,0; 2,5
High Availability	Not supported; Active/Active and Active/Standby
Expansion Slot	1 interface card
User-Accessible Flash Slot	No
USB 2.0 Ports	2
Integrated I/O	6 GE Copper
Expansion I/O	6 GE Copper or 6 GE SFP
Serial Ports	1 RJ-45 console
Solid State Drive	1 slot, 120 GB MLC SED
Memory	4 GB
Minimum System Flash	4 GB
System Bus	Multibus architecture
Temperature	23 to 104°F (-5 to 40°C)
Relative Humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572m)
Shock	70G, 4.22 m/sec
Vibration	0.41 Grms2 (3 to 500 Hz) random input
Acoustic Noise	64.2 dBa max
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative Humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4570m)
Shock	70G, 4.22 m/sec
Vibration	1.12 Grms2 (3 to 500 Hz) random input
AC Range Line Voltage	100 to 240 VAC
AC Normal Line Voltage	100 to 240 VAC
AC Current	4.85A
AC Frequency	50/60 Hz
Dual-Power Supplies	None
DC Domestic Line Voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage	-55 to -72 VDC (-60 VDC nominal)
DC Current	15A (maximum input)
Steady State	51W
Maximum Peak	56W
Maximum Heat Dissipation	192 BTU/hr
Form Factor	1 RU, 19-in. rack-mountable
Dimensions (H x W x D)	1.67 x 16.7 x 15.6 In (4.24 x 42.9 x 39.5 cm)
Weight (with AC Power Supply)	13.39 lb (6.07 kg)
Safety	IEC 60950-1: 2005, 2nd <Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd> Edition
Electromagnetic Compatibility (EMC)	CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24
Industry Certifications	In process

Q&A

Are there alternative products to the Cisco ASA5512-K9?

Alternatives include other models from the Cisco ASA 5500 Series, such as the ASA5506-X, which offer different features and capacities.

What common troubleshooting steps are there for the Cisco ASA5512-K9?

Common steps include checking cable connections, verifying interface configurations, and reviewing firewall settings via the ASDM.

What accessories are available for the Cisco ASA5512-K9?

Available accessories include additional power supplies, mounting kits, and various cables for different connection requirements.

How does the Cisco ASA5512-K9 compare to similar firewalls?

The Cisco ASA5512-K9 provides a balance of performance, security, and price, making it competitive against other mid-range firewalls from alternative vendors.

There are so many firewalls in the market, how can I select?

Consider your budget, and what you need firewall to do.

What version of ASDM is used to manage the Cisco ASA 5500-X Series?

The Cisco ASA 5500-X Series can be managed using ASDM 6.6.1 or later. Previous releases of ASDM are not supported.

What are the advantages of cloud web security being integrated with the firewall?

Now that Cisco Cloud Web Security is integrated with Cisco ASA Software Release 9.0, organizations gain a centralized content security solution combined with localized network security. However, in contrast to all-in-one offerings, which suffer significant performance degradation when web security services are enabled, there is little to no impact on ASA performance because the content scanning is offloaded to the Cisco web security cloud. Administrators can choose to perform deep content scanning on a subset of traffic, based on network address, Microsoft Active Directory user or group name, or hosts residing inside a specific security context.

Does performance vary from one software release to another?

New features result in a minor variance in performance from one software release to another across all ASA platforms.

What is the ASA firewall transparent mode?

Traditionally, a firewall is a routed hop and acts as a default gateway for hosts that connect to one of its screened subnets. A transparent firewall, on the other hand, is a Layer 2 firewall that acts like a "bump in the wire," or a "stealth firewall," and is not seen as a router hop to connected devices.

Do you provide an enterprise management tool with the capability to manage multiple instances of your solution?

Yes, the Cisco Content Switching Module delivers this capability.

What version of Cisco Security Manager is used to manage the ASA5512-K9?

The Cisco ASA 5500-X Series can be managed using Cisco Security Manager 4.3 and later. Previous releases do not support the Cisco ASA 5500-X Series.

Does this ASA5512-K9 support Dual-Power Supplies?

No.

What are the ports of ASA5512-K9?

It has 6 copper GE ports, and 1 copper GE management port.

What are the advantages of cloud web security being integrated with the firewall?

How many the Maximum Logs per Second?

10000

How cost-effective is the ASA5512-K9?

The ASA5512-K9 provides high security and performance at a reasonable cost, making it ideal for small to mid-sized enterprises.

What are the main features of the ASA5512-K9?

The ASA5512-K9 features 6 GE data ports, 1 GE management port, 3DES/AES support, and integrates firewall, VPN, and unified threat management.

What are the application scenarios for the ASA5512-K9?

The ASA5512-K9 is suitable for securing mid-sized business networks, remote offices, and VPN setups with its robust firewall and VPN capabilities.

How do I install the ASA5512-K9?

Install the ASA5512-K9 by connecting it to your network, configuring the interfaces, and setting up firewall and VPN policies via the Cisco ASDM or CLI.

Does the ASA5512-K9 require regular upgrades?

Yes, to keep the ASA5512-K9 secure and efficient, regularly update the software and security definitions provided by Cisco.

Are there alternative products to the ASA5512-K9?

Alternatives include other models in the Cisco ASA 5500-X series or newer models such as the Firepower 2100 series.

What common troubleshooting steps should be taken for the ASA5512-K9?

Troubleshoot by checking network connections, verifying firewall rules, ensuring firmware is up-to-date, and consulting Cisco logs and documentation.

What accessories are available for the ASA5512-K9?

Accessories include the Cisco ASA power supply, rack-mounting kit, and various Cisco cables for data and management ports.

How does the ASA5512-K9 compare to similar products?

Compared to similar products, the ASA5512-K9 offers solid performance and security features at a competitive price for small to mid-sized networks.

What makes ASA5512-K9 a good choice for system integrators?

The ASA5512-K9 offers ease of integration, robust security features, and scalability options, making it a trusted choice for system integrators.

How cost-effective is the Cisco ASA5512-K9 firewall?

The Cisco ASA5512-K9 offers high performance and advanced security features at a competitive price, making it cost-effective for small to medium-sized businesses.

What are the key features of the Cisco ASA5512-K9?

The Cisco ASA5512-K9 firewall includes 6GE Data ports, 1GE Mgmt port, AC power, and supports 3DES/AES encryption, providing robust security.

What are the typical application scenarios for the Cisco ASA5512-K9?

The Cisco ASA5512-K9 is ideal for securing small to medium-sized enterprise networks, remote offices, and branch locations.

How do I install the Cisco ASA5512-K9?

Installation involves connecting the firewall to your network, configuring the interface, and setting up security policies using the Cisco ASDM software.

Does the Cisco ASA5512-K9 firewall need regular upgrades?

Yes, regular firmware and software updates are recommended to ensure optimal security and performance of the Cisco ASA5512-K9.
