A9K-MPA-1X100G-FC - Cisco ASR 9000 Series Modules Line Cards|LinkNewNet

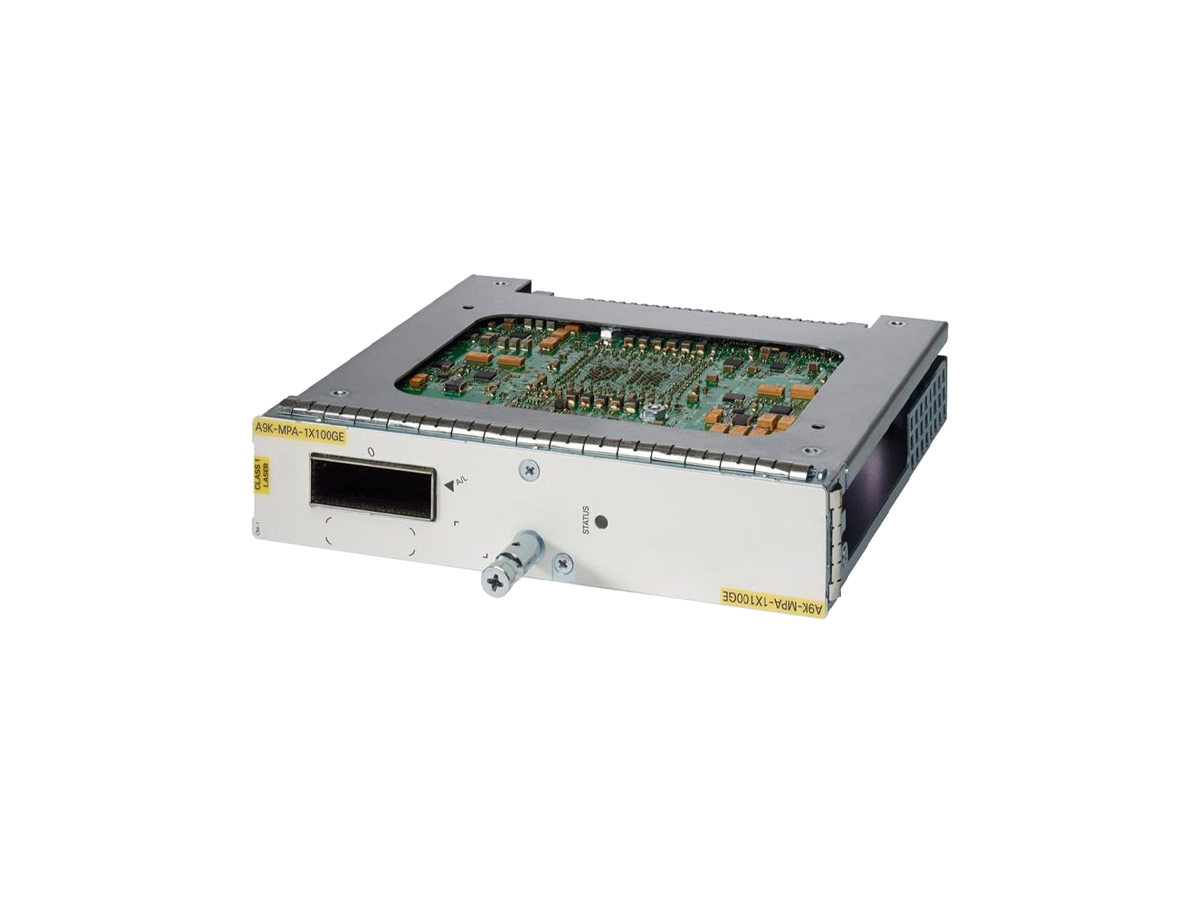

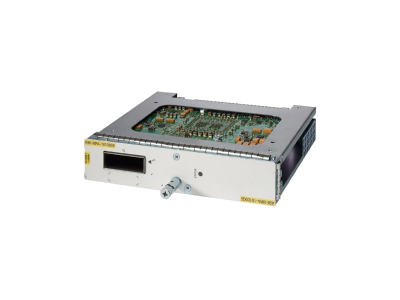

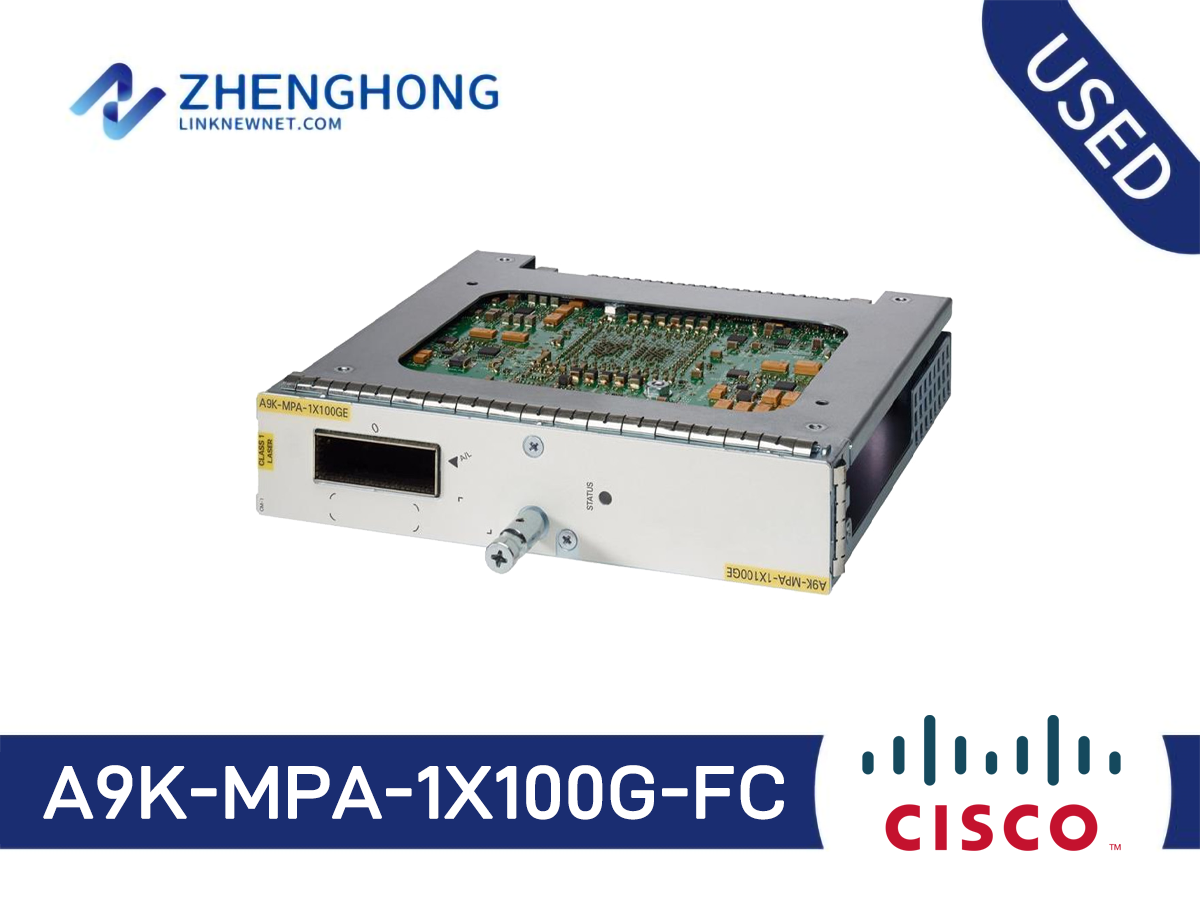

A9K-MPA-1X100G-FC - Cisco ASR 9000 Series Modules Line Cards

Model: A9K-MPA-1X100G-FC

Detail: ASR 9000 1-port 100GE Modular Port Adapter FCM

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

A9K-MPA-1X100G-FC Specifications
Brand	Cisco
Model	A9K-MPA-1X100G-FC
Part Number	A9K-MPA-1X100G-FC
Product Type	Modular Port Adapter
Compatible Series	ASR 9000 Series
Port Type	100 Gigabit Ethernet
Number of Ports	1
Form Factor	Modular
Cisco Feature Navigator Support	Yes
Operating Temperature Range	-40??C to 70??C
Storage Temperature	-40??C to 85??C
Relative Humidity (non-condensing)	5% to 95%
Heat Dissipation	85 BTU/hour
Power Consumption	25W
Dimensions (H x W x D)	1.72 x 15.37 x 13.75 inches
MTBF (Mean Time Between Failures)	Over 250,000 hours
Compliance Standards	RoHS-6 Compliant
Connector Type	QSFP28
Supported Protocols	Ethernet, 802.3ba
Warranty	1 Year

Q&A

What common troubleshooting steps should I follow for the A9K-MPA-1X100G-FC?

For common issues, check cable connections, ensure proper configuration, and refer to the troubleshooting section in the user manual for the A9K-MPA-1X100G-FC.

What accessories are available for the A9K-MPA-1X100G-FC?

Accessories for the A9K-MPA-1X100G-FC include optical transceivers such as SFP+ modules and compatible power supplies.

How does the A9K-MPA-1X100G-FC compare to other similar products?

The A9K-MPA-1X100G-FC offers superior longevity and integration within the ASR 9000 series, providing enhanced performance compared to previous or lower-end modules.

What product features does the A9K-MPA-1X100G-FC offer?

The A9K-MPA-1X100G-FC offers a 100GE port with advanced fault tolerance, high availability, and compatibility with Cisco??s extensive software ecosystem.

Learn More

How cost-effective is the A9K-MPA-1X100G-FC?

The A9K-MPA-1X100G-FC offers high performance and scalability, ensuring a cost-effective solution for large-scale network deployments.

What are the main characteristics of the A9K-MPA-1X100G-FC?

The A9K-MPA-1X100G-FC features a 1-port 100GE interface, modular design, and is part of the ASR 9000 series, providing high bandwidth and flexibility.

What are the application scenarios for the A9K-MPA-1X100G-FC?

The A9K-MPA-1X100G-FC is ideal for high-speed data centers, large enterprise networks, and service provider core networks.

How do I install the A9K-MPA-1X100G-FC?

The A9K-MPA-1X100G-FC can be installed in an ASR 9000 series router chassis, following the instructions in the hardware installation guide.

Does the A9K-MPA-1X100G-FC need any upgrades?

It??s important to check for the latest software releases and firmware updates to ensure optimal performance and security for the A9K-MPA-1X100G-FC.

Are there alternative products to the A9K-MPA-1X100G-FC?

Yes, alternative products include other modules in the ASR 9000 series or different high-speed interfaces such as the A9K-MPA-2X40GE.
