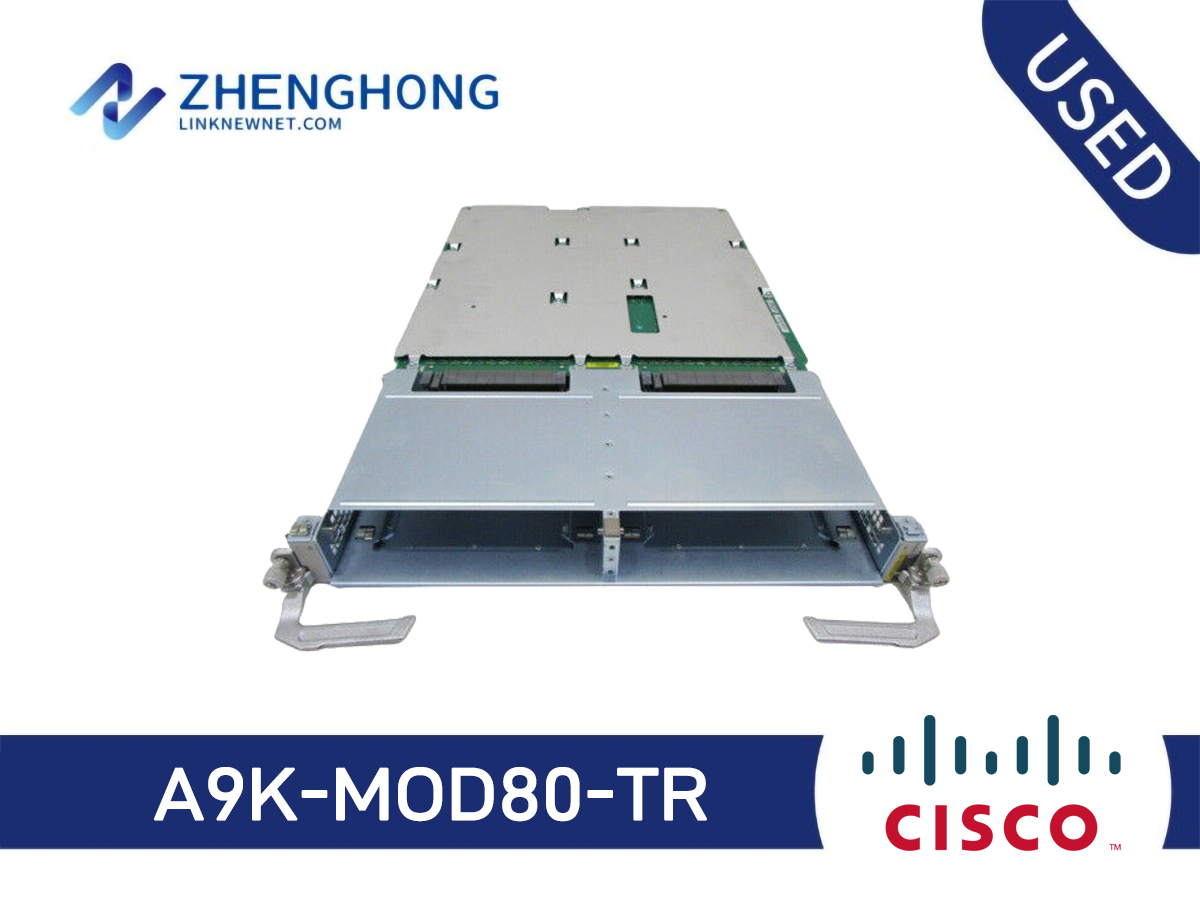

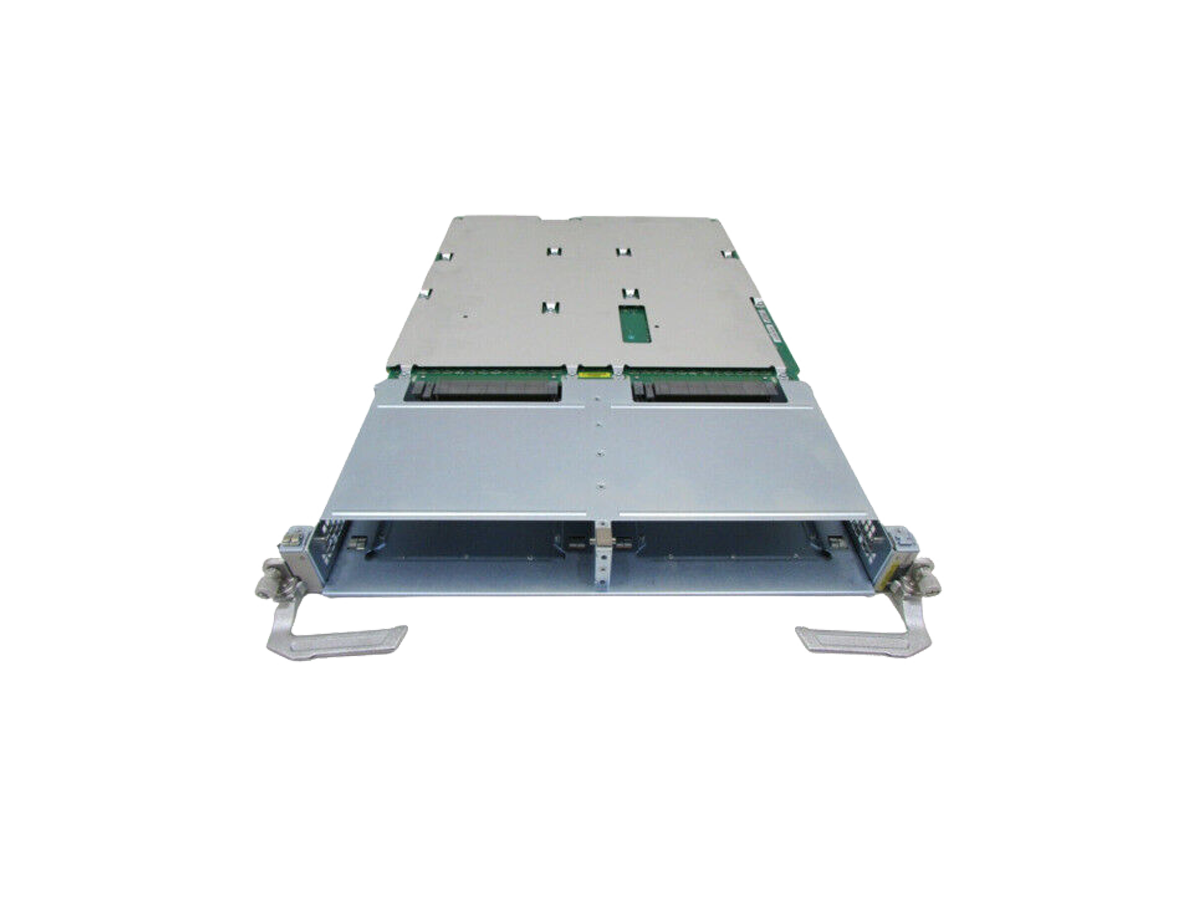

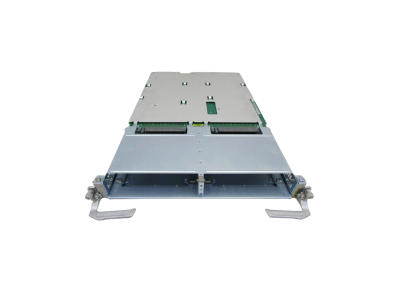

A9K-MOD80-TR - Cisco ASR 9000 Series Ethernet Line card

Type

ASR 9000 Mod80 Modular Line Card, Packet Transport Optimized, requires modular port adapters

Physical Dimensions

14.5 W x 1.72 H x 22.40 L

14.5 W x 1.72 H x 24.25 L (including ejector levers)

Weight

17.5 lbs. (est.) (7.93 Kg)

Chassis compatibility

Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems

Port density

Up to 2 modular port adapters are supported per line card.

Ethernet

· IEEE 802.3 compliant

· 10 Gigabit Ethernet PHY monitoring

· IEEE 802.x flow control

· Full-duplex operation

· Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets

Card density

Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4

Options

Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport

Optimized (basic QoS) line card.

Reliability and availability

Line card online insertion and removal (OIR) support without system impact

Network Equipment Building Standards (NEBS)

Cisco ASR 9000 Series Routers are designed to meet:

· SR-3580: NEBS Criteria Levels (Level 3)

· GR-1089-CORE: NEBS EMC and Safety

· GR-63-CORE: NEBS Physical Protection

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature (short-term)

23 to 131ºF (–5 to 55ºC)

Operating humidity (nominal) relative humidity

10 to 85%

Storage temperature

–40 to 158ºF (–40 to 70ºC)

Storage relative humidity

5 to 95%

Note: Not to exceed 0.024 kg of water per kg of dry air

Operating altitude

–60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)

ETSI standards

Cisco ASR 9000 Series Routers are designed to meet:

· EN300 386: Telecommunications Network Equipment (EMC)

· ETSI 300 019 Storage Class 1.1

· ETSI 300 019 Transportation Class 2.3

· ETSI 300 019 Stationary Use Class 3.1

· EN55022: Information Technology Equipment (Emissions)

· EN55024: Information Technology Equipment (Immunity)

· EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9000 Series Routers are designed to meet:

· FCC Class A

· ICES 003 Class A

· AS/NZS 3548 Class A

· CISPR 22 (EN55022) Class A

· VCCI Class A

· BSMI Class A

· IEC/EN 61000-3-2: Power Line Harmonics

· IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Immunity

Cisco ASR 9000 Series Routers are designed to meet:

· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

· IEC/EN-61000-4-3: Radiated Immunity (10V/m)

· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

· IEC/EN-61000-4-5: Signal Ports (1kV)

· IEC/EN-61000-4-5: Surge DC Port (1kV)

· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

Safety

Cisco ASR 9000 Series Routers are designed to meet:

· UL/CSA/IEC/EN 60950-1

· IEC/EN 60825 Laser Safety

· ACA TS001

· AS/NZS 60950

· FDA: Code of Federal Regulations Laser Safety
