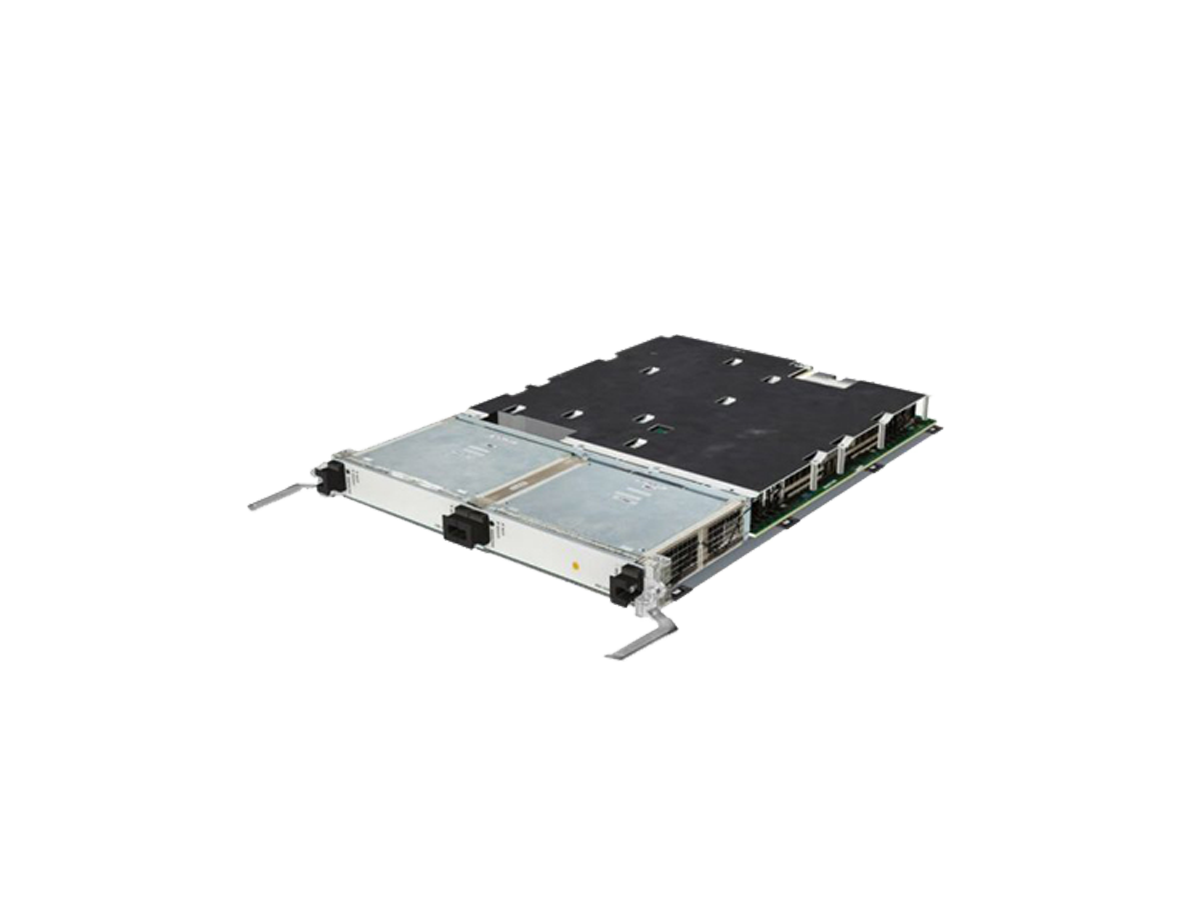

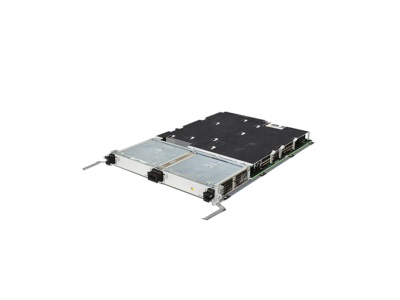

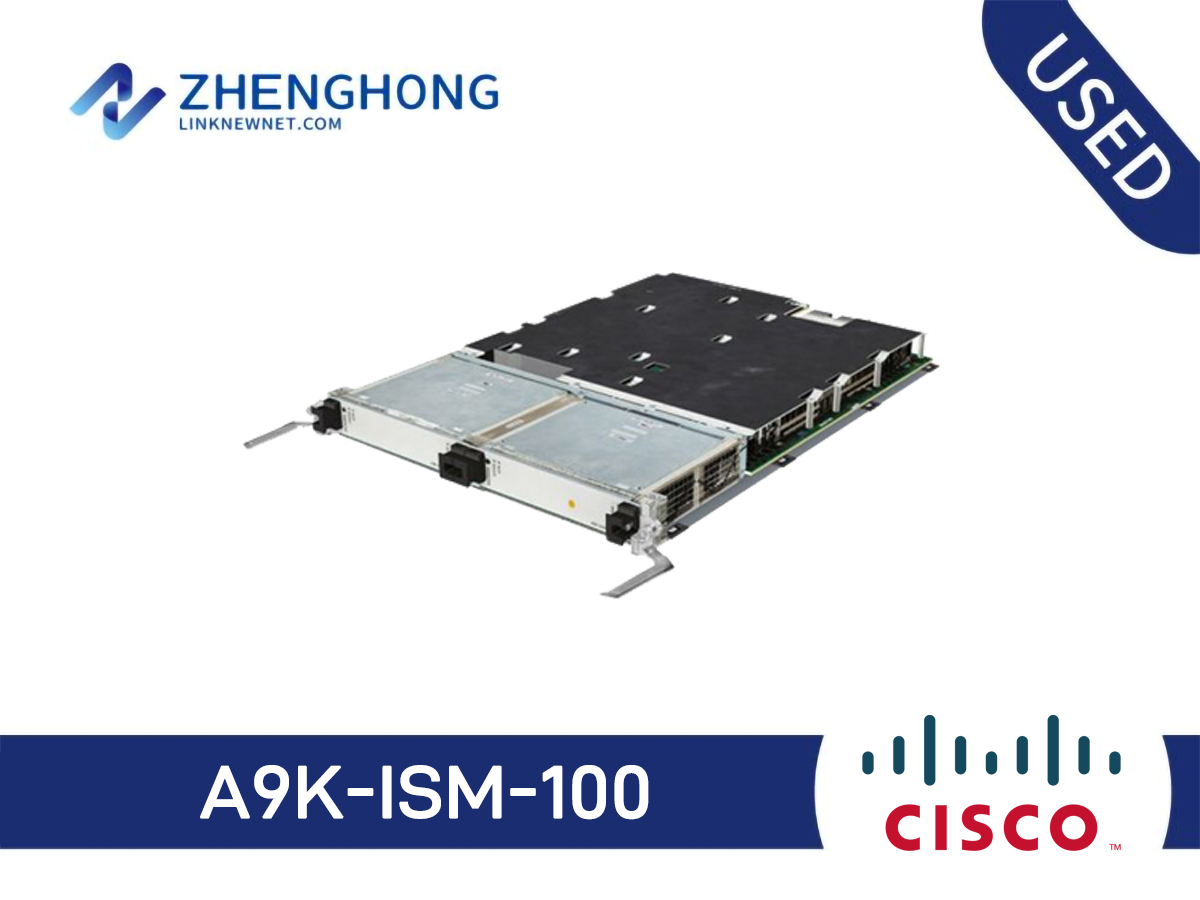

A9K-ISM-100 - Cisco ASR 9000 Series Service Module

Model: A9K-ISM-100

Detail: Cisco ASR 9000 Module A9K-ISM-100 ASR9000 AVSM ISM 40G

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

A9K-ISM-100 Specifications
Type	Cisco ASR 9000 Module AVSM ISM 40G
Redundancy	· No single point of failure · Fabric redundancy · Power supply redundancy · ISM redundancy (through CDSM)
Physical specifications	Cisco ASR 9000 Series ISM (A9K-ISM-100) occupies one slot; can be inserted in any slot within the chassis: · Height: 1.65 in. (4.19 cm.) · Width: 15.86 in. (40.28 cm.) · Depth: 23.91 in. (60.73 cm.) · Weight: 18.35 lb
Power input	· Worldwide ranging AC: 200–240V; 50–60 Hz; 16A nominal · Worldwide ranging DC: –48V to –60V; –54V; 50A nominal
Environmental conditions	· Operating temperature: 32 to 104°F (0 to 40°C) · Storage temperature: –40 to 167°F (–40 to 75°C) · Relative humidity: 10 to 90%, noncondensing · Regulatory compliance
Power consumption	· Typical: 330W · Maximum: 450W
Environmental Specifications
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (–5 to 55ºC) Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that one-year period).
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90% Note: Not to exceed 0.024 kg water or dry air
Storage temperature	–40 to 158ºF (–40 to 70ºC)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg water or dry air.
Operating altitude	–60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Compliance
NEBS	Cisco ASR 9000 Series Integrated Service Module is designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection
ETSI standards	Cisco ASR 9000 series Integrated Service Module is designed to meet: · EN300 386: Telecommunications Network Equipment (EMC) · ETSI 300 019 Storage Class 1.1 · ETSI 300 019 Transportation Class 2.3 · ETSI 300 019 Stationary Use Class 3.1 · EN55022: Information Technology Equipment (Emissions) · EN55024: Information Technology Equipment (Immunity) · EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 series Integrated Service Module is designed to meet: · FCC Class A · ICES 003 Class A · AS/NZS 3548 Class A · CISPR 22 (EN55022) Class A · VCCI Class A · BSMI Class A · IEC/EN 61000-3-2: Power Line Harmonics · IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity	Cisco ASR 9000 series Integrated Service Module is designed to meet: · IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) · IEC/EN-61000-4-3: Radiated Immunity (10V/m) · IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) · IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) · IEC/EN-61000-4-5: Signal Ports (1kV) · IEC/EN-61000-4-5: Surge DC Port (1kV) · IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) · IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) · IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety	Cisco ASR 9000 series Integrated Service Module is designed to meet: · UL/CSA/IEC/EN 60950-1 · IEC/EN 60825 Laser Safety · ACA TS001 · AS/NZS 60950 · FDA: Code of Federal Regulations Laser Safety

Q&A

What are common troubleshooting steps for the Cisco ASR 9000 Module A9K-ISM-100?

Common troubleshooting steps include verifying power connections, ensuring module seating in the chassis, checking for firmware updates, and consulting Cisco support for specific error codes and diagnostics.

What accessories are available for the Cisco ASR 9000 Module A9K-ISM-100?

Accessories for the A9K-ISM-100 include compatible Cisco ASR 9000 chassis, power supplies, additional interface modules, and network cables. Consult the Cisco catalog for a complete list of compatible accessories.

How does the Cisco ASR 9000 Module A9K-ISM-100 compare to similar modules?

The Cisco ASR 9000 Module A9K-ISM-100 delivers robust performance with 40G AVSM ISM compared to other modules by offering superior integration, advanced features, and enhanced reliability for demanding network environments.

How do I use the Cisco ASR 9000 Module A9K-ISM-100 after installation?

After installation, configure the Cisco ASR 9000 Module A9K-ISM-100 using the Cisco IOS XR software, ensuring proper network settings and security configurations. Refer to the manual for detailed setup instructions.

Learn More

What are the key features of the Cisco ASR 9000 Module A9K-ISM-100?

The A9K-ISM-100 offers high-speed 40G performance, flexible scalability, and advanced service management for Cisco ASR 9000 Series Routers.

Is the A9K-ISM-100 module cost-effective for large enterprises?

Yes, the A9K-ISM-100 provides a balance of high performance and scalability, making it a cost-effective choice for large enterprises.

What are the typical application scenarios for the Cisco A9K-ISM-100?

The A9K-ISM-100 is ideal for use in service provider edge networks, data centers, and large enterprise WAN deployments.

How do I install the Cisco ASR 9000 Module A9K-ISM-100?

Install the A9K-ISM-100 into the designated slot in the Cisco ASR 9000 Series chassis and follow the Cisco IOS XR software to configure it.

Does the A9K-ISM-100 require regular upgrades?

Upgrades for the A9K-ISM-100 depend on network demands and Cisco IOS XR software updates to enhance performance and security features.

Are there any alternative products to the A9K-ISM-100?

Alternatives include other Cisco ASR 9000 Modules with different performance and capacity ratings, such as the A9K-40GE-SE.

What common troubleshooting steps are recommended for the A9K-ISM-100?

Common steps include verifying module seating, checking for firmware updates, and consulting Cisco support for specific diagnostics.

What accessories are available for the Cisco A9K-ISM-100?

Accessories include compatible interface modules, enhanced power supplies, and fan modules specifically for ASR 9000 Series routers.

How does the A9K-ISM-100 compare with similar products?

The A9K-ISM-100 offers robust 40G performance with advanced service capabilities, making it a preferred choice over similar modules with lower throughput.

Is the Cisco A9K-ISM-100 suitable for use in high-density environments?

Yes, the A9K-ISM-100 is designed for high-density environments, offering powerful performance and scalability to handle intensive network demands.

What are the main features of the Cisco ASR 9000 Module A9K-ISM-100?

The Cisco ASR 9000 Module A9K-ISM-100 features a 40G AVSM ISM, providing high-speed data throughput, advanced service capabilities, and robust reliability essential for service provider edge environments.

How cost-effective is the Cisco ASR 9000 Module A9K-ISM-100?

The Cisco ASR 9000 Module A9K-ISM-100 offers exceptional value by delivering high performance and advanced features at a competitive price, reducing total cost of ownership for service providers.

What are the typical application scenarios for the Cisco ASR 9000 Module A9K-ISM-100?

The Cisco ASR 9000 Module A9K-ISM-100 is ideal for service provider edge routing, supporting high-speed data, video, and mobile services. It is also well-suited for data center interconnect and broadband aggregation.

How do you install the Cisco ASR 9000 Module A9K-ISM-100?

To install the Cisco ASR 9000 Module A9K-ISM-100, follow the detailed installation guide provided in the product documentation, ensuring proper alignment and secure connection within the Cisco ASR 9000 chassis.

Does the Cisco ASR 9000 Module A9K-ISM-100 require any upgrades?

The Cisco ASR 9000 Module A9K-ISM-100 may require firmware or software upgrades to ensure optimal performance and compatibility with the latest features and security enhancements. Check Cisco's website for updates.

Are there alternative products to the Cisco ASR 9000 Module A9K-ISM-100?

Alternative products include other Cisco ASR 9000 series modules, such as the A9K-ISM-200, which offers similar performance with different capacity options to meet varying network needs.
