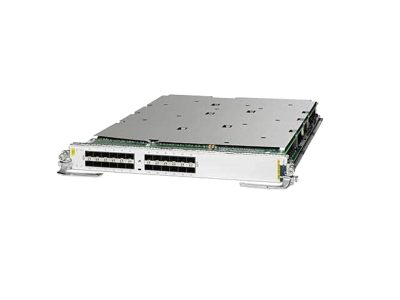

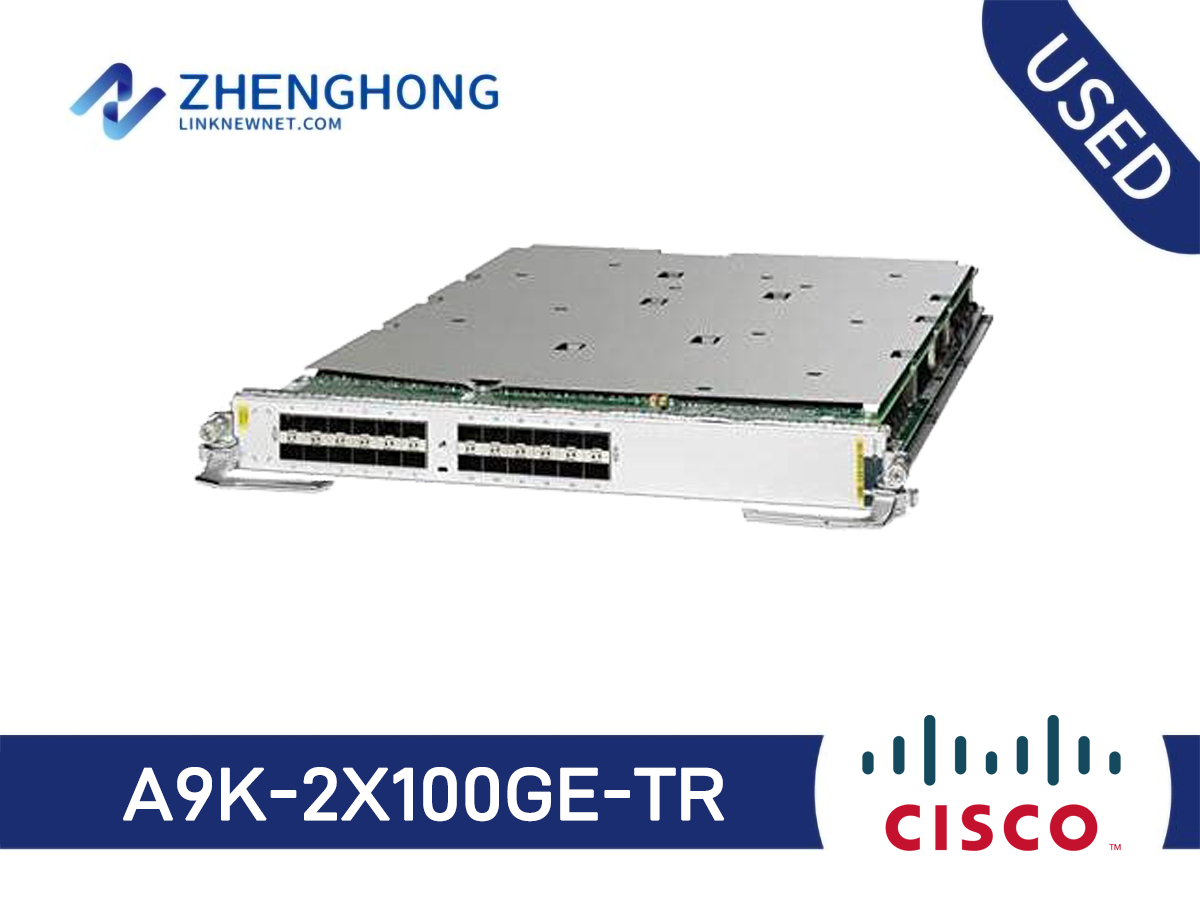

A9K-2X100GE-TR - Cisco ASR 9000 Series Line card

A9K-2X100GE-TR - Cisco ASR 9000 Series Line card

Model: A9K-2X100GE-TR
Detail: Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-TR ASR 9000 2-port 100GE, Packet Transport Optimized LC (spare)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details


A9K-2X100GE-TR Specification

Part Number

A9K-2X100GE-TR

Product Description

Cisco ASR 9000 2-Port 100GE Packet Transport Optimized Line Card, Requires CFP optics

Chassis compatibility

Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis

Port density

2 ports of 100 Gigabit Ethernet per line card

Ethernet

●  100-Gbps IEEE 802.3ba compliant

●  100 Gigabit Ethernet PHY monitoring

●  IEEE 802.x flow control

●  Full-duplex operation

●  Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check

●  (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets

Performance

●  100-Gbps line-rate throughput per port

Options

Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card

Reliability and availability

Line card online insertion and removal (OIR) support without affecting the system

Physical dimensions (H x W x D); weight

14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg)

Network Equipment Building Standards (NEBS)

Cisco ASR 9000 Series Routers are designed to meet:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS EMC and Safety

●  GR-63-CORE: NEBS Physical Protection

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature (short-term)

23 to 131ºF (-5 to 55ºC)

Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).

Operating humidity (nominal) (relative humidity)

10 to 85%

Storage temperature

-40 to 158ºF (-40 to 70ºC)

Storage (relative humidity)

5 to 95%

Note: Not to exceed 0.024 kg of water per kg of dry air

Operating altitude

-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)

ETSI standards

Cisco ASR 9000 Series Routers are designed to meet:

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9000 Series Routers are designed to meet:

●  FCC Class A

●  ICES 003 Class A

●  AS/NZS 3548 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-2: Power Line Harmonics

●  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Immunity

Cisco ASR 9000 Series Routers are designed to meet:

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

●  IEC/EN-61000-4-5: Signal Ports (1kV)

●  IEC/EN-61000-4-5: Surge DC Port (1kV)

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

●  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

Safety

Cisco ASR 9000 Series Routers are designed to meet:

●  UL/CSA/IEC/EN 60950-1

●  IEC/EN 60825 Laser Safety

●  ACA TS001

●  AS/NZS 60950

●  FDA - Code of Federal Regulations Laser Safety
