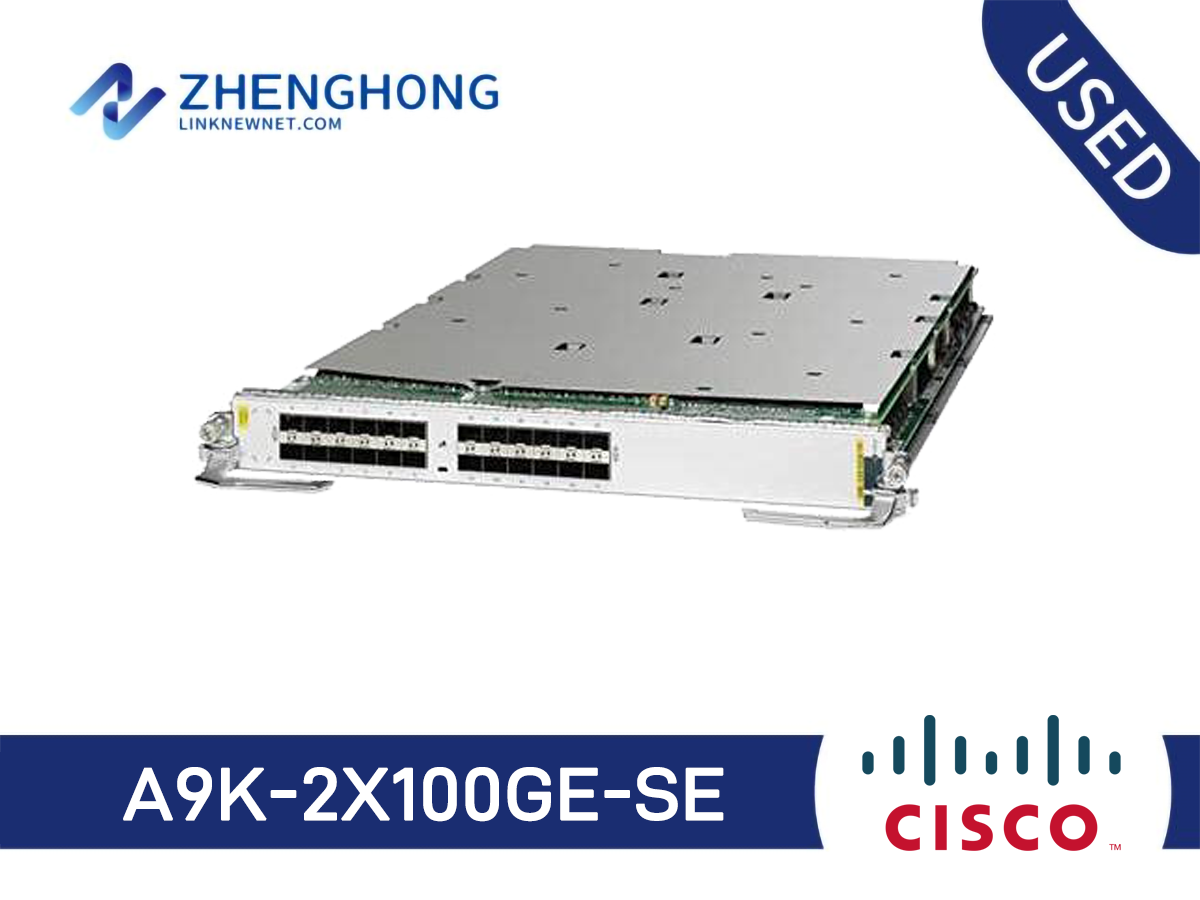

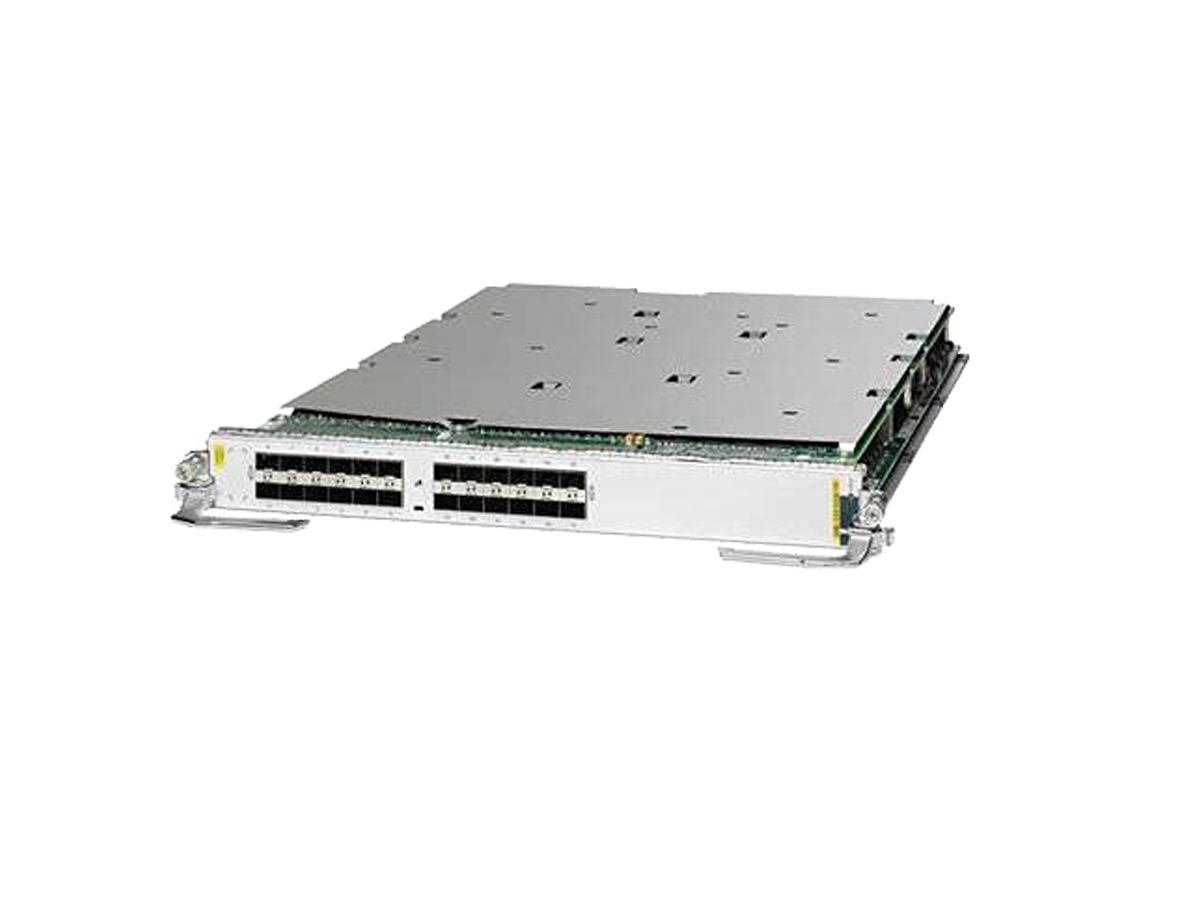

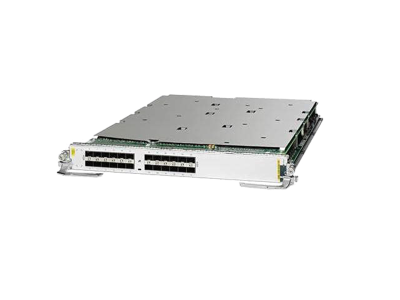

A9K-2X100GE-SE - Cisco ASR 9000 Series Line card

Model: A9K-2X100GE-SE

Detail: Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-SE ASR 9000 2-port 100GE, Service Edge Optimized LC (spare)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

A9K-2X100GE-SE Specification
Part Number	A9K-2X100GE-SE
Product Description	Cisco ASR 9000 2-Port 100GE Service Edge Optimized Line Card, Requires CFP optics
Chassis compatibility	Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis
Port density	2 ports of 100 Gigabit Ethernet per line card
Ethernet	● 100-Gbps IEEE 802.3ba compliant ● 100 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check ● (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Performance	● 100-Gbps line-rate throughput per port
Options	Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card
Reliability and availability	Line card online insertion and removal (OIR) support without affecting the system
Physical dimensions (H x W x D); weight	14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg)
Network Equipment Building Standards (NEBS)	Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (-5 to 55ºC) Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).
Operating humidity (nominal) (relative humidity)	10 to 85%
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards	Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity	Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety	Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA - Code of Federal Regulations Laser Safety

Q&A

What accessories are available for the A9K-2X100GE-SE?

Accessories include compatible transceivers, additional line cards, and power supply units to enhance the performance and capacity of your Cisco ASR 9000 Router.

How does the A9K-2X100GE-SE compare to similar products?

Compared to other line cards, the A9K-2X100GE-SE offers superior service edge optimization and 100GE port density, making it ideal for high-performance edge routing.

What common troubleshooting steps should I follow for the A9K-2X100GE-SE?

Ensure the line card is properly seated, check for firmware updates, and verify network configurations to troubleshoot common issues with the A9K-2X100GE-SE.

Is the A9K-2X100GE-SE suitable for my network needs?

The A9K-2X100GE-SE is suitable if you require high-speed Ethernet and service edge optimization within the Cisco ASR 9000 Series for service provider networks.

Learn More

How cost-effective is the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

The Cisco A9K-2X100GE-SE provides high performance and scalability, making it a cost-effective solution for high-demand network environments.

What are the key characteristics of the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

This linecard supports 2 ports of 100GE, designed specifically for service edge optimization.

What are the application scenarios for the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Ideal for service provider and enterprise edge networks needing high-capacity and service optimization.

How do I install the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Simply insert the linecard into an available slot in the ASR 9000 chassis and secure it with the provided screws.

Does the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE require any upgrades?

Keep your router's software up to date to ensure full compatibility and feature support for the A9K-2X100GE-SE.

Are there alternative products to the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Similar alternatives include other service edge-optimized linecards in the ASR 9000 series with varying port configurations.

What are common troubleshooting steps for the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Verify the physical connections, check for firmware updates, and review router logs for errors.

What accessories are available for the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Accessories include compatible SFP transceivers, power supply modules, and mounting kits.

How does the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE compare to similar products?

It offers enhanced service edge optimization and higher port density compared to basic Ethernet linecards.

How do I use the Cisco ASR 9000 Series Ethernet Linecard A9K-2X100GE-SE?

Insert the linecard into your ASR 9000 router, configure via CLI, and ensure it is properly secured and recognized by the system.
