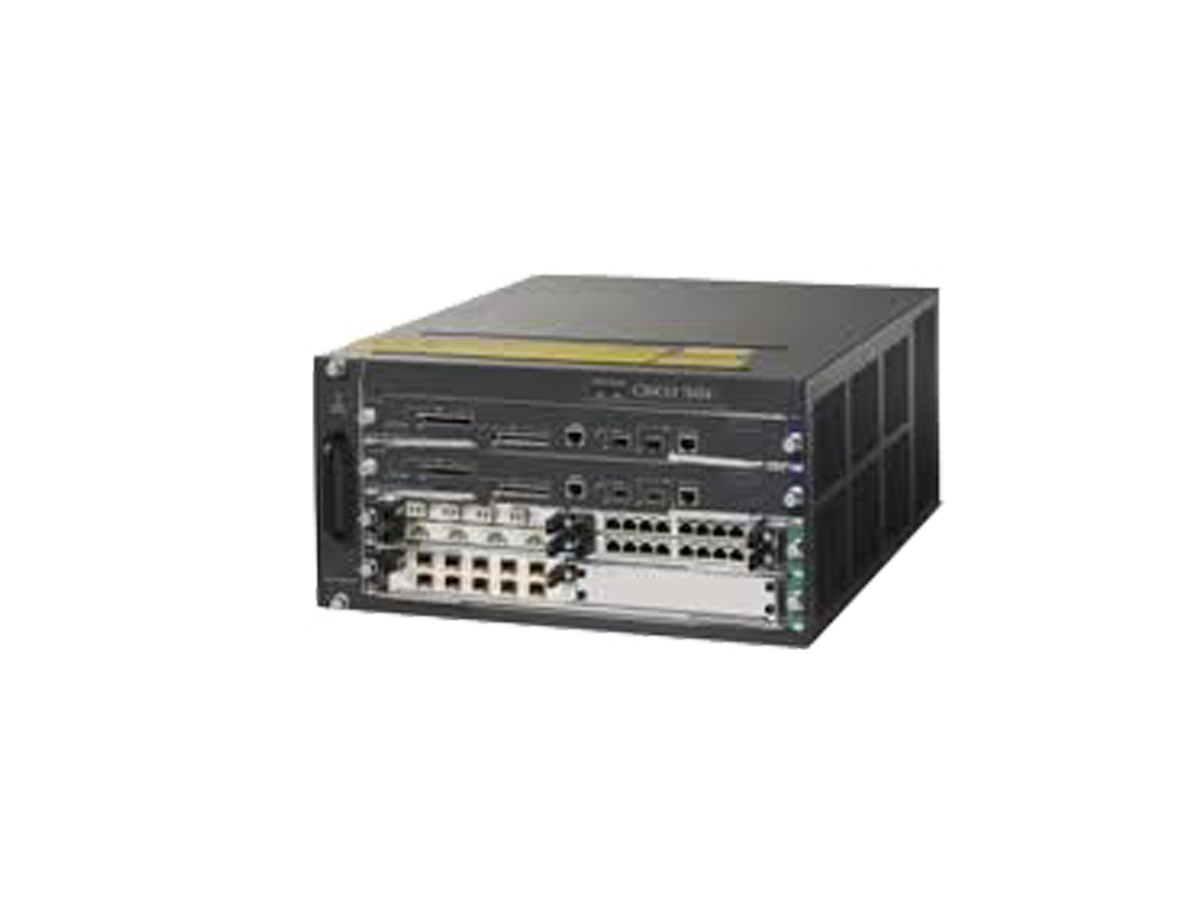

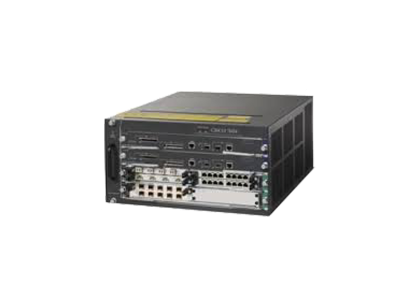

7604-RSP7XL-10G-R - Cisco 7604 Router

Model: 7604-RSP7XL-10G-R

Detail: Cisco 7604 Chassis,4-slot,Red System,2RSP720-3CXL-10GE,2PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7604-RSP7XL-10G-R Specification
General
Device Type	Router - with 2 x Cisco 7600 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3CXL-10GE)
Enclosure Type	Desktop, rack-mountable - modular - 5U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance	Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity	ACL rules: 256000 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 256000
Network / Transport Protocol	TCP/IP, ICMP/IP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards	IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00
RAM	4 GB
Flash Memory	1 GB
Expansion / Connectivity
Interfaces	2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 2 x console - RJ-45 ¦ 4 x SFP (mini-GBIC)
Expansion Slots	4 (total) / 2 (free) x expansion slot ¦ 6 (total) / 4 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)	2 (installed) / 4 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	2 (installed) / 2 (max)
Miscellaneous
Mounting Kit	Included
MTBF	7 years
Dimensions & Weight
Width	17.5 in
Depth	21.7 in
Height	8.7 in
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%

Q&A

What are common troubleshooting steps for the Cisco 7604-RSP7XL-10G-R?

Common troubleshooting includes checking power supply status, ensuring connections, and monitoring logs for errors using Cisco's diagnostic tools.

What accessories are available for the Cisco 7604-RSP7XL-10G-R?

Key accessories include additional power supplies, fan trays, and compatible RSP modules to enhance functionality.

How does the Cisco 7604-RSP7XL-10G-R compare with similar products?

Compared to similar models, the 7604 offers superior slot flexibility and dual RSP redundancy, optimized for medium to large-scale deployments.

How do I use the Cisco 7604-RSP7XL-10G-R effectively?

Utilize the Cisco IOS software for configuration and management, and leverage redundancy features for high availability in network operations.

How cost-effective is the Cisco 7604-RSP7XL-10G-R?

The Cisco 7604-RSP7XL-10G-R offers a great balance of performance and cost, making it ideal for budget-conscious projects requiring reliable WAN edge routing.

What are the key features of the Cisco 7604-RSP7XL-10G-R?

This Cisco 7604-RSP7XL-10G-R model includes 4 slots, Redundant System, dual RSP720-3CXL-10GE, and two power supplies for enhanced performance and reliability.

What are the application scenarios for the Cisco 7604-RSP7XL-10G-R?

Ideal for WAN aggregation and internet edge routing applications, supporting high-density Ethernet services with robust redundancy.

How do I install the Cisco 7604-RSP7XL-10G-R?

Installation involves mounting the chassis, inserting the RSPs and power supplies, and connecting network cables. Follow the Cisco installation guide for detailed steps.

Does the Cisco 7604-RSP7XL-10G-R need upgrades?

Ensure that the IOS software is up-to-date to benefit from the latest security patches and features. Hardware upgrades depend on evolving network requirements.

Are there alternative products to the Cisco 7604-RSP7XL-10G-R?

Alternatives include Cisco ASR 1001-X for higher performance or the Cisco 7206VXR for more economical routing solutions.

What are common troubleshooting steps for the Cisco 7604-RSP7XL-10G-R?

Common troubleshooting includes checking power supply status, ensuring connections, and monitoring logs for errors using Cisco's diagnostic tools.

What accessories are available for the Cisco 7604-RSP7XL-10G-R?

Key accessories include additional power supplies, fan trays, and compatible RSP modules to enhance functionality.

How does the Cisco 7604-RSP7XL-10G-R compare with similar products?

Compared to similar models, the 7604 offers superior slot flexibility and dual RSP redundancy, optimized for medium to large-scale deployments.

How do I use the Cisco 7604-RSP7XL-10G-R effectively?

Utilize the Cisco IOS software for configuration and management, and leverage redundancy features for high availability in network operations.
