How To Setup Port Aggregation For Cisco 2960 Switches

Aug 09 , 2022 2762

What is port aggregation?

Port aggregation is to bundle multiple physical links between two devices to form a logical link to achieve bandwidth multiplication. So how to set up Cisco 2960 switches port aggregation? Take a look.

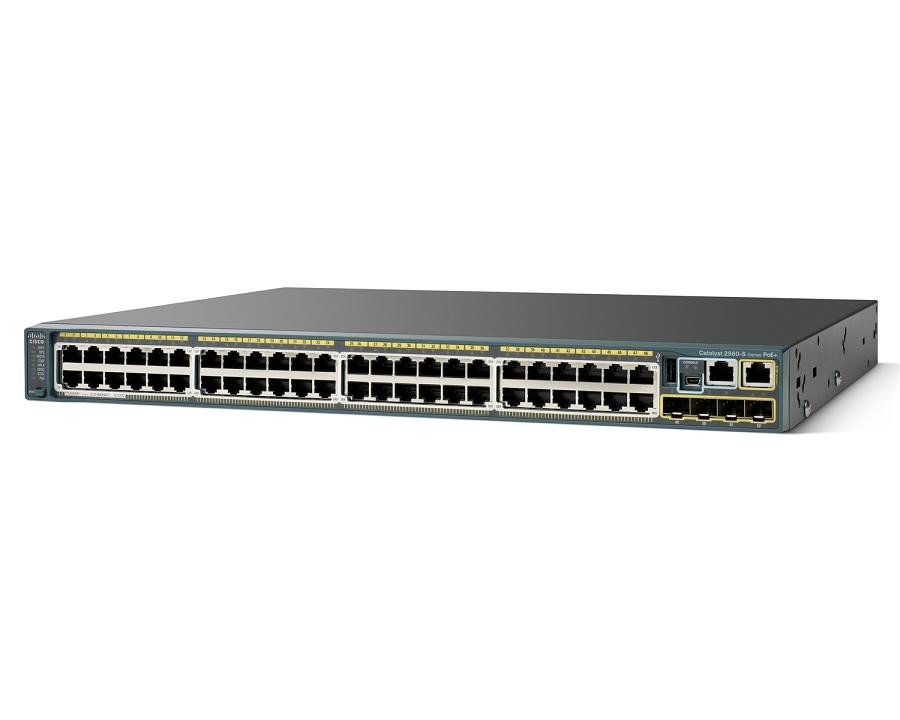

setup aggregation 2960 switches.jpg

Configuring Layer 2 Ethernet channels

Sw1(config)#int range fas 0/21 , fas0/22

Sw1(config-if)#channel-protocol pagp/lacp

Sw1(config-if)#channel-group 1 mode on/deseriable/auto

Sw2(config)#int range fas 0/21 , fas 0/22

Sw2(config-if)#channel-protocol pagp/lacp

Sw2(config-if)#channel-group 1 mode on/deseriable/auto

View:

Show etherchannel detail

Show etherchannel summary

Show etherchannel port-channel

Configure Layer 3 Ethernet channels

Sw1(config)#int range fas 0/21 ,fas0/22

Sw1(config-if)#no switchprot

Sw1(config-if)#channel-group 1 mode deseriable

Sw1(config)#interface port-channel 1

Sw1(config-if)#ip address 192.168.1.1 255.255.255.0

Sw1(config-if)#end

Sw2(config)#int range fas 0/21 ,fas0/22

Sw2(config-if)#no switchprot

Sw2(config-if)#channel-group 1 mode desirable

Sw2(confif)#interface port-channel 1

Sw2(config-if)ip address 192.168.1.2 255.255.255.0

Sw2(config-if)end

The above is about the Cisco 2960 switch to set up port aggregation methods, if you have other questions or needs, please consult our online customer service or message.
