How do I connect a Cisco wireless AP to a wireless controller?

Aug 29 , 2024 385

In modern organizations, networks are being used more and more frequently, and the collaboration of Cisco wireless APs and wireless controllers is a key factor in ensuring that your wireless network is up and running. Whether it's a corporate office or a school or educational institution, properly configuring and managing the devices can put the network's performance and user experience in good hands.

So how do you connect a Cisco wireless AP to a wireless controller?

Wireless APs and wireless controllers play different but complementary roles in a wireless network. Here are their main functions:

Wireless AP (Access Point) Main Functions:

1. Wireless Signal Coverage: Wireless AP provides wireless network coverage by transmitting and receiving wireless signals, allowing wireless devices to connect to the wired network.

2. Bridging Function: Wireless APs can act as a bridge between the wired network and wireless devices, ensuring that wireless devices can access wired network resources.

3. Extend network range: Through the deployment of multiple APs, the wireless network coverage can be expanded for large areas.

4. Client Mode: Some wireless APs support AP client mode, which can be connected with other APs to further extend network coverage.

The main functions of the Wireless Controller (Wireless Controller):

1. Centralized management: Wireless controller is responsible for centralized management of multiple wireless APs, including configuration, monitoring and maintenance.

2. Configuration Distribution: The wireless controller can uniformly distribute configurations to simplify the deployment and management of large-scale wireless networks.

3. RF management: automatically adjust the channel and power of APs to optimize the performance and coverage of the wireless network.

4. Security Control: Provides user authentication, access control and traffic management to ensure the security of the wireless network.

5. Roaming Support: Supports users to roam seamlessly between different APs to maintain the stability of network connection.

To summarize, wireless APs are mainly responsible for providing wireless signal coverage and connectivity, while wireless controllers are responsible for centrally managing and optimizing the performance and security of multiple APs. Used in combination, the two can build an efficient, stable and secure wireless network.

How to connect Cisco wireless AP to wireless controller? You can refer to the following steps:

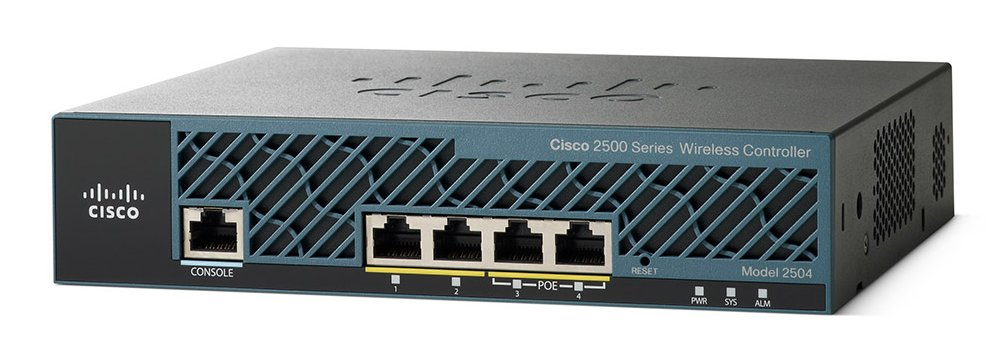

The main tools used this time are Cisco Wireless AP: AIR-CAP2702I-H-K9 (Thin AP) and Wireless Controller: CISCO AIR-CT2504-K9 to connect.

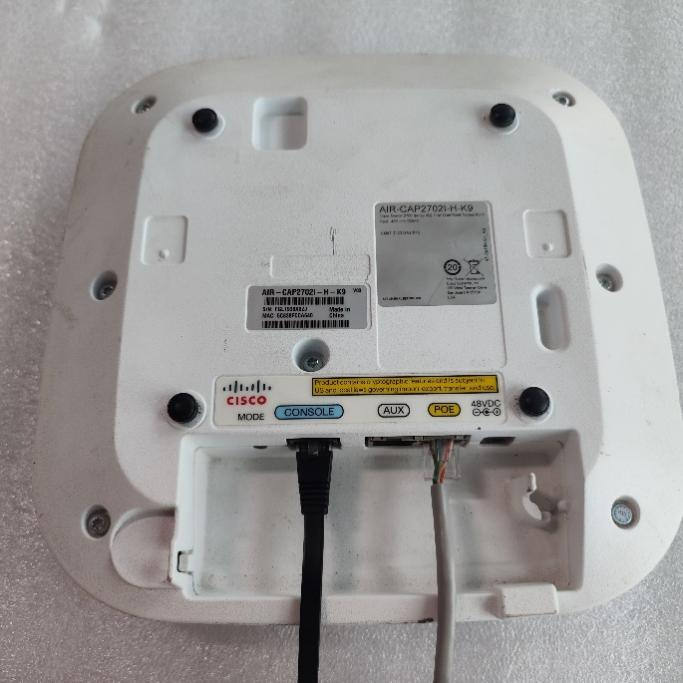

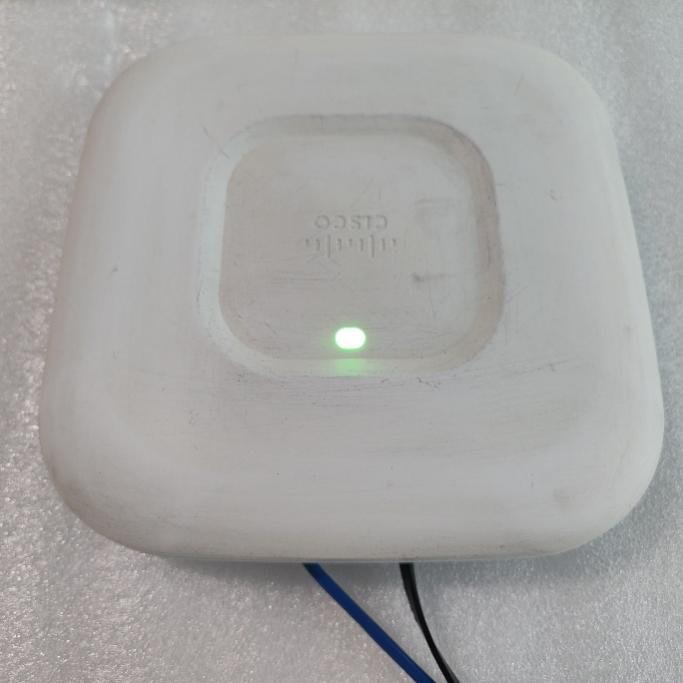

1. Power up the wireless AP, there is a slow startup process here.

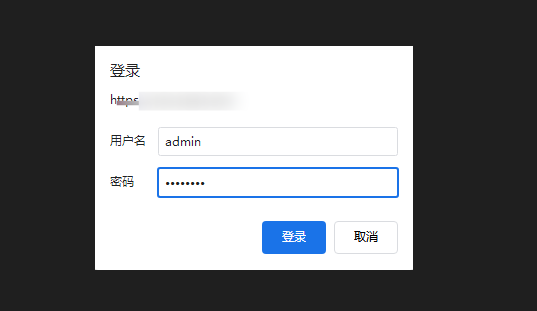

2. Use WEB to log in to the AC wireless controller.

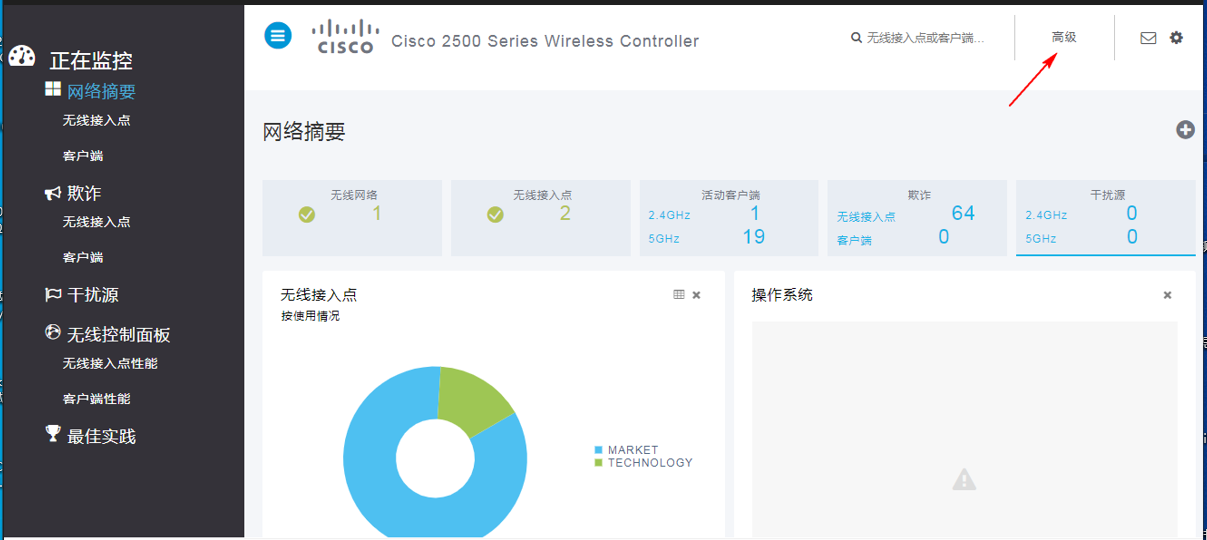

3. Click Advanced after successful login.

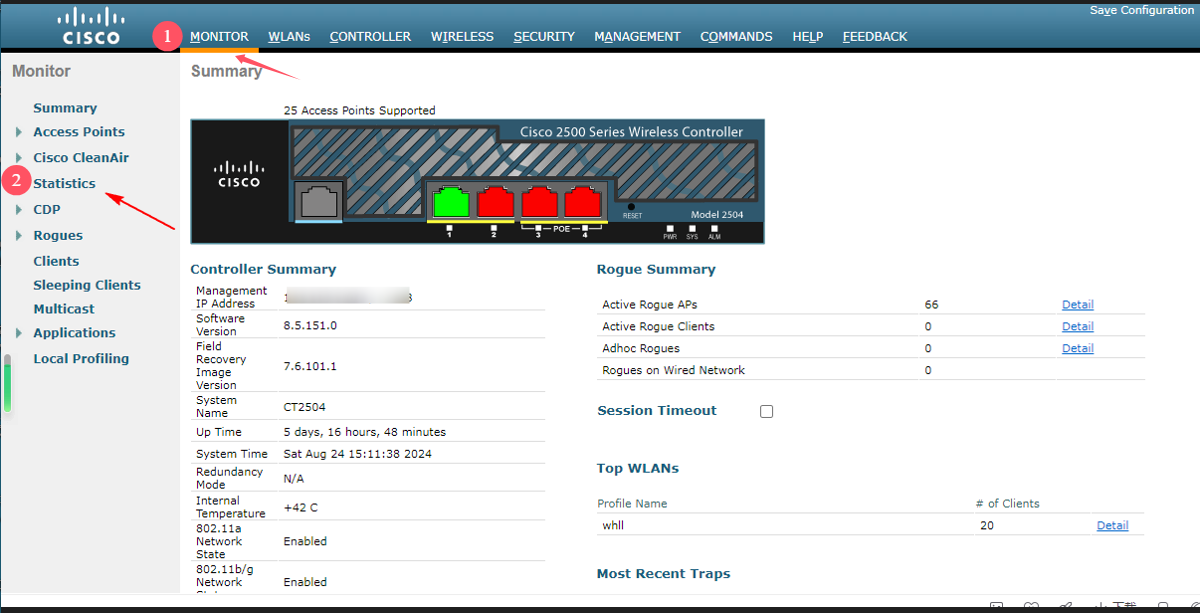

4. Click: ①MONITOR to view some basic information about the wireless controller;

②Statistics View statistics.

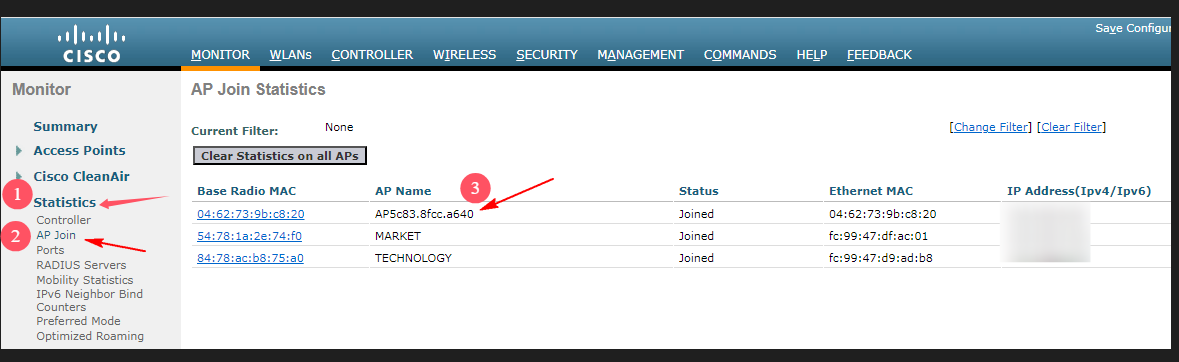

5. View the AP join.

As shown in the figure ③, wait for the AC wireless controller to uniformly send down the version and information, AP can be used.

There are many brands of wireless controllers and APs on the market, and choosing the right brand can improve network quality and avoid frequent failures. Cisco, Huawei, Huasan and other brands of wireless APs and wireless controllers are widely used in various scenarios. For example, in large enterprises, they can guarantee network coverage in all office areas and support the simultaneous connection of a large number of devices; in schools or educational institutions, they can provide teachers and students with a stable network, whether in the classroom, dormitory, or library, to enjoy seamless network connectivity.

Warehousing and logistics industries are also typical application scenarios. The widespread use of wireless devices in warehouses makes wireless signal coverage and stability even more important, and companies can use wireless networks to improve network signal strength in all areas to ensure work efficiency.

Wireless APs and wireless controllers work together to enhance the flexibility and scalability of the network and optimize the overall performance of the network. As an IT maintenance provider with more than a decade of professional experience, we can provide you with comprehensive technical support and solutions to help you optimize the performance of your enterprise network and make your network operation more stable and secure. No matter what kind of network problems you encounter, our technical support team will provide you with reliable solutions at the first time. Feel free to contact us online or by phone.
