SPA-1XCHOC48/DS3 - Cisco ASR 9000 Series Shared Port Adapter|LinkNewNet

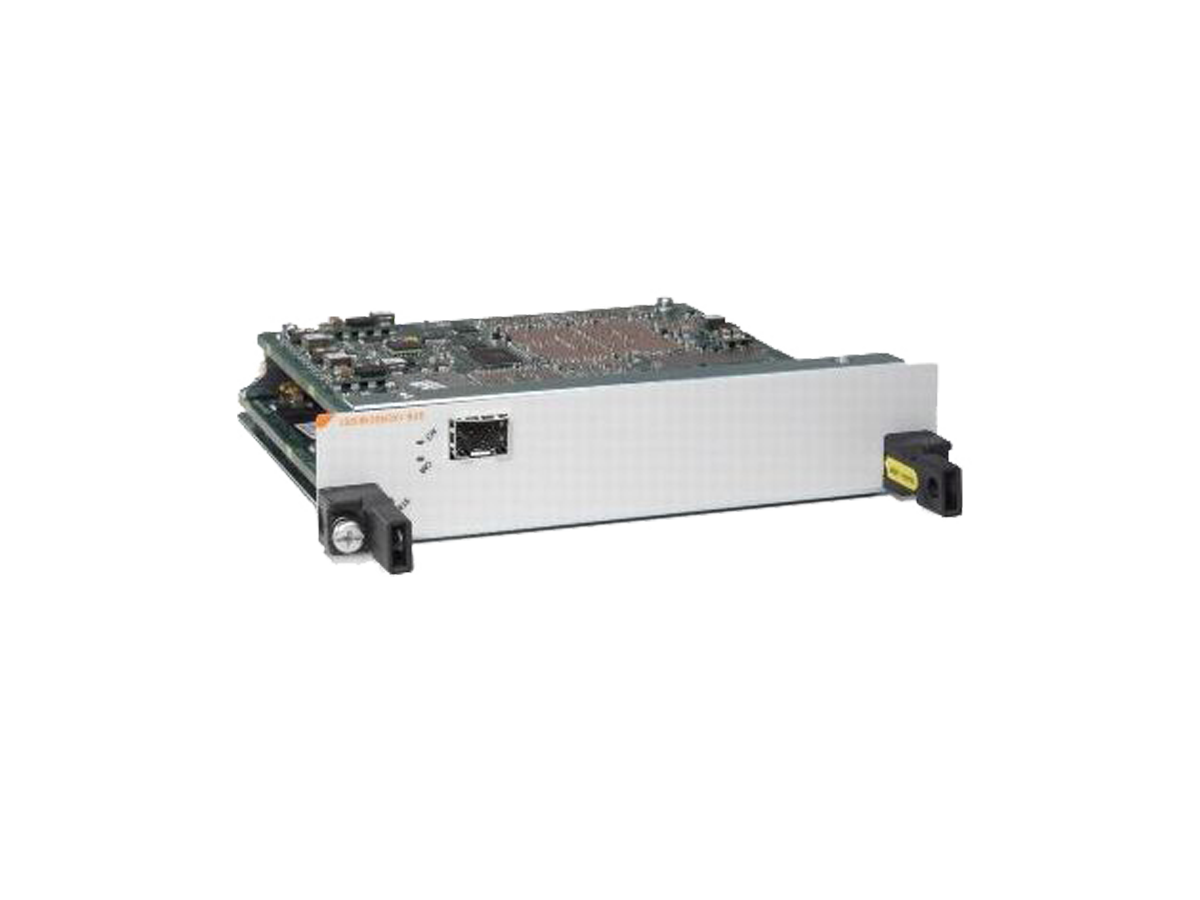

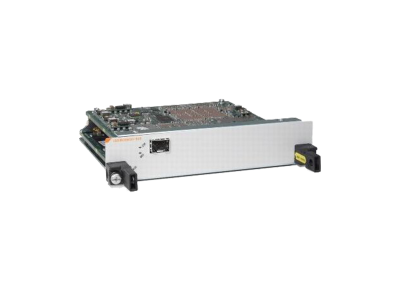

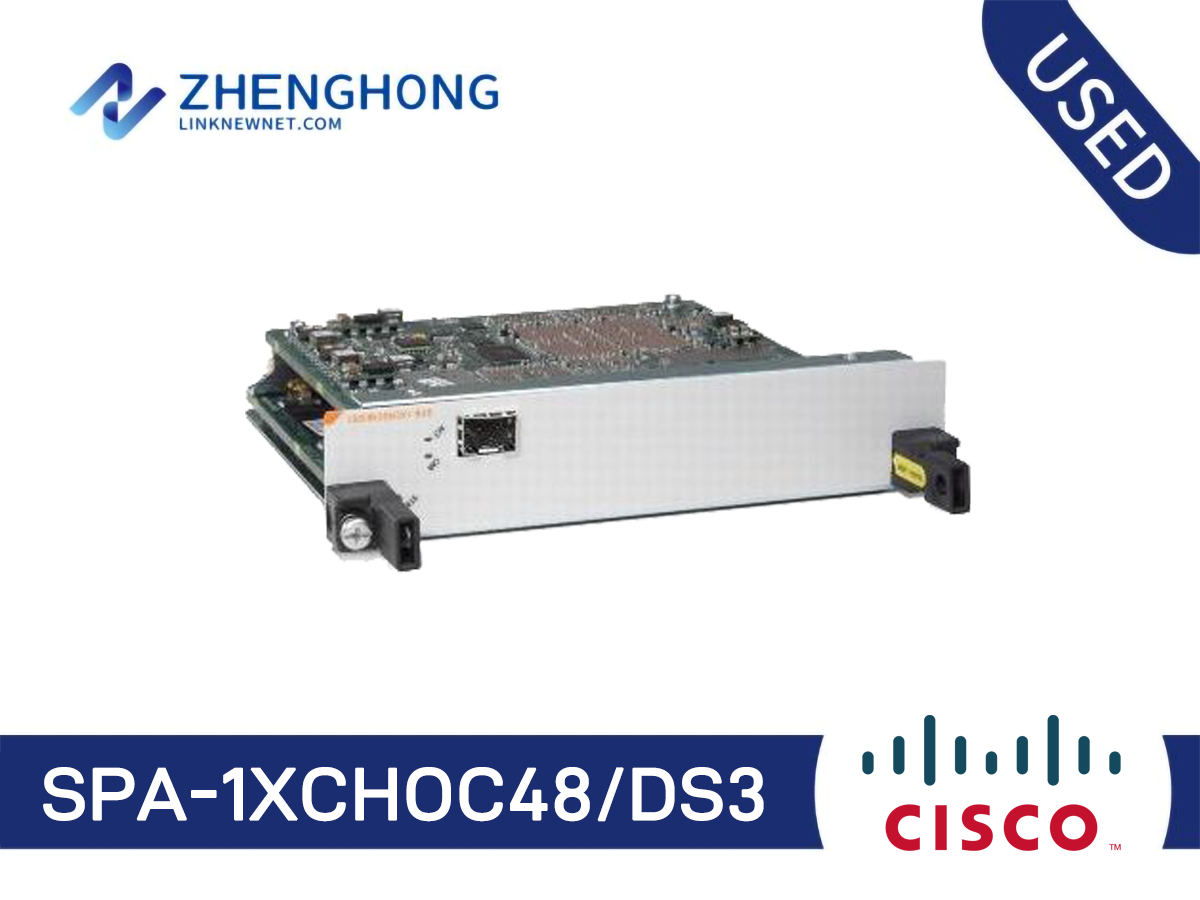

SPA-1XCHOC48/DS3 - Cisco ASR 9000 Series Shared Port Adapter

Model: SPA-1XCHOC48/DS3

Detail: Cisco ASR 9000 Adapter SPA-1XCHOC48/DS31-port Channelized OC48 to DS3 SPA

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SPA-1XCHOC48/DS3 Specifications
Type	SPA-1XCHOC48/DS3 Cisco ASR 9000 Series & XR 12000 Shared Port Adapter
Product compatibility	Cisco XR 12000 Series Routers Cisco ASR 9000 Series Router
Port density per SPA	1-port Channelized OC-48/STM-16
Physical interface (Channelized OC-48)	OC-48c/STM-16 Small Form-Factor Pluggable (SFP) optics module (refer to optical parameters in Table 2) Visual status indicators (LEDs): • SPA status LED • Per-port LEDs • Carrier and alarm • Active and loopback
Protocols	• IETF RFC 1490, Frame Relay Encapsulation • RFC 1662, Point-to-Point Protocol (PPP) in High-Level Data Link Control (HDLC)-like framing • Cisco HDLC • PPP, HDLC, and Frame Relay User Network Interface (UNI) encapsulations
Features and functions	DS3 • Full- and half-duplex connectivity at DS-3 rate (44.736 MHz) • Scrambling and subrate support of major data-service-unit (DSU) vendors • C-bit or M23 framing in DS-3 mode • G.751 or G.832 in E3 mode • Support for 16- and 32-bit cyclic redundancy check (CRC) (16-bit default) • 24-hour history maintained for error statistics and failure counts • DS-3 alarm and event detection (once-per-second polling) • Alarm indication signal (AIS) • Out of frame (OOF) • Far-end receive failure (FERF)
SONET errors, alarms, and performance monitoring	Synchronization • Local (internal) or loop timed (recovered from network) • Pointer activity monitoring Local (diagnostic) and line (network) loopback Payload mapping • POS with 1 + X^43 self-synchronous scrambler SONET/SDH compliance • Telcordia (Bellcore) GR-253-CORE (as applicable) • ANSI T1.105, T1.231 • ITU-T G.707, G.957, G.825 (as applicable) Supported SONET/SDH alarm and signal events • Signal failure bit error rate (SF-ber) • Signal degrade bit error rate (SD-ber) • Signal label payload construction (C2) • Path trace byte (J1) • Section • Loss of signal (LoS) • Loss of frame (LoF) • Error counts for B1 • Threshold crossing alarms (TCA) for B1 • Line • Line alarm indication signal (LAIS) • Line remote defect indication (LRDI) • Line remote error indication (LREI) • Error counts for B2 • TCA for B2 • Path • Path alarm indication signal (PAIS) • Path remote defect indication (PRDI) • Path remote error indication (PREI) • Error counts for B3 • TCA for B3 • Loss of pointer (LoP) • Positive stuffing event (PSE) Negative stuffing event (NSE) Path unequipped indication signal (PUNEQ) Path payload mismatch indication signal (PPLM)
Network management	• SONET-MIB (RFC 3592) • SONET/SDH-MIB (RFC 2558) • CISCO-SONET-MIB • DS-3/E3-MIB (RFC 3896) • Simple Network Management Protocol (SNMP)
Reliability and availability	• Online insertion and removal (OIR) • Field-replaceable SFP optical modules • 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols • Single SPA software reset
Physical specifications	• Weight: 1.27 lb (0.57 kg) • Height: 1.56 in. (3.96 cm) (double height) • Width: 6.75 in. (17.15 cm) • Depth: 7.28 in. (18.49 cm)
Power	• 1-port Channelized OC-48/STM-16 = 44W (with optics)
Environmental specifications	• Operating temperature: 41 to 104°F (5 to 40°C) • Storage temperature: -38 to 150°F (-40 to 70°C) • Operating humidity: 5 to 85% relative humidity • Storage humidity: 5 to 95% relative humidity
Compliance and agency approvals	Safety • UL/CSA 60950-1 • IEC/EN 60950-1 • AS/NZS 60950.1 • EN60825/IEC60825 laser safety • 21CFR1040 -FDA Code of Federal Regulations (USA) laser safety EMC • FCC Part 15 (CFR 47) • ICES 003 • CISPR 22 • AS/NZS CISPR22 • VCCI • EN55022 • EN55024 • EN300 386 • EN50082-1 • EN61000-6-1 Network Equipment Building Standards (NEBS) This product is designed to meet the following requirements (official qualification may be in progress): • SR-3580 - NEBS: Criteria levels (Level 3 compliant) • GR-63-CORE - NEBS: Physical Protection • GR-1089-CORE - NEBS: EMC and Safety

Q&A

What are common troubleshooting steps for the SPA-1XCHOC48/DS3?

Common steps include verifying physical connections, checking configuration settings, and consulting logs for errors.

What accessories are available with the SPA-1XCHOC48/DS3?

Compatible accessories include additional SFP transceivers and compatible SIPs for the Cisco ASR 9000 series.

How does the SPA-1XCHOC48/DS3 compare to similar products?

The SPA-1XCHOC48/DS3 provides superior integration with the Cisco ASR 9000 series, supporting high-capacity and flexible deployment scenarios.

Is the SPA-1XCHOC48/DS3 backwards compatible with earlier Cisco models?

It is designed specifically for the Cisco ASR 9000 series, and compatibility with earlier models should be confirmed via Cisco documentation.

Learn More

How cost-effective is the SPA-1XCHOC48/DS3?

The SPA-1XCHOC48/DS3 offers a high channel density and flexibility, reducing overall costs.

What are the key features of the SPA-1XCHOC48/DS3?

The SPA-1XCHOC48/DS3 supports channelized OC48 to DS3, optimizing network efficiency.

What are the application scenarios for this product?

Ideal for service provider and enterprise network environments requiring high-speed access.

How do I install the SPA-1XCHOC48/DS3?

Compatible with the Cisco ASR 9000 series; simply insert and secure within the network slot.

Does the SPA-1XCHOC48/DS3 need regular upgrades?

Firmware updates might be released; check Cisco's website for the latest updates.

Are there alternative products to the SPA-1XCHOC48/DS3?

Yes, you may consider other channelized SPA modules from the Cisco ASR series.

What are common troubleshooting steps?

Ensure proper installation, validate firmware version, and check Cisco support for updates.

What accessories are available for this product?

Compatible with various SFPs, cables, and network management software.

How does it compare to similar products?

The SPA-1XCHOC48/DS3 offers higher flexibility and efficiency compared to non-channelized options.

Can I use it with older ASR models?

Yes, it is backward compatible with older Cisco ASR models.

How cost-effective is the SPA-1XCHOC48/DS3 for system integrators?

The SPA-1XCHOC48/DS3 offers excellent value by consolidating multiple service interfaces into a single slot, optimizing space and reducing hardware costs.

What are the main features of the SPA-1XCHOC48/DS3?

The main features include 1-port channelized OC48 to DS3 functionality, high-speed data transfer, and compatibility with Cisco ASR 9000 series routers.

In what application scenarios is the SPA-1XCHOC48/DS3 used?

This adapter is ideal for service provider edge routing applications requiring high bandwidth and scalability.

How is the SPA-1XCHOC48/DS3 installed in a Cisco ASR 9000 router?

The SPA-1XCHOC48/DS3 is installed into an available SPA interface processor (SIP) slot within the Cisco ASR 9000 router.

Does the SPA-1XCHOC48/DS3 need to be upgraded periodically?

Upgrades may be required for firmware or software to enhance functionality and security; consult Cisco's website for updates.

Are there alternative products to the SPA-1XCHOC48/DS3?

Alternative products include other interface adapters in the Cisco ASR series, depending on specific network requirements.

What are common troubleshooting steps for the SPA-1XCHOC48/DS3?

Common steps include verifying physical connections, checking configuration settings, and consulting logs for errors.

What accessories are available with the SPA-1XCHOC48/DS3?

Compatible accessories include additional SFP transceivers and compatible SIPs for the Cisco ASR 9000 series.

How does the SPA-1XCHOC48/DS3 compare to similar products?

The SPA-1XCHOC48/DS3 provides superior integration with the Cisco ASR 9000 series, supporting high-capacity and flexible deployment scenarios.

Is the SPA-1XCHOC48/DS3 backwards compatible with earlier Cisco models?

It is designed specifically for the Cisco ASR 9000 series, and compatibility with earlier models should be confirmed via Cisco documentation.
