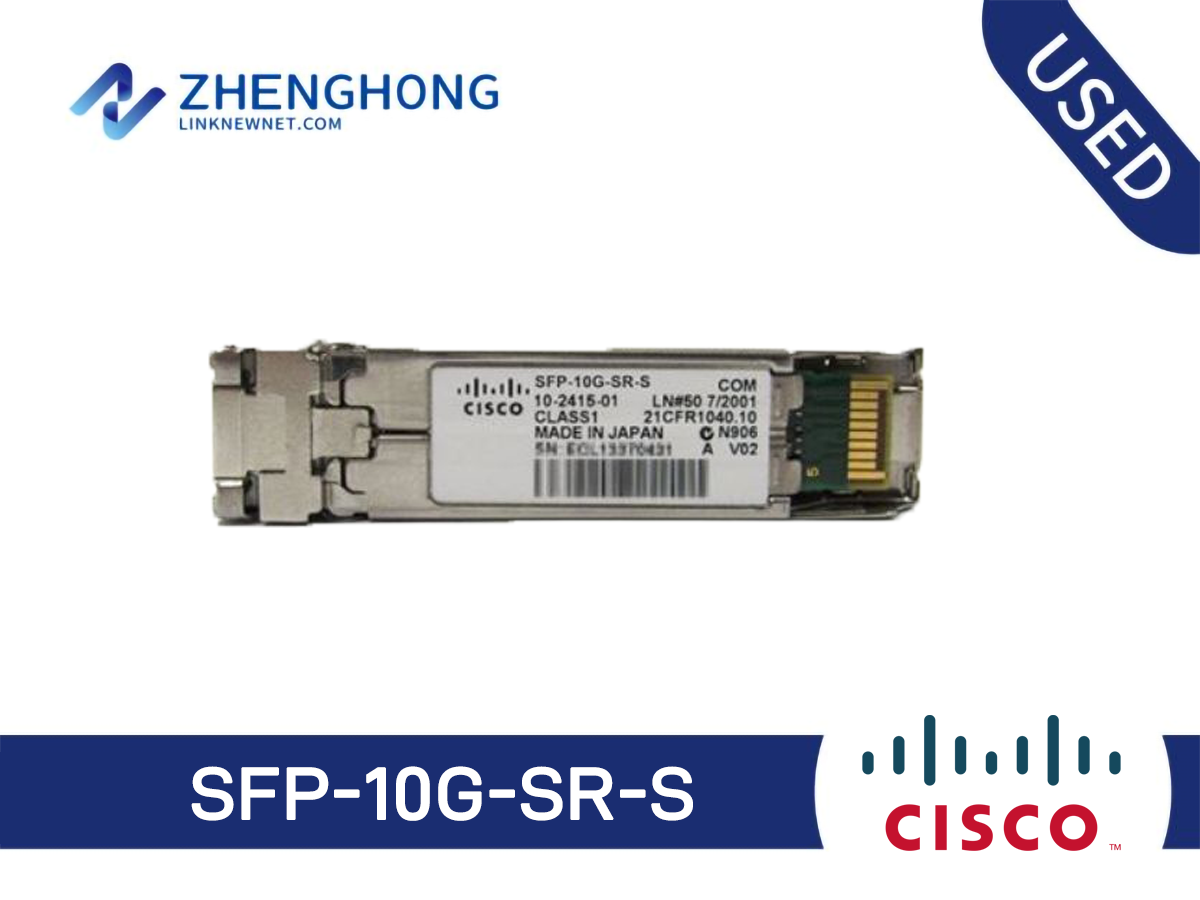

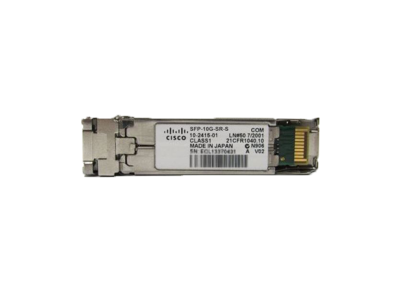

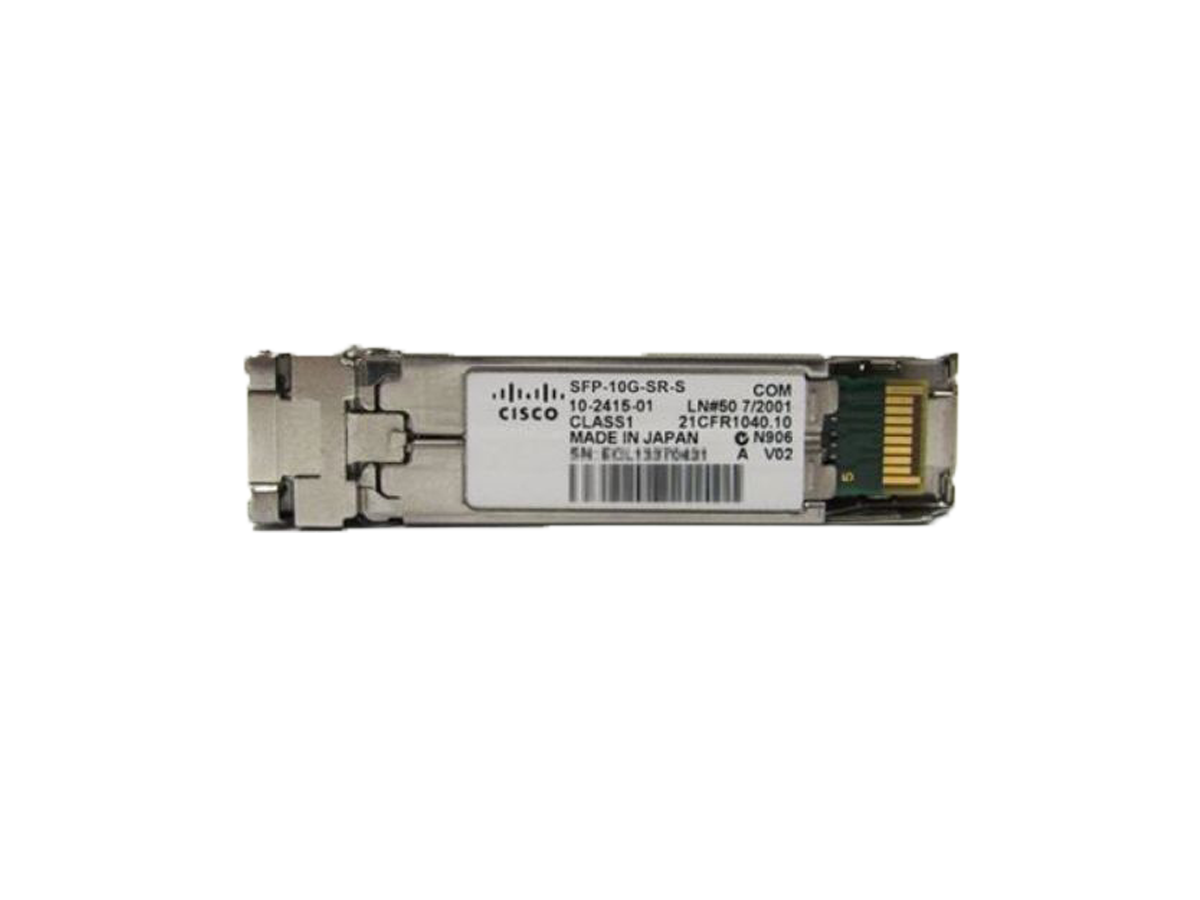

SFP-10G-SR-S - Cisco SFP Module

Model: SFP-10G-SR-S

Detail: 10GBASE-SR SFP+ Module for MMF S-Class

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SFP-10G-SR-S Specifications
Cable Type	MMF
Core Size (Microns)	62.5 62.5 50.0 50.0 50.0 50.0 50.0
Modal Bandwidth (MHzkm)3	160 (FDDI) 200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) 4700 (OM5)
Cable Distance*1	26m 33m 66m 82m 300m 400m 400m
1 Minimum cabling distance for -SR, -LRM, -LR, -ER modules is 2m, according to the IEEE 802.3ae.3 Specified at transmission wavelength.
Optical transmit and receive specifications
Type	10GBASE-SR 850nm MMF
Transmit Power (dBm)*	Maximum: -1.2** Minimum: -7.3
Receive Power (dBm)*	Maximum: -1.0 Minimum: -9.9
Transmit and Receive Wavelength (nm)	840 to 860
* Transmitter and receiver power is in average, unless specified. ** The launch power shall be the lesser of the class 1 safety limit or the maximum receive power. Class 1 laser requirements are defined by IEC 60825-1: 2001.
SFP+ modules power consumption
Power Consumption (W)	1
Operating Temperature Range	COM

Q&A

What are common troubleshooting steps for the SFP-10G-SR-S?

Ensure the module is properly seated, check fiber connections for integrity, confirm compatibility with the switch, and verify proper configuration on the interface.

What accessories are available for the SFP-10G-SR-S?

Accessories include compatible multimode fiber optic cables and connector modules, as well as dust covers for protection.

How does the SFP-10G-SR-S compare to the SFP-10G-LR-S?

The SFP-10G-SR-S supports shorter distances up to 300 meters over multimode fiber, whereas the SFP-10G-LR-S supports up to 10 kilometers on single-mode fiber.

What is the maximum distance supported by the SFP-10G-SR-S module?

The SFP-10G-SR-S module supports a maximum distance of up to 300 meters on standard multimode fiber optic cables.

How to order your products? Can I order online directly?

Of course you can order online.Let me tell you how to order:Step 1: Open our website and Find your item. Step 2: Learn about the item you found. Step 3: Add Items to the cart. Step 4: No matter you are a New or Existing Customer, you need to log in. Step 5: Write down your Shipping & Billing Address, Shipping Method and Payment Method Step 6: Track and Receive Your Goods.

Do you provide tech support?

Yes, we provide free CCIE technical support & design 24×7 online professional service. We also provide other brands' technology support, such as Huawei, HPE, Dell and so on. Please feel free to contact us via e-mail or visit our website if you have tech problems.

How do you Ship the Products? By DHL, or others?

We ships orders by international couriers, including DHL, FedEx, EMS, UPS (if you have UPS account), TNT and Aramex (mainly for Africa and Middle East). The shipping rates can be previewed inside the our online shop system. You can just click on the "Estimated Shipping Costs" and choose the country you want to ship to, Shipping fees will be estimated by our system automatically.

What platforms does it support?

Almost all Cisco platforms which have 10G SFP ports can install it.

SFP-10G-SR support 850NM multi-mode fiber with about 26 meters guaranteed length. what about the SFP-10G-SR-X model? Does it support more distance with same fiber?

NO, SFP-10G-SR-X can just extend temperature range.

What is cisco sfp 10g sr s?

cisco sfp 10g sr s is a small form-factor pluggable transceiver used for optical communication in data centers and enterprise networks. It is a Cisco-branded version of the SFP-10G-SR.

What is the range of cisco sfp 10g sr s?

cisco sfp 10g sr s has a transmission range of up to 300 meters over multimode fiber.

What is the data transfer rate of cisco sfp 10g sr s?

cisco sfp 10g sr s supports a maximum data transfer rate of 10 Gbps.

What is the connector type of sfp 10g sr s?

Sfp 10g sr s uses an LC duplex connector for optical connection.

What devices are compatible with sfp 10g sr s?

Sfp 10g sr s is compatible with a wide range of networking equipment such as switches, routers, and network interface cards.

What brands does Router-switch carry?

Router-switch carries a variety of networking equipment brands such as Cisco, Huawei, Juniper, HP, Dell, and more.

Does Router-switch ship internationally?

Yes, Router-switch ships their products internationally. However, customers may need to pay additional customs and taxes depending on their country's regulations.

Does Router-switch offer discounts or promotions?

Yes, Router-switch often offers discounts and promotions on their products. Customers can check their website or subscribe to their newsletter to stay updated on current offers.

Does Router-switch offer customized solutions for specific networking needs?

Yes, Router-switch offers customized solutions for specific networking needs. Customers can contact their sales team and provide their requirements to receive a personalized quote and solution.

What are the key features of the Cisco SFP-10G-SR-S?

The Cisco SFP-10G-SR-S is an enterprise-class 10GBASE-SR SFP Module. It offers high-speed data transfer rates up to 10Gbps and supports multi-mode fiber up to 300 meters. It is hot-swappable and compatible with a wide range of Cisco networking equipment.

What is the application scenario for the Cisco SFP-10G-SR-S?

The Cisco SFP-10G-SR-S is commonly used in data centers and enterprise networks for high-speed connectivity. It is ideal for connecting switches, routers, and servers over short distances within a rack or between racks.

How do I use the Cisco SFP-10G-SR-S?

To use the Cisco SFP-10G-SR-S, simply insert it into a compatible SFP slot on your Cisco device. The module will automatically be recognized and configured by the device. No additional software or configuration is required.

Is the Cisco SFP-10G-SR-S compatible with other SFP modules?

Yes, the Cisco SFP-10G-SR-S is compatible with a wide range of Cisco SFP modules. It can be used alongside other SFP modules to provide different connectivity options based on your network requirements.

Does the Cisco SFP-10G-SR-S require any special installation?

No, the Cisco SFP-10G-SR-S follows a hot-swappable design, allowing for easy installation and removal without powering down the device. Simply plug in or unplug the module as needed.

Can the Cisco SFP-10G-SR-S be upgraded?

The Cisco SFP-10G-SR-S is a high-performance module designed to meet the needs of most network environments. However, if newer versions or higher performance modules become available, you can upgrade the module to take advantage of the latest features and capabilities.

What troubleshooting steps can be taken if the Cisco SFP-10G-SR-S is not working properly?

If you experience issues with the Cisco SFP-10G-SR-S, first ensure that it is properly inserted into the SFP slot. Verify that the module and the connected device are compatible. Check the fiber connections for any damage or loose connections. If problems persist, contact Cisco technical support for further assistance.

Are there any alternative 10GBASE-SR SFP modules available?

While the Cisco SFP-10G-SR-S is a reliable and widely-used 10GBASE-SR SFP module, there are other manufacturers that offer similar modules. However, it is important to ensure compatibility and reliability when considering alternative options.

What accessories are available for the Cisco SFP-10G-SR-S?

The Cisco SFP-10G-SR-S typically does not require any additional accessories. However, depending on your specific installation requirements, you may need compatible fiber optic cables or connectors. Please consult the Cisco product documentation or contact the Cisco support team for more information.

How cost-effective is the SFP-10G-SR-S module?

The Cisco SFP-10G-SR-S module offers a high-performance 10GBASE-SR solution at a competitive price, ideal for enterprises looking to upgrade their network without a huge investment.

What are the key features of the SFP-10G-SR-S transceiver?

The SFP-10G-SR-S features 10 Gbps data transfer speeds, multimode fiber compatibility, and support for up to 300 meters in standard fiber cable environments.

What are the primary application scenarios for the SFP-10G-SR-S?

The SFP-10G-SR-S is best suited for use in data centers and enterprise networks requiring high-speed, short-reach data transmission.

How do I install the SFP-10G-SR-S module?

Install the SFP-10G-SR-S by inserting it into a compatible Cisco switch or router. Ensure it clicks into place and then connect it to an appropriate fiber optic cable.

Does the SFP-10G-SR-S require firmware upgrades?

The SFP-10G-SR-S generally does not require frequent firmware upgrades but check Cisco's documentation for any specific updates related to your device.

Are there alternative products to the SFP-10G-SR-S?

Yes, alternatives include the Cisco SFP-10G-LR-S and Cisco SFP-10G-ER-S, offering different reach capabilities and use cases.
