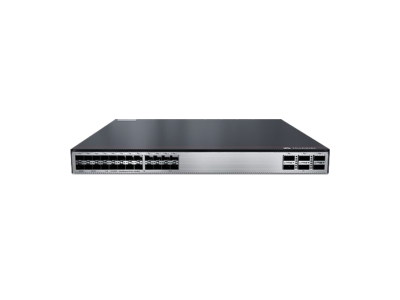

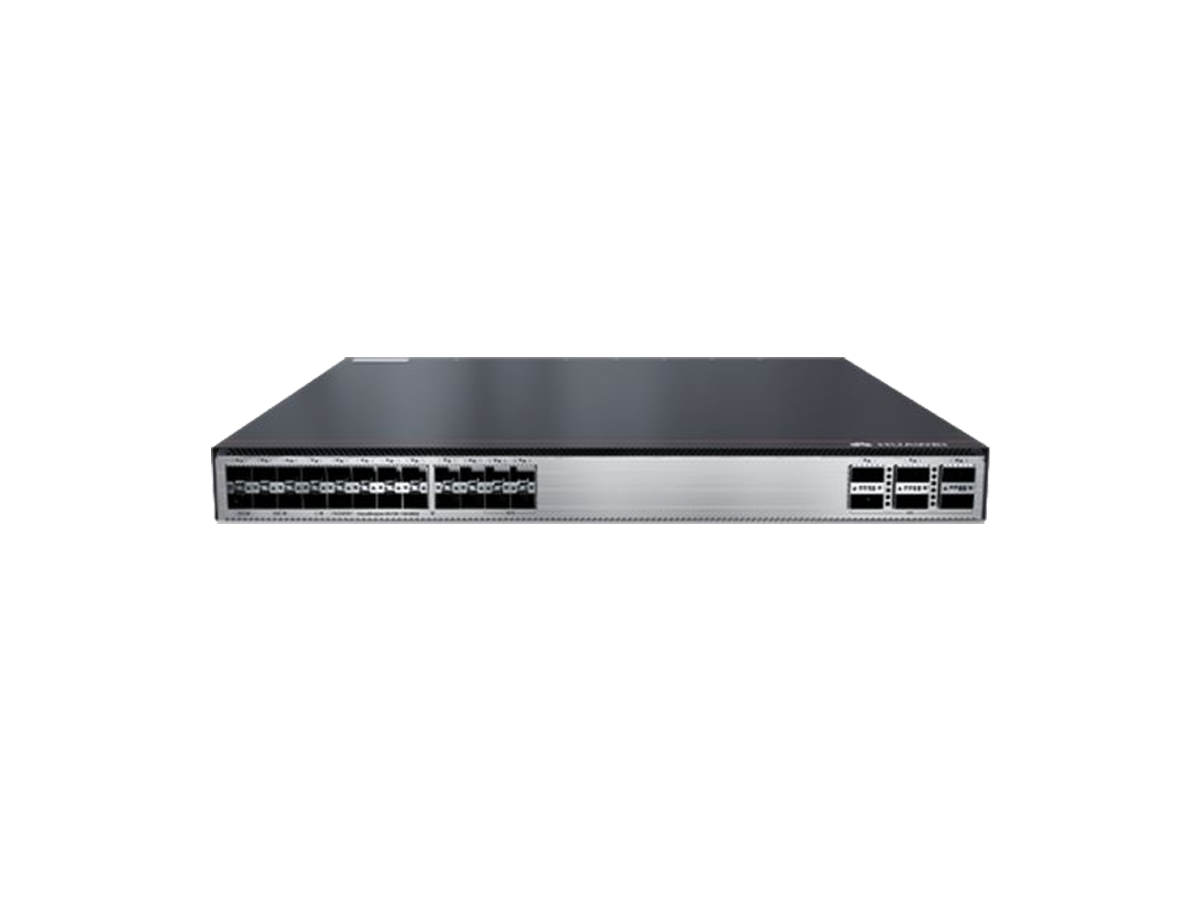

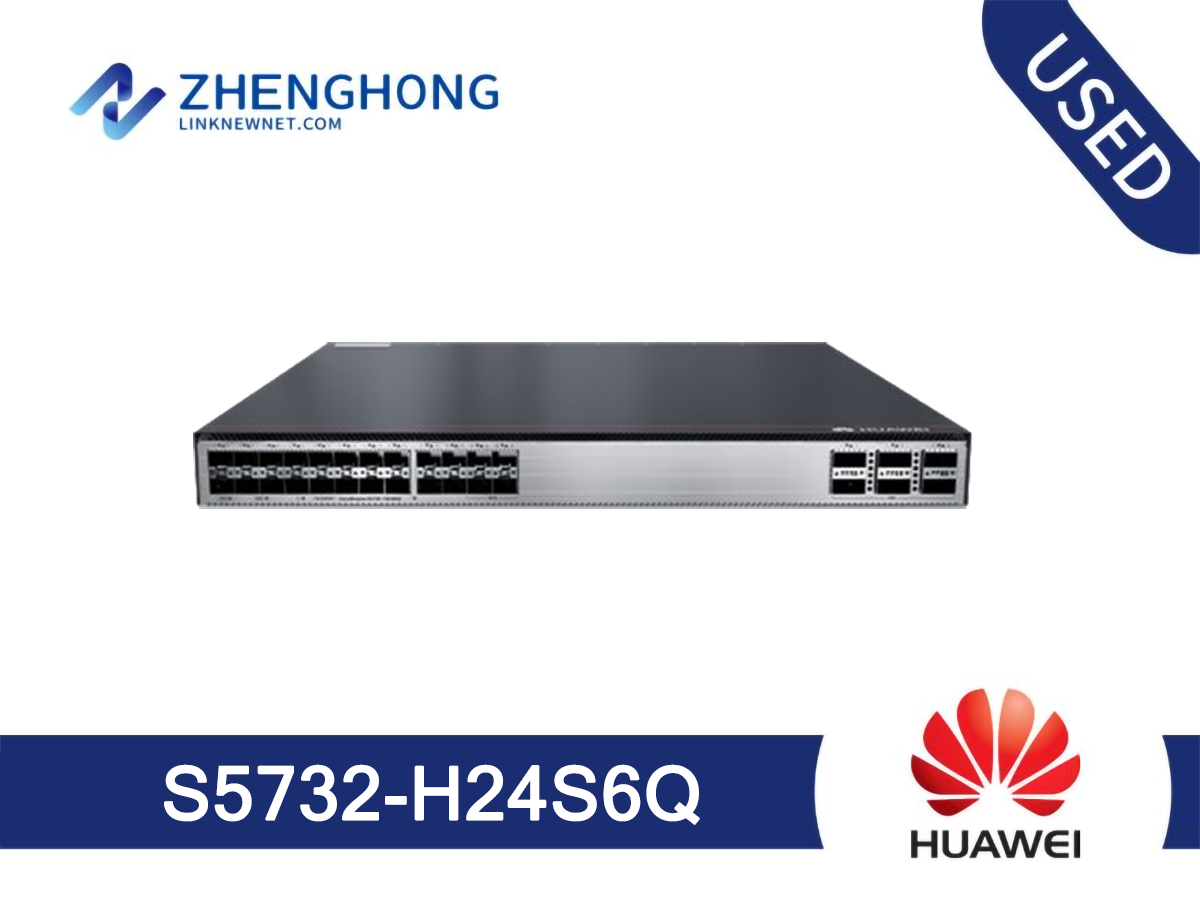

S5732-H24S6Q Specification | |
Fixed port | 20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Chassis height | 1 U |
Chassis weight (including packaging) | 8.9 kg |
Power supply type | • 600 W AC (pluggable) • 1000 W DC (pluggable) |
Maximum voltage range
| • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -36 V DC to -72V DC |
Maximum power consumption | 229 W |
Noise | • Under normal temperature (sound power): 65dB (A) • Under high temperature (sound power): 88dB (A) • Under normal temperature (sound pressure): 52dB (A) |
Operating temperature
| • 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
Storage temperature | -40℃ to +70℃ |
Relative humidity | 5% to 95% (non-condensing) |
Surge protection specification (power port)
| • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
