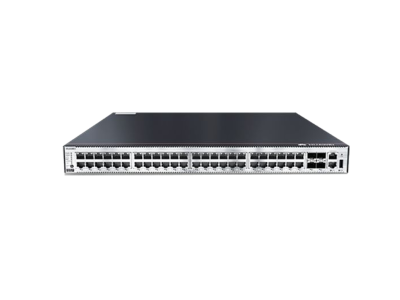

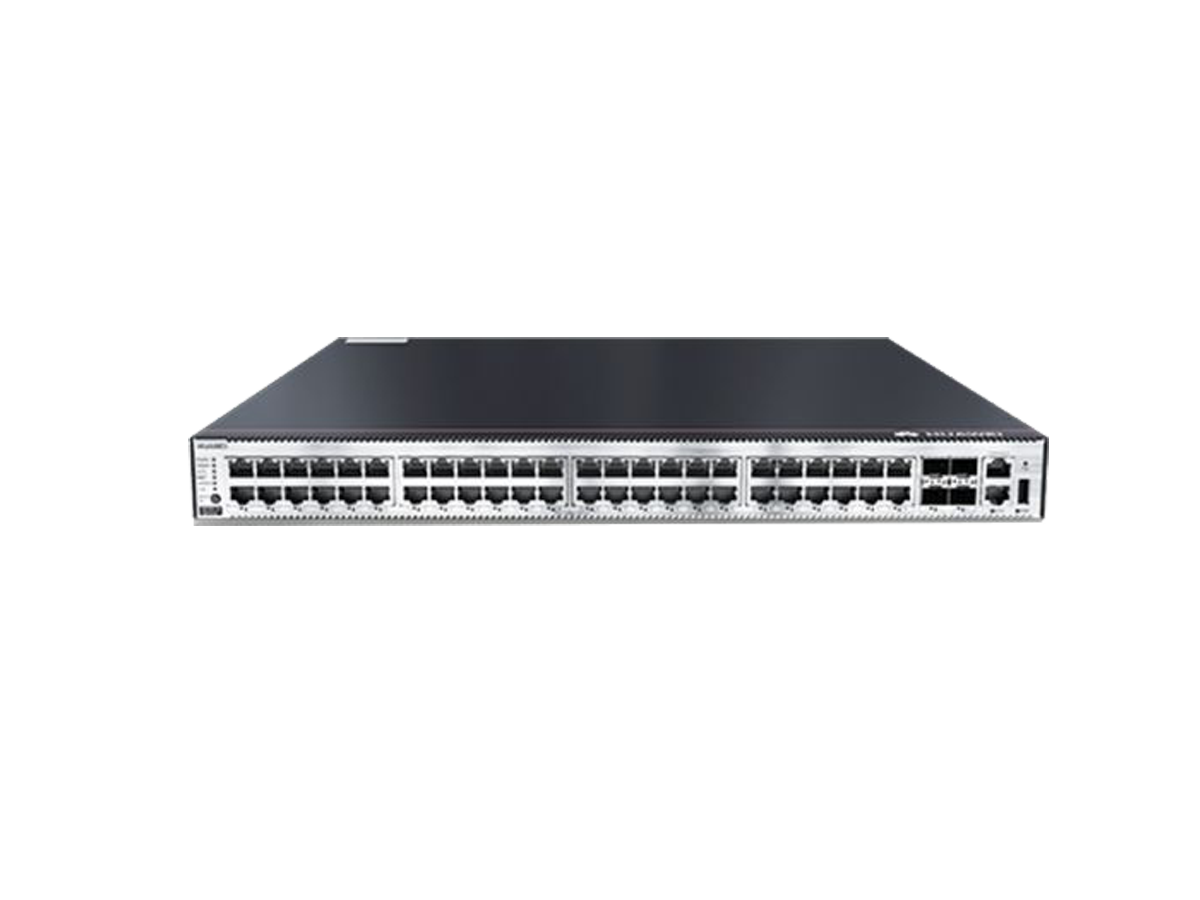

Huawei S5700 Series Switches S5731-S48T4X|LinkNewNet

ASR920-24SZ-M - Cisco ASR 920 Series

Model: ASR920-24SZ-M

Detail: Cisco ASR920 Series - 24GE Fiber and 4-10GE : Modular PSU

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR-920-24SZ-M Specifications
Rack mounts	ETSI rack-mount kit 19-in. rack-mount kit 23-in. rack-mount kit
Power consumption	Max 145W, Typical: 110W
AC input voltage and frequency	Voltage range: 85V AC to 264V AC, nominal 100V AC to 240V AC Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz
DC input voltage	Voltage range: -18 to -32 VDC or -36 to -72 VDC, nominal: -24 VDC/-48 VDC
Relative humidity	5 to 95 percent, noncondensing
Acoustic noise2	Acoustic noise peak operation compliant to the Network Equipment Building Standards (NEBS) GR-63-Core Issue 3 sound power level of 78 dB at 27ºC operation as measured by the ANSI S12.10/ISO 7779 NAIS noise measurement test standard.
Storage environment	Temperature: -40 to 70ºC altitude: 15,000 feet (4570m)
Seismic	Zone 4
Safety	● UL 60950-1, 2005 ● CAN/CSA C22.2 No. 60950-1: 2005 ● IEC 60950-1, 2005 ● EN 60950-1, 2005 ● AS/NZS 60950.1:2005
Electromagnetic	● FCC CFR47 Part 15 Class A
Emissions compliance	● EN55022, class A ● CISPR22, class A ● ICES-003, class A ● EN 300 386, class A ● VCCI, class A ● KN22, class A ● EN61000-3-2 to EN61000-3-3
Immunity compliance	● EN 300 386 ● EN 61000-6-1 ● EN 50082-1 ● CISPR24 ● EN 55024 ● KN 24 ● EN 50121-4 ● EN/KN 61000-4-2 to EN/KN 61000-4-6 ● EN/KN 61000-4-8 ● EN/KN 61000-4-11
Power substation system compliance	● IEC-61850-3 (2002) (ASR-920-12SZ-IM) ● IEEE1613 (2009) (ASR-920-12SZ-IM)
NEBS1	● GR-63-CORE ● GR-1089-CORE ● SR-3580 NEBS Level 4
ETSI	● ETS/EN 300 119 Part 4 ● ETS/EN 300 019 - Storage: Class 1.2, Transportation: Class 2.3, In-Use/Operational: Class 3.2 ● ETS/EN 300 753
Network synchronization	● ANSI T1.101 ● GR-1244-CORE ● GR-253-CORE ● ITU-T G.703 clause 5 ● ITU-T G.703 clause 9 ● ITU-T G.781 ● ITU-T G.813 ● ITU-T G.823 ● ITU-T G.824 ● ITU-T G.8261/Y.1361 ● ITU-T G.8262 ● ITU-T G.8264 ● IEEE1588-2008

Q&A

What are the key features of the ASR-920-24SZ-M router?

The ASR-920-24SZ-M features 24 GE fiber ports and 4 10GE ports, providing high-speed connectivity for various network needs.

How cost-effective is the ASR-920-24SZ-M router?

The ASR-920-24SZ-M offers a cost-effective solution with its modular PSU design, allowing users to scale resources as needed without overspending.

What are the ideal application scenarios for this router?

This router is ideal for enterprise networks, data centers, and service provider edge applications that require high-performance fiber connectivity options.

How do I install the ASR-920-24SZ-M router?

Installation of the ASR-920-24SZ-M is straightforward, with a modular design for easy insertion and removal of components. Refer to the user manual for detailed instructions.

Is there a need to upgrade the ASR-920-24SZ-M router?

The ASR-920-24SZ-M supports software upgrades to ensure optimal performance and security. Check for firmware updates regularly to stay current.

Are there alternative products to the ASR-920-24SZ-M?

While the ASR-920-24SZ-M offers unique features, alternatives like the ASR 1000 Series or ISR 4000 Series routers may also suit specific network requirements.

What common troubleshooting steps can I take with this router?

For common issues, restarting the router, checking cable connections, and updating firmware are good initial troubleshooting steps for the ASR-920-24SZ-M.

What accessories are available for the ASR-920-24SZ-M router?

Accessories such as power supplies, network interface modules, and cables are available to enhance the functionality of the ASR-920-24SZ-M.

How does the ASR-920-24SZ-M router compare to similar products?

Compared to other routers, the ASR-920-24SZ-M stands out with its specific fiber connectivity options, making it suitable for specialized network setups requiring high-speed fiber connections.

What are the primary advantages of choosing the ASR-920-24SZ-M?

The ASR-920-24SZ-M offers high-performance fiber and 10GE connectivity, modular design for scalability, cost-effectiveness, and compatibility with various accessories, making it a versatile choice for networking needs.
