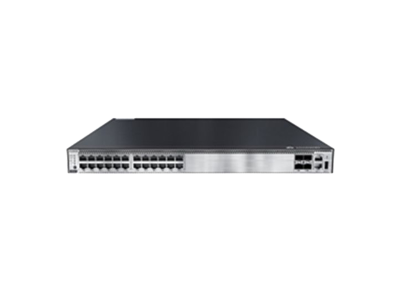

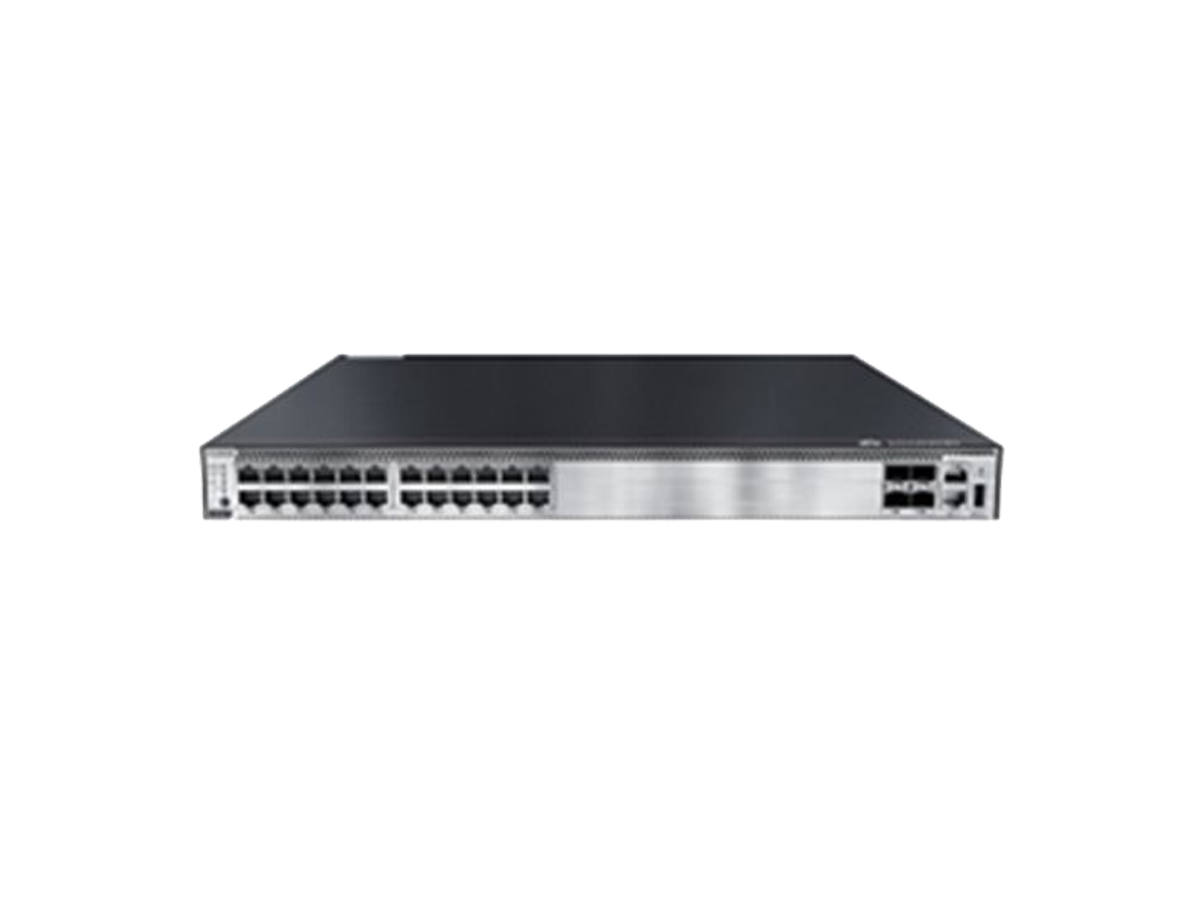

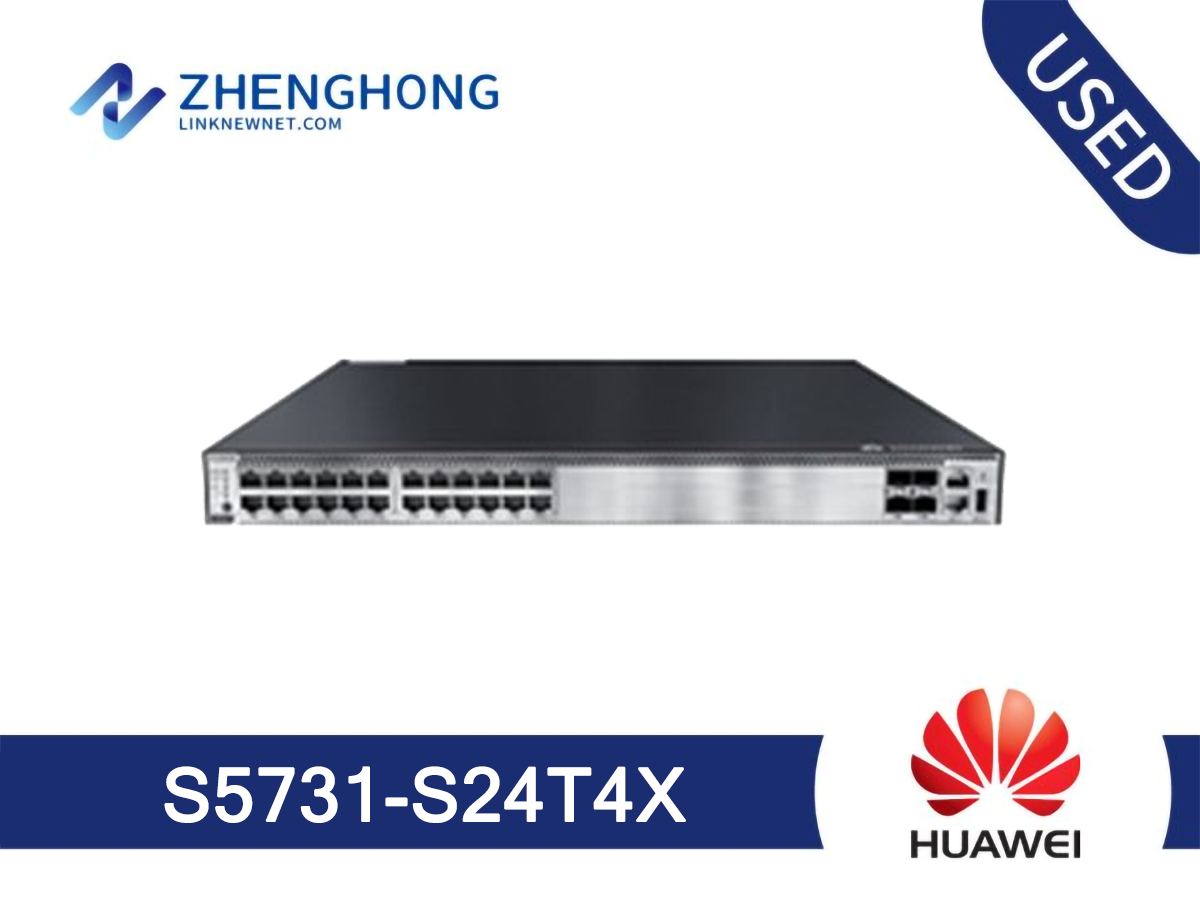

Huawei S5700 Series Switches S5731-S24T4X

Model: S5731-S24T4X

Detail: Huawei S5731-S24T4X(24*10/100/1000BASE-T ports,4*10GE SFP+ ports)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5731-S24T4X Specification
Fixed port	24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Chassis weight (including packaging)	8.4 kg
Power supply type	• 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable)
Rated voltage range	• AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range	• AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	114 W
Noise	• Under normal temperature (sound power): 57.5dB (A) • Under high temperature (sound power): 70.9dB (A) • Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature	• 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non-condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	• AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
