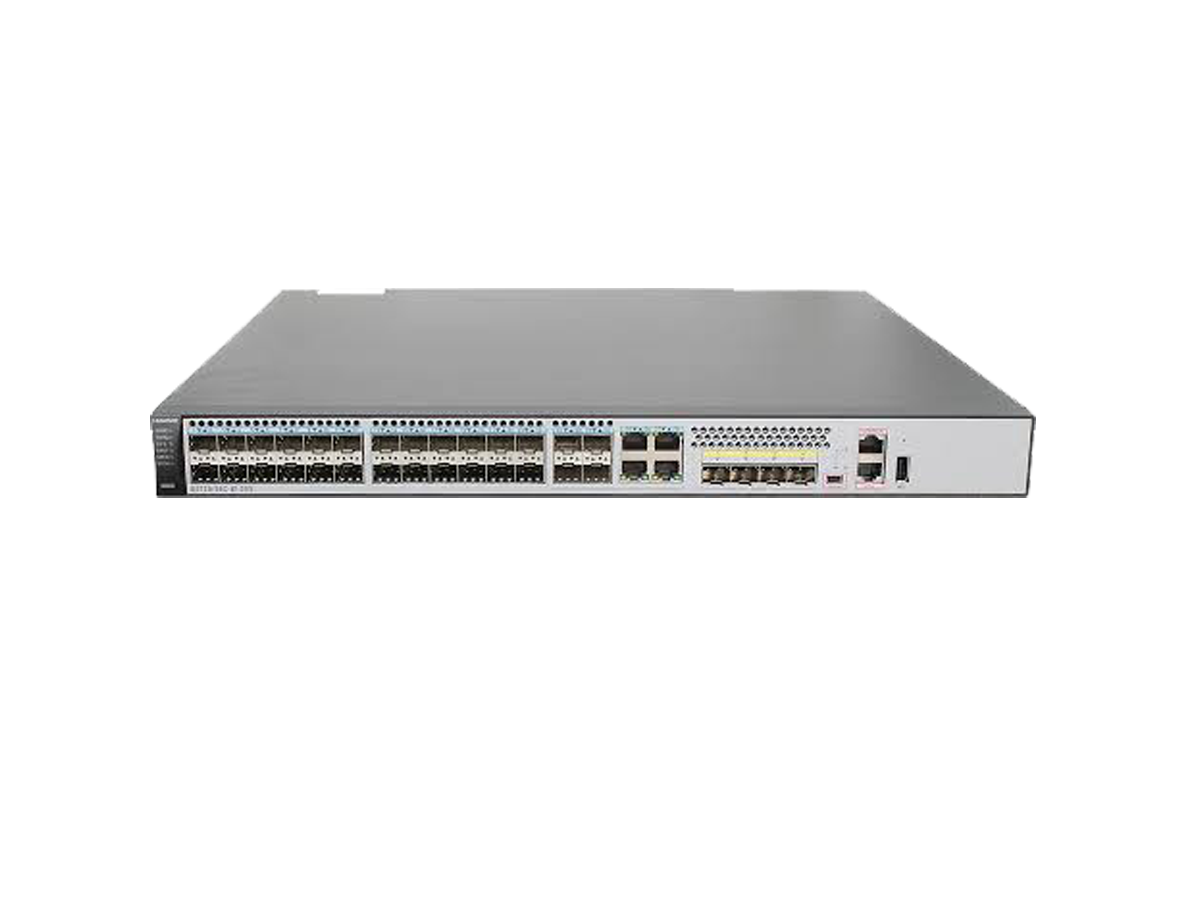

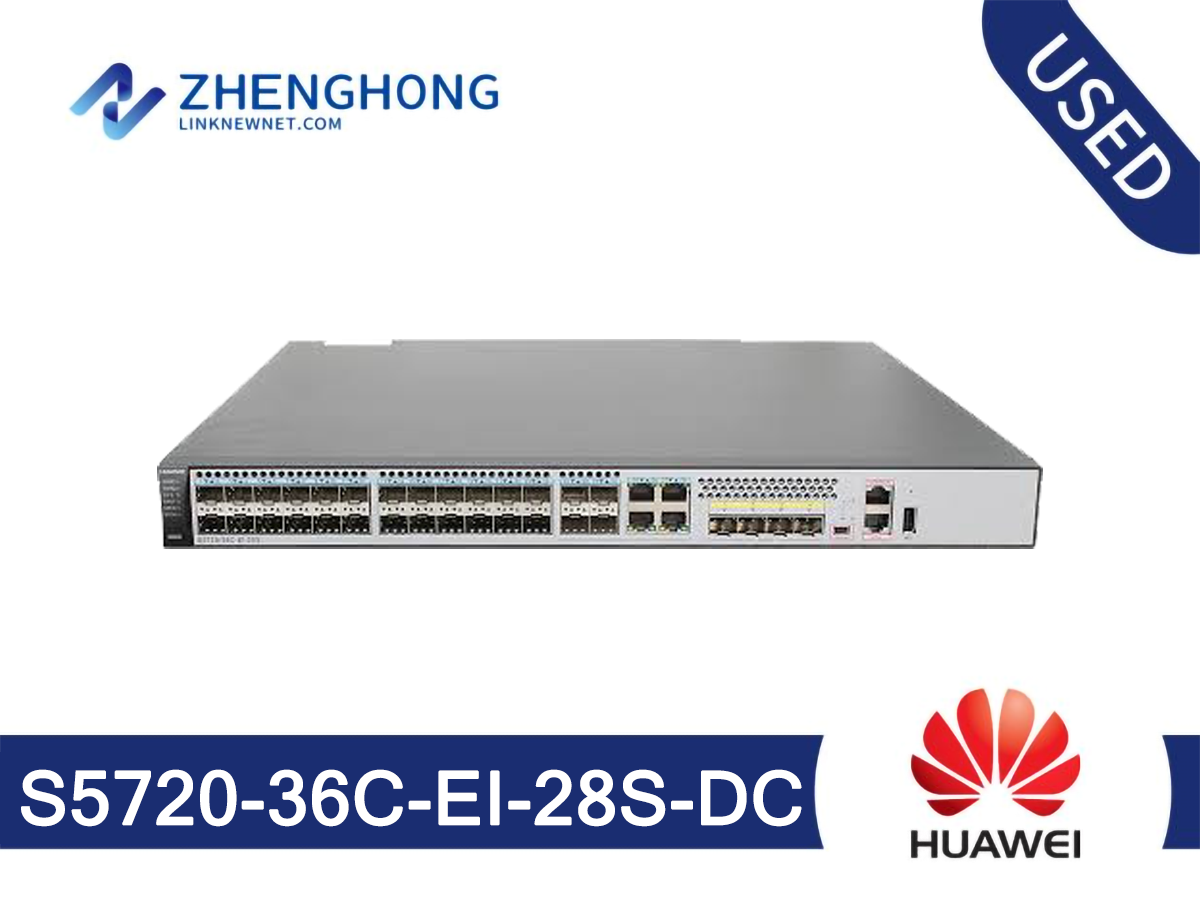

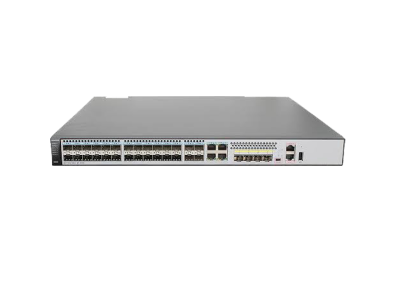

Huawei S5700 Series Switches S5720-36C-EI-28S-DC

Model: S5720-36C-EI-28S-DC

Detail: S5720-36C-EI-28S-DC (28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 1 interface slot,with 150W DC power supply)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5720-36C-EI-28S-DC Specification
Switching Capacity	598 Gbit/s
Forwarding Performance	132 Mpps
Typical Power Consumption	47.9W
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm
Fixed Ports	28 x 100/1,000 Base-X SFP (4 GE Combo), 4 x 10 Gig SFP+
Extended Slot	One extended slot supporting a service subcard or stack card
DRAM and Flash Memory	SDRAM: 2 GB Flash: 340 MB
MAC Address Table	64k
Jumbo Frame	12K
VLAN	4k
Front Power Input	NA
Energy saving	802.3az Energy Efficient Ethernet (EEE) supported
Input Voltage	Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V
Surge Protection	Surge protection capability of service ports: 6 kV
Typical Power Consumption	47.9W

Q&A

Q What is the default IP address of Huawei s5720 switch?

A Only the S5720HI, S5720EI, S6720EI, and S6720S-EI support switching between Layer 2 and Layer 3 modes. A primary IP address is configured for the interface. By default, the IP address 192.168. 1.253 255.255.

Q How to reset Huawei S5700 switch?

A Pressing and Holding the PNP Button to Restore Factory Settings. For a device that has the PNP button, you can press and hold the PNP button for more than 6 seconds to restore the device to factory settings and restart the device.

Q How do I reset the password on my Huawei s5720 switch?

A Perform the following operations:

Connect the PC to the switch through the console port on the switch. ...

Start the terminal emulation software on the PC. ...

Restart the switch. ...

Select Clear password for console user on the BootROM/BootLoad menu to clear the console port login password.
