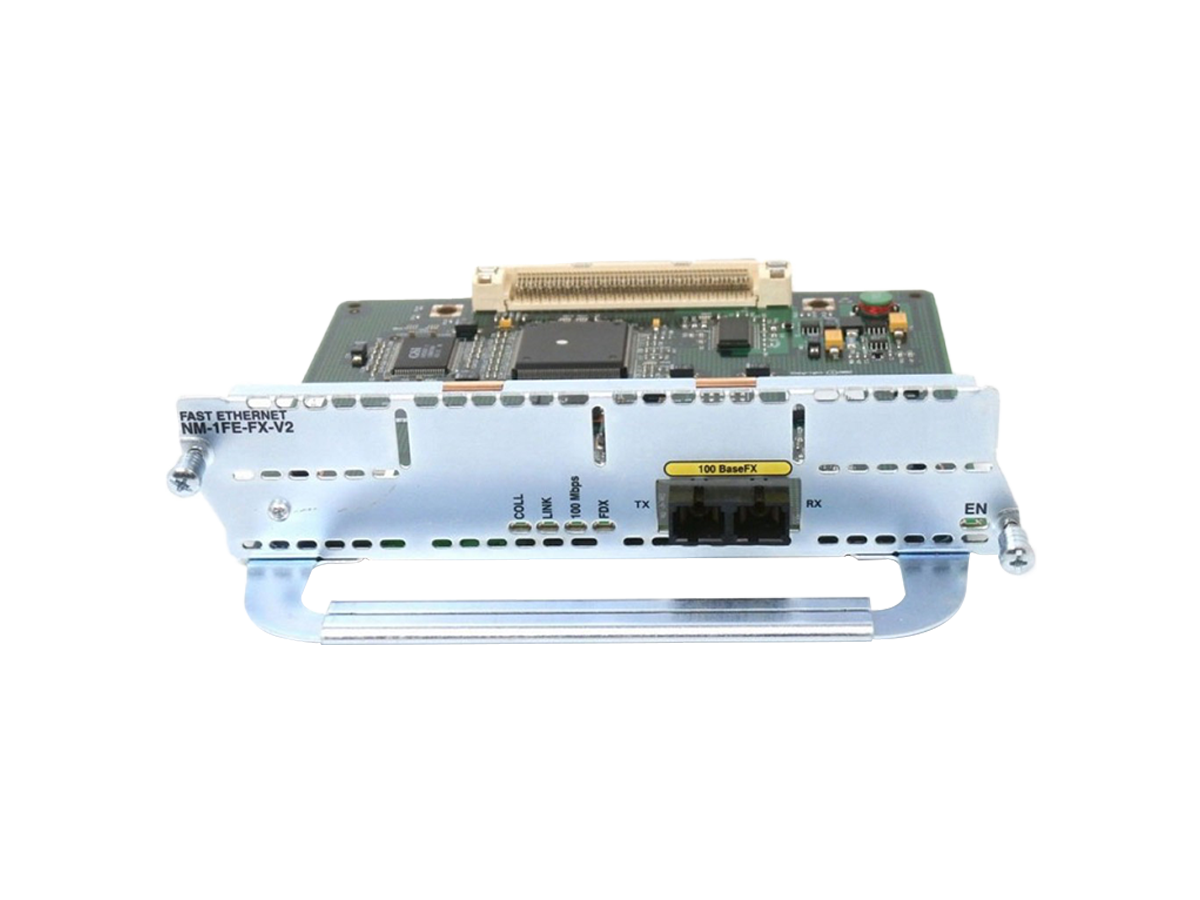

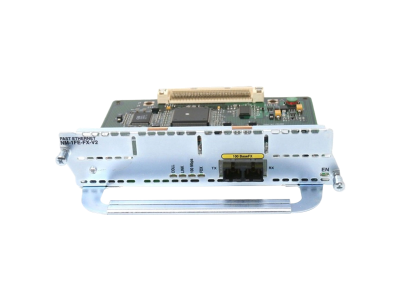

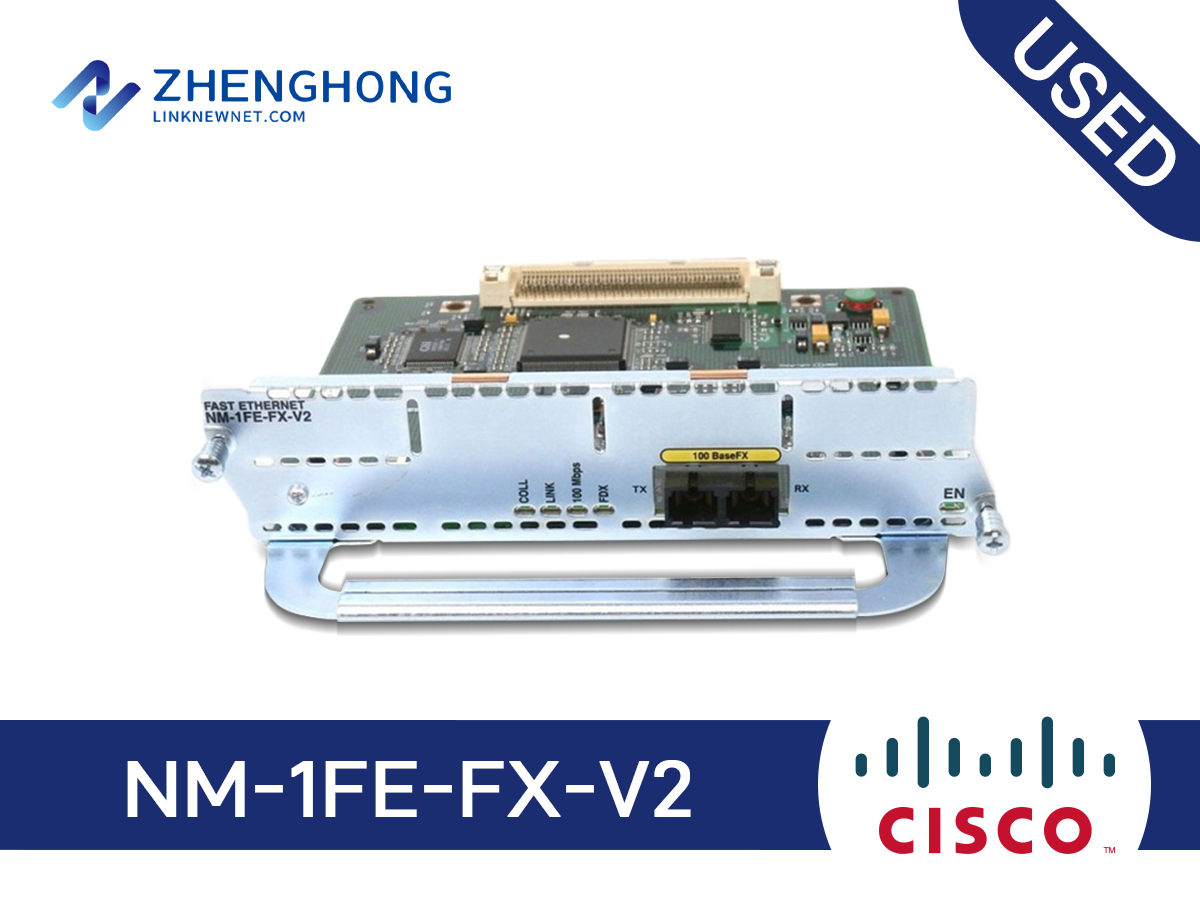

NM-1FE-FX-V2 - Cisco Interface Card Network Modules|LinkNewNet

NM-8CE1T1-PRI - Cisco Interface Card Network Modules

Model: NM-8CE1T1-PRI

Detail: 8 port channelized T1/E1 and PRI network module Cisco Router Network Module

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

NM-8CE1T1-PRI Specification
Product Nunber	NM-8CE1T1-PRI
Product Description	8 Port Channelized T1/E1 and ISDN PRI Network Module
Diagnostic Loopback Support	• E1 loopback modes: • Controller local loopback • Interface local loopback • T1 loopback modes: • Interface local loopback • Interface remote loopback • Controller local loopback • Controller remote loopback • CSU loopback modes for T1 CSU: • Data terminal equipment (DTE) loopback • Network loopback • Payload loopback
Alarm Detection	• Yellow Alarm-Receive/Send from/to network • Blue Alarm-Receive alarm indication signal (AIS) from network • Red Alarm-Loss of network signal
Relevant MIB Support	• T1 MIB (RFC1406-MIB) • Cisco Integrated DSU/CSU MIB (CISCO-ICSUDSU-MIB)
Remote Management	• Cisco CNS 2100 Series Intelligence Engine (IE2100) • CiscoWorks
Signaling Debugging	• ISDN Q.921 and Q.931 decode • All other previously existing applicable Cisco IOS Software debugs
Dimensions (H x W x D)	1.59 x 7.10 x 7.29 in. (4.0 x 18.0 x 18.5 cm)
Weight	• HWIC-1CE1T1-PRI: 0.18 lb (0.08 kg) • HWIC-2CE1T1-PRI: 0.19 lb (0.09 kg) • NM-8CE1T1-PRI: 1.4 lb (0.63 kg)
Operating Temperature	• 32 to 104°F (0 to 40°C)
Nonoperating Temperature	• -40 to 158° F (-40 to 70°C)
Relative Humidity	• 5-95% noncondensing
LEDs	LEDs per port • Carrier Detect/Loopback (CD/LP): • Off = No carrier detect • Green On = Carrier detect • Yellow On = Port in loopback mode • Alarm (AL): • Off = No alarms • Yellow On = Port in alarm mode LEDs per module (on NM-8CE1T1-PRI only): • EN: • Off = Card not available • On = Card enabled
Ports	• 1, 2, or 8 T1/E1 ports on RJ-48C connectors
Line Bit Rate (per Port)	• E1: (2.048 Mbps) • T1: (1.544 Mbps)
Line Coding	• E1: High-density bipolar three (HDB3) • T1: Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
Framing Formats	• E1: CRC4 • T1: Super Frame (SF) and Extended Super Frame (ESF)
Output Levels	• E1: short-haul/long-haul • T1 (line build-out [LBO]): 0, -7.5, or -15 dB

Q&A

What common troubleshooting steps should I follow for the NM-8CE1T1-PRI module?

Common steps include verifying physical connections, checking configuration settings, and ensuring proper firmware version.

What accessories are available for the NM-8CE1T1-PRI?

Accessories include various T1/E1 cables and appropriate Cisco router chassis that support network modules.

How does the NM-8CE1T1-PRI compare to other similar modules?

The NM-8CE1T1-PRI offers higher port density and flexibility at a lower cost compared to similar single-purpose modules.

Is the NM-8CE1T1-PRI suitable for high-density network environments?

Yes, it is suitable due to its 8 ports and channelized T1/E1 and PRI capabilities, making it ideal for high-density environments.

What are the primary features of the NM-8CE1T1-PRI network module?

The NM-8CE1T1-PRI offers 8 port channelized T1/E1 and PRI, providing flexible and high-density connectivity for Cisco routers.

How cost-effective is the NM-8CE1T1-PRI module for small to mid-sized businesses?

The NM-8CE1T1-PRI is highly cost-effective due to its multi-port functionality which reduces the need for additional modules.

In what application scenarios is the NM-8CE1T1-PRI ideal?

This module is ideal for enterprise branch offices requiring multiple T1/E1 interfaces and robust PRI support.

How do I install the NM-8CE1T1-PRI network module?

To install the NM-8CE1T1-PRI, insert it into an available network module slot in a compatible Cisco router and configure via the router's interface.

Does the NM-8CE1T1-PRI require firmware upgrades?

Firmware upgrades may be necessary to ensure optimal performance and compatibility with the latest Cisco IOS versions.

What are the alternatives to the NM-8CE1T1-PRI network module?

Alternatives include Cisco's HWIC-1CE1T1-PRI or VWIC3-1MFT-T1/E1, depending on your specific connectivity needs.

What common troubleshooting steps should I follow for the NM-8CE1T1-PRI module?

Common steps include verifying physical connections, checking configuration settings, and ensuring proper firmware version.

What accessories are available for the NM-8CE1T1-PRI?

Accessories include various T1/E1 cables and appropriate Cisco router chassis that support network modules.

How does the NM-8CE1T1-PRI compare to other similar modules?

The NM-8CE1T1-PRI offers higher port density and flexibility at a lower cost compared to similar single-purpose modules.

Is the NM-8CE1T1-PRI suitable for high-density network environments?

Yes, it is suitable due to its 8 ports and channelized T1/E1 and PRI capabilities, making it ideal for high-density environments.
