Huawei S5300 Series Switch LS-S5328C-HI-24S|LinkNewNet

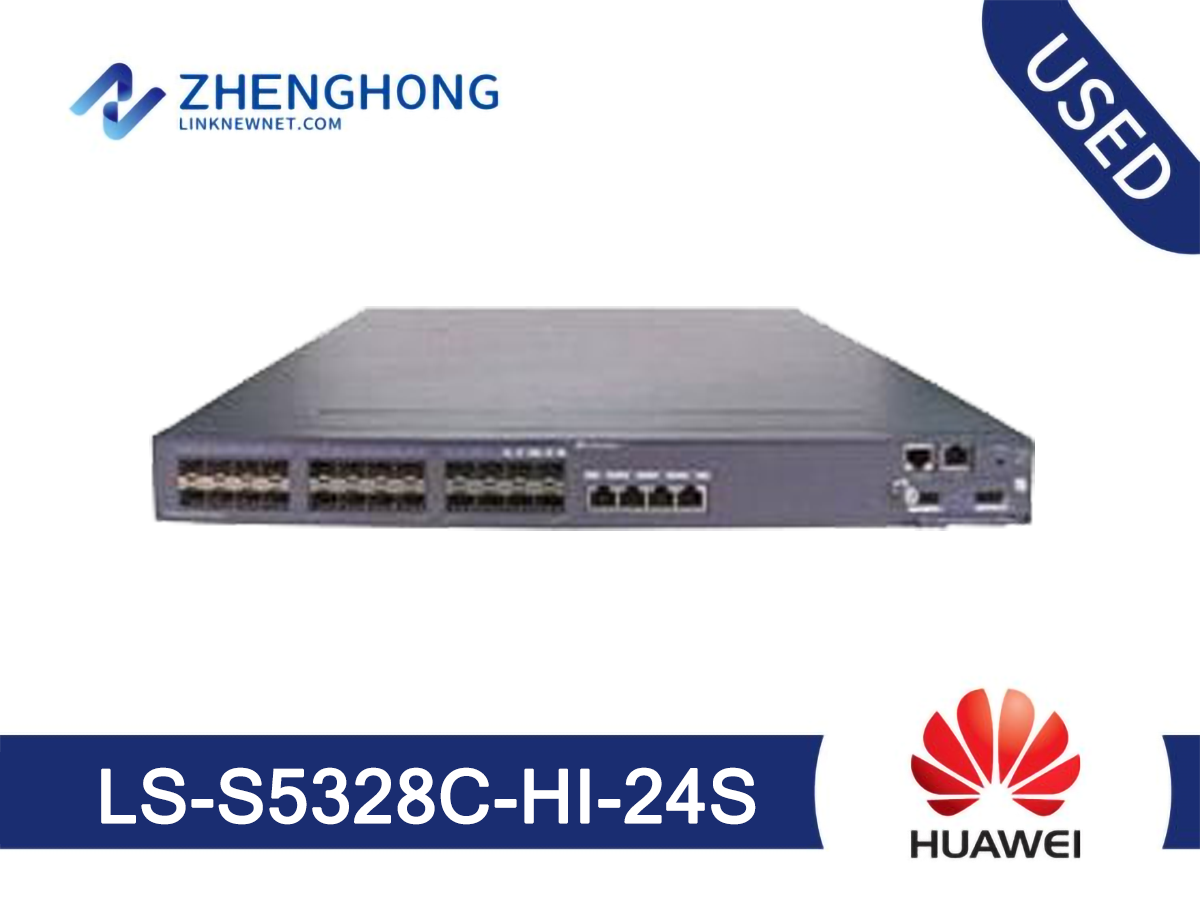

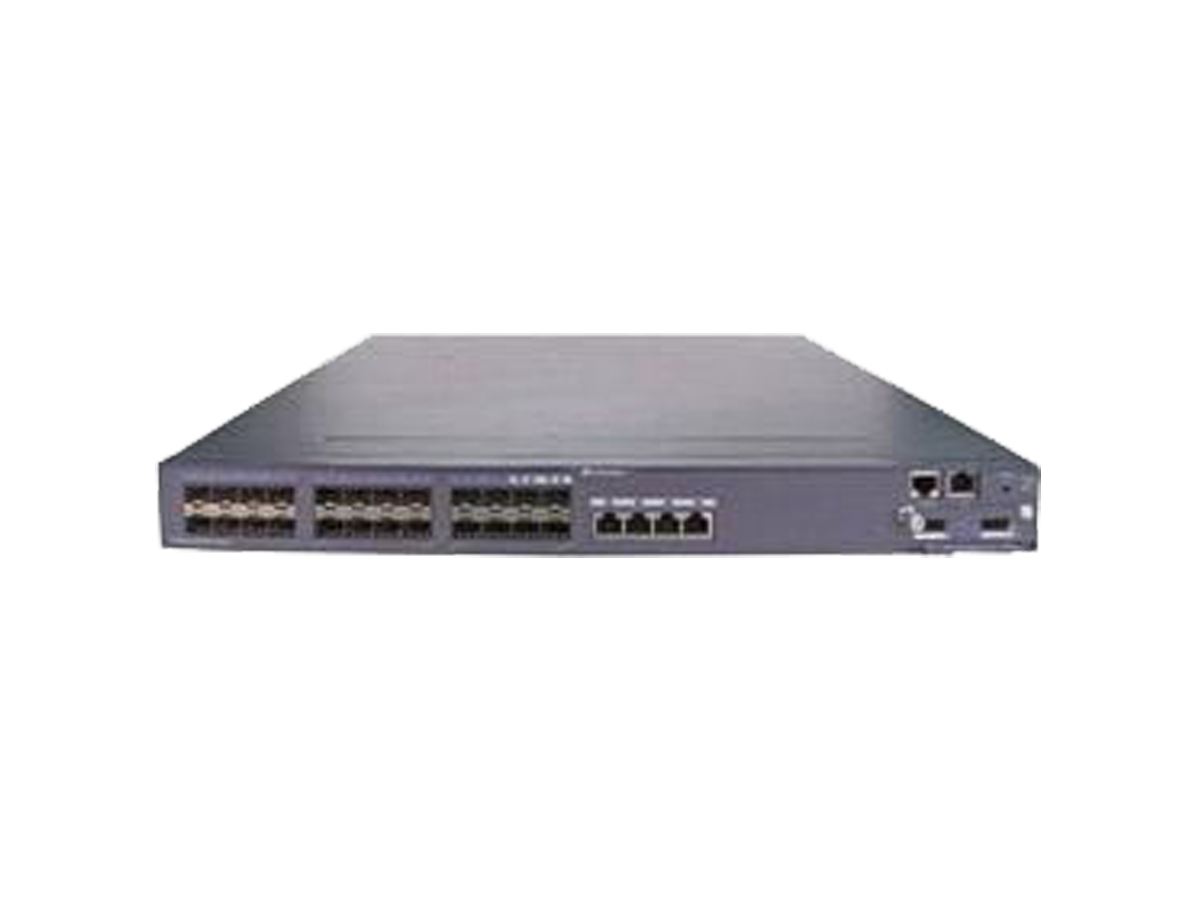

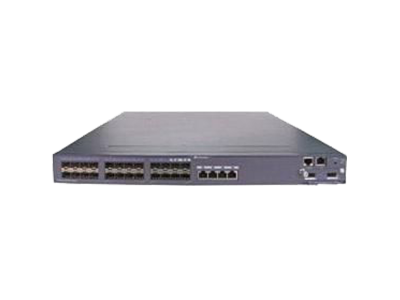

Huawei S5300 Series Switch LS-S5328C-HI-24S

Model: LS-S5328C-HI-24S

Detail: S5328C-HI-24S Mainframe (24 100/1000Base-X, Chassis, Dual Slots of power, Without Flexible Card and Power Module)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

LS-S5328C-HI-24S Specifications
Technical Specifications
PoE	No
Memory (RAM)	512 MB
Flash	64 MB
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
Maximum stack bandwidth (bidirectional)	80 Gbit/s
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)	80.7 W
Mean time between failures (MTBF)	25.5 years when a 4x10GE card is configured; 34.8 years when a 2x10GE card is configured; 36.1 years when a 4xGE card is configured
Power supply protection	AC: ±6 kV in differential mode; ±6 kV in common mode DC: ±1 kV in differential mode; ±2 kV in common mode
Weight	Fully loaded:≤ 6.5 kg Empty loaded:≤ 5 kg
Stack ports	Versions earlier than V200R003C00 do not support stack ports. Since V200R003C00, the 10GE ports on the front card can be used as stack ports.
Rated voltage range	-48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	-36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz

Q&A

Q What are common troubleshooting tips for the LS-S5328C-HI-24S?

A Verify power connections, ensure firmware is up to date, and check port configurations if connectivity issues arise.

Q What accessories are available for the LS-S5328C-HI-24S?

A Available accessories include power modules, flexible cards, and additional SFP modules for enhanced connectivity options.

Q How does the LS-S5328C-HI-24S compare to other similar products?

A Compared to similar products, the LS-S5328C-HI-24S offers robust performance, flexibility in power options, and competitive pricing.

Q How do I use the LS-S5328C-HI-24S in my network setup?

A Integrate the LS-S5328C-HI-24S switch as a core or distribution layer switch to handle large volumes of data traffic and ensure stable network performance.
