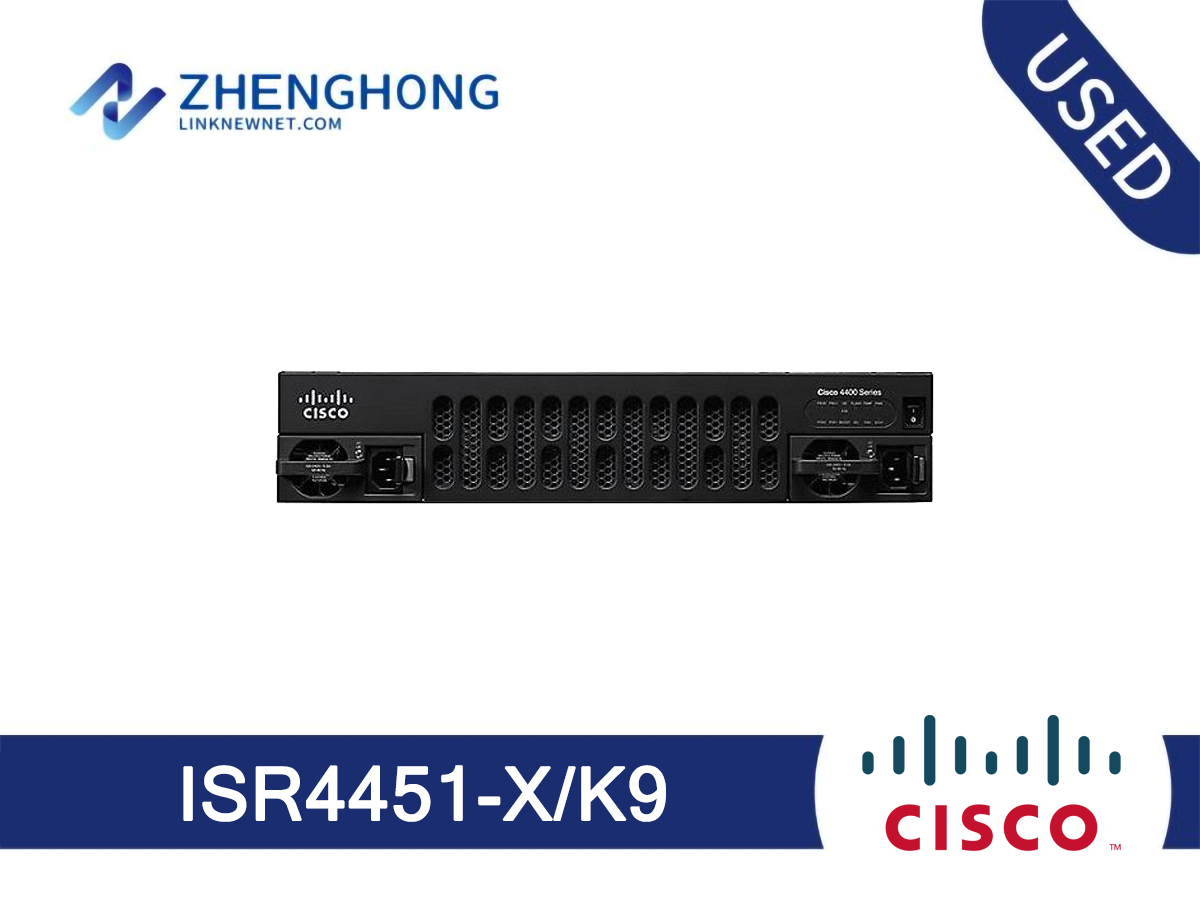

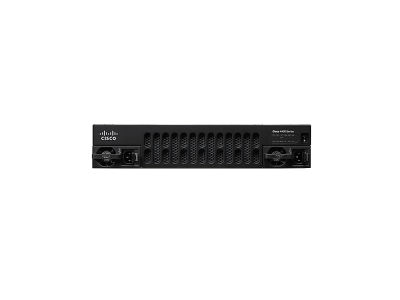

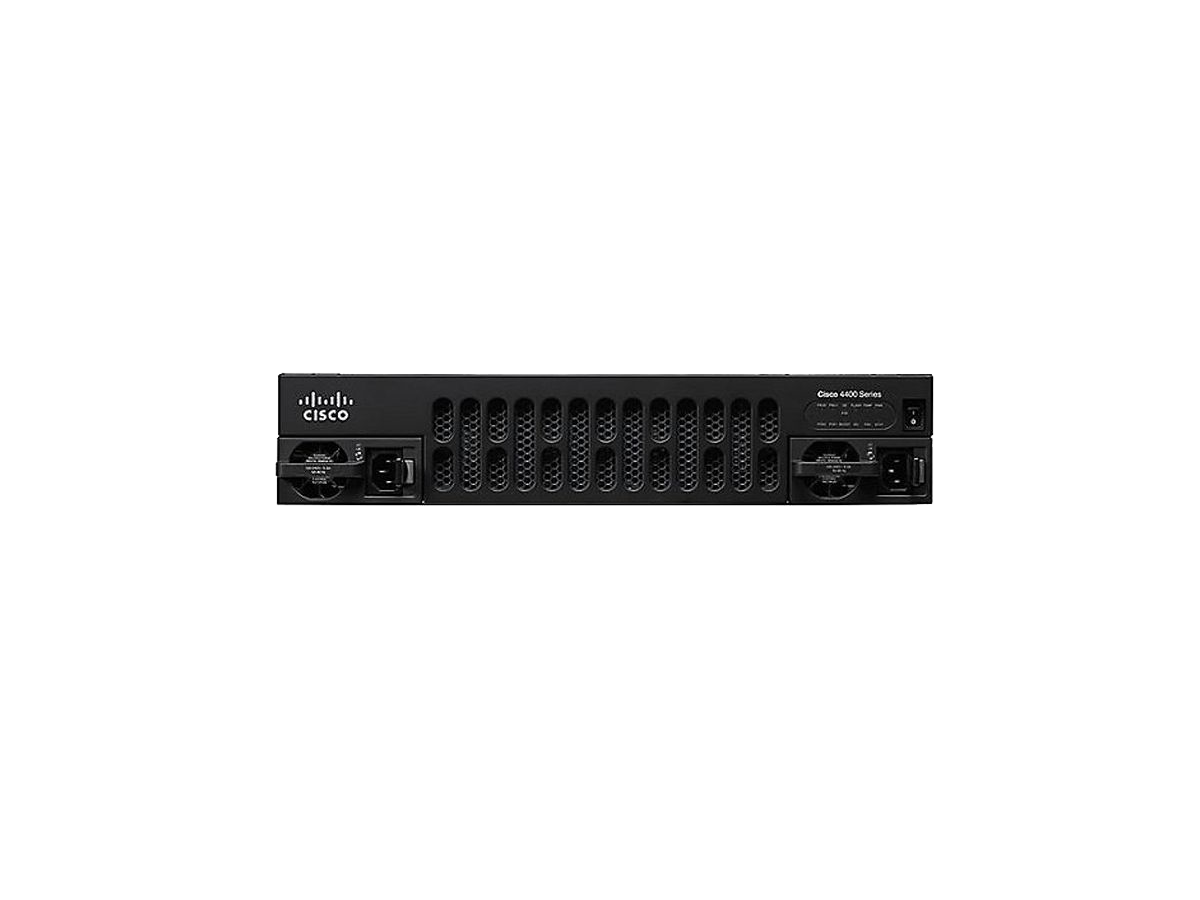

Cisco Router ISR 4000 Series ISR4451-X/K9

Model: ISR4451-X/K9

Detail: 1-2G system throughput, 4 WAN/LAN ports, 4 SFP ports, 10 Core CPU, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Cisco ISR4451-X/K9 Specification
Aggregate Throughput	1 Gbps to 2Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slots	2
NIM slots	3
Default memory DDR3 ECC DRAM (data plane)	2 GB
Maximum memory DDR3 ECC DRAM (data plane)	2 GB
Default memory DDR3 ECC DRAM (control/services plane)	4 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	16 GB
Default flash memory	8 GB
Maximum flash memory	32 GB
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
External USB 2.0 slots (type A)	2
AC input surge current	<50 A
Typical power (no modules) (watts)	158
Maximum power with AC power supply (watts)	450 (no PoE)
Power-supply options	Internal: AC, DC and PoE
AC input voltage	100 to 240 VAC autoranging

Q&A

Q Is the Cisco ISR4451-X/K9 power supplY field-replaceable units (FRUs)?

A Yes. The power supplY can be replaced in the field.

Q What type of backplane is used between components in the Cisco ISR4451-X/K9?

A The 4000 Series uses multigigabit fabric (MGF) for Layer 2 connectivity between the modules. On the 4451-X, the MGF can provide either 2 Gbps to all NIM slots or up to 10 Gbps to all SM-X slots. The MGF is completely nonblocking and can forward in excess of 50 Gbps.

Q How many dual inline memory modules (DIMMs) does the Cisco ISR4451-X/K9 have?

A The Cisco ISR4451-X/K9 have three DIMM slots. Two slots are used for control-plane and one slot for data-plane memory.

Q Where do I position the Cisco 4451-X in comparison to the Cisco 3900 Series ISRs and the ASR 1000 Series Aggregation Services Routers?

A The Cisco 4451-X is positioned for high-end enterprise branch offices or enterprise headend where there is a performance requirement of 1 to 2 Gbps with services. Performance-wise the Cisco 4451-X is positioned between the 3945E ISR and the ASR 1001.
