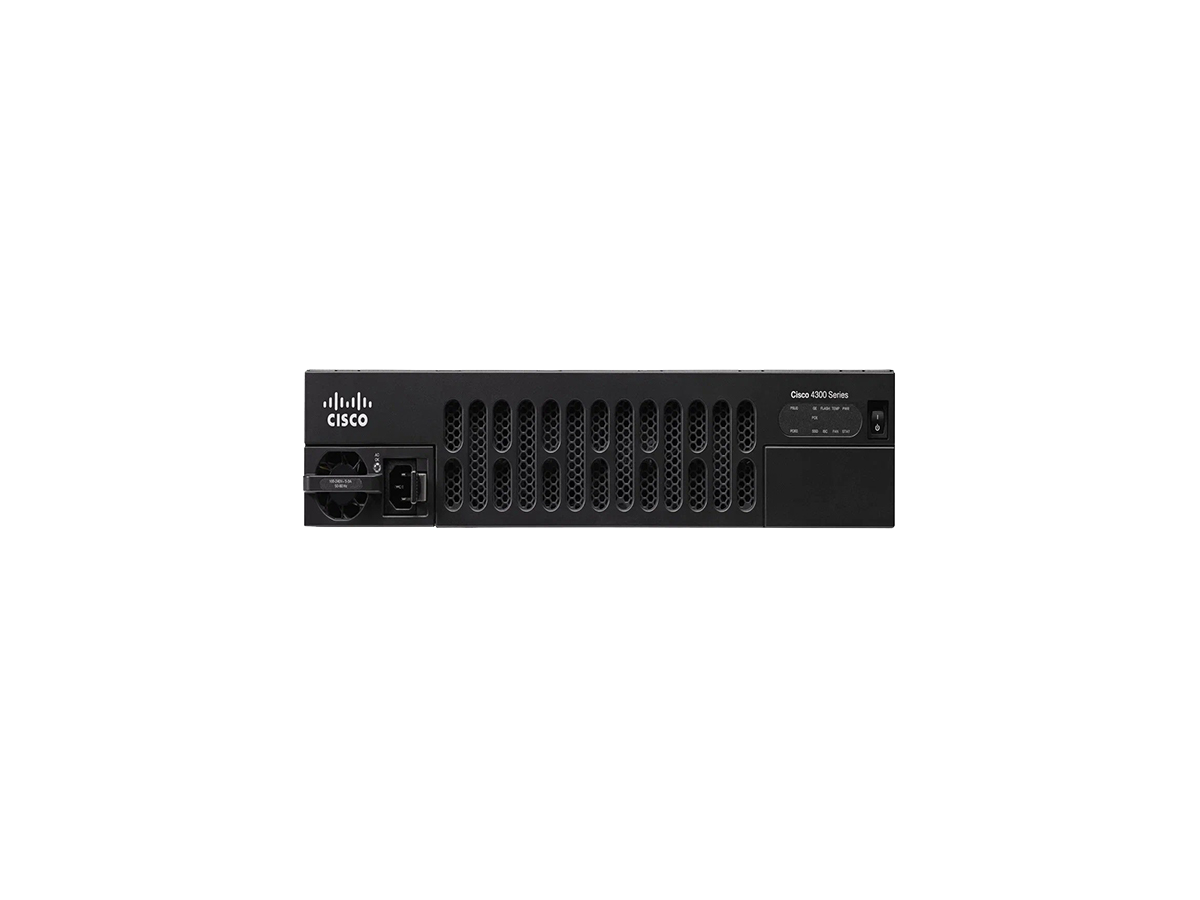

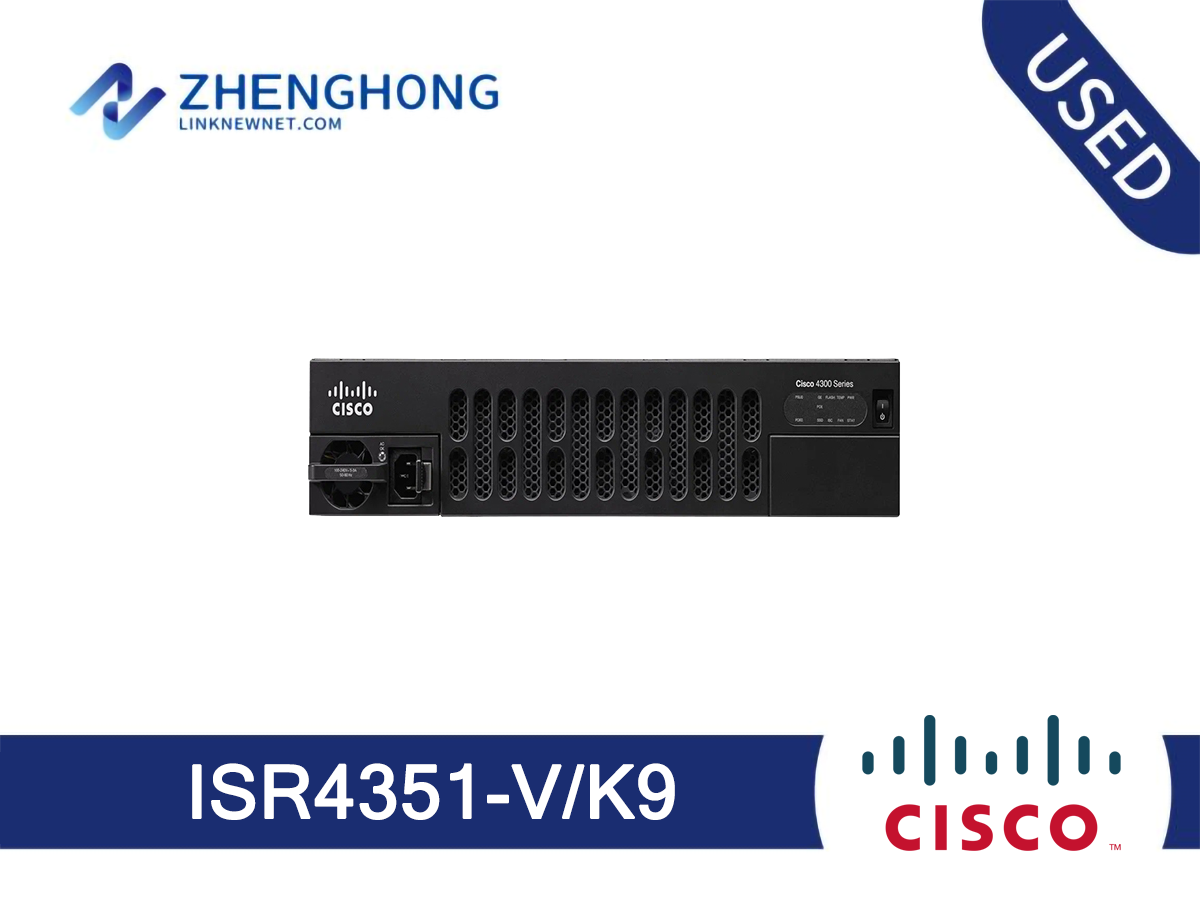

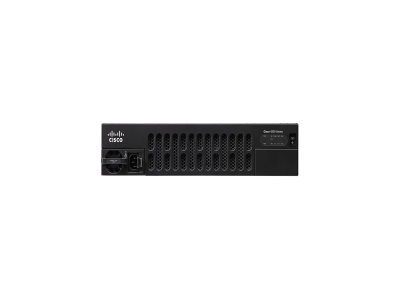

Cisco Router ISR 4000 Series ISR4351-V/K9

Model: ISR4351-V/K9

Detail: 200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ISR4351-V/K9 Specification
Description	Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle)
Aggregate Throughput	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	3
SFP-based ports	3
Enhanced service-module slots	2
Doublewide service-module slots	1 (assumes no singlewide SM-X modules installed)
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	16 GB
Default flash memory	4 GB
Maximum flash memory	16 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC, and PoE
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	60 A peak and less than 12 Arms per half cycle
Typical power (no modules) (watts)	48
Maximum power with AC power supply (watts)	430
Maximum power with PoE power supply (platform only) (watts)	990
Maximum endpoint PoE power available from PoE power supply (watts)	500

Q&A

Q What power cables work with the Cisco 4000 Series?

A All power-supply options for the 4000 Series use a standard IEC C13 connector. No special IEC C15 cord is necessary for the Power over Ethernet (PoE) power supply because higher-efficiency power supplies (85 percent) are used in the 4000 Series. This cord thus helps lower the maximum current the power supplies can draw.

Q What type of backplane is used between components in the Cisco 4000 Series?

A The 4000 Series uses multigigabit fabric (MGF) for Layer 2 connectivity between the modules. On the 4451-X, the MGF can provide either 2 Gbps to all NIM slots or up to 10 Gbps to all SM-X slots. The MGF is completely nonblocking and can forward in excess of 50 Gbps.

Q Can I use the NIMs on the Cisco 1900, 2900, and 3900 Series ISRs?

A No. The NIMs are designed for a newer architecture and will not work on the Cisco 1900, 2900, and 3900 Series ISRs.

Q What memory upgrade options are available on the Cisco ISR4351/K9?

A The 4000 Series has separate data and control-plane memory. The control-plane memory comes with 4 GB as the default, and is upgradable up to 16 GB based on various platforms. The data-plane memory comes with 2 GB as the default and is not currently upgradable.
