CISCO892-K9 Specification | |
Product number | CISCO892-K9 |

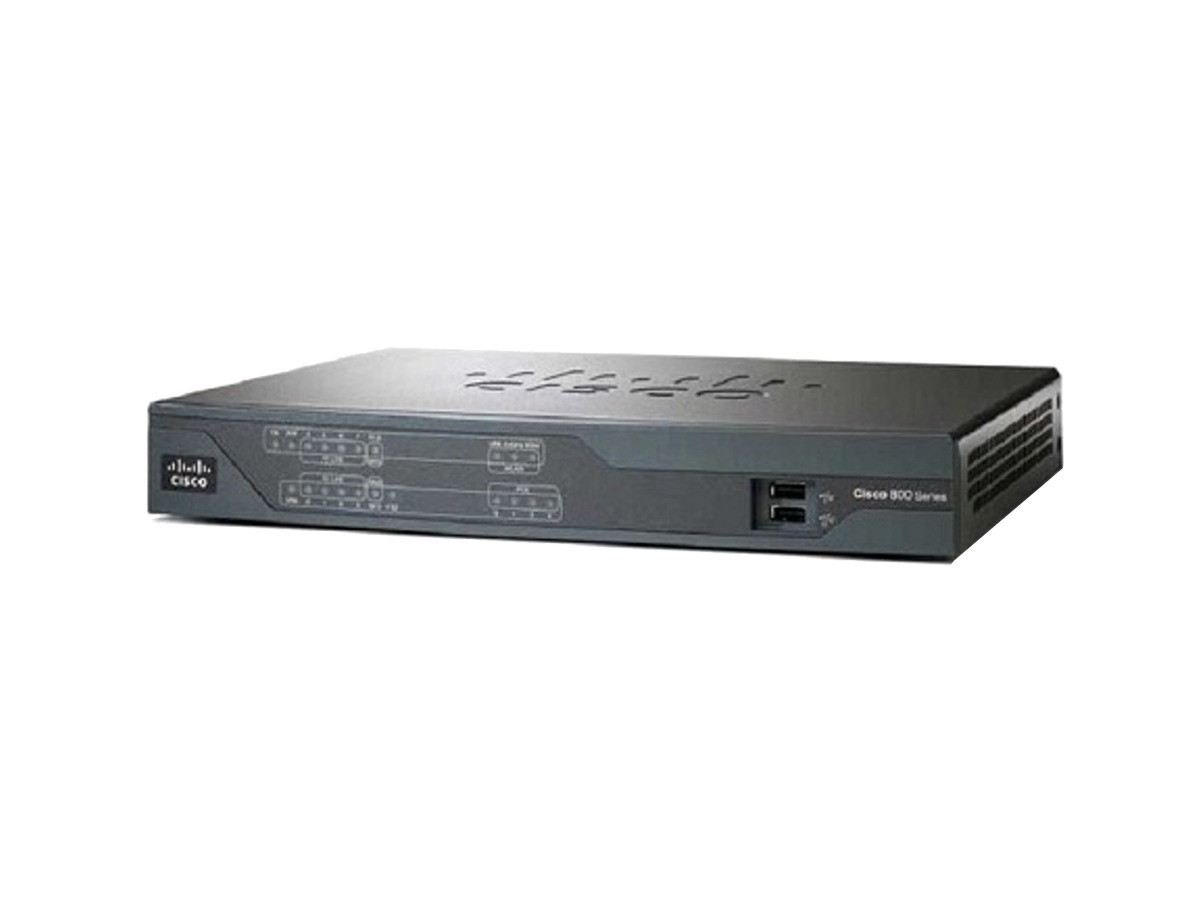

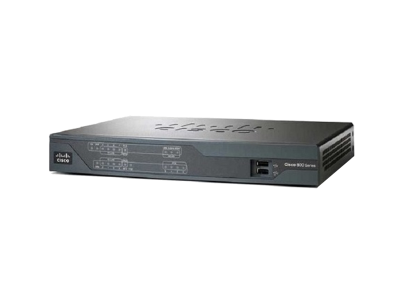

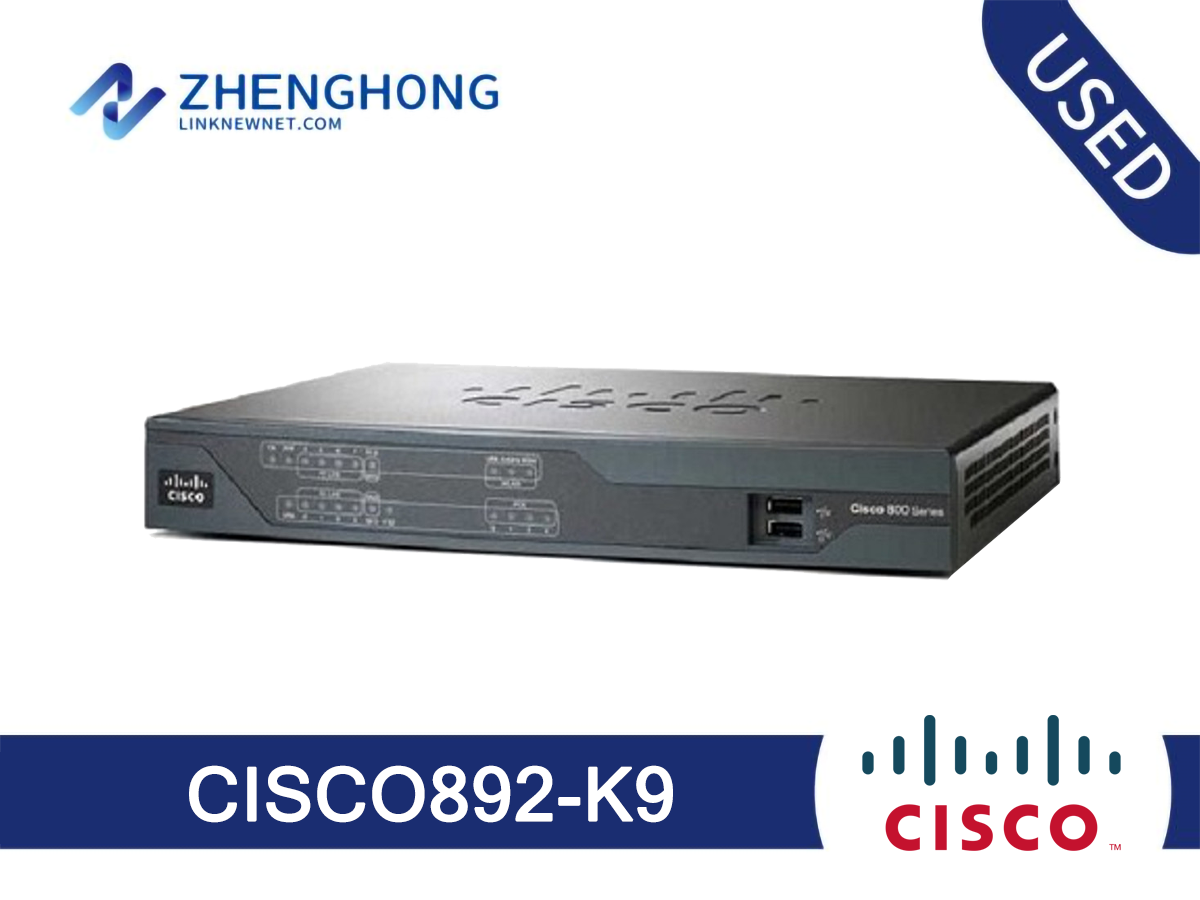

Description | Cisco 892 Gigabit Ethernet security router |
Default and maximum DRAM | ● 512 and 768 MB, respectively, on Cisco 891 and 892 Series data models; upgrade option available |
Default and maximum flash memory | ● 256 on all Cisco 890 models; not upgradable |
WAN | 1-port GE 1-port FE |
LAN switch | 8-port 10-/100-Mbps managed switch |
Separate console and auxiliary ports | ● RJ-45 |
USB 2.0 | ● Two USB 2.0 ports available on Cisco 891, 892, and 892F models ● One USB 2.0 port available on Cisco 892FSP, 896VA, 897VA, 898EA, and 891F ● USB devices supported: ◦ USB eTokens on Cisco 891, 892, and 892F only ◦ USB flash memory |
Inline PoE | ● Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af compliant and Cisco PoE compliant ● No PoE support on Cisco 892FSP |
Wireless specifications | 2.4 and 5 GHz |
Data rates supported | ● 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps ● 802.11b: 1, 2, 5.5, 6, 9, and 11 Mbps ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps ● 802.11n: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15 |
Maximum transmit power (2-channel aggregate) | ● 802.11a: 15dBm ● 802.11b: 20 dBm ● 802.11g: 17 dBm ● 802.11n: 16 dBm Note: Maximum power setting is subject to change by channel and by region, depending on regulations |
Physical dimensions and weight | Product dimensions: Nonwireless models: ● H x W x D = 1.9 x 12.8 x 9.8 in. (4.8 x 32.5 x 24.9 cm) (includes rubber feet) ● H x W x D = 1.75 x 12.8 x 9.8 in. (4.5 x 32.5 x 24.9 cm) (without rubber feet) ● Weight: 5.5 lb (2.5 kg) maximum |
