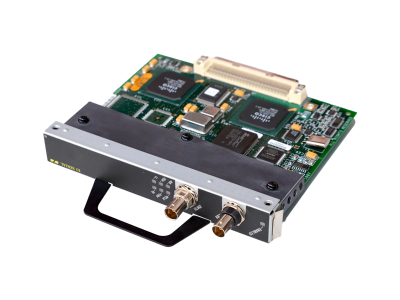

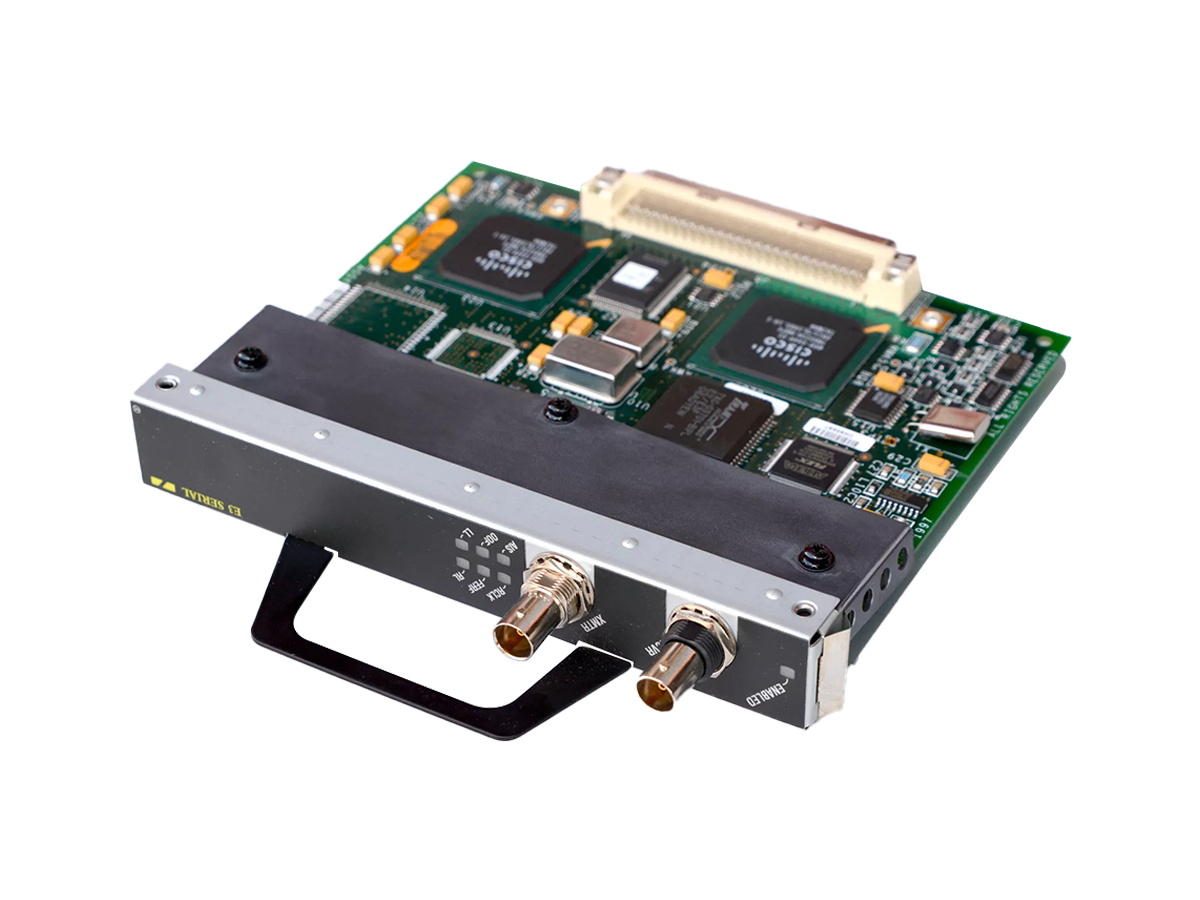

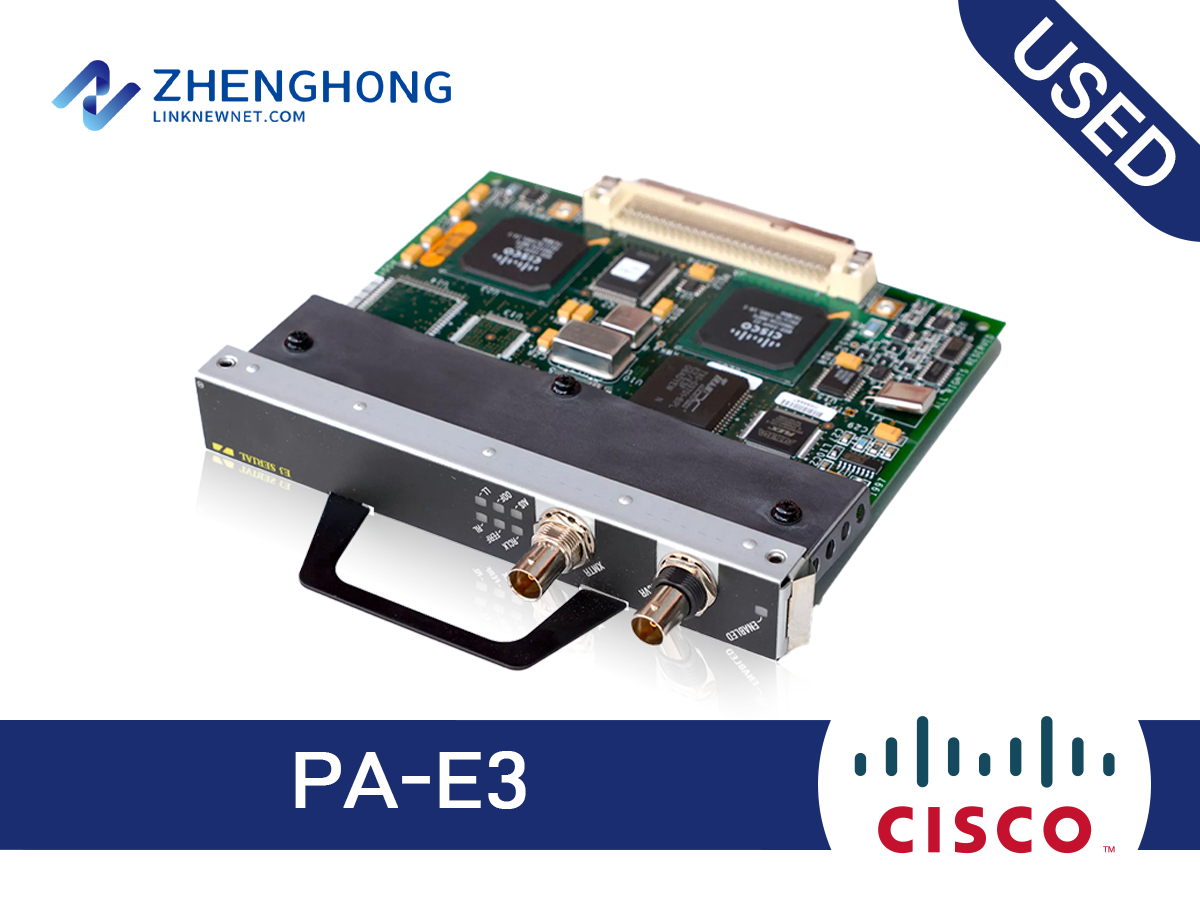

PA-E3 - Cisco 7200 Series Port Adapter

Model: PA-E3

Detail: Cisco 7200 Series 1 Port E3 Serial Port Adapter with E3 DSU

Condition: USED

List Price: $165 Price: $99

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

PA-E3 Specification
System Configurations	• Up to four E3 ports cards per VIP2-40 and higher (two PA-2E3) VIP performance limitations may apply to configurations with multiple E3s • Up to six E3 ports per Cisco 7200 Series router (up to four E3 ports, two PA-2E3 port adapters, if Cisco 7200 Fast Ethernet input/output [I/O] controller used) PA-E3 and PA-2E3 port adapters are classified as high speed port adapters for the Cisco 7200 Series router • Carrier card option required for support on the Cisco 7304 Series router, and the Enhanced FlexWan provides support on the 7600 series router • Full online insertion and removal (OIR) support on Cisco 7200; OIR of VIP only on the Cisco 7500
E3 Specifications	• G.703 level interface with dual female 75-ohm BNC coaxial connectors per port (separate RX and TX) • Full-and half-duplex operation at E3 rate (34.368 MHz) • Scrambling and Subrate (22 Kbps to 34 Mbps data rate) support of major DSU vendors • Line build-out: 450 feet (135 meters) of 75-ohm type 728A or equivalent coaxial cable • Remote and local loopback support • Unframed or G.751 (software selectable-G.751 default) • HDB3 line coding • 16- and 32-bit cycles redundancy check (CRC) supported. (16-bit CRC default) • Software-setable E3 national service bits • 24-hour history maintained for error statistics and failure counts • E3 alarm/event detection (once per second polling) RCLK: receive clock signal AIS: alarm indication signal OOF: out of frame state FERF: far-end receive failure • Serial encapsulation: HDLC: High-Level Data Link Control PPP: Point-to-Point Protocol Frame Relay ATM-DXI: ATM Data Exchange Interface
LEDs per port	• RCLK LED (Green) to indicate the port has detected a receive clock signal • AIS LED (Yellow) to indicate the port is receiving an AIS • OOF LED (Yellow) to indicate the port is in a receive OOF state • FERF LED (Yellow) to indicate the port is receiving a FERF • Local Loop (Yellow) to indicate E3 port looped locally • Remote Loop (Yellow) to indicate the far-end E3 port is looped
Physical Specifications	• Occupies one port adapter bay on any VIP2 model or one port adapter slot in any Cisco 7200 series router
Environmental Specifications	• Operating temperature: 32 to 104° F (0 to 40° C) • Storage temperature: -4 to 149° F (-20 to 65° C) • Relative humidity: 10 to 90%, noncondensing
Compliance	• E3 physical layer CCITT G.703 CCITT G.751 CCITT G.753 CTR 24 CCITT G.823 • Safety AS/NZS 3260 (Australia/New Zealand) EN60950/EN41003 (Europe) IEC 950 (National Deviations) • Emissions AS/NZS 3548 (Australia/New Zealand) EN55022 (CISPR 22) Class B (Europe) • Immunity IEC 1000-4-2 (ESD) IEC 1000-4-3 (Radiated) IEC 1000-4-4 (Fast Transients) IEC 1000-4-5 (Power Line Surge) IEC 1000-4-6 (Injected RF) IEC 1000-3-2 (Harmonic Distortions)

Q&A

Are there alternative products to the PA-E3 module?

Alternatives to the PA-E3 include other Cisco E3 modules or third-party E3 modules that are compatible with the Cisco 7200 Series.

What common troubleshooting steps are there for the PA-E3 adapter?

Common troubleshooting includes checking physical connections, verifying module status in router settings, and ensuring compatible IOS version.

What accessories are available for the PA-E3 module?

Available accessories for the PA-E3 include E3 cables, mounting hardware, and interface converters for additional connectivity options.

How does the PA-E3 compare to similar Cisco modules?

The PA-E3 offers a more affordable option with similar performance to new modules, providing reliable E3 connectivity for Cisco 7200 Series routers.

What are the key features of the PA-E3 Serial Port Adapter?

The key features include 1 Port E3 connectivity, integration with E3 DSU, and compatibility with Cisco 7200 Series.

How does the PA-E3 enhance network performance for system integrators?

PA-E3 offers high-bandwidth connectivity options, improving data transfer rates and network efficiency for integrators.

Can the PA-E3 be used in different application scenarios?

Yes, it's versatile for WAN connectivity, ideal for telecom networks, corporate WANs, and ISP backbones.

How to install the PA-E3 in a Cisco 7200 Series router?

Installation involves powering down the router, inserting the PA-E3 into a free port, and configuring it via IOS.

Is there a need to upgrade the firmware for the PA-E3?

Regular updates are recommended for optimal performance, available through the Cisco support website.

What are the alternatives to PA-E3 for E3 connectivity?

Alternatives include newer models like the PA-2E3 or third-party adapters maintaining compatibility with Cisco 7200.

How cost-effective is the PA-E3 for budget-conscious buyers?

As a used product, PA-E3 provides a cost-effective solution for E3 connectivity without compromising on quality.

What common problems might arise with the PA-E3, and how to troubleshoot them?

Common issues include connectivity or configuration errors, typically resolved by firmware updates or IOS commands.

What accessories are available for the PA-E3?

Accessories include cables for E3 connectivity and rack mounts for physical installation within network infrastructure.

How does the PA-E3 compare to newer models in terms of functionality?

While newer models may offer enhanced features, the PA-E3 remains a reliable option for specific E3 connectivity needs.

How cost-effective is PA-E3 for system integrators?

The PA-E3 (USED) is highly cost-effective for system integrators, providing reliable E3 connectivity at a reduced price compared to new modules.

What are the key features of the PA-E3 serial port adapter?

The PA-E3 serial port adapter features a single E3 DSU port, compatible with Cisco 7200 Series routers, ensuring high-speed data transfer.

In which application scenarios is the PA-E3 module suitable?

The PA-E3 module is ideal for WAN connectivity in enterprise networks, enabling high-speed data transfer and reliable communication.

How do I install the PA-E3 adapter in a Cisco 7200 Series router?

To install the PA-E3 adapter, power down your router, insert the module into an available port, secure it with screws, and then power on the router.

Does the PA-E3 module require any software updates?

The PA-E3 module typically does not require specific updates, but ensure your Cisco 7200 Series router is running the latest IOS software for compatibility.
