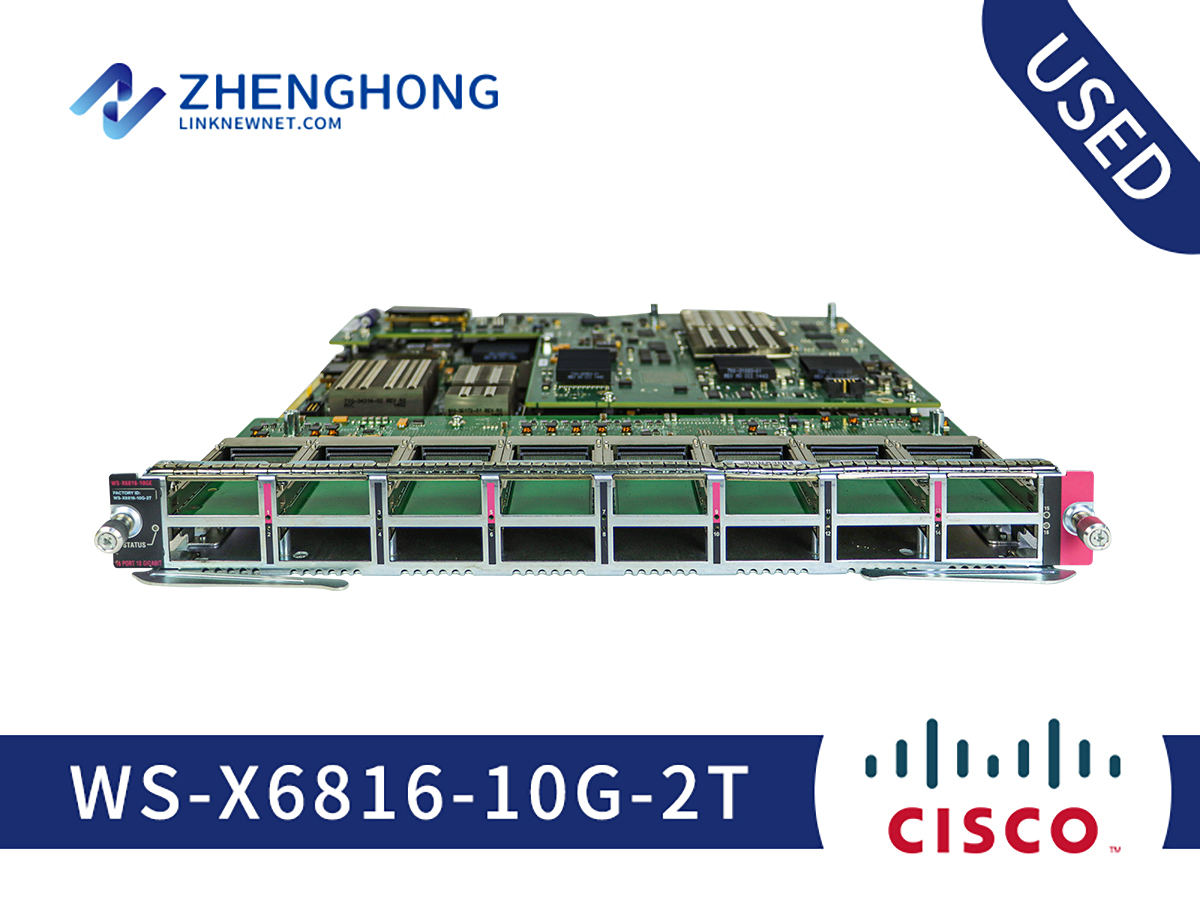

Cisco Catalyst 6500 Series Ethernet Module WS-X6816-10G-2T

Model: WS-X6816-10G-2T

Detail: Cisco Catalyst 6500 Series WS-X6816-10G-2T 16 Port 10 Gigabit Ethernet Fiber Module

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： 10GE

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-X6816-10G-2T
Product list
Product code	WS-X6816-10G-2T
Power cable	No
Button	No
Product parameters
Port	16
Optics	X2
Performance	2 x 20 Gbps (40 Gbps total)
Data Link Protocol	10 GigE
Data Transfer Rate	10 Gbps
Application	Data Networking/Optical Network
Onboard memory	1 GB default
Cabling Supported	10GBASE-CX4, -SR, -LRM, -LX4, -LR, -ZR and -ER X2 fiber modules and 10GBASE-T
Compliant Standards	IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
Introduction	Supports IEEE 802.3ad link aggregation and Cisco distributed EtherChannel technology for fault-tolerant connectivity and bandwidth scalability of up to 80 Gbps per EtherChannel connection using any 8 ports in the same chassis.
Physical specifications
Width	14 in
Height	1.2 in
Depth	16 in
Weight	13.6 lbs
Compatibility Information
Apply to	Cisco Catalyst 6500 Series Switches（WS-C6503-E, WS-C6503-E-RF, WS-C6504-E, WS-C6504-E=, WS-C6504-E-RF, WS-C6506-E, WS-C6506-E-RF, WS-C6509-E, WS-C6509-E=, WS-C6509-E-RF, WS-C6509-V-E, WS-C6509-V-E-RF, WS-C6513-E）
Environmental Parameters
Min Temperature	32 °F
Max Temperature	104 °F
Humidity Operating	10 - 90% (non-condensing)
