Huawei CloudEngine 6800 Series Switches CE6810-48S4Q-EI-B|LinkNewNet

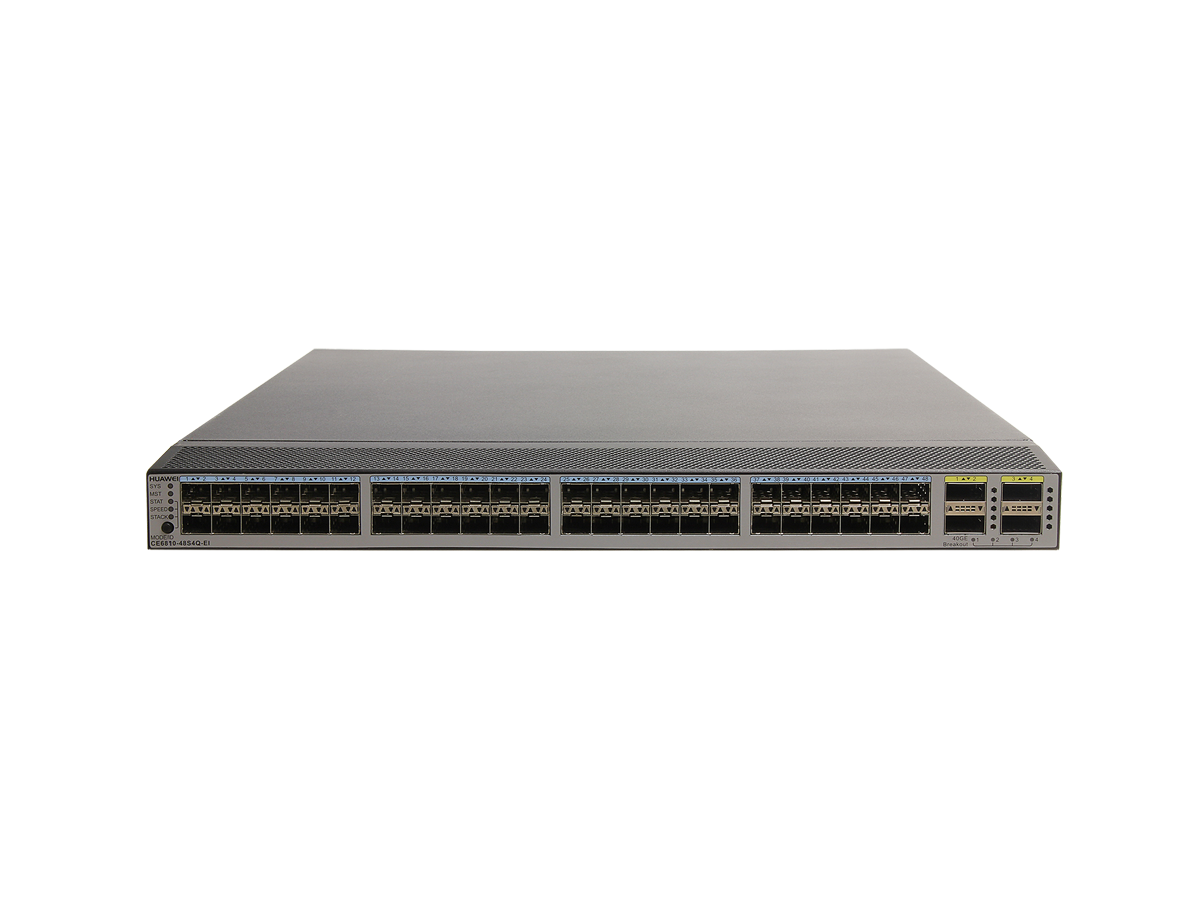

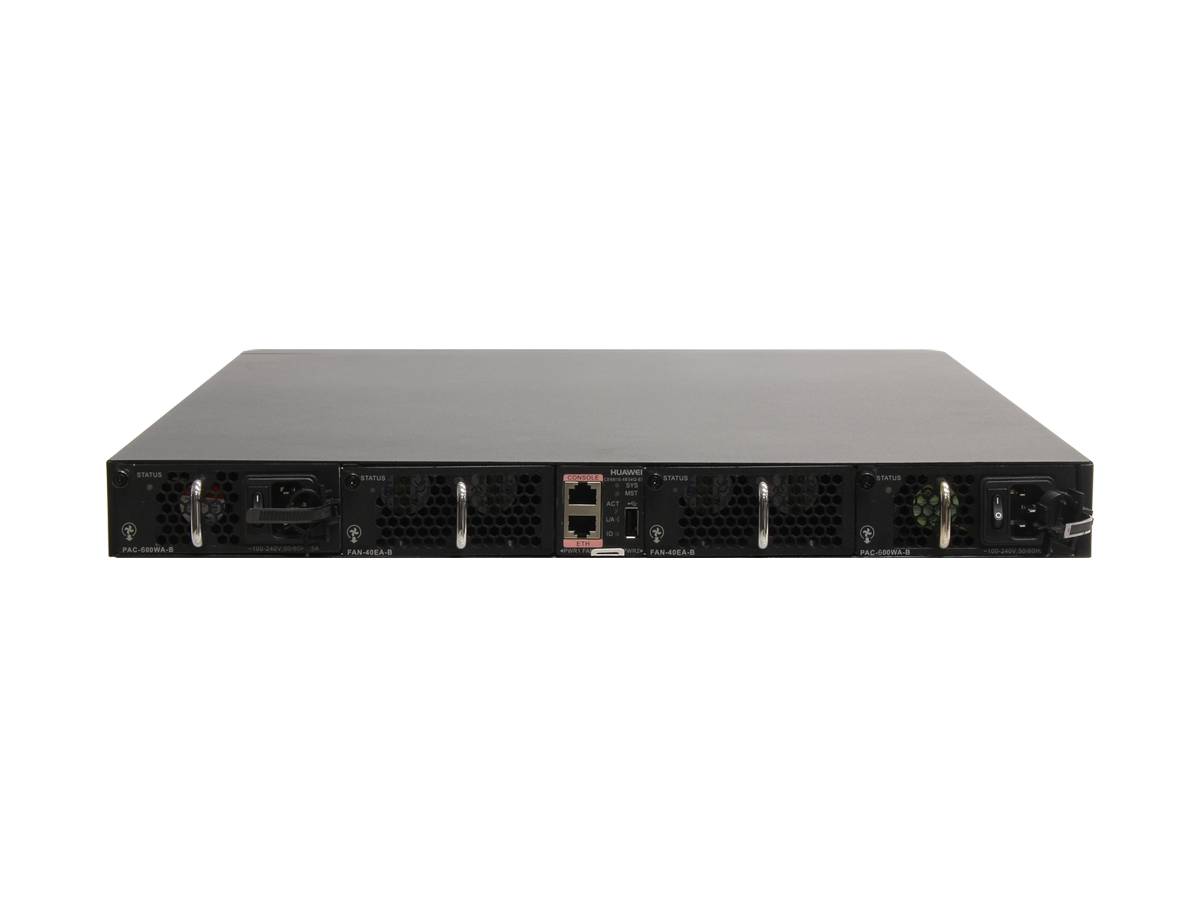

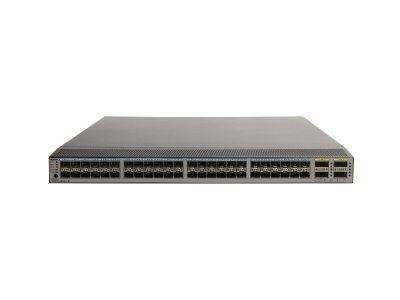

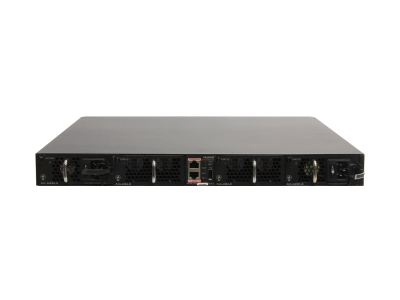

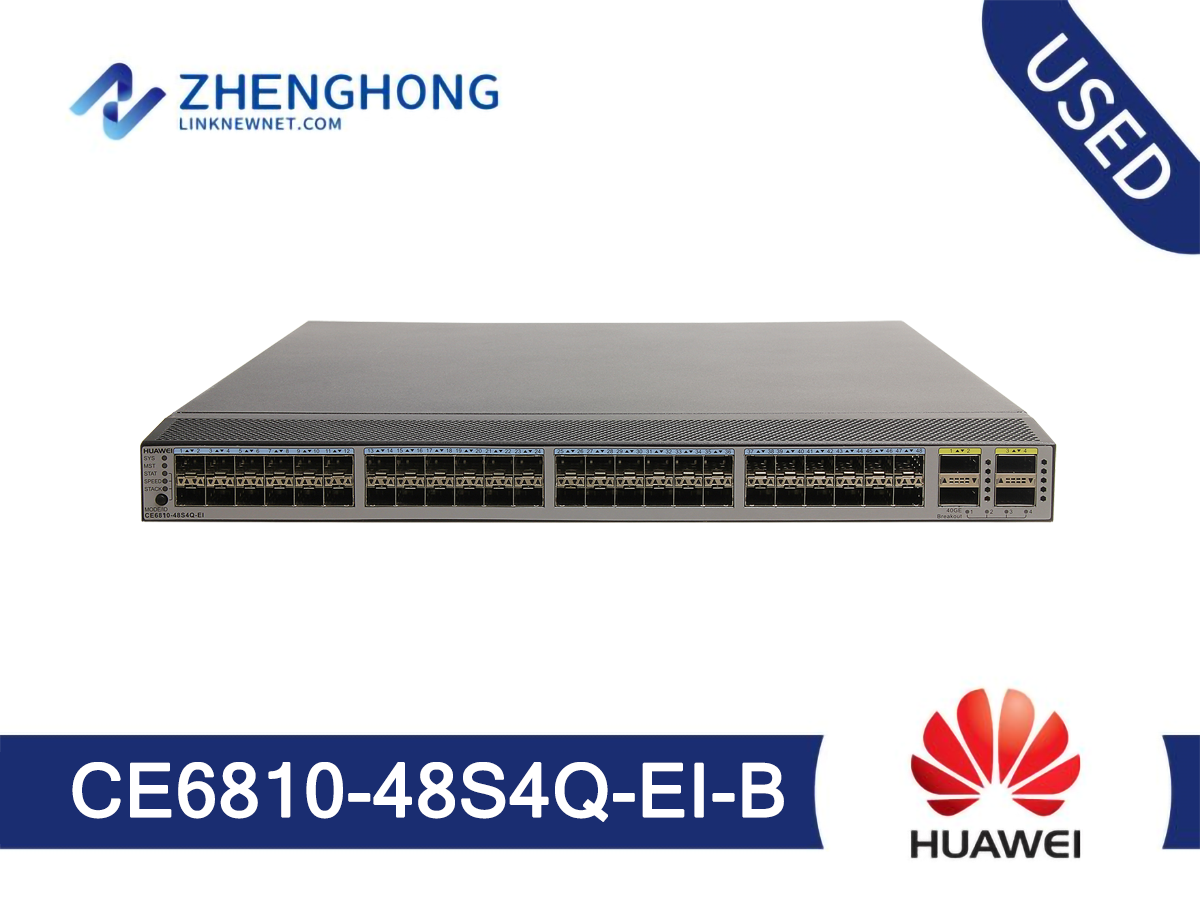

Huawei CloudEngine 6800 Series Switches CE6810-48S4Q-EI-B

Model: CE6810-48S4Q-EI-B

Detail: Huawei CE6810-48S4Q-EI Switch (48-Port 10G SFP+,4-Port 40G QSFP+,2*FAN Box,Port-side Intaket,Without Power Module)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE6810-48S4Q-EI-B Specification
10G Base-T Ports	0
SFP+ Ports	48
QSFP+ Ports	4
Switching Capacity	1.28 Tbit/s
Forwarding Rate	960 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack
Device Virtualization	Super Virtual Fabric (SVF)
Network Virtualization	M-LAG
Network Virtualization	TRILL (CE6810EI)
VM Awareness	Agile Controller
Network Convergence	FCoE
Network Convergence	DCBX, PFC, and ETS
Programmability	OpenFlow
	OPS
	Puppet and OVSDB plugins released on open source websites (CE6810EI)
	Linux container for open source and customization programming
Traffic Analysis	NetStream
Traffic Analysis	sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GVRP
ACL	Ingress: 2,250 Egress: 1,000
MAC Address Table	Maximum: 64k
	Dynamic learning and aging of MAC addresses
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address limiting based on ports and VLANs
ARP (maximum)	4k
IPv4 FIB (maximum)	16k
IP Routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP Routing	IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (CE6810EI)
IPv6 FIB (maximum)	8k
Multicast FIB (maximum)	2k
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP (CE6810EI)
	IGMP snooping
	IGMP proxy (CE6810EI)
	Fast leave of multicast member interfaces (CE6810EI)
	Multicast traffic suppression (CE6810EI)
	Multicast VLAN (CE6810EI)
Configuration and Maintenance	Console, Telnet, and SSH terminals
	Network management protocols, such as SNMPv1/v2c/v3
	File upload and download through FTP and TFTP
	BootROM upgrade and remote upgrade
	802.3az Energy Efficient Ethernet (EEE)
	Hot patches
	User operation logs
	ZTP
Security and Management	802.1x authentication
	Command line authority control based on user levels, preventing unauthorized users from using commands
	DoS, ARP, and ICMP attack defenses
	Port isolation, port security, and sticky MAC
	Binding of the IP address, MAC address, interface number, and VLAN ID
	Authentication methods, including AAA, RADIUS, and HWTACACS
	Remote Network Monitoring (RMON)
Dimensions (W x D x H)	442 mm x 600 mm x 43.6 mm
Weight (fully loaded)	10.4 kg (22.9 lb)
Environmental Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V
Max. Power Consumption	238W

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
