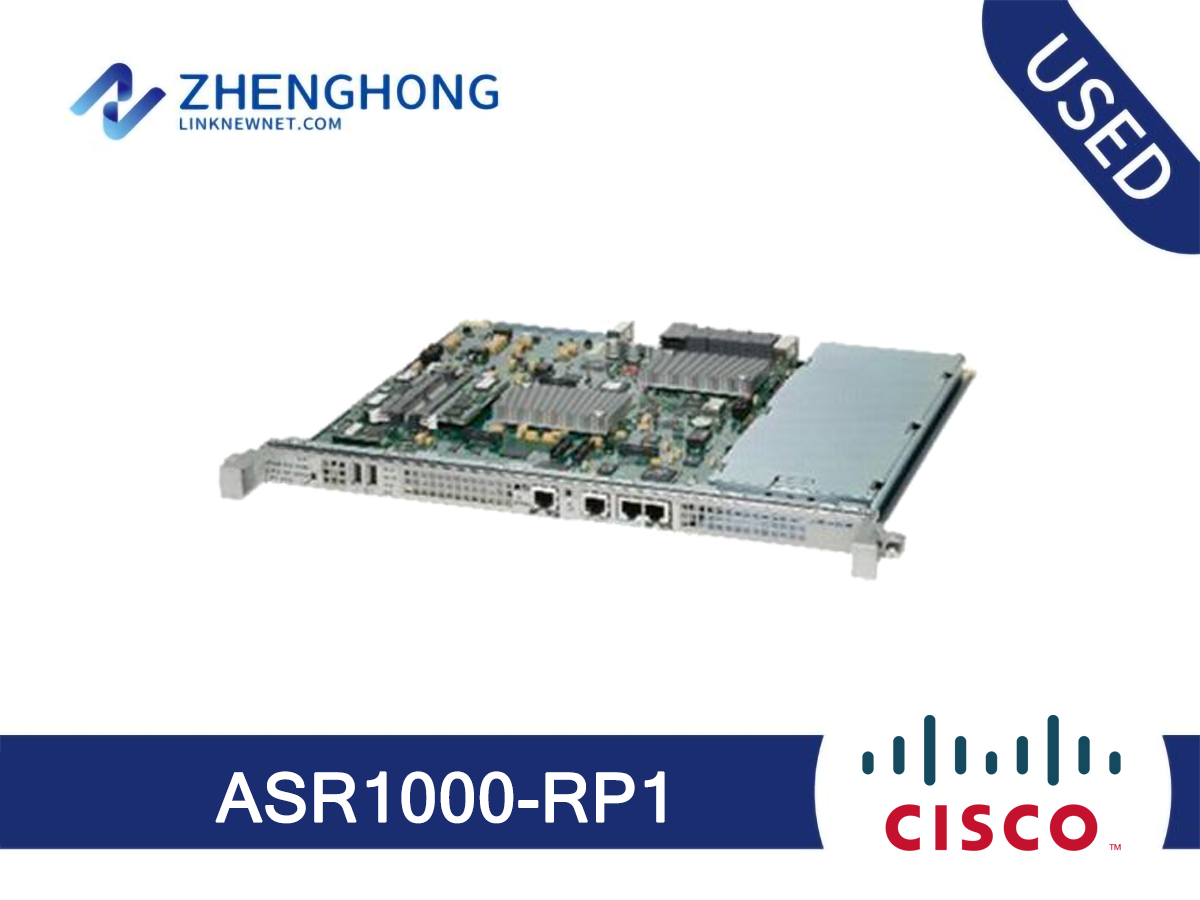

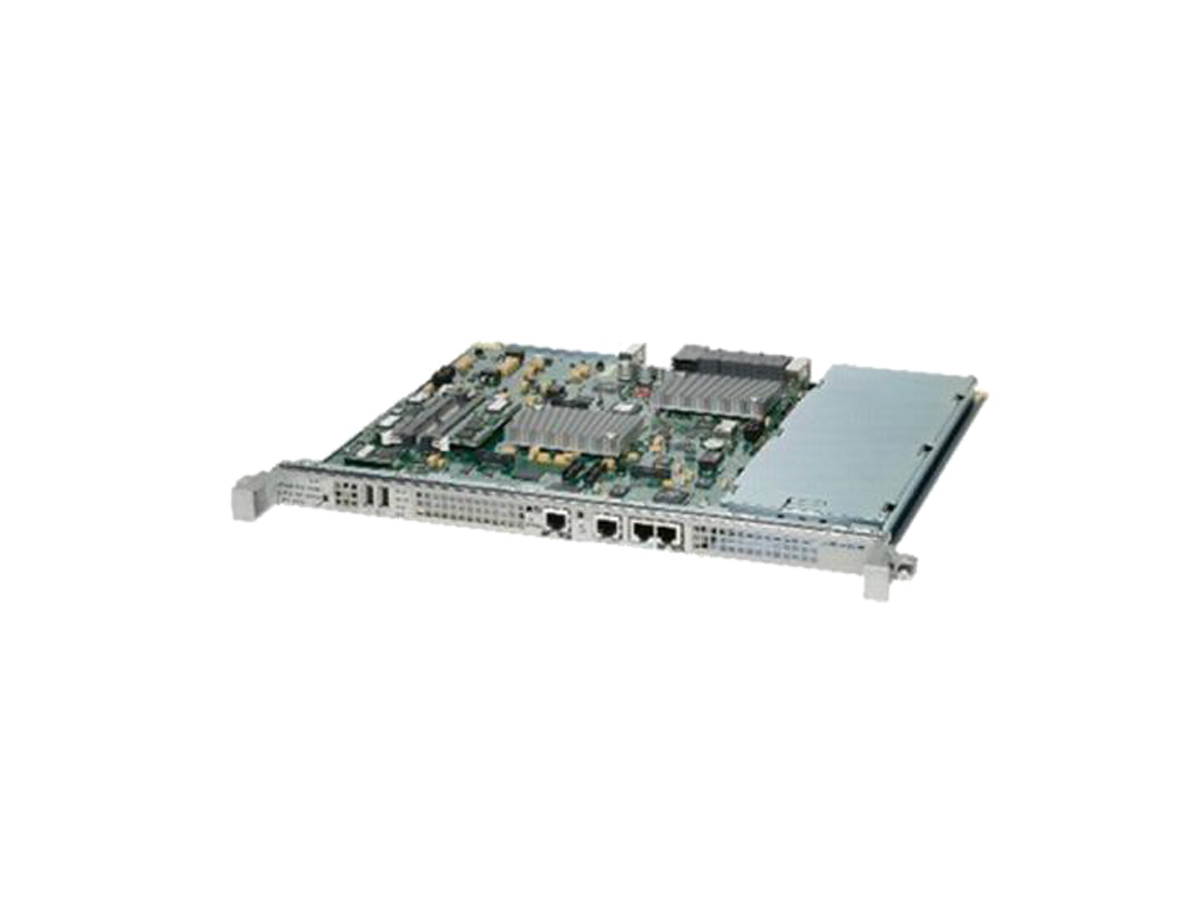

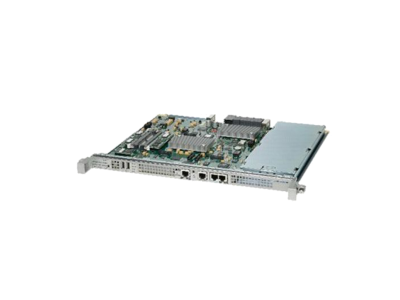

ASR1000-RP1 Specification | |
Chassis support | Cisco ASR 1004 and ASR 1006 chassis (Note: The Cisco ASR 1002 chassis comes with the Cisco ASR 1000 Series RP1 built into the chassis.) (Note: Cisco ASR 1001, ASR 1001-X, and ASR 1002-X (part numbers ASR1001, ASR1001-X, ASR1002-X) have an integrated Route Processor built in to the chassis that is not upgradable) |
Software compatibility | Cisco IOS XE Operating System, which is based on Cisco IOS Software Release 12.2SR |
Software protocols | Refer to Cisco IOS Software 12.2SR protocol support |
Connectivity | ● Console port (RJ-45 connector) ● Auxiliary port (RJ-45 connector) ● 10/100/1000 Ethernet port (RJ-45 connector) ● Two RJ-48 connectors for BITS input clocks |
Memory options | ● Two 1-GB Double Data Rate 2 (DDR2) mini-DIMMs ● Two 2-GB DDR2 mini-DIMMs ● Upgradable memory from 2-GB to 4-GB DRAM |
Storage options | ● 40-GB HDD (RP1 only) ● 1-GB USB Compact Flash memory |
Performance | ● Scalability up to 1,000,000 IPv4 routes or 500,000 IPv6 routes ● BGP RR Scalability up to 5,000,000 IPv4 routes or 3,000,000 IPv6 routes |
Reliability and availability | ● 1 + 1 redundancy in dual-route-processor configuration ● Support for online insertion and removal (OIR) ● Support for NSF and Stateful Switchover (SSO) ● Support for ISSU |
MIBs | ● RFC 2737 compliant |
LEDs | ● PWR - Power Green - All power rails are within specifications ● STAT - Status Green - Cisco IOS Software has booted Yellow - BootROM has successfully loaded Red - System failure or during boot process ● ACTV- Active Green - Active route processor ● STBY - Standby Yellow - Standby route processor ● CRIT - Critical Red - Critical alarm or during boot process ● MAJ - Major Red - Major alarm ● MIN - Minor Amber - Minor alarm ● LINK - Management Ethernet link status Solid green - Link with no activity FLASH green - Link with activity Off - No link ● DISK0 - Internal Compact Flash FLASH Green - Activity indicator Off - No activity ● DISK1 - External Compact Flash ● DISK2 - Internal HDD ● CARRIER - BITS interface |
Physical dimensions | 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m) |
Approvals and compliance | Safety ● UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment ● AS/NZS 60950-1 ● IEC/EN 60950-1 Information technology equipment ● 73/23/EEC Electromagnetic Emissions Certification ● AS/NZ 3548: 1995 (including AMD I + II) Class B ● EN55022: 1998 Class B ● CISPR 22: 1997 ● EN55022: 1994 (including AMD I + II) ● 47 CFR Part 15: 2000 (FCC) Class B ● VCCI V-3/01.4 Class 2 ● CNS-13438: 1997 Class B ● GR1089: 1997 (including Rev. 1: 1999) Immunity ● EN300386: 2000-TNE EMC requirements; product family standard; high priority of service; central office and noncentral office locations ● EN50082-1: 1992/1997 ● EN50082-2: 1995-Generic Immunity Standard, Heavy Industrial ● CISPR24: 1997 ● EN55024: 1998-Generic ITE immunity standard ● EN61000-4-2: 1995 + AMD I + II ESD, Level 4/8 kV contact, 15 kV air ● IEC-1000-4-3: 1995 + AMD 1-Radiated Immunity, 10 V/m ● IEC-1000-4-4: 1995-Electrical Fast Transients, Level 4/4 kV/B ● IEC-1000-4-5: 1995 + AMD 1-DC Surge-Class 3; AC Surge-Class 4 ● EN61000-4-6: 1996 + AMD 1-RF conducted immunity, 10 Vrms ● EN61000-4-11: 1995-Voltage Dips and Sags ● ETS300 132-2: 1996 + corrigendum, December 1996 ● GR1089:1997 (including Rev1: 1999) Network Equipment Building Standards The module meets the following Networking Equipment Building Standards (NEBS): ● GR-1089-CORE ● GR-63-CORE European Telecommunication Standards Institute (ETSI) ● ETSI 300 386-1 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers" ● ETSI 300 386-2:1997 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers" ● ETSI 300 132-2: December 1994 - Power supply interfaces at the input to telecommunications equipment Sections 4.8 and 4.9 |
