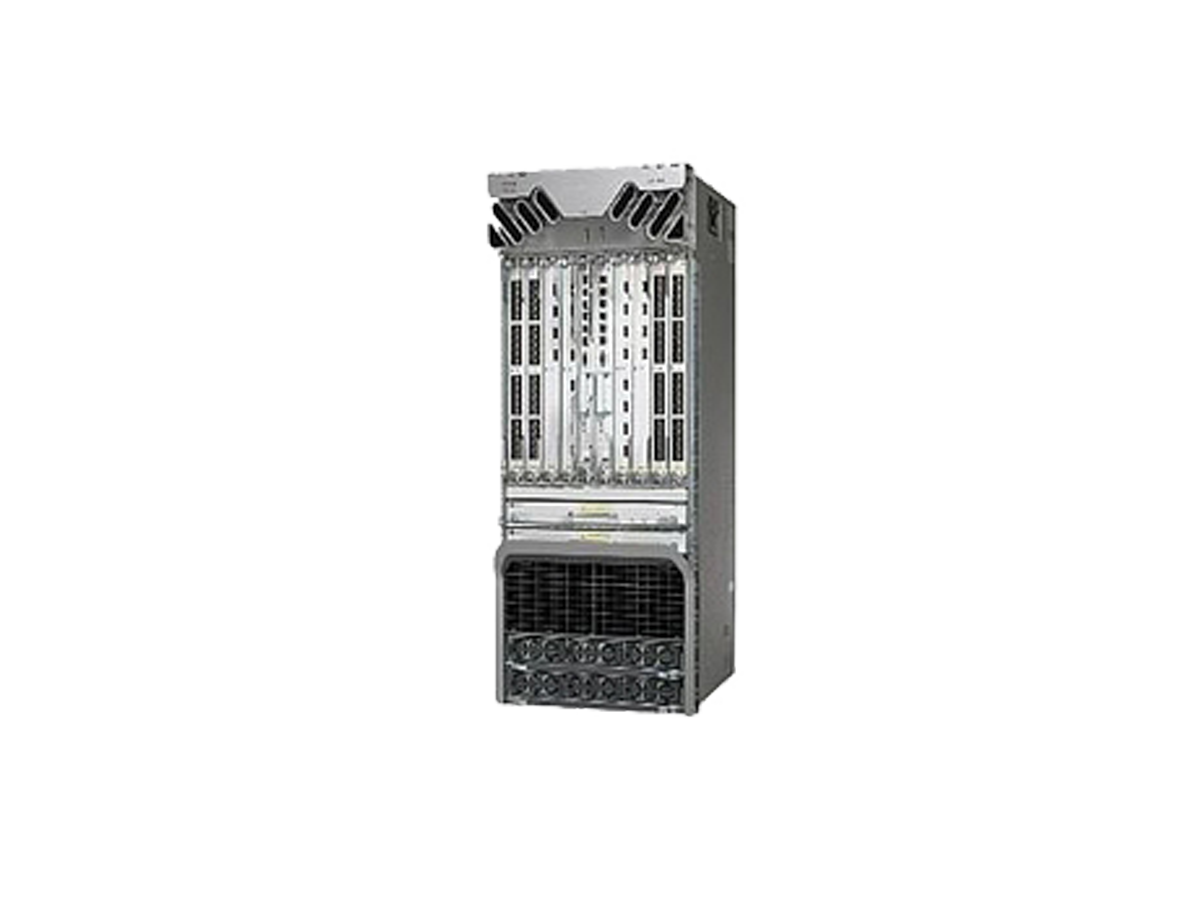

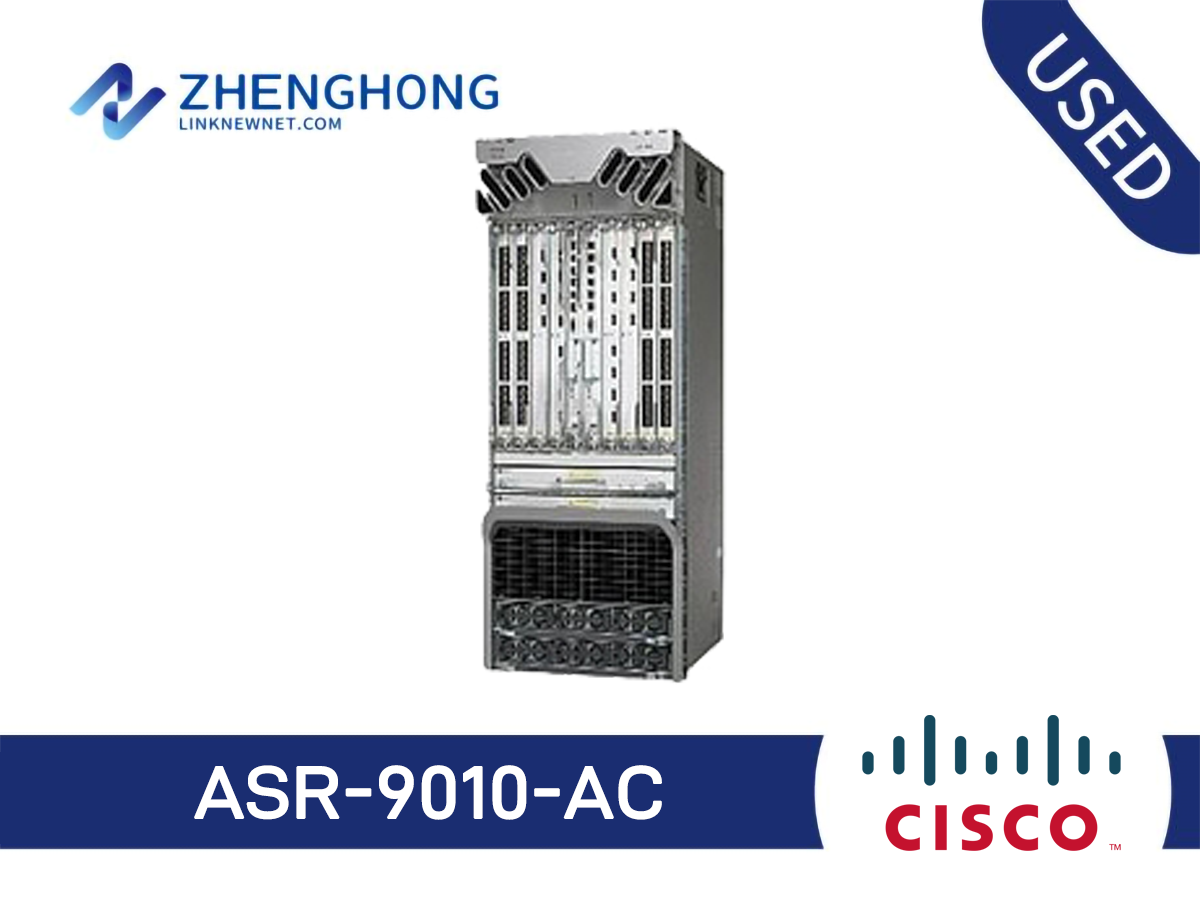

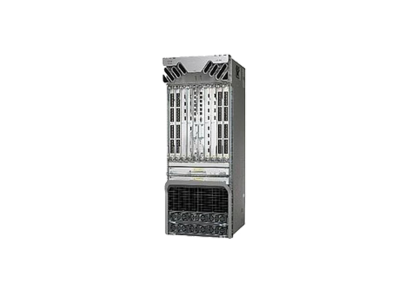

ASR-9010-AC - Cisco ASR 9010 Series Chassis

Model: ASR-9010-AC

Detail: Cisco ASR 9010 Chassis ASR-9010-AC ASR-9010 AC Chassis

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR-9010-AC specifications
Description	Cisco ASR 9010 Chassis, ASR-9010-AC, ASR-9010 AC Chassis
Cisco ASR 9010 Specs
Physical specifications	Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: ● With doors: 29.03 in. (737.4 mm) ● Without doors: 28.24 in. (717.3 mm) Weight: ● 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs
Slot orientation	Vertical
Cisco ASR 9000 Series RSP	Dual redundant RSPs with integrated fabric in 2 slots
Cisco ASR 9000 Series line cards	8 line-card slots
“Commons” components	2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter
Reliability and availability	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy
Rack mounting	19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation
Cabinet mounting	Yes Note: Doors not recommended in enclosed cabinets
Wall mounting	No
Airflow	Front-to-back
Performance
Fabric	One per RSP: ● Active/active nonblocking operation mode in dual-RSP redundant configuration ● Fully redundant in dual-RSP redundant configuration ● Built-in service-intelligence and traffic-prioritization capability
Thermal	Two fan trays: ● 12 high-efficiency fans per tray ● Variable-speed fans for optimal thermal performance ● No single point of failure
Modularity	Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ● 6 kW and 3 kW AC power modules ● 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported
Redundancy	● AC: N+N redundancy ● DC: N+1 redundancy ● Power module redundancy ● A/B Feed redundancy ● PEM redundancy
Power zones	No power zone restrictions Fully load-sharing power infrastructure
Power input	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Power-module airflow	Front-to-back
Environmental Specifications
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC)
Operating humidity (nominal) (relative humidity)	5 to 90%
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Regulatory Compliance
Network Equipment Building Standards (NEBS)	Cisco ASR 9010 Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection ● VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9010 Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1
EMC standards emission	Cisco ASR 9010 Routers are designed to meet: ● FCC Class 47CFR15 A ● ICES 003 Class A ● AS/NZS CISRP22 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-12: Power Line Harmonics ● IEC/EN 61000-3-11: Voltage Fluctuations and Flicker ● EN55022: Information Technology Equipment (Emissions) ● EN 50121-4: Railway EMC
EMC standards immunity	Cisco ASR 9010 Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Surge Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard ● EN 50121-4: Railway EMC
Safety	Cisco ASR 9010 Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA Code of Federal Regulations Laser Safety

Q&A

What common troubleshooting steps are there for the ASR-9010-AC?

Common troubleshooting steps include checking power supplies, verifying connections and configurations, and running diagnostic commands via the CLI.

What accessories are available for the ASR-9010-AC chassis?

Accessories include power supplies, fan trays, line cards, route processors, and various interface modules to enhance functionality.

How does the ASR-9010-AC compare with other routers in the ASR 9000 series?

The ASR-9010-AC is known for its high port density and scalability, making it well-suited for high-capacity edge and aggregation applications compared to smaller models.

Can the ASR-9010-AC operate in dual power mode?

Yes, the ASR-9010-AC can operate in dual power mode, providing redundancy and increased reliability for critical network infrastructures.

Learn More

What are the key features of the Cisco ASR 9010 Chassis ASR-9010-AC?

The Cisco ASR 9010 Chassis ASR-9010-AC offers high scalability, advanced edge-routing capabilities, and carrier-class performance.

How cost-effective is the Cisco ASR 9010 AC Chassis compared to other routers?

The ASR-9010 AC Chassis provides an excellent balance of performance and cost-effectiveness, making it ideal for large-scale deployments.

What are the primary application scenarios for the Cisco ASR 9010 AC Chassis?

The ASR 9010 AC Chassis is suitable for carrier-grade networks, large enterprises, and service providers needing robust edge routing solutions.

How do you install the Cisco ASR 9010 Chassis ASR-9010-AC?

Installation involves mounting the chassis in a rack, connecting power supplies, and configuring the network interfaces.

Does the ASR-9010 AC Chassis require regular upgrades?

Yes, firmware and software upgrades are recommended to ensure optimal performance and security.

Are there alternative products to the Cisco ASR 9010 Chassis ASR-9010-AC?

Alternatives include the Cisco ASR 9922 and the Juniper MX960, depending on specific requirements.

What accessories are available for the ASR-9010 AC Chassis?

Available accessories include power supplies, fan trays, and line cards.

How does the ASR-9010 AC Chassis compare with the Cisco ASR 9922?

The ASR 9010 is more cost-effective and suitable for medium-to-large networks, whereas the ASR 9922 offers higher capacity for extremely large deployments.

What are common troubleshooting tips for the Cisco ASR 9010 Chassis?

Common tips include checking power connections, verifying interface configurations, and reviewing system logs for errors.

What is the power consumption of the Cisco ASR 9010 AC Chassis?

The power consumption varies depending on the configuration, but it is designed to be energy-efficient with AC power supplies.

How cost-effective is the ASR-9010-AC for large-scale deployments?

The ASR-9010-AC offers high performance and scalability, making it cost-effective for large-scale deployments due to its robust architecture and longevity.

What are the main characteristics of the ASR-9010-AC chassis?

The ASR-9010-AC features modular design, high-density port capacity, and redundant power supplies, ensuring high availability and flexibility.

What application scenarios best suit the ASR-9010-AC?

The ASR-9010-AC is ideal for service provider edge applications, including data center interconnect, Metro Ethernet, and core WAN aggregation.

How do you install the ASR-9010-AC chassis?

The ASR-9010-AC chassis installation involves rack mounting, connecting power supplies, and inserting the required line cards and route processors.

Does the ASR-9010-AC require regular upgrades?

Yes, to maintain optimal performance and security, the ASR-9010-AC requires periodic software updates and hardware upgrades as needed.

Are there alternative products to the ASR-9010-AC?

Alternatives include other models in the Cisco ASR 9000 series or comparable service provider edge routers from different manufacturers.
