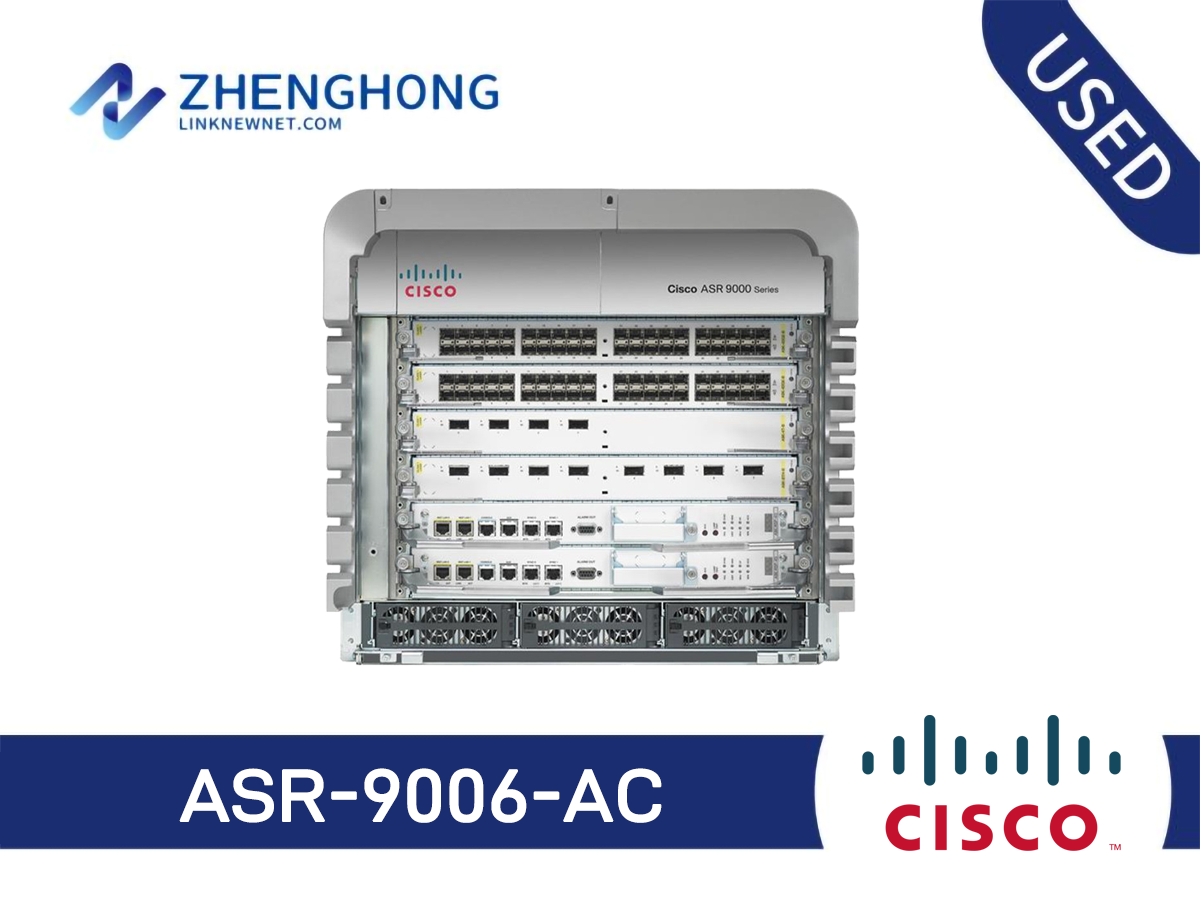

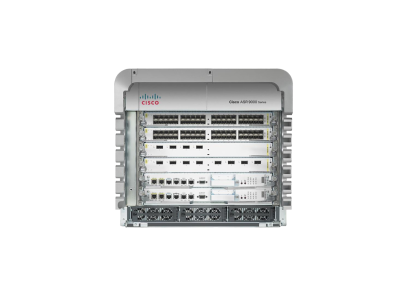

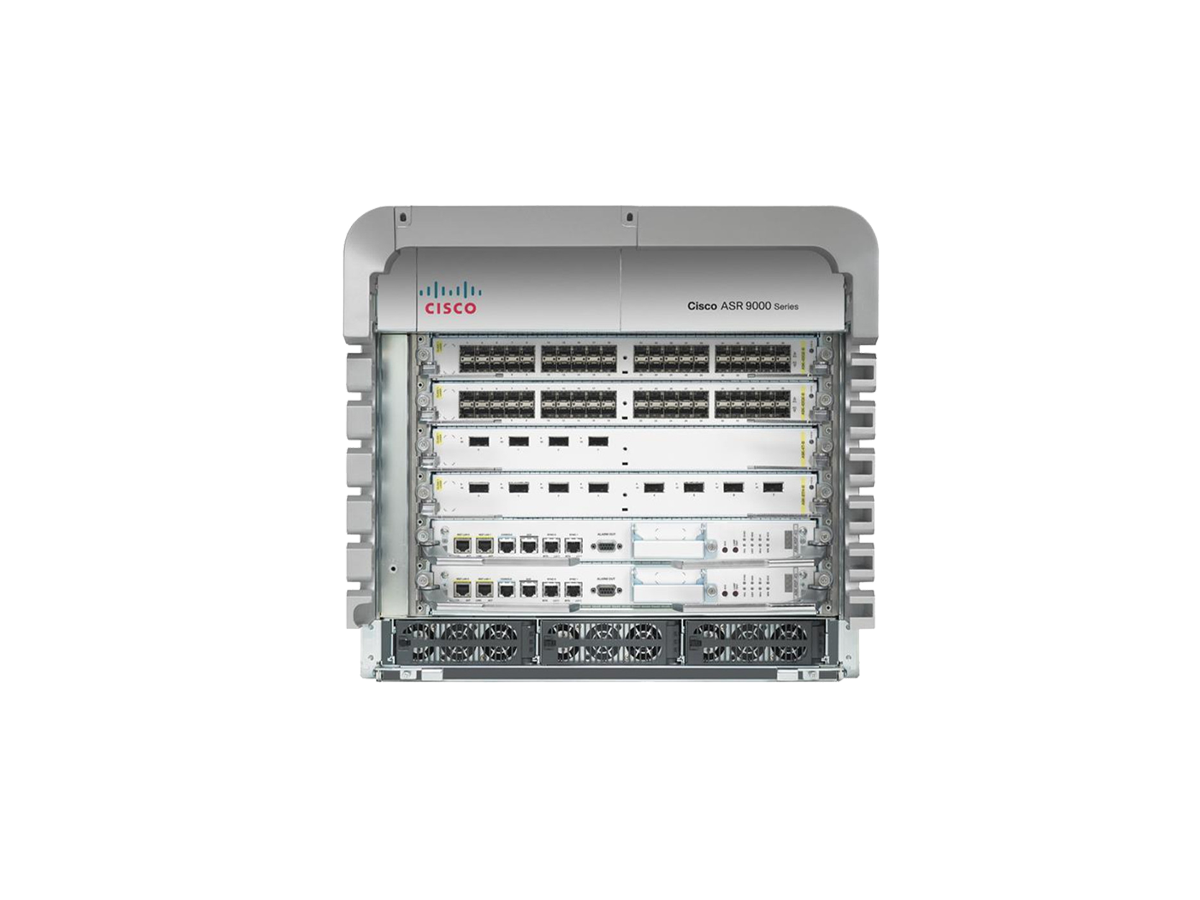

ASR-9006-AC - Cisco ASR 9006 Series Chassis

Model: ASR-9006-AC

Detail: Cisco ASR 9006 Chassis ASR-9006-ACASR-9006 AC Chassis

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR-9006-AC Specifications
Description	Cisco ASR 9006 Chassis, ASR-9006-AC, ASR-9006 AC Chassis
Cisco ASR 9006 Specs
Physical specifications	Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth: · With doors: 29.05 in. (737.9 mm) · Without doors: 29.05 in. (737.9 mm) Weight: · 89.55 lb (40.7 kg) (chassis with PEM) 150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs
Slot orientation	Horizontal
Cisco ASR 9000 Series RSP	Dual redundant RSPs with integrated fabric in 2 slots
Cisco ASR 9000 Series line cards	4 line-card slots
“Commons” components	2 RSPs 2 fan trays 1 PEM (either DC or AC) 1 fan filter
Reliability and availability	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy
Rack mounting	19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation
Cabinet mounting	Yes Note: Doors not recommended in enclosed cabinets
Wall mounting	No
Airflow	Right-to-back, Front-to-back with baffle
Performance
Fabric	One per RSP: · Active/active nonblocking operation mode in dual-RSP redundant configuration · Fully redundant in dual-RSP redundant configuration · Built-in service-intelligence and traffic-prioritization capability
Thermal	Two fan trays: · 6 high-efficiency fans per tray · Variable-speed fans for optimal thermal performance · No single point of failure
Power
Modularity	Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: · 3 kW AC power module · 2.1 kW DC power module Note: Mixing of AC and DC modules is not supported
Redundancy	· AC: N+N redundancy · DC: N+1 redundancy · Power module redundancy · A/B Feed redundancy
Power zones	No power zone restrictions Fully load-sharing power infrastructure
Power input	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Power-module airflow	Front-to-back
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC)
Operating humidity (nominal) (relative humidity)	5 to 90%
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Network Equipment Building Standards (NEBS)	Cisco ASR 9006 is designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection · VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9006 is designed to meet: · EN300 386: Telecommunications Network Equipment (EMC) · ETSI 300 019 Storage Class 1.1 · ETSI 300 019 Transportation Class 2.3 · ETSI 300 019 Stationary Use Class 3.1
EMC standards emission	Cisco ASR 9006 is designed to meet: · FCC Class 47CFR15 A · ICES 003 Class A · AS/NZS CISRP22 Class A · CISPR 22 (EN55022) Class A · VCCI Class A · BSMI Class A · IEC/EN 61000-3-12: Power Line Harmonics · IEC/EN 61000-3-11: Voltage Fluctuations and Flicker · EN55022: Information Technology Equipment (Emissions) · EN 50121-4: Railway EMC
EMC standards immunity	Cisco ASR 9006 is designed to meet: · IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) · IEC/EN-61000-4-3: Radiated Immunity (10V/m) · IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) · IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) · IEC/EN-61000-4-5: Signal Surge Ports (1kV) · IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) · IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) · IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) · IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations · EN55024: Information Technology Equipment (Immunity) · EN50082-1/EN-61000-6-1: Generic Immunity Standard · EN 50121-4: Railway EMC
Safety	Cisco ASR 9006 is designed to meet: · UL/CSA/IEC/EN 60950-1 · IEC/EN 60825 Laser Safety · ACA TS001 · AS/NZS 60950 · FDA Code of Federal Regulations Laser Safety

Q&A

What troubleshooting steps can be taken if the Cisco ASR-9006-AC chassis fails to boot?

Check power connections, verify device status through LED indicators, and consult the console logs via the management port for error details.

What accessories are available for the Cisco ASR-9006-AC chassis?

Accessories include power supply modules, fan trays, line cards, mount kits, and optical transceivers, enhancing the functionality and flexibility of the chassis.

How does the Cisco ASR-9006-AC chassis compare with the ASR 9010?

The Cisco ASR-9006-AC chassis offers similar routing capabilities at a more cost-effective price point, making it a suitable choice for environments with budget constraints.

What is the power requirement for the Cisco ASR-9006-AC chassis?

The Cisco ASR-9006-AC chassis requires AC power, supporting a modular power supply system that ensures redundant and reliable power delivery.

Learn More

How cost-effective is the Cisco ASR-9006-AC chassis for system integrators?

The Cisco ASR-9006-AC chassis offers a high performance-to-cost ratio, making it ideal for systems integrators seeking both reliability and affordability.

What are the main characteristics of the ASR-9006-AC chassis?

The ASR-9006-AC chassis features a robust design with high port density and advanced software capabilities, suitable for high-demand network environments.

What are the typical application scenarios for the ASR-9006-AC chassis?

The ASR-9006-AC chassis is typically used in service provider networks, data centers, and large enterprise backbones requiring high-speed data transmission.

How do I install the ASR-9006-AC chassis?

The ASR-9006-AC chassis can be installed in a standard 19-inch rack, with detailed installation steps available in the Cisco installation guide.

Does the ASR-9006-AC chassis require software upgrades?

Yes, it is recommended to periodically check for software updates to ensure optimal performance and security of the ASR-9006-AC chassis.

Are there any alternative products to the Cisco ASR-9006-AC chassis?

Alternatives include the Cisco ASR 1006-X and Cisco ASR 9904, which offer different port configurations and throughput levels.

What accessories are available for the ASR-9006-AC chassis?

Available accessories include power supply units, fan modules, and additional line cards for expanded functionality.

How does the ASR-9006-AC chassis compare with similar products?

The ASR-9006-AC chassis delivers higher port density and processing power compared to many competitors, making it suitable for high-capacity networks.

What common issues might I encounter with the ASR-9006-AC chassis, and how can I troubleshoot them?

Common issues include power supply failures and overheating, which can often be resolved by checking connections and ensuring proper ventilation.

What features does the ASR-9006-AC chassis offer for advanced routing?

It includes capabilities such as support for multiple routing protocols, robust QoS, and high availability features to ensure optimal network performance.

What are the main features of the Cisco ASR-9006-AC chassis?

The Cisco ASR-9006-AC chassis offers high-capacity networking, modular design, and strong scalability, making it suitable for service providers and enterprises needing robust routing solutions.

How cost-effective is the Cisco ASR-9006-AC chassis for system integrators?

The Cisco ASR-9006-AC chassis provides excellent value with its advanced routing capabilities, reducing long-term operational costs and ensuring a strong return on investment for system integrators.

What are the common application scenarios for the Cisco ASR-9006-AC chassis?

The Cisco ASR-9006-AC chassis is ideal for high-density data centers, service provider core networks, and telecommunications environments requiring scalable and reliable routing infrastructures.

How to install the Cisco ASR-9006-AC chassis?

Installation involves mounting the chassis in a standard 19-inch rack, connecting power and network interfaces, and configuring initial network settings through the console port.

Does the Cisco ASR-9006-AC chassis require frequent upgrades?

The Cisco ASR-9006-AC chassis is designed for longevity, with support for software updates and modular hardware expansions, minimizing the need for frequent upgrades.

Are there alternative products to the Cisco ASR-9006-AC chassis?

Alternatives include the Cisco ASR 9010 and the Juniper MX480, which also offer high-capacity routing solutions with similar features and scalability.
