7613-S323B-8G-P - Cisco 7613 Router|LinkNewNet

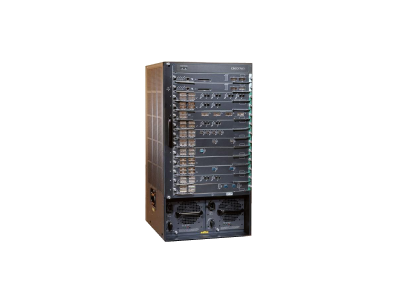

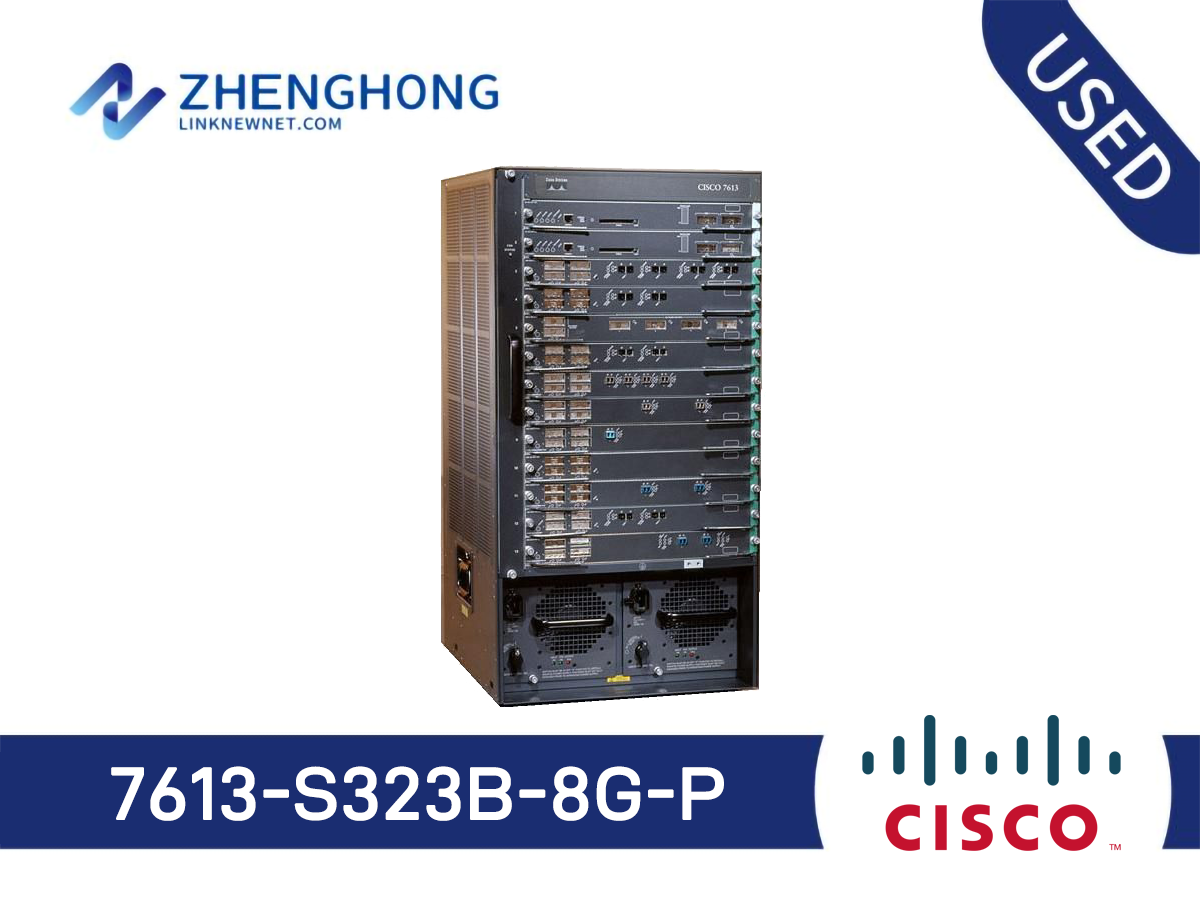

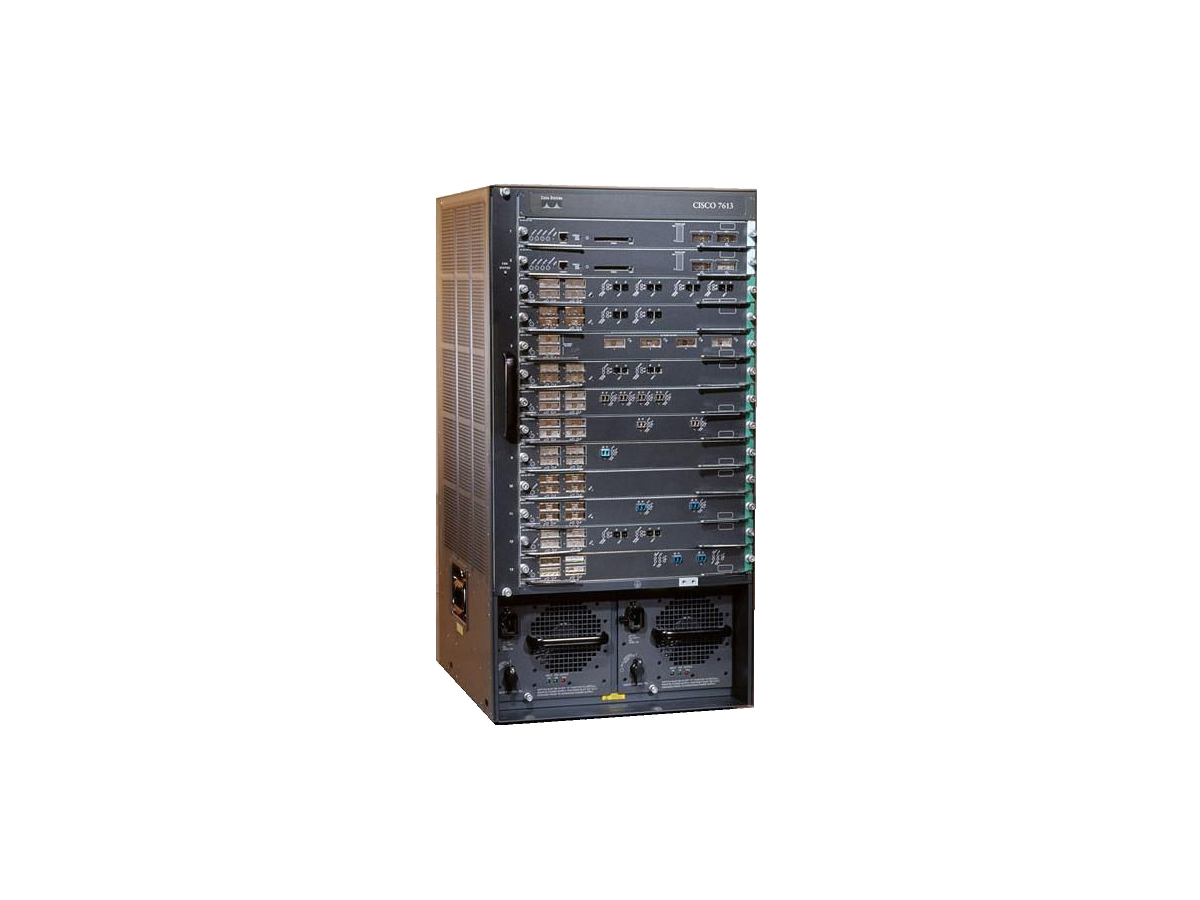

7613-S323B-8G-P - Cisco 7613 Router

Model: 7613-S323B-8G-P

Detail: Cisco 7613 Chassis, 13-slot, SUP32-8GE-3B, PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7613-S323B-8G-P Specification
General
Device Type	Router - with Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A
Enclosure Type	Rack-mountable - modular - 18U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol	IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, PIM-SSM, Multiprotocol BGP
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features	DHCP support, NAT support, VPN support, ARP support, MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support
Compliant Standards	IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
RAM	512 MB (installed) / 1 GB (max)
Flash Memory	256 MB (installed) / 1 GB (max)
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ USB 2.0: 1 x 4 pin USB Type B ¦ 8 x SFP (mini-GBIC)
Expansion Slots	13 (total) / 12 (free) x expansion slot
Installed Modules Qty (Max)	1 (installed) / 13 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	1 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit	Included
Dimensions & Weight
Width	16.7 in
Depth	17.6 in
Height	32.4 in
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%

Q&A

What common troubleshooting steps are there for the Cisco 7613-S323B-8G-P?

Common troubleshooting includes checking power supply connections, verifying module status, and consulting the Cisco documentation for error codes and solutions.

What accessories are available for the Cisco 7613-S323B-8G-P?

Accessories for the Cisco 7613-S323B-8G-P include additional modules, power supply units, and rack mounting kits.

How does the Cisco 7613-S323B-8G-P compare to similar products?

The Cisco 7613-S323B-8G-P offers similar performance and scalability to the Cisco 7609 and Cisco 7610 but with more slot capacity, making it suitable for larger network demands.

Is the Cisco 7613-S323B-8G-P a good choice for system integrators?

Yes, the Cisco 7613-S323B-8G-P is a versatile and powerful router that can meet the demanding needs of system integrators and distributors, supporting extensive networking applications.

How cost-effective is the Cisco 7613-S323B-8G-P?

The Cisco 7613-S323B-8G-P offers a budget-friendly solution with robust performance, ideal for system integrators aiming to optimize costs without compromising on quality.

What are the key features of the Cisco 7613-S323B-8G-P?

The Cisco 7613-S323B-8G-P features a 13-slot chassis, SUP32-8GE-3B, and power supply, providing flexibility and high performance for various networking needs.

In which scenarios can the Cisco 7613-S323B-8G-P be used?

The Cisco 7613-S323B-8G-P is ideal for WAN aggregation and internet edge applications, supporting high bandwidth and scalable network infrastructures.

How to install the Cisco 7613-S323B-8G-P?

The Cisco 7613-S323B-8G-P installation involves mounting the chassis, inserting modules into the slots, and connecting power and network cables. Follow the Cisco installation guide for detailed steps.

Does the Cisco 7613-S323B-8G-P need to be upgraded?

It is advisable to check for firmware updates to ensure optimal performance and security for your Cisco 7613-S323B-8G-P.

Are there alternative products to the Cisco 7613-S323B-8G-P?

Alternatives to the Cisco 7613-S323B-8G-P include other models in the Cisco 7600 Series and the Cisco ASR 1000 Series for modern applications.
